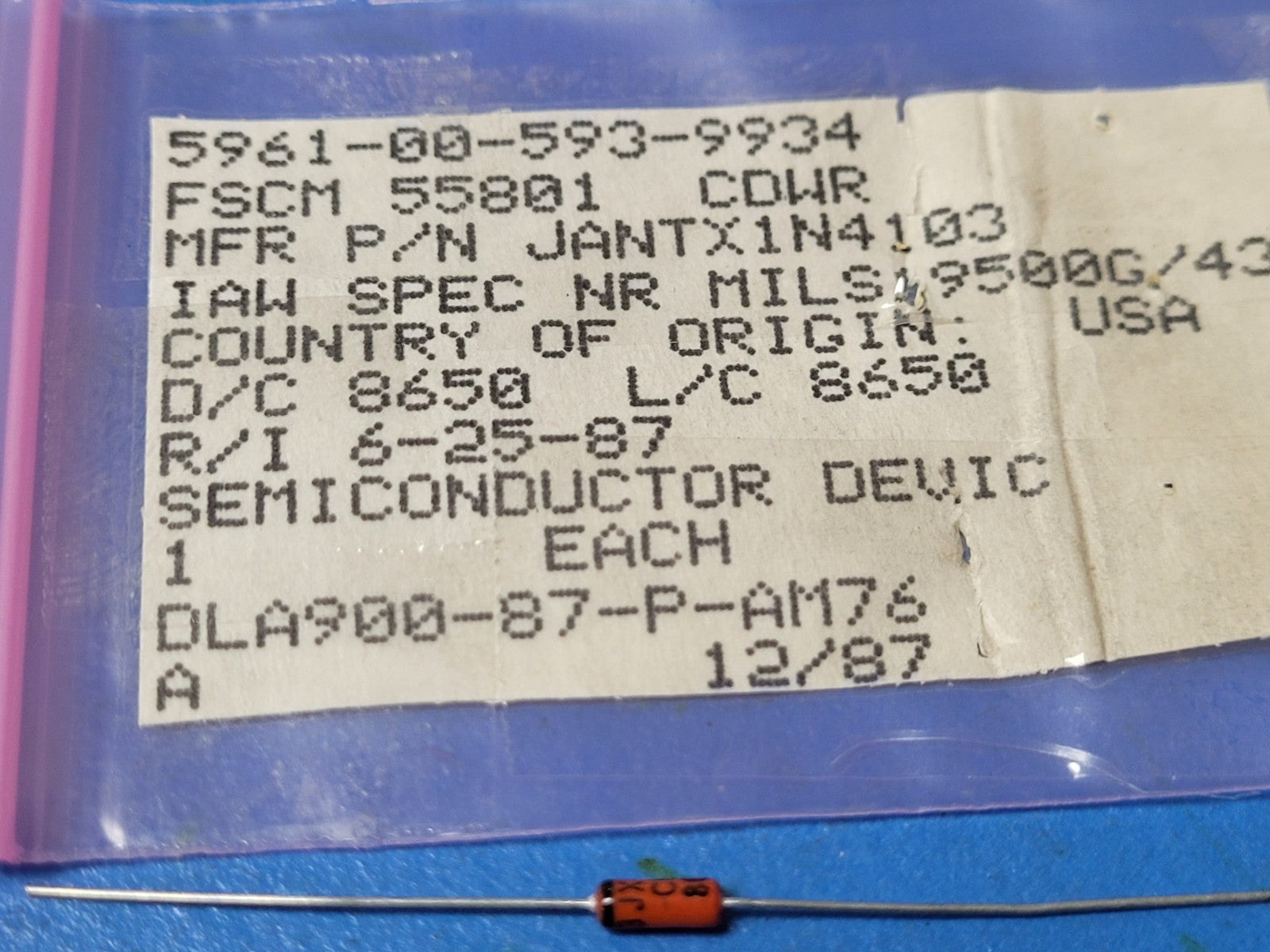

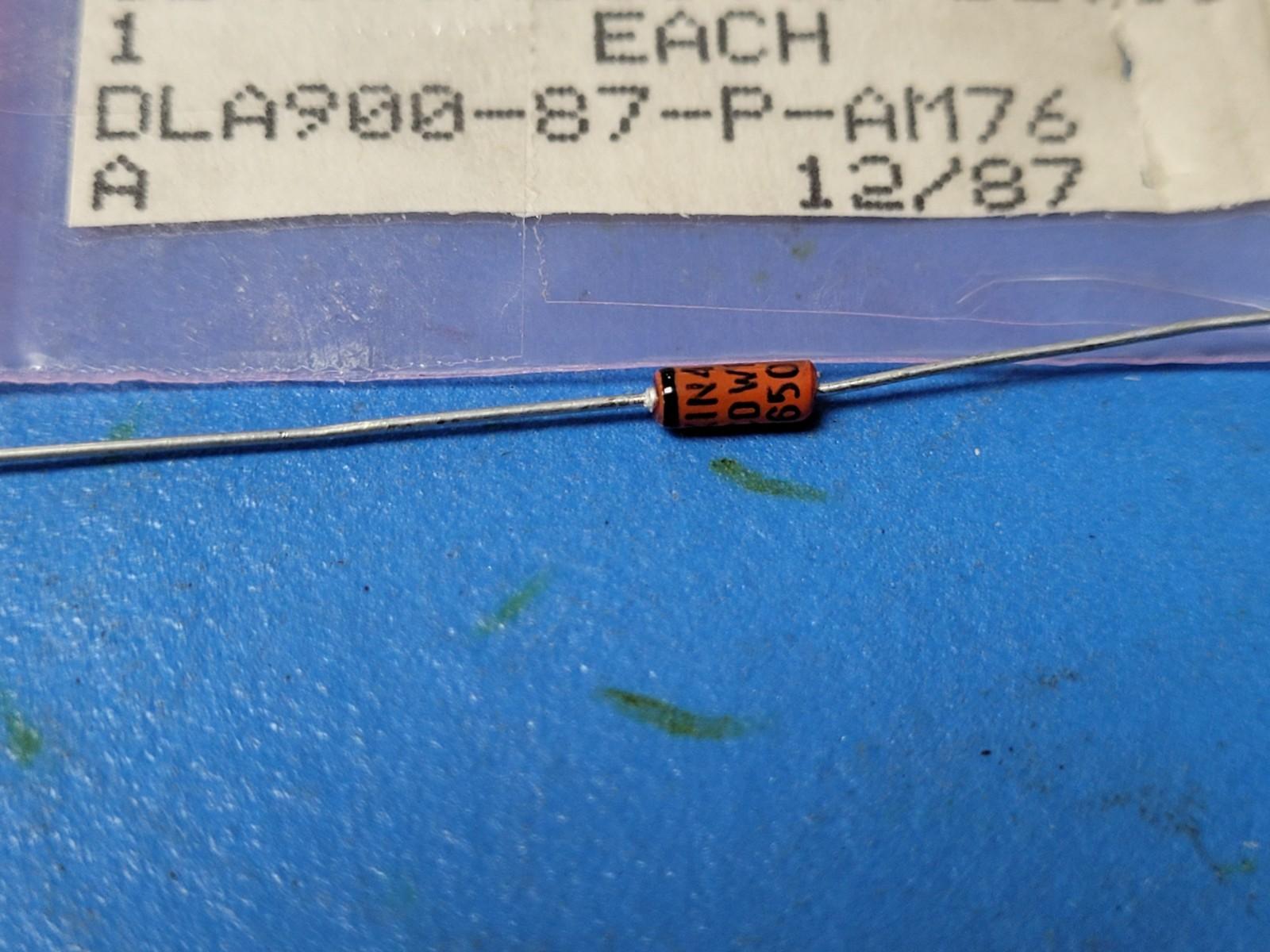

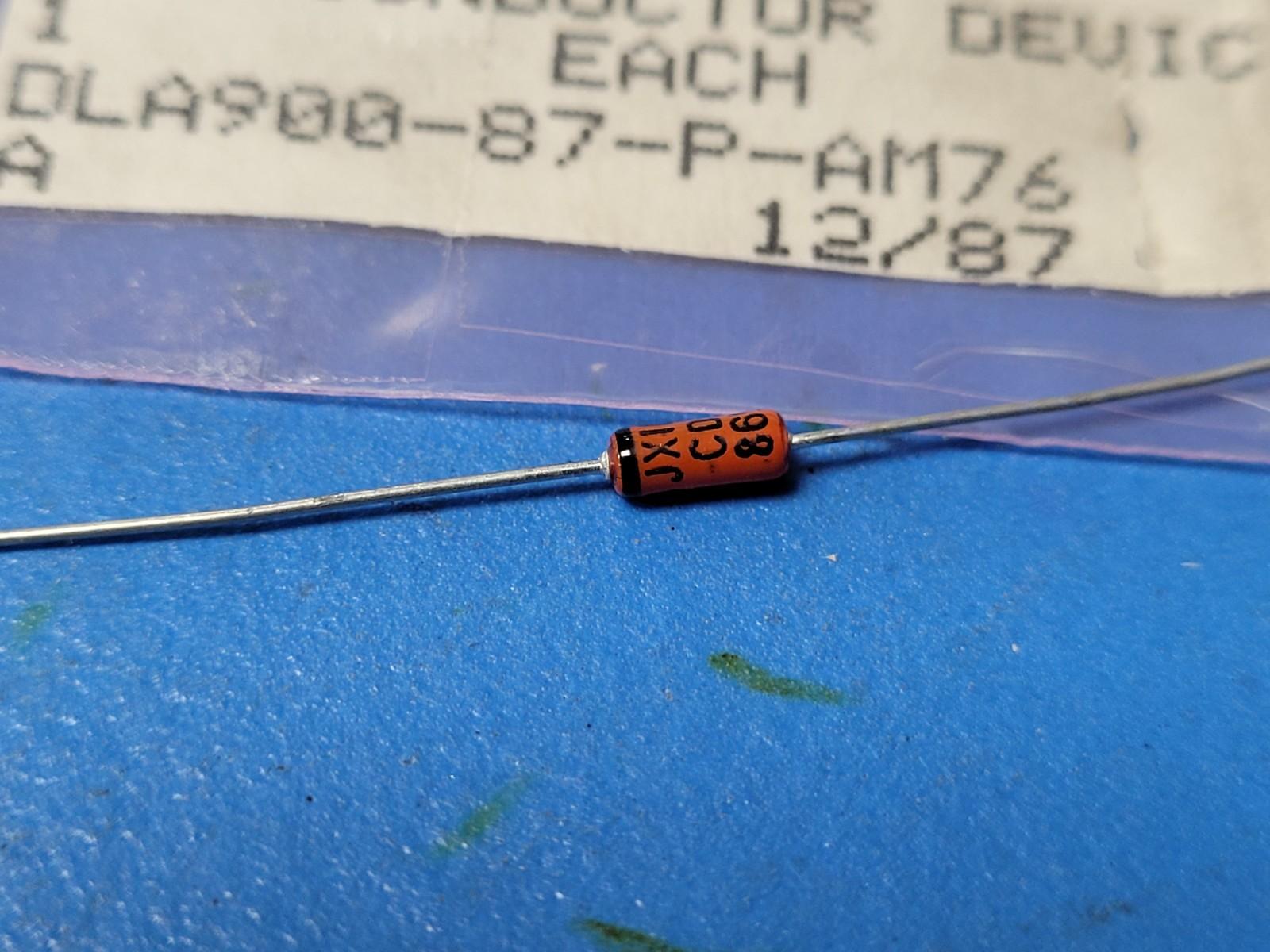

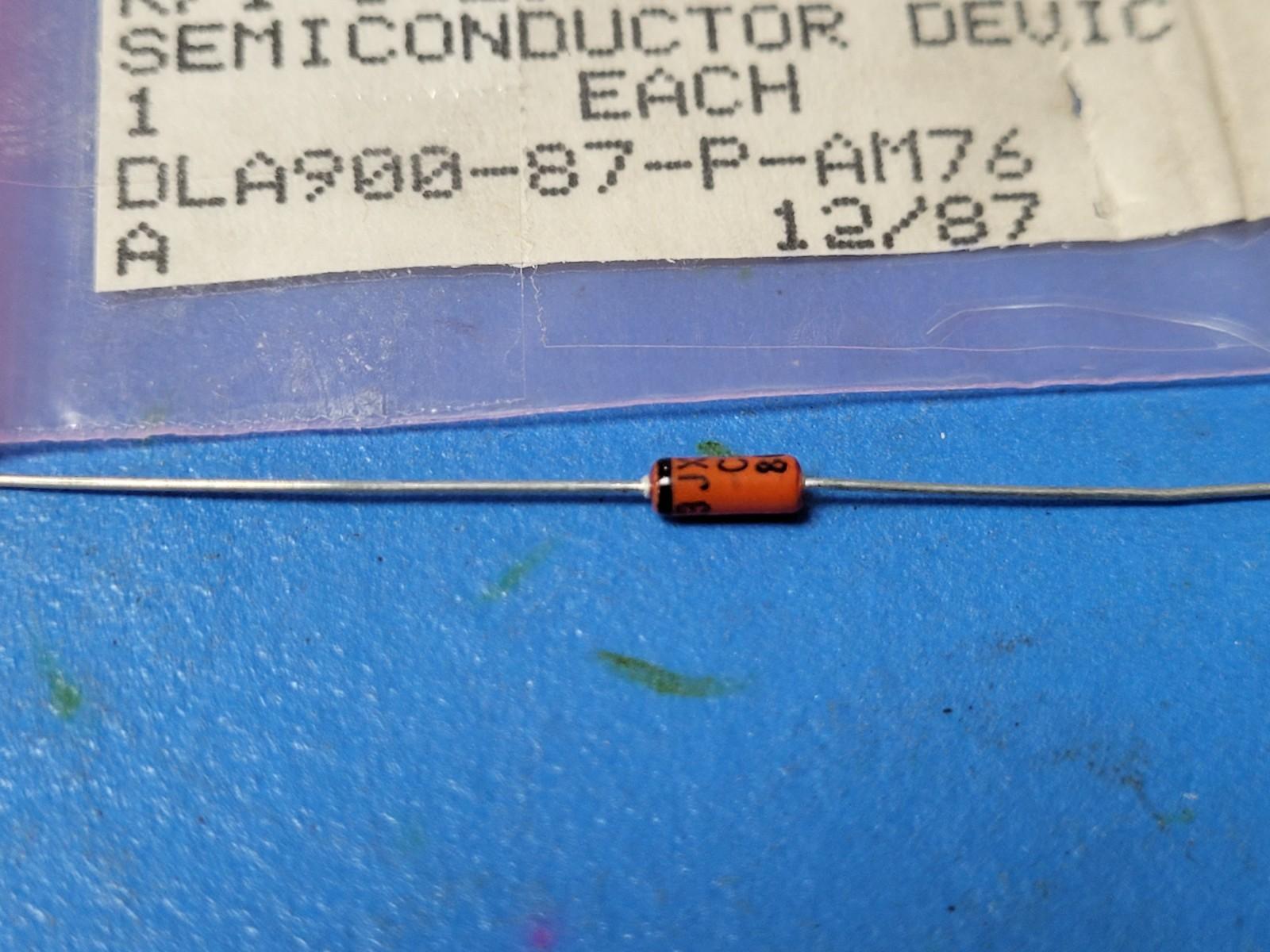

(1 PC) JANTX1N4103 Zener Diode 9.1 V ±5% Through Hole DO-204AH (DO-35)
Tax included.
THIS IS FOR (6 PCS) OF JAN1N4103
Zener Diode 9.1 V ±5% Through Hole DO-204AH (DO-35)
Additional Feature LOW NOISE
Case Connection ISOLATED
Configuration SINGLE
Diode Element Material SILICON
Diode Type ZENER DIODE
Dynamic Impedance-Max (ohm) 200.000000000000000
JESD-30 Code O-LALF-W2
J-STD-609 Code e0
Number of Elements 1
Number of Terminals 2
Operating Temperature-Max (Cel) 200.0000000000000000
Package Body Material GLASS
Package Shape ROUND
Package Style LONG FORM
Polarity UNIDIRECTIONAL
Power Dissipation-Max (W) 0.250000000000000
DLA Qualification Not Qualified
Screening Level / Reference Standard MIL-19500/435
Reference Voltage-Nom (V) 9.100000000000000
Reverse Current-Max (uA) 1.000000000000000
Surface Mount NO
Technology ZENER
Terminal Finish TIN LEAD
Terminal Form WIRE
Terminal Position AXIAL
Voltage Tolerance-Max (%) 5.0000
Working Test Current (mA) 0.2500
