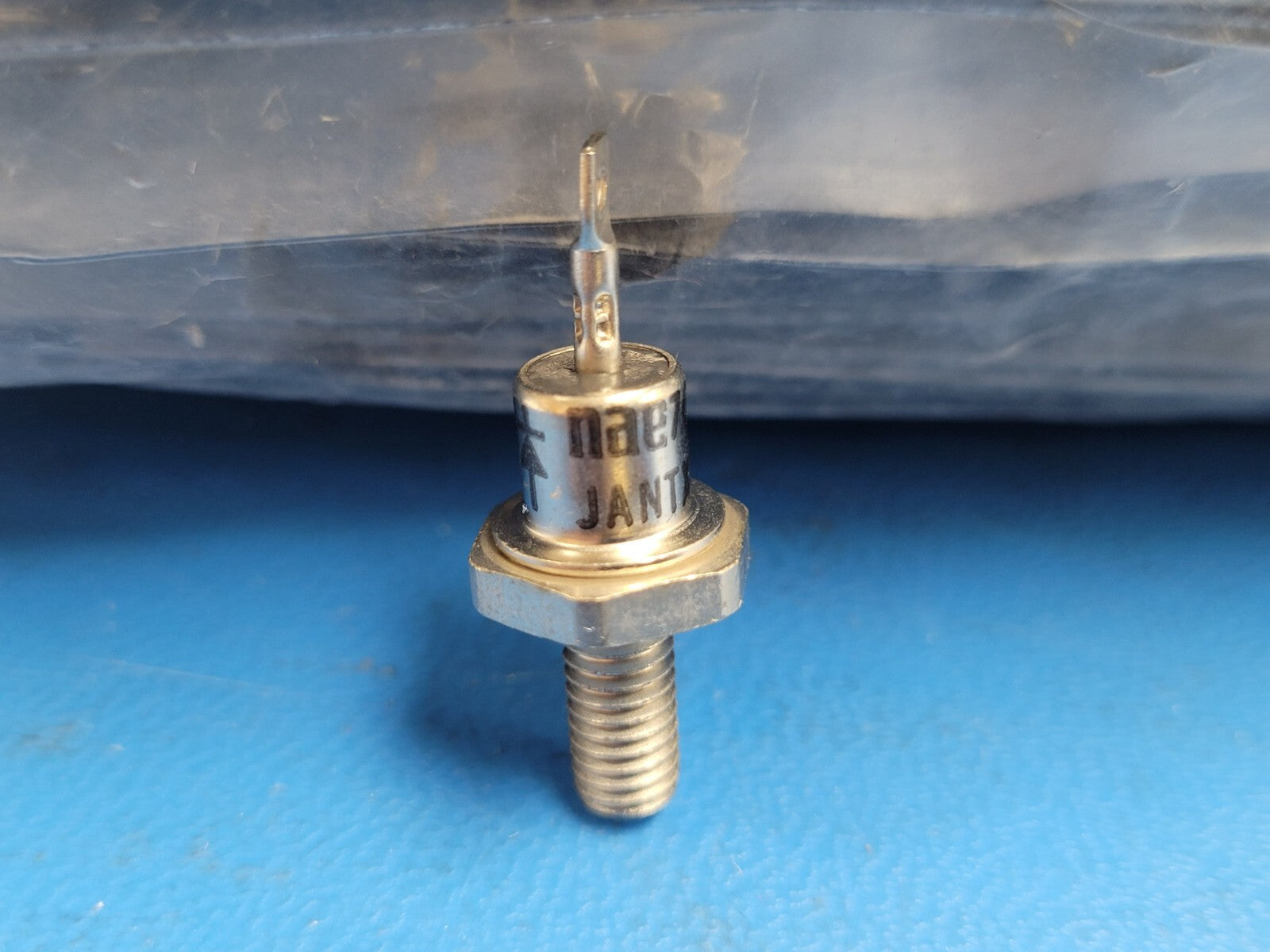

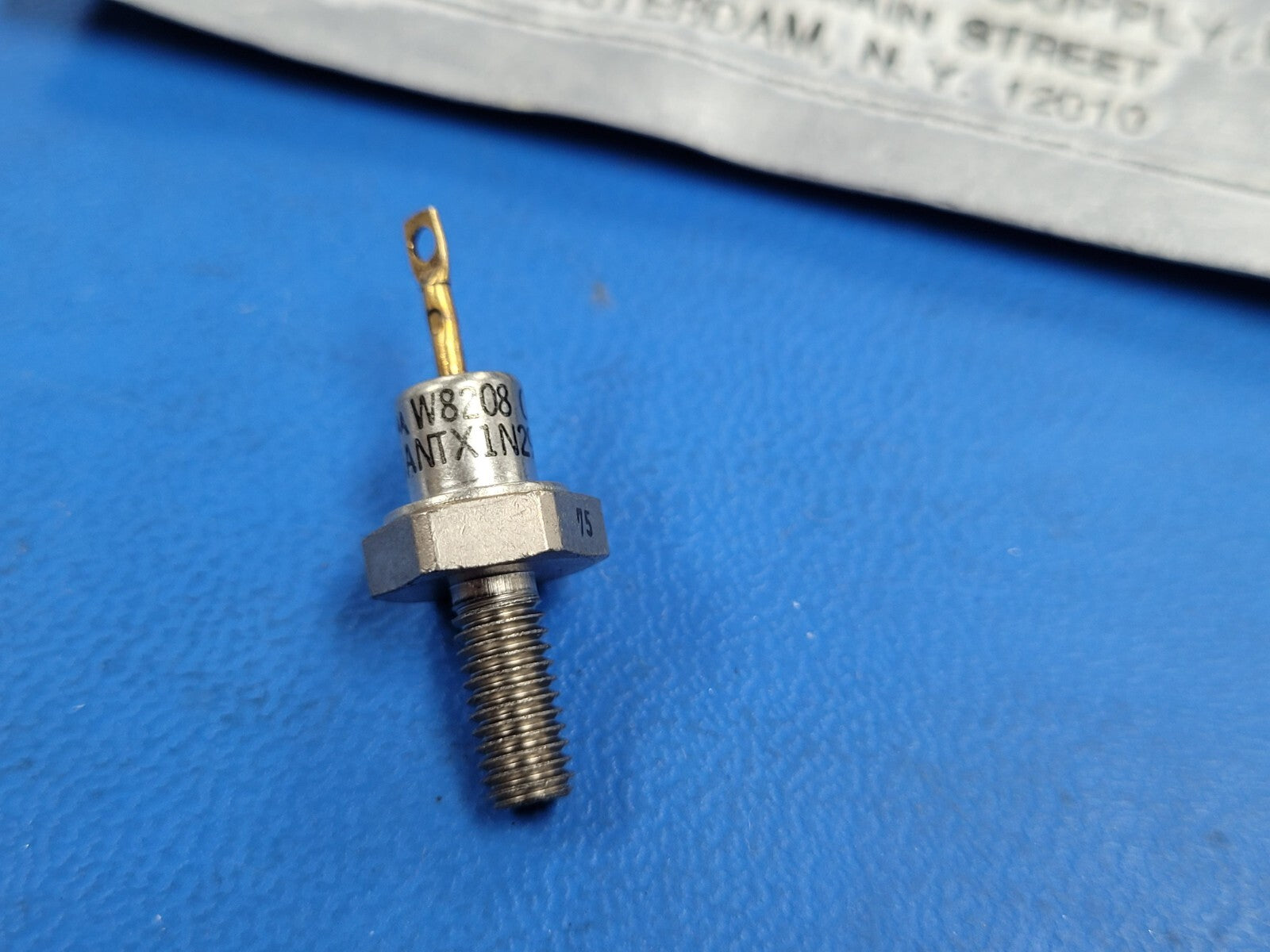

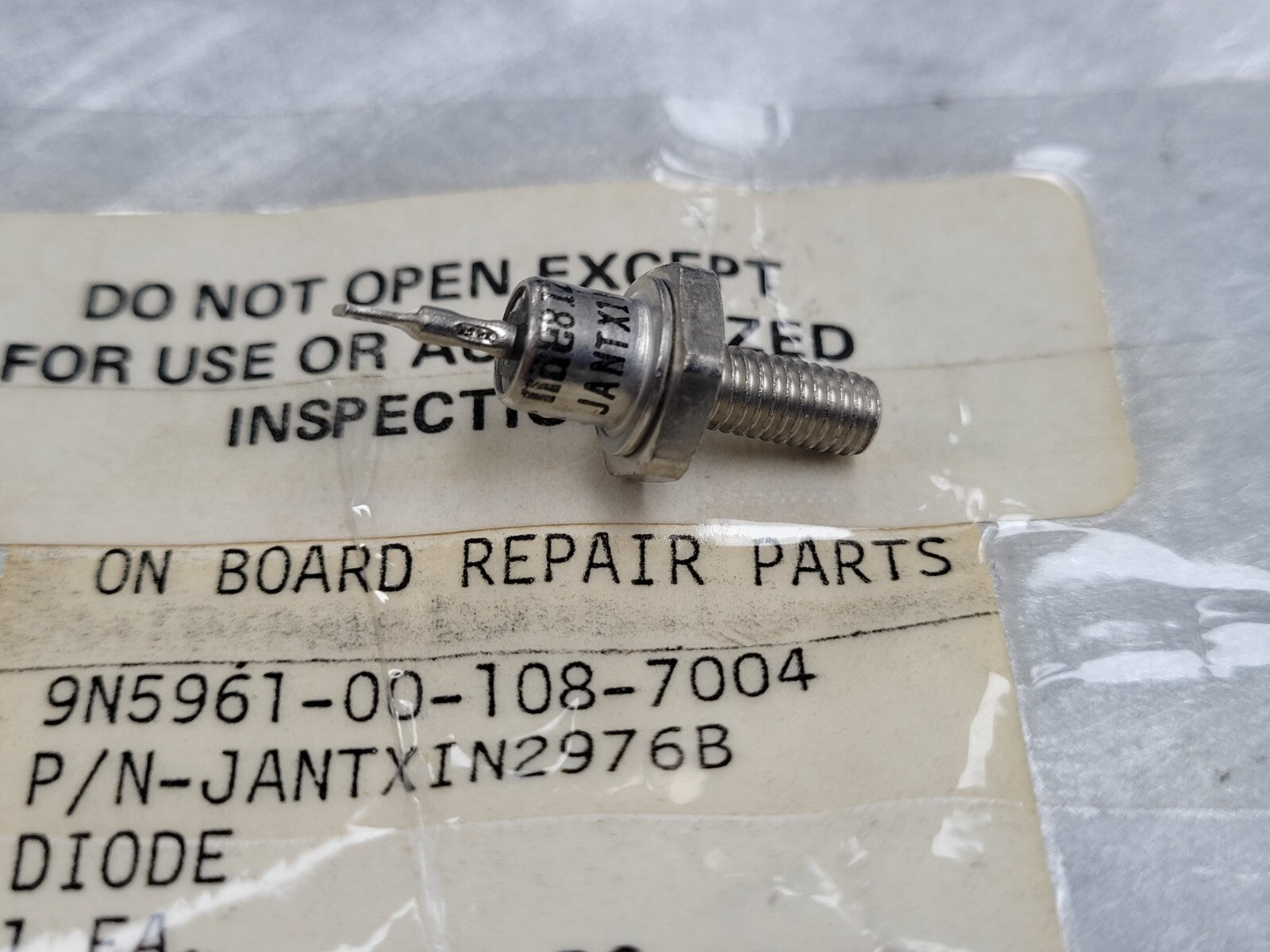

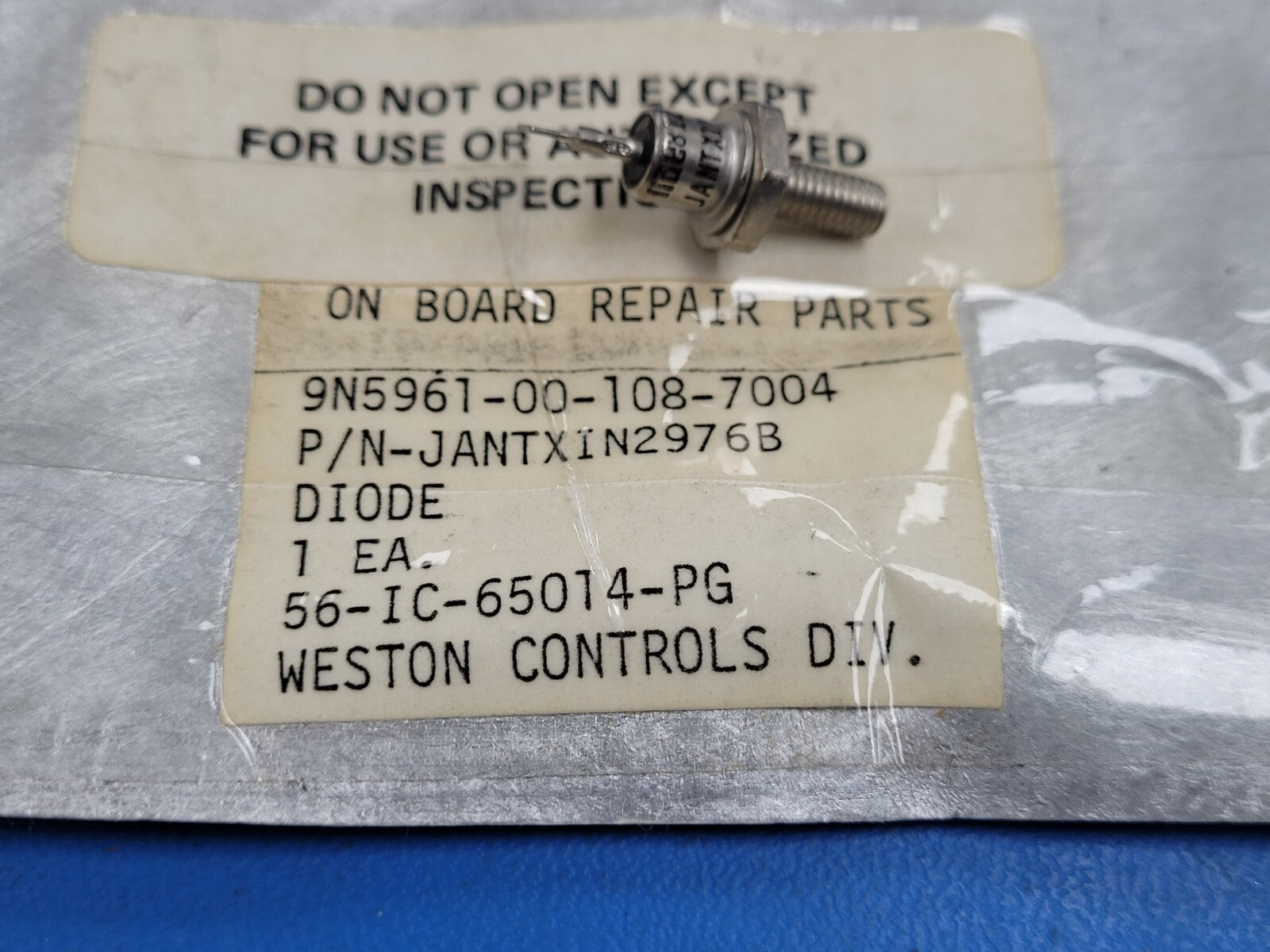

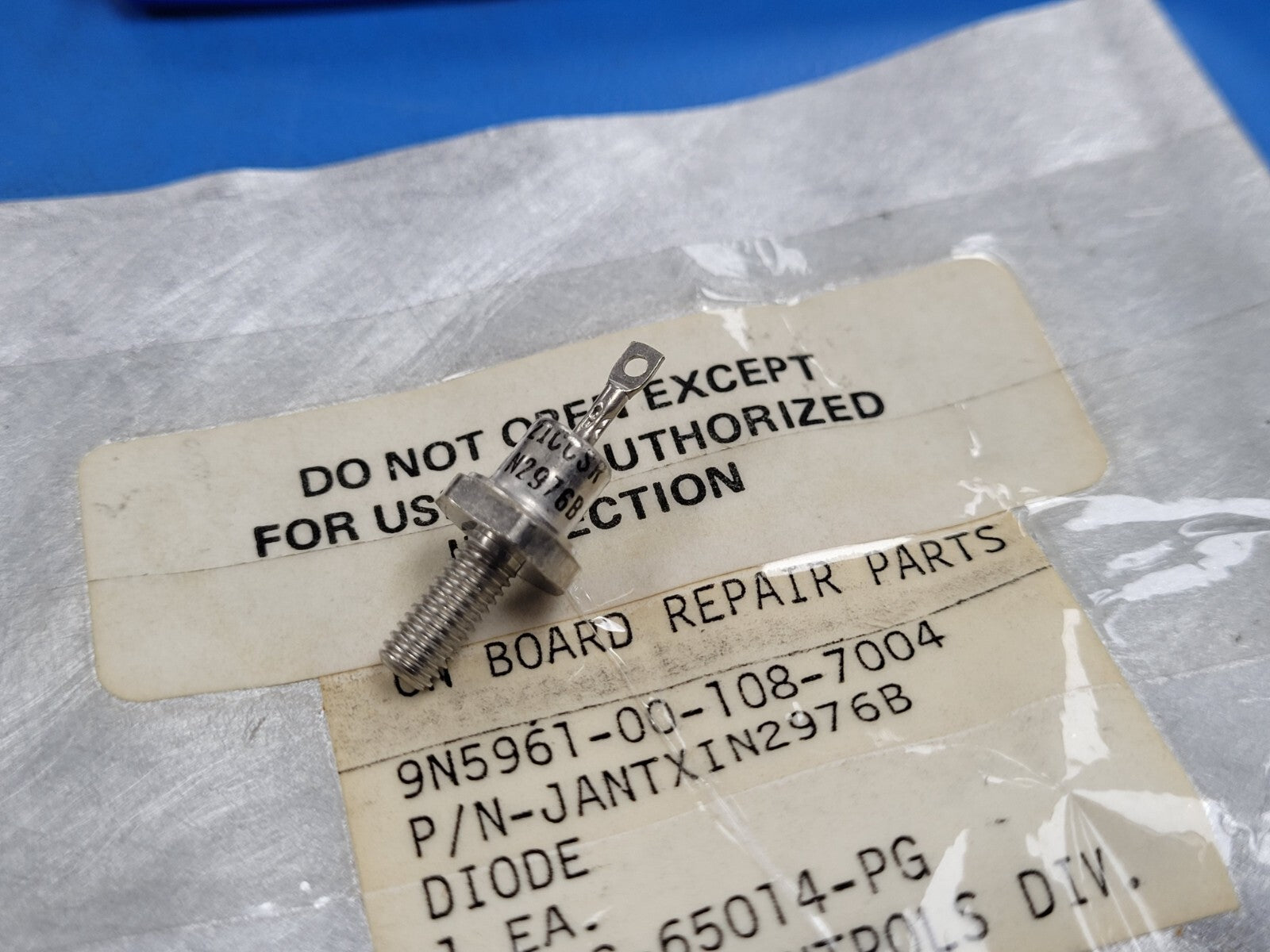

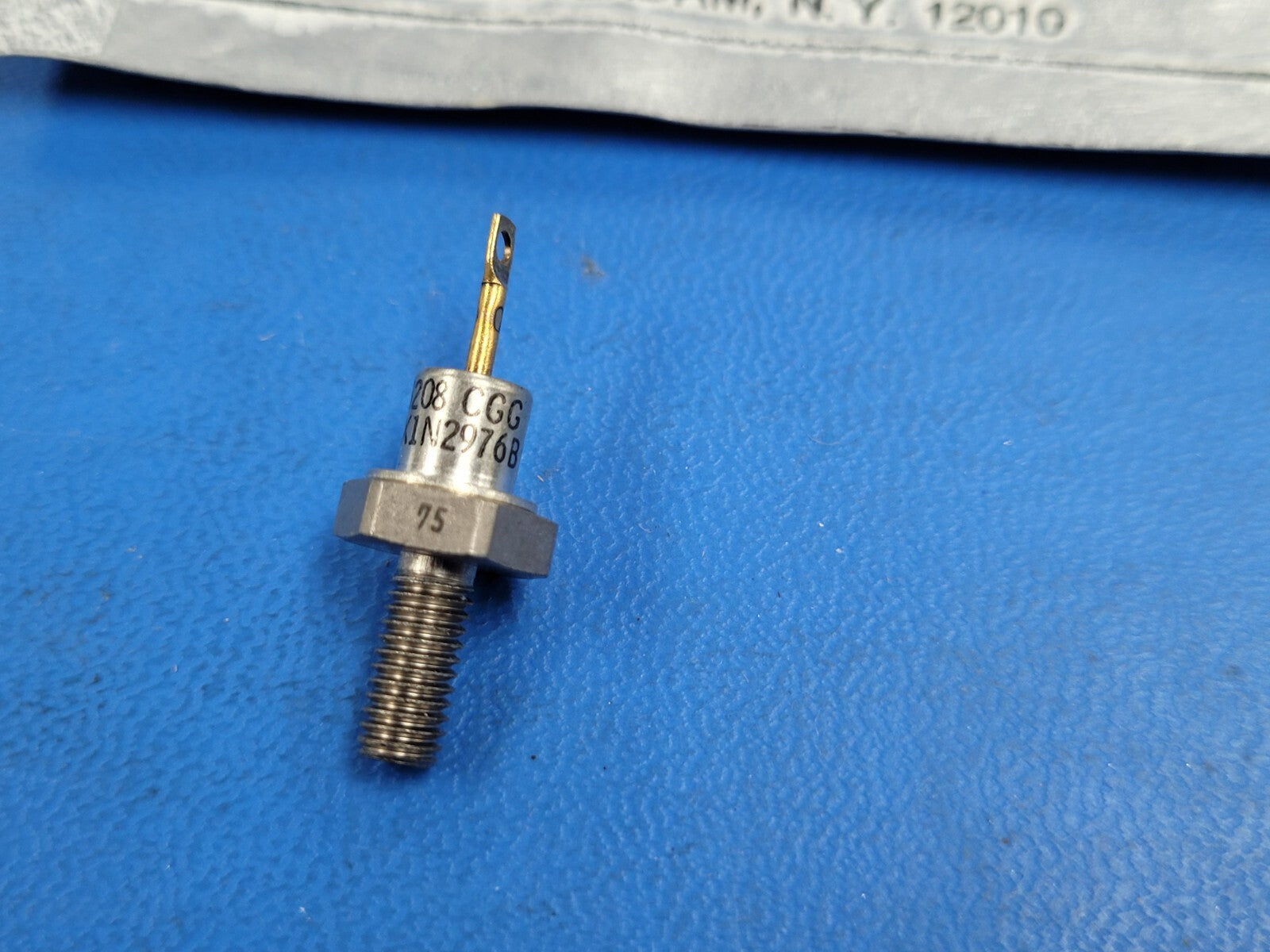

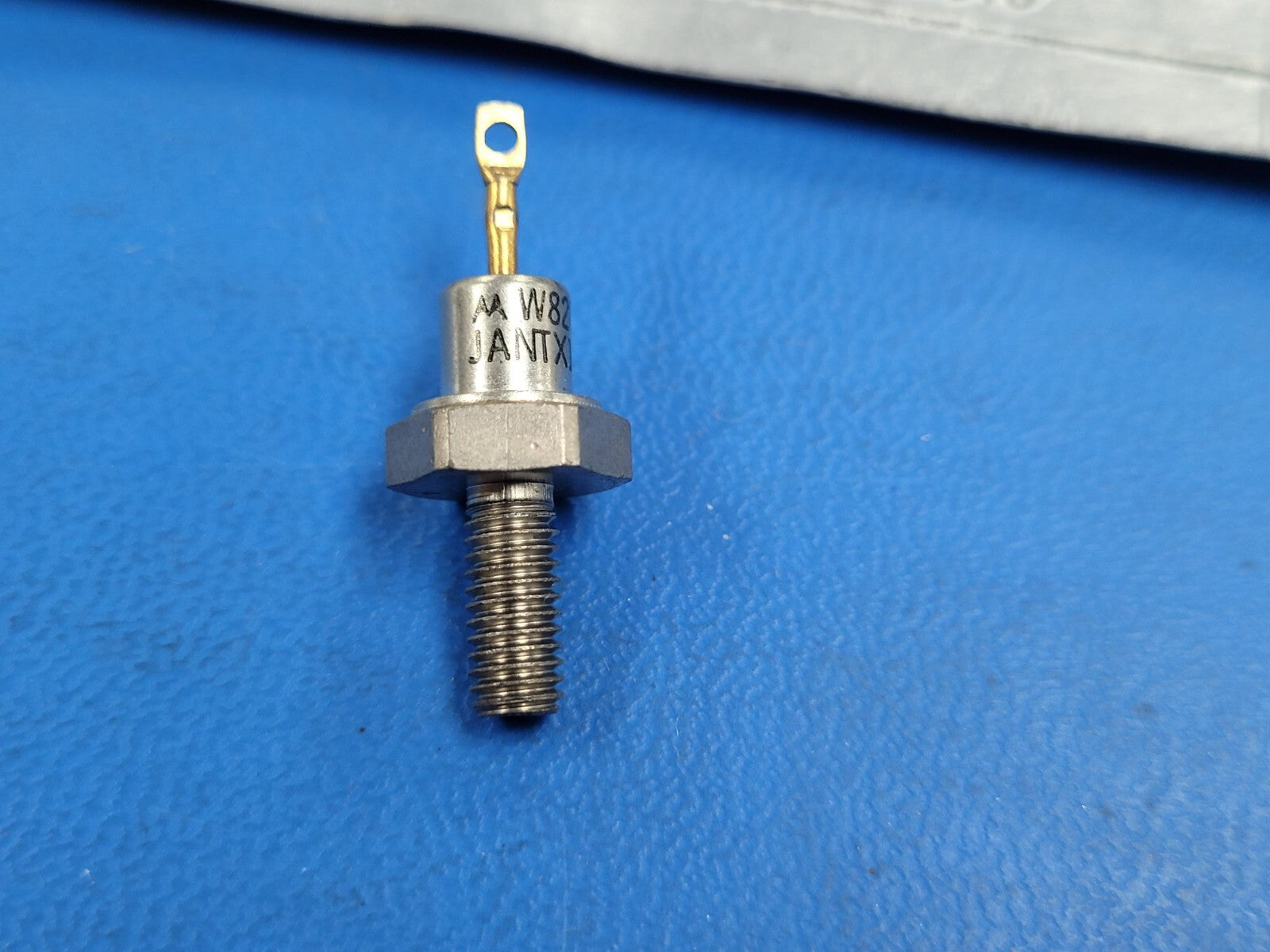

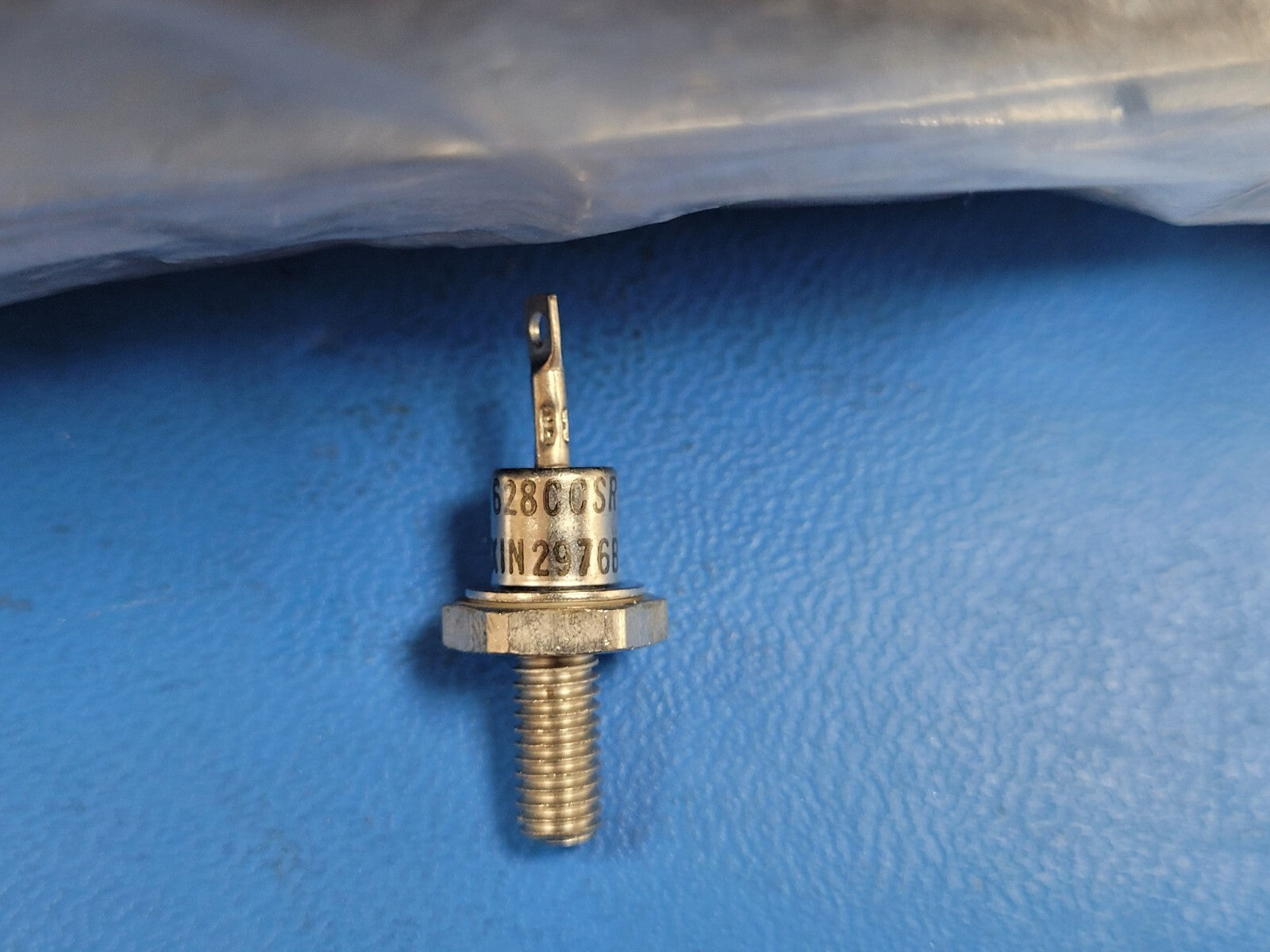

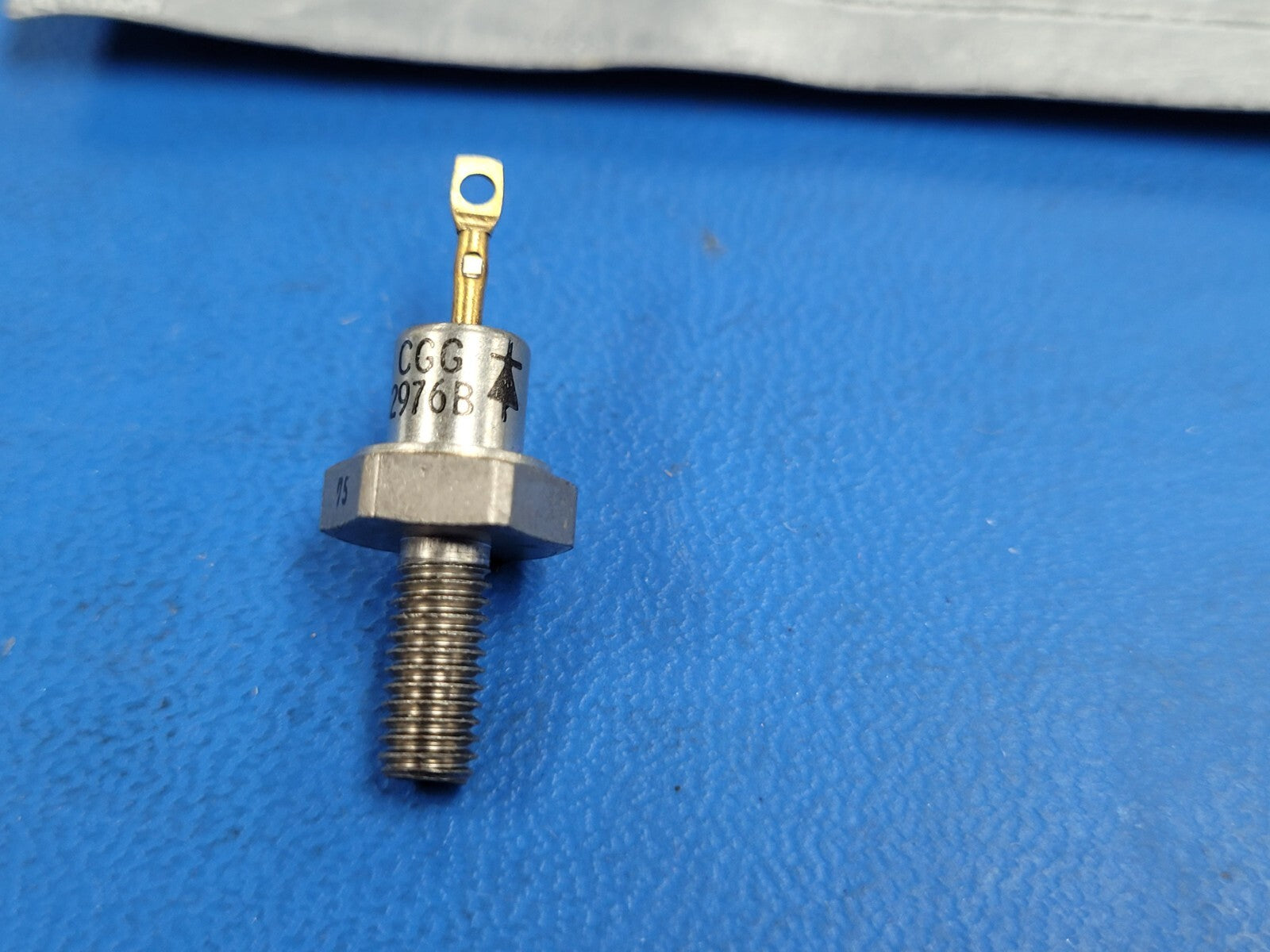

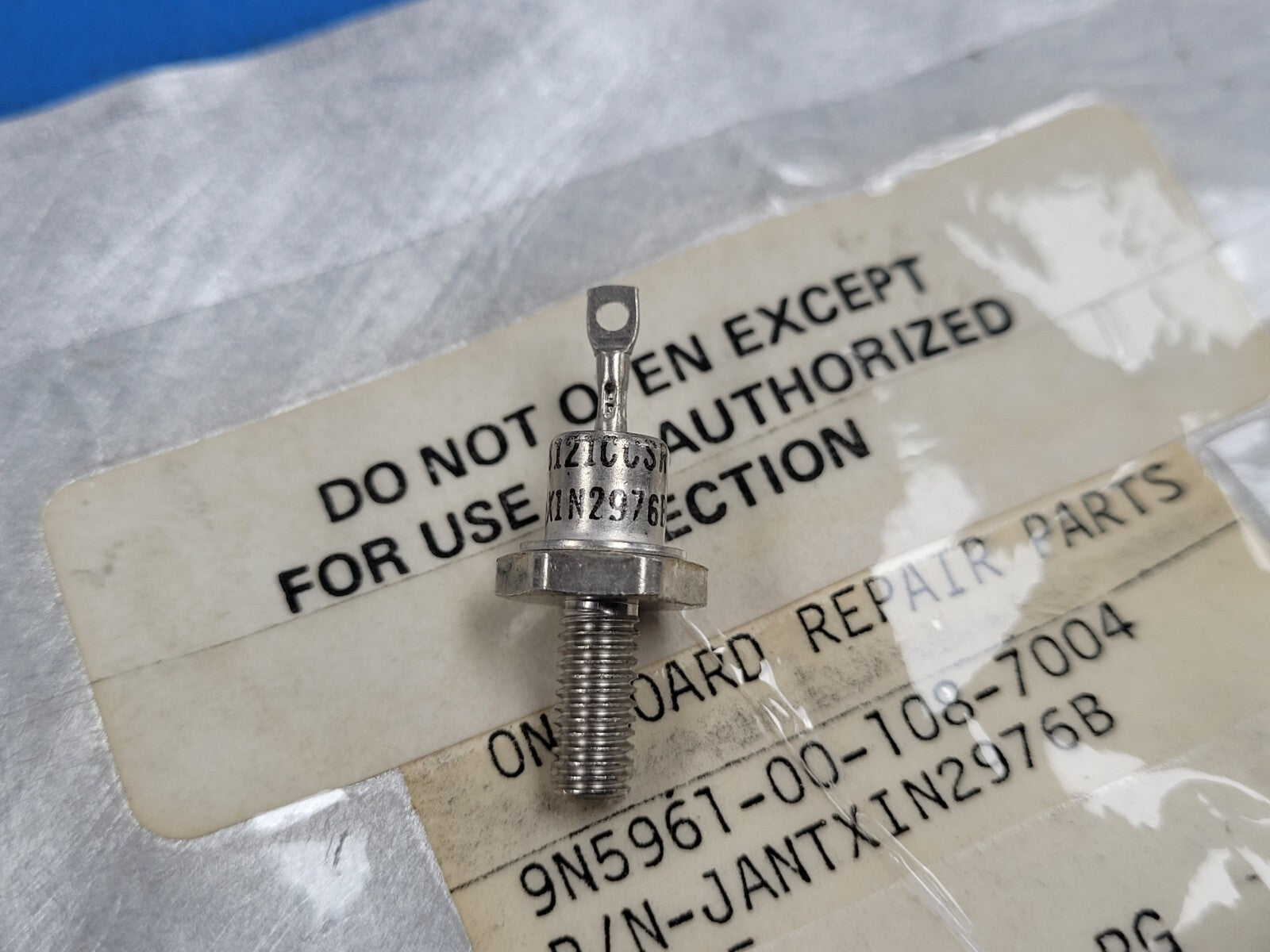

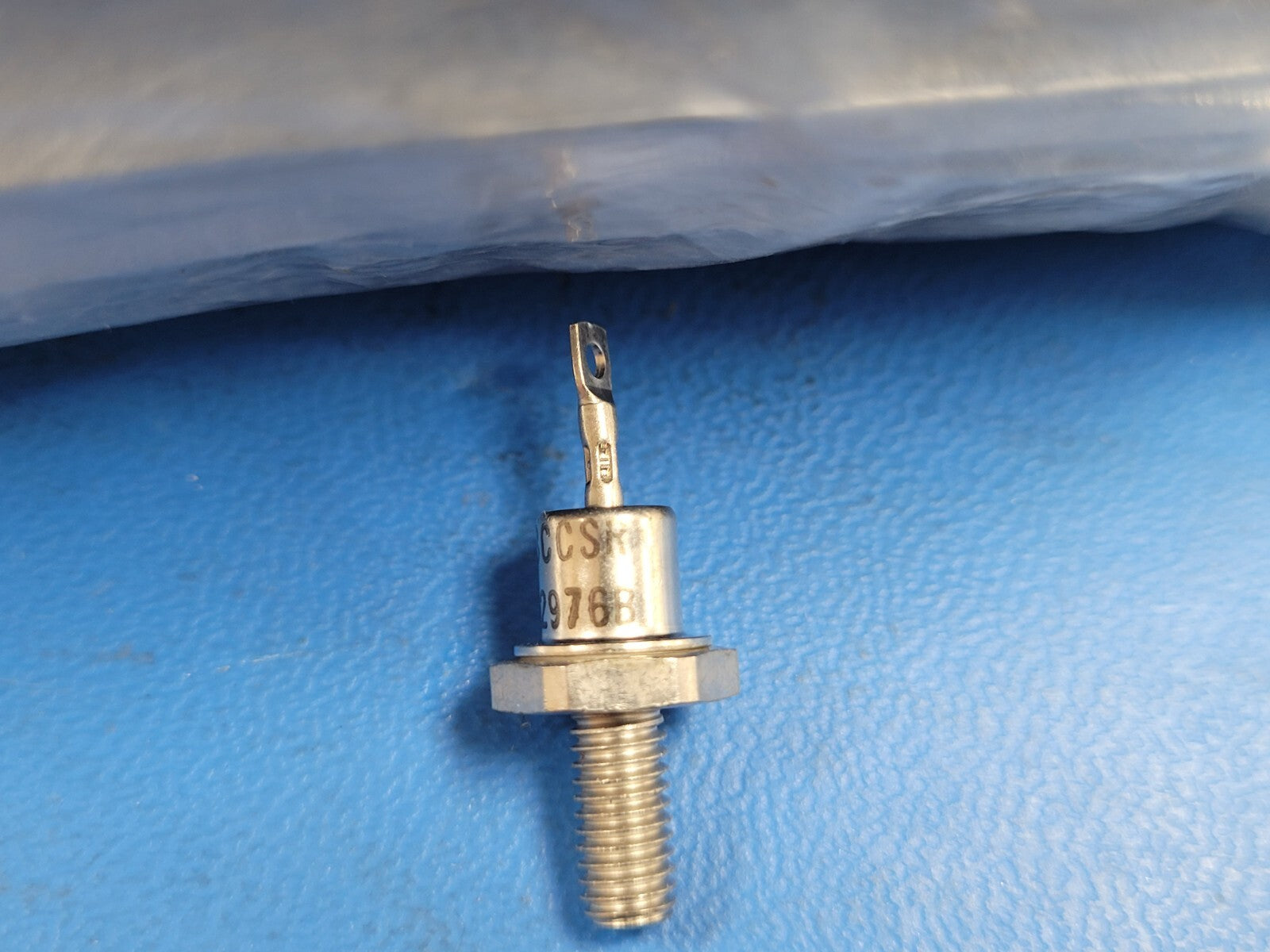

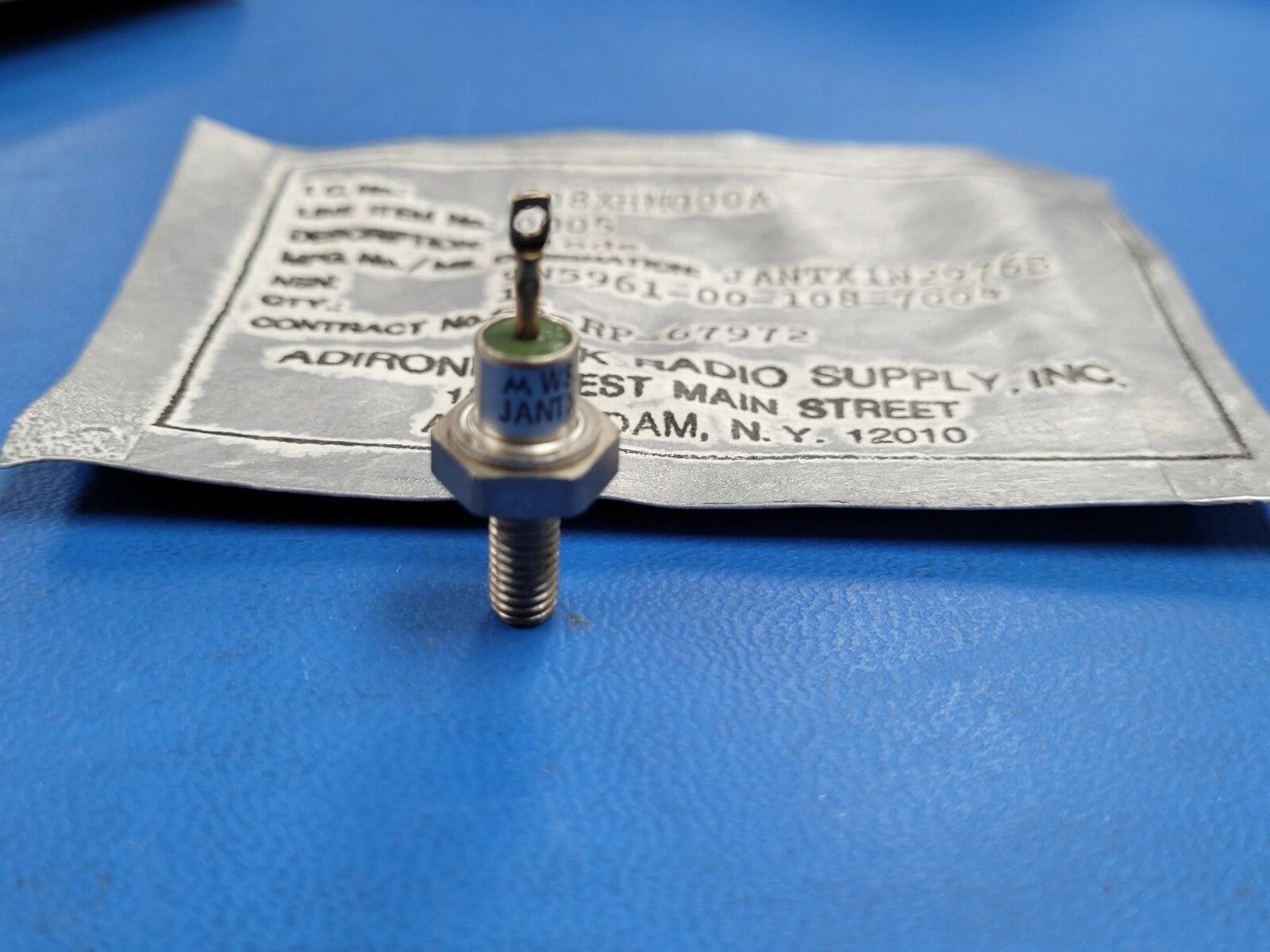

(1 PC) JANTX1N2976B 9N5961-00-108-7004 Zener Diode 12 V 10 W ±5% Stud Mount DO-4
Tax included.
THIS IS FOR (1 PC) OF JANTX1N2976B 9N5961-00-108-7004
Zener Diode 12 V 10 W ±5% Stud Mount DO-4
Status Discontinued
Diode Type ZENER DIODE
Case Connection ANODE
Configuration SINGLE
Diode Element Material SILICON
JEDEC-95 Code DO-4
JESD-30 Code O-MUPM-D1
Knee Impedance-Max 250.0 ohm
Number of Elements 1.0
Number of Terminals 1
Operating Temperature-Min -65.0 Cel
Operating Temperature-Max 175.0 Cel
Package Body Material METAL
Package Shape ROUND
Package Style POST/STUD MOUNT
Polarity UNIDIRECTIONAL
Power Dissipation-Max 10.0 W
Qualification Status Not Qualified
Reference Voltage-Nom 12.0 V
Reverse Current-Max 5.0 µA
Surface Mount NO
Technology ZENER
Terminal Form SOLDER LUG
Terminal Position UPPER
Voltage Tol-Max 5.0 %
Working Test Current 210.0 mA
