(1 PC) ISL34340INZ-T13 IC VIDEO SERDES LONG 64TQFP
Tax included.

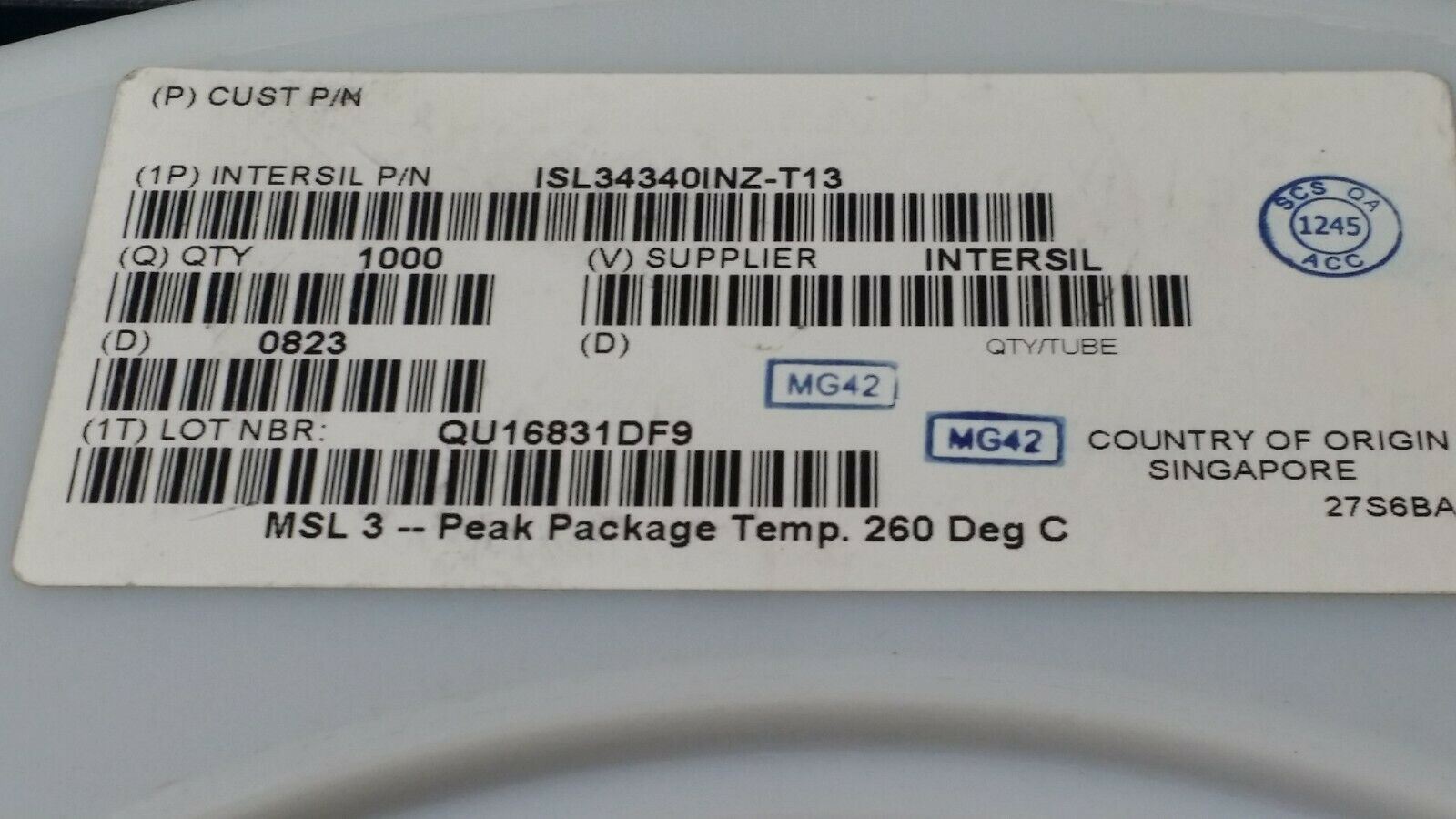

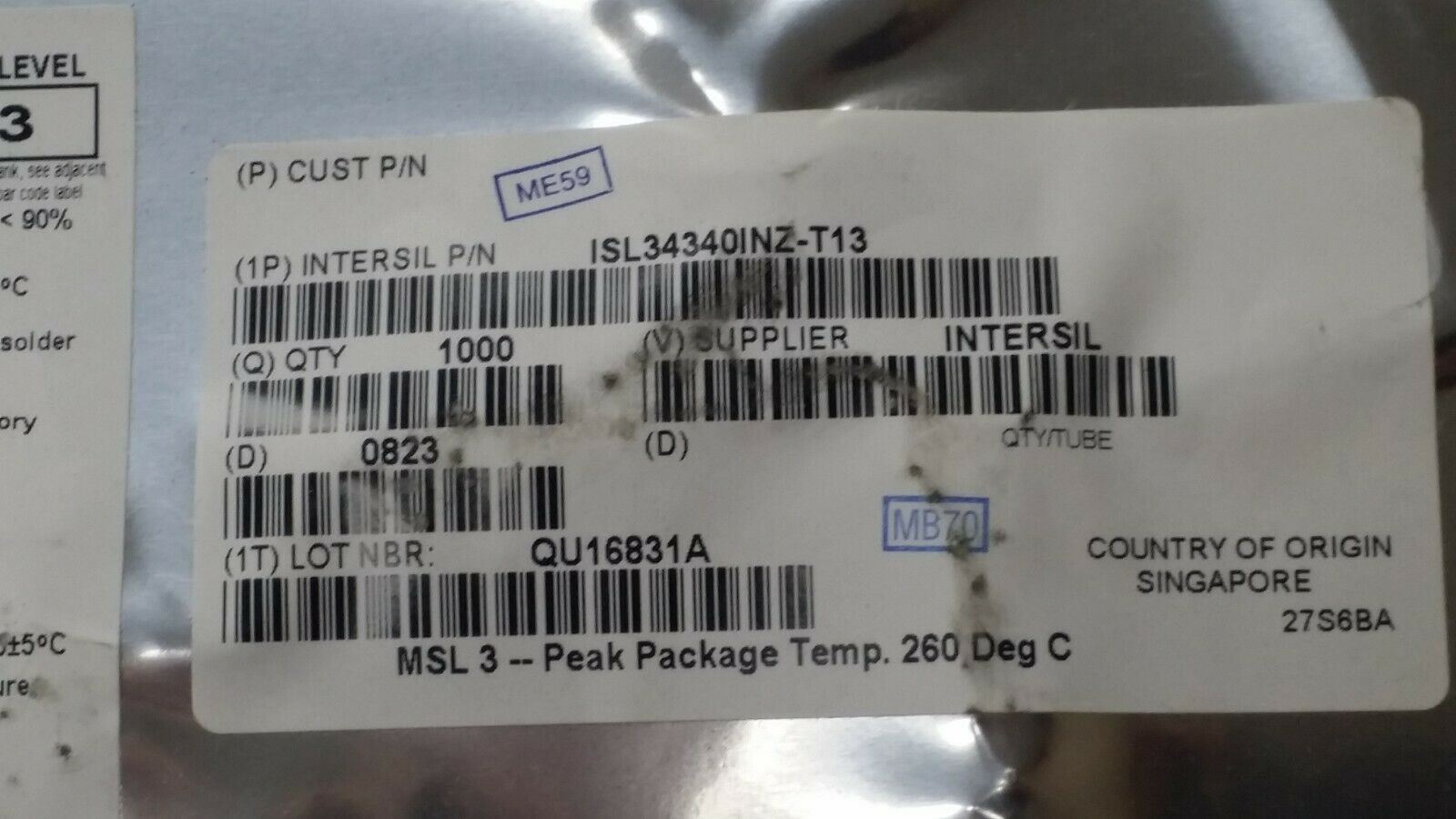

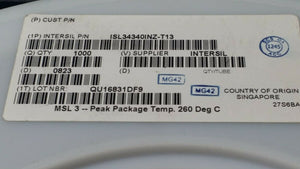

THIS IS FOR (1 PC) OF ISL34340INZ-T13 BY INTERSIL
WSVGA 24-Bit Long-Reach VideoSERDES with Bidirectional Side-Channel
Part #: ISL34340INZ-T13
Part Category: Interface ICs
Manufacturer: Intersil Corporation
Description: Interface Circuit, PQFP64
Mfr Package Description 10 X 10 MM, ROHS COMPLIANT, PLASTIC, MS-026ACD-HU, TQFP-64

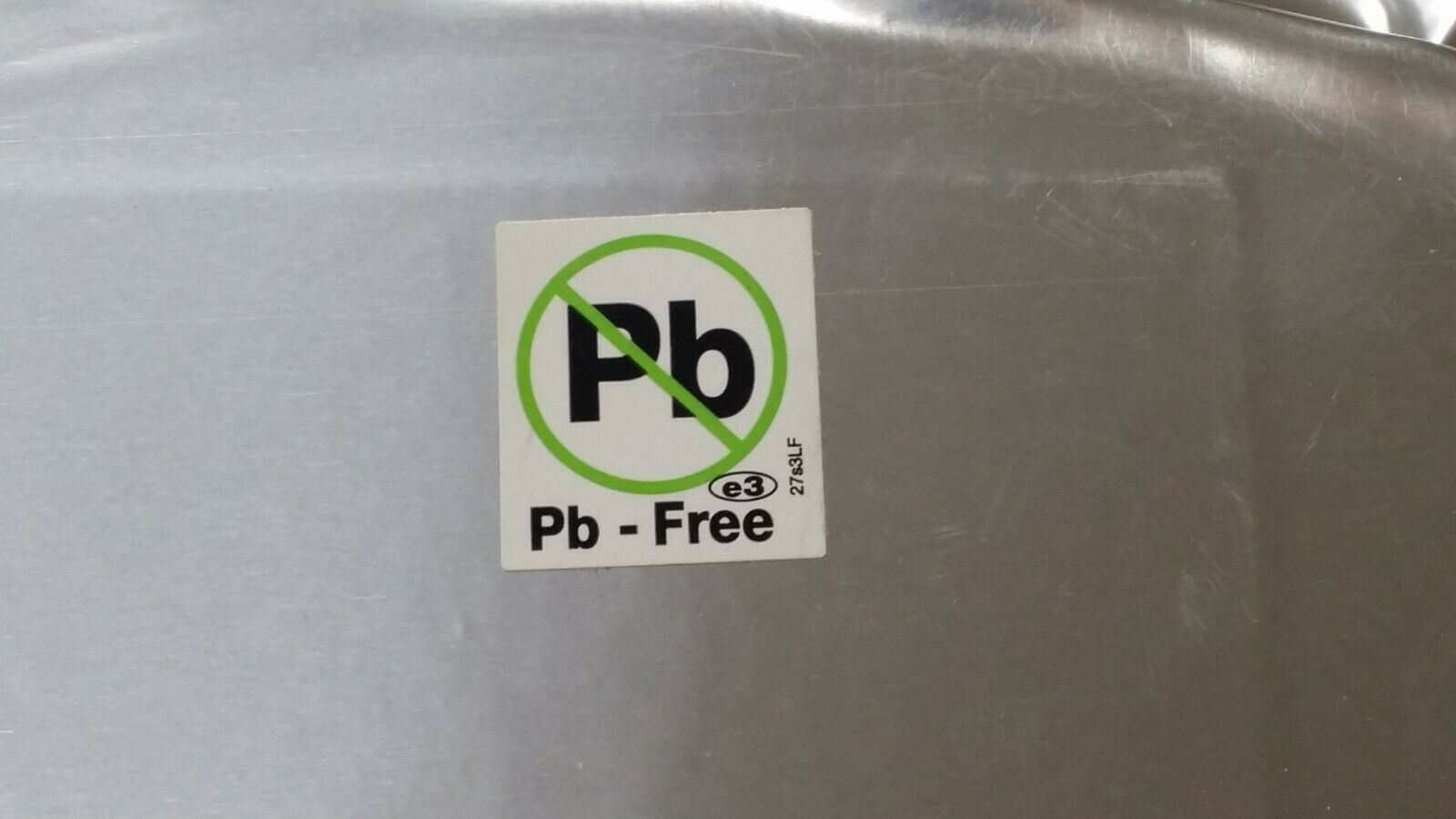

EU RoHS Compliant Yes
Status Discontinued
Interface IC Type INTERFACE CIRCUIT
JESD-30 Code S-PQFP-G64
Number of Functions 1
Number of Terminals 64
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 85.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code TFQFP
Package Equivalence Code TQFP64,.47SQ
Package Shape SQUARE
Package Style FLATPACK, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 1.2 mm
Sub Category Line Driver or Receivers
Supply Current-Max 90.0 mA
Supply Voltage-Nom 1.8 V
Supply Voltage-Min 1.7 V
Supply Voltage-Max 1.9 V
Supply Voltage1-Nom 3.3 V
Supply Voltage1-Min 3.0 V
Supply Voltage1-Max 3.6 V
Surface Mount YES
Temperature Grade INDUSTRIAL
Terminal Form GULL WING
Terminal Pitch 0.5 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 10.0 mm
Width 10.0 mm
Additional Feature IT ALSO REQUIRES 3 TO 3.6 I/O SUPPLY
