(1 PC) IS41C16256-50KI ISSI EDO DRAM, 256KX16, 50ns, CMOS, SOJ-40
(1 PC) IS41C16256-50KI ISSI EDO DRAM, 256KX16, 50ns, CMOS, SOJ-40
(1 PC) IS41C16256-50KI ISSI EDO DRAM, 256KX16, 50ns, CMOS, SOJ-40

(1 PC) IS41C16256-50KI ISSI EDO DRAM, 256KX16, 50ns, CMOS, SOJ-40

Tax included.
Only 8 left!

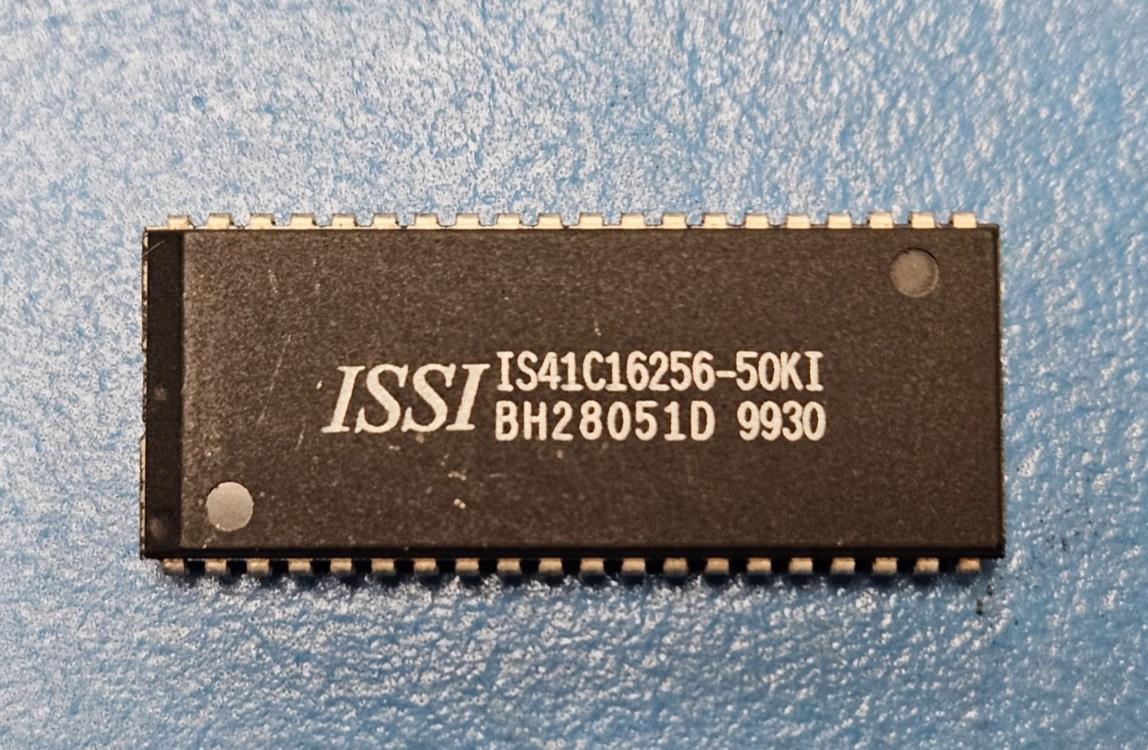

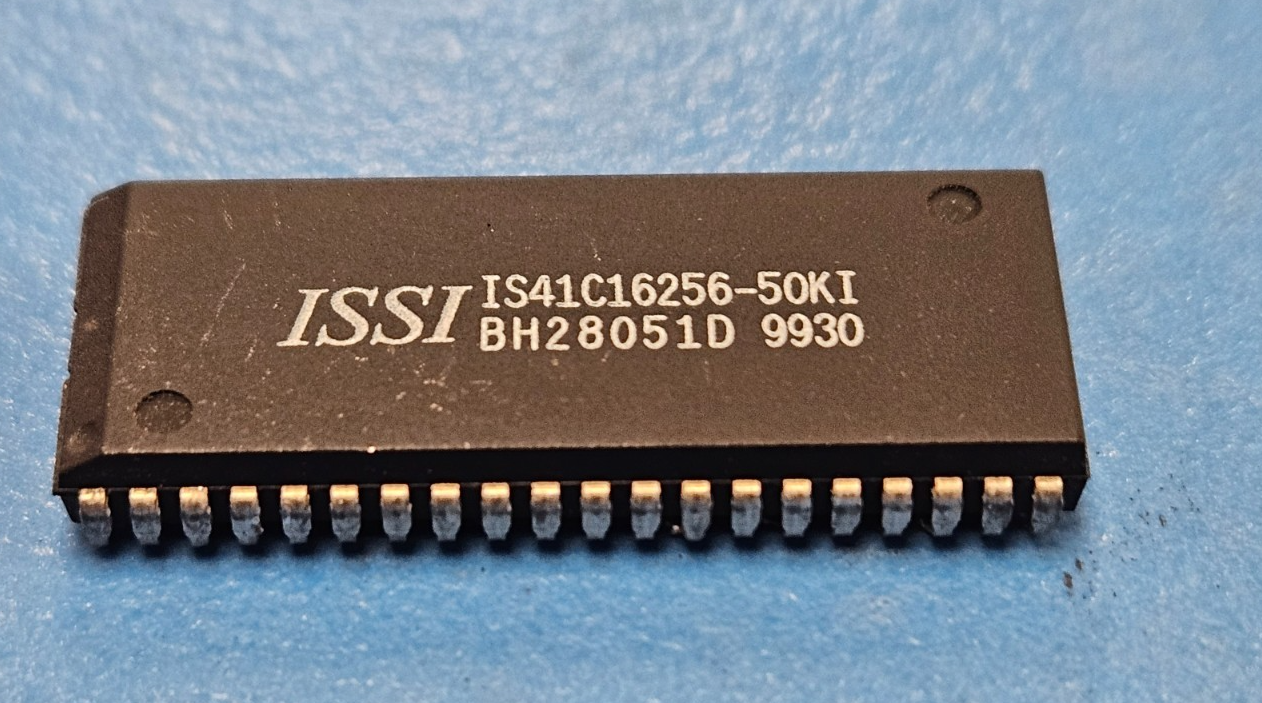

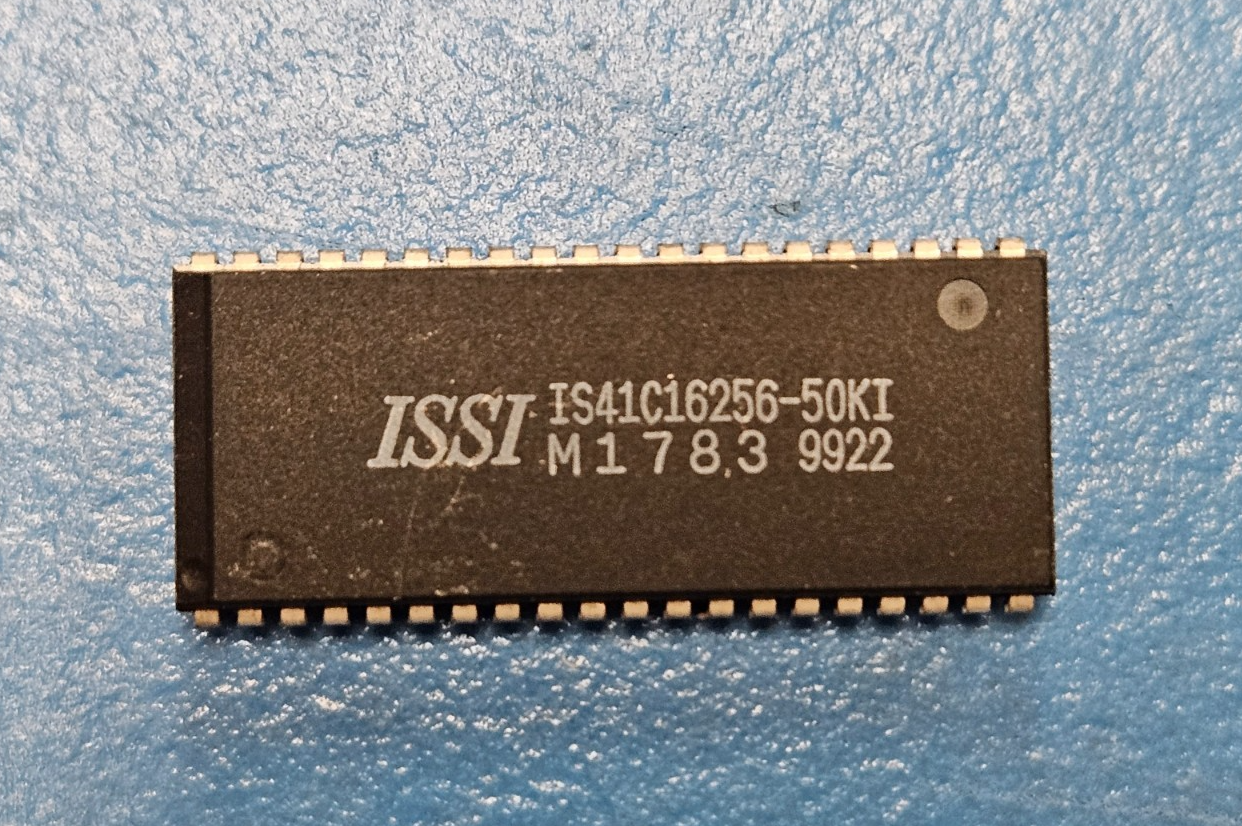

THIS IS FOR (1 PC) OF IS41C16256-50KI BY ISSI
EDO DRAM, 256KX16, 50ns, CMOS, SOJ-40

Status Transferred
Access Time-Max (ns) 50.0000000000000000
I/O Type COMMON
JESD-30 Code R-PDSO-J40
J-STD-609 Code e0
Memory Density (bits) 4194304.0000000000000000
Memory IC Type EDO DRAM
Memory Width 16
Number of Terminals 40
Number of Words (words) 262144.0000000000000000
Number of Words Code 256K
Operating Temperature-Max (Cel) 85.0
Operating Temperature-Min (Cel) -40.0
Memory Organization 256KX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Equivalence Code SOJ40,.44
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
DLA Qualification Not Qualified
Refresh Cycles 512
Self Refresh NO
Standby Current-Max (A) 0.001000000000000
Supply Current-Max (mA) 180.000000000000000
Supply Voltage-Nom (V) 5
Surface Mount YES
Technology CMOS
Temperature Grade INDUSTRIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form J BEND
Terminal Pitch (mm) 1.270
Terminal Position DUAL
