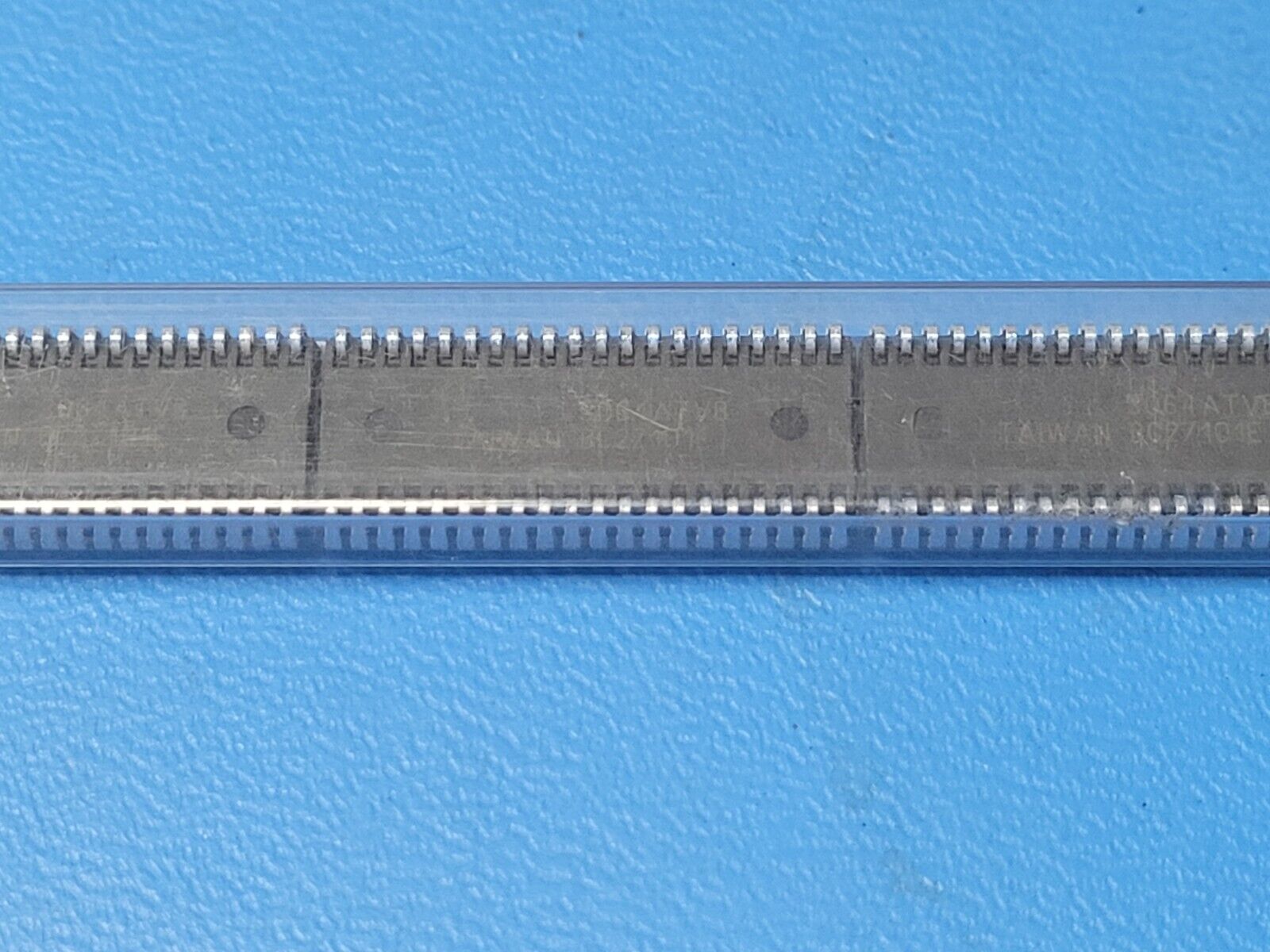

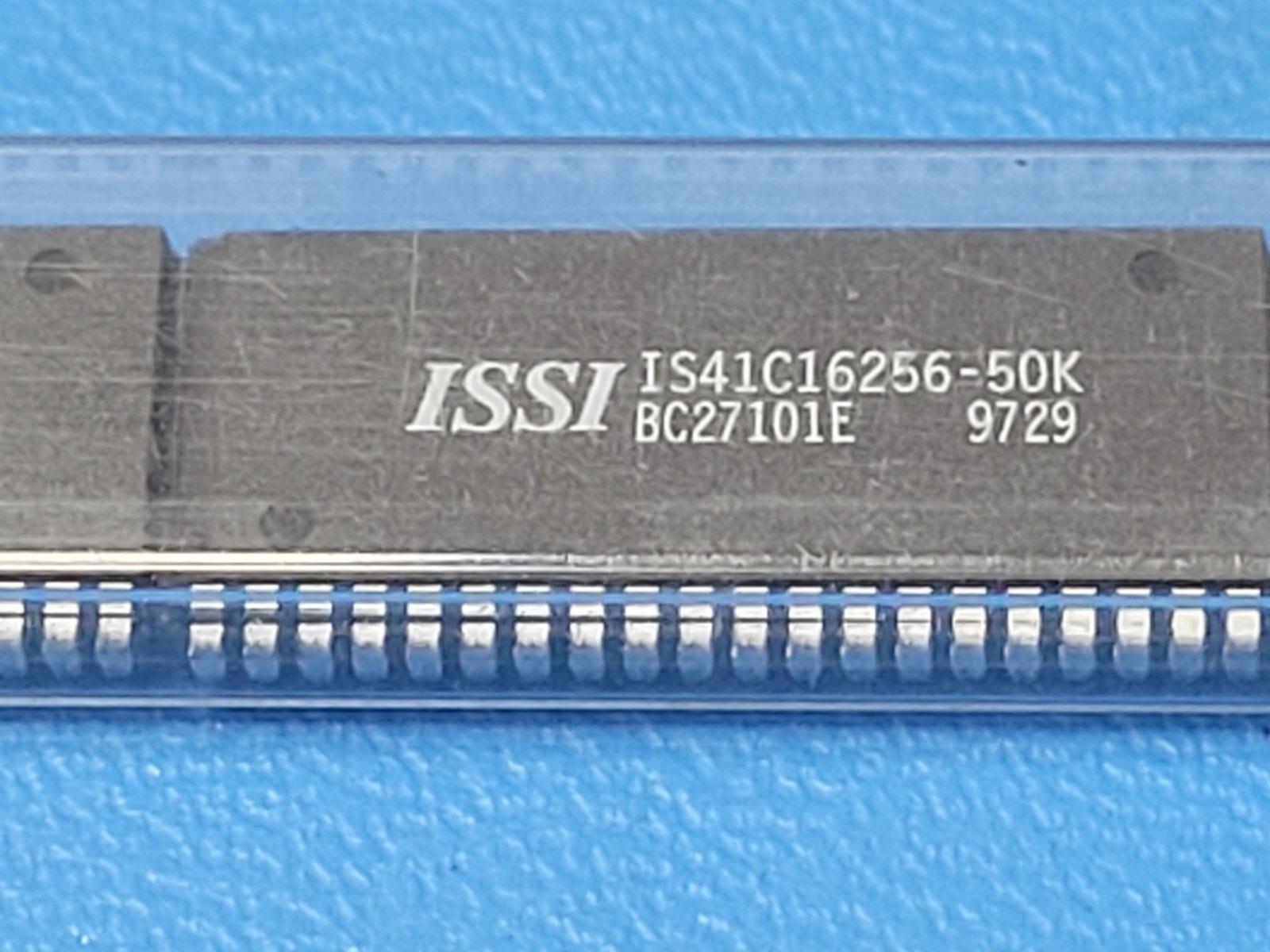

THIS IS FOR (1 PC) OF IS41C16256-50K BY ISSI
EDO DRAM, 256KX16, 50ns, CMOS, SOJ-40

Part #: IS41C16256-50K
Part Category: Memory ICs
Manufacturer: Integrated Silicon Solution, Inc.
Description: EDO DRAM, 256KX16, 50ns, CMOS, PDSO40

Mfr Package Description 0.400 INCH, SOJ-40
Status Discontinued
Sub Category DRAMs
Access Mode FAST PAGE WITH EDO
Access Time-Max 50.0  ns
I/O Type COMMON
JESD-30 Code R-PDSO-J40
JESD-609 Code e0
Memory Density 4194304.0  bit
Memory IC Type EDO DRAM
Memory Width 16
Number of Functions 1
Number of Ports 1
Number of Terminals 40
Number of Words 262144.0  words
Number of Words Code 256K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 256KX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Equivalence Code SOJ40,.44
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Refresh Cycles 512.0
Seated Height-Max 3.7592  mm
Self Refresh NO
Standby Current-Max 0.002  Amp
Supply Current-Max 0.18  Amp
Supply Voltage-Nom (Vsup) 5.0  V
Supply Voltage-Min (Vsup) 4.5  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27  mm
Terminal Position DUAL
Length 26.035  mm
Width 10.16  mm
Additional Feature RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
