(1 PC) IMS1400S-70, IMS1400S-70M INMOS Standard SRAM, 16KX1, 65ns, NMOS, CDIP20
Tax included.

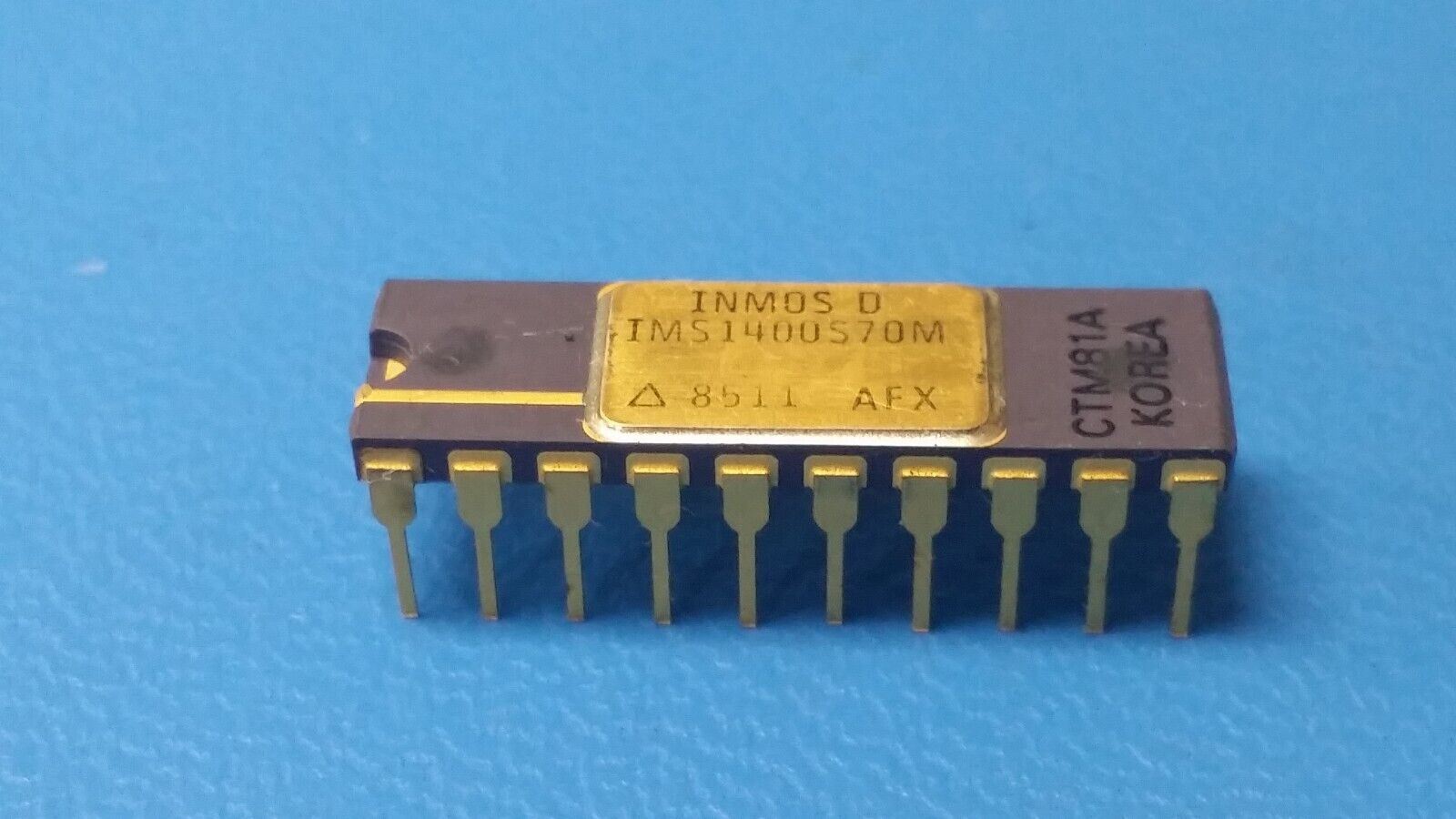

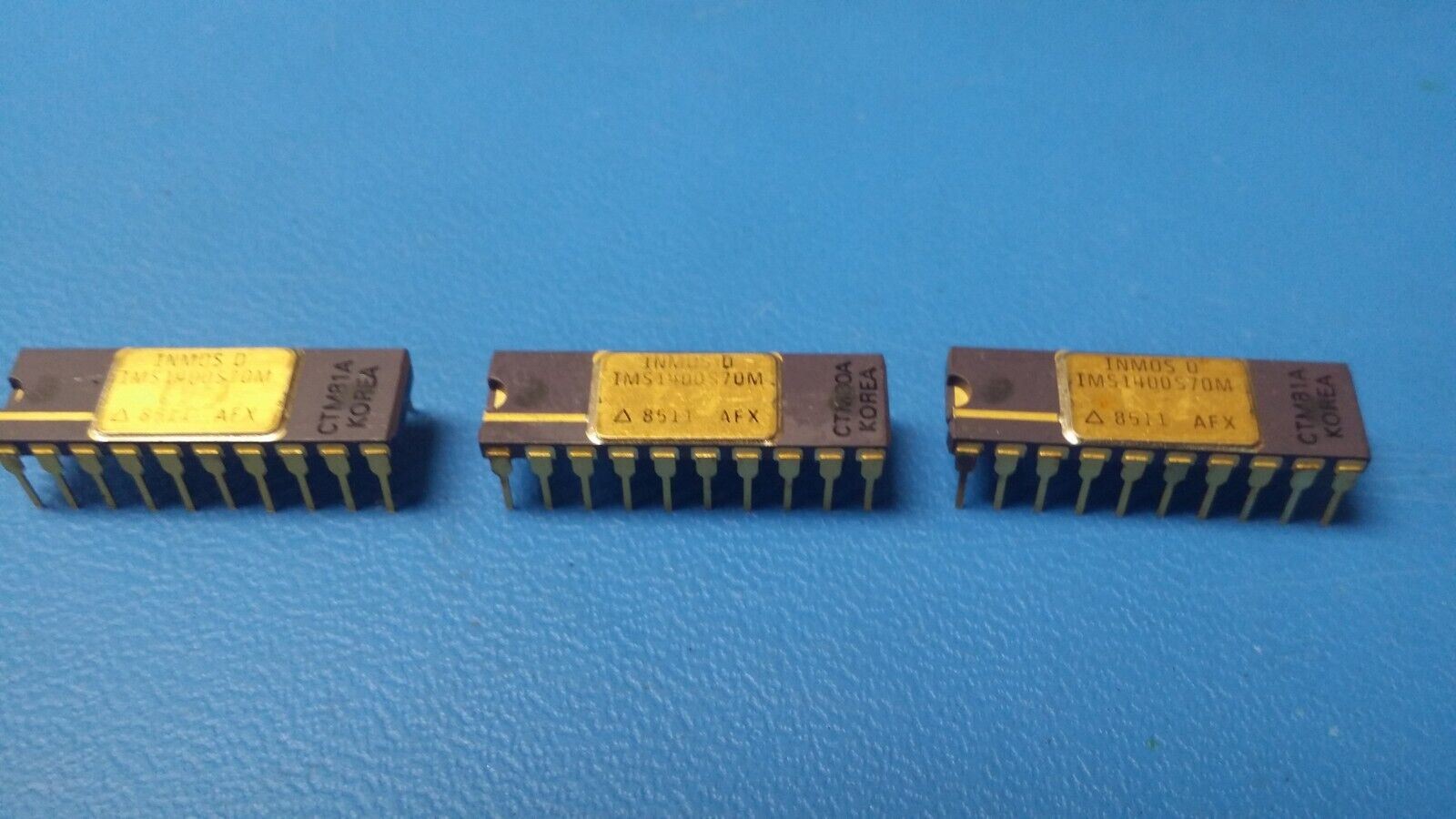

THIS IS FOR (1 PC) OF IMS1400S-70M BY INMOS
Standard SRAM, 16KX1, 65ns, NMOS, CDIP20
Mfr Package Description 0.300 INCH, SIDE BRAZED, CERAMIC, DIP-20
Status Discontinued
Sub Category SRAMs
Access Time-Max 65.0 ns
I/O Type SEPARATE
JESD-30 Code R-CDIP-T20
JESD-609 Code e0
Memory Density 16384.0 bit
Memory IC Type STANDARD SRAM
Memory Width 1
Number of Functions 1
Number of Ports 1
Number of Terminals 20
Number of Words 16384.0 words
Number of Words Code 16K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Organization 16KX1
Output Characteristics 3-STATE
Output Enable NO
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Screening Level 38535Q/M;38534H;883B
Seated Height-Max 3.124 mm
Supply Current-Max 0.12 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology NMOS
Temperature Grade MILITARY
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 25.4 mm
Width 7.62 mm
