(1 PC) IHLP6767GZER100M11 VISHAY FIXED IND 10UH 19A 9.33 MOHM SMD ROHS
Tax included.

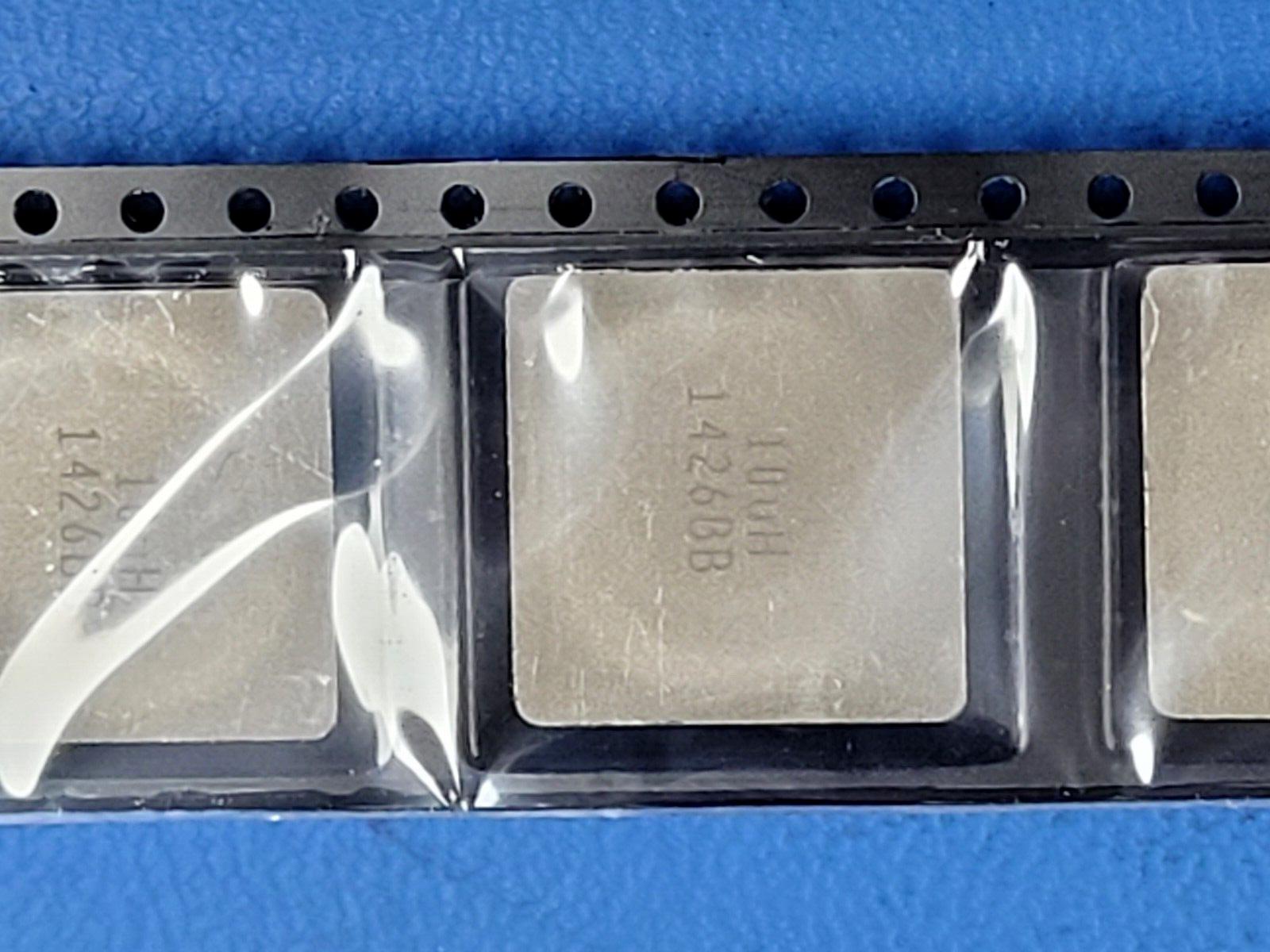

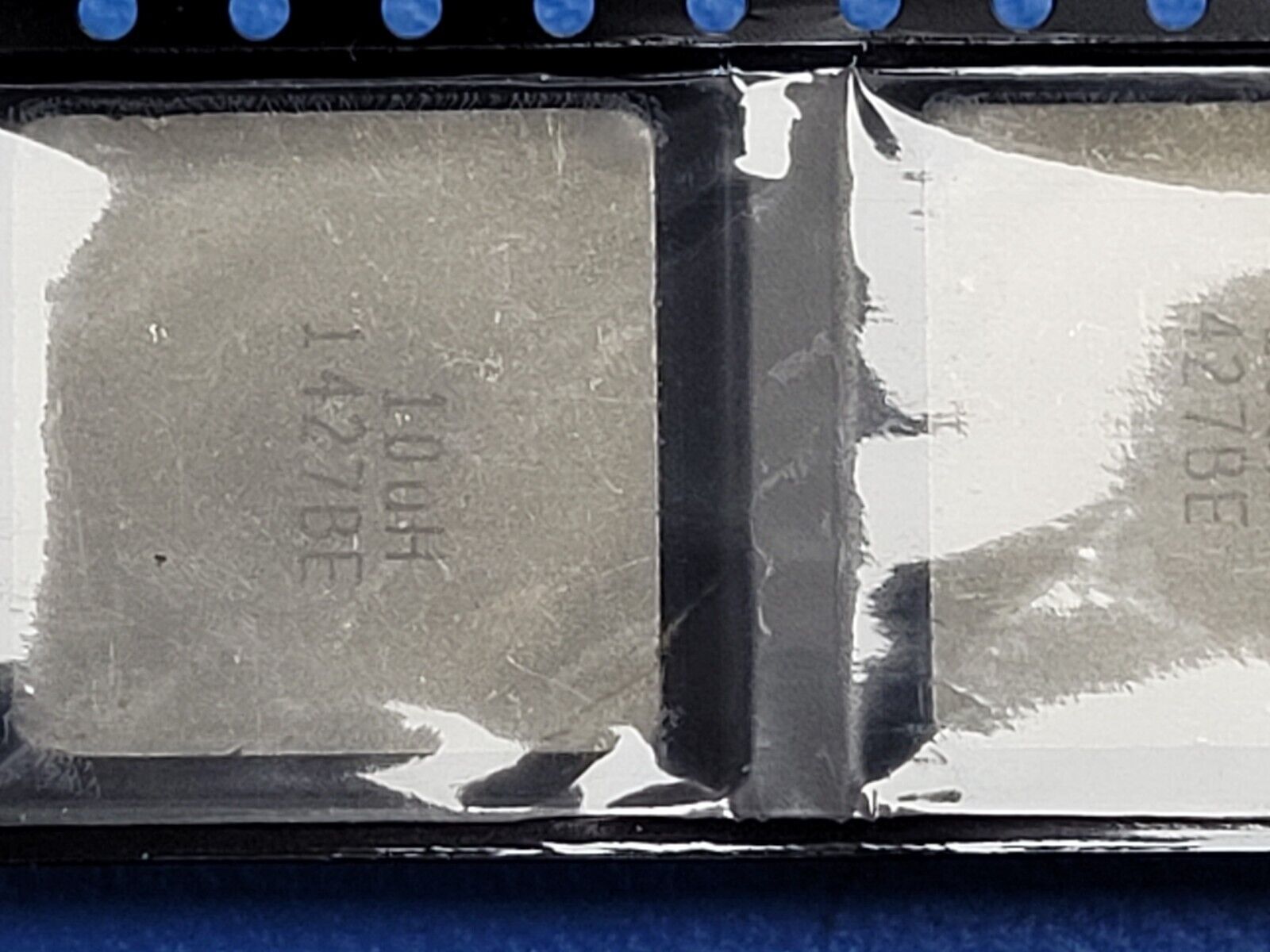

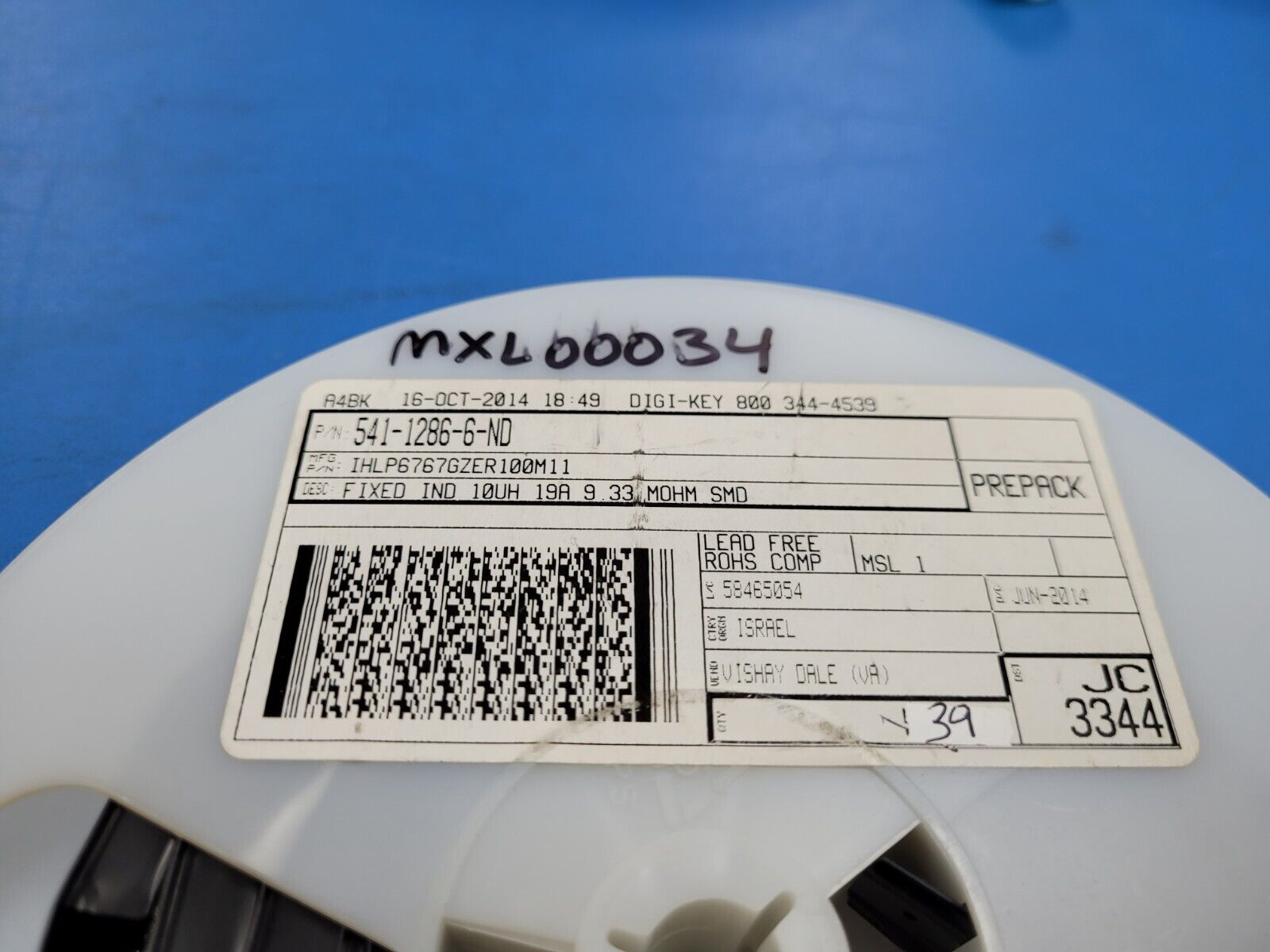

THIS IS FOR (1 PC) OF IHLP6767GZER100M11 BY VISHAY
FIXED IND 10UH 19A 9.33 MOHM SMD ROHS
Mfr Vishay Dale
Series IHLP-6767GZ-11
Packaging Cut Tape (CT)
Type Molded
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 19 A
Current - Saturation (Isat) 17A
Shielding Shielded
DC Resistance (DCR) 9.33mOhm Max
Frequency - Self Resonant 8MHz
Operating Temperature -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.675" L x 0.675" W (17.15mm x 17.15mm)
Height - Seated (Max) 0.276" (7.00mm)
