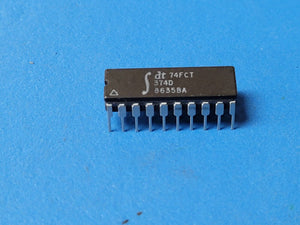

(1 PC) IDT74FCT374D Bus Driver 1-Func 8-Bit True Output CMOS CDIP20
Tax included.
THIS IS FOR (1 PC) OF IDT74FCT374D BY IDT
Bus Driver 1-Func 8-Bit True Output CMOS CDIP20
Part #: IDT74FCT374D
Part Category: Logic ICs
Manufacturer: Integrated Device Technology
Description: Bus Driver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20
Mfr Package Description CERDIP-20
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category FF/Latches
Family FCT
JESD-30 Code R-GDIP-T20
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Max I(ol) 0.048 Amp
Number of Bits 8
Number of Functions 1
Number of Ports 2
Number of Terminals 20
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Characteristics 3-STATE
Output Polarity TRUE
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Prop. Delay@Nom-Sup 10.0 ns
Propagation Delay (tpd) 10.0 ns
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Trigger Type POSITIVE EDGE
Length 25.3365 mm
Width 7.62 mm
Additional Feature IOH = 0.3MA @ VOH = 4.55V; IOL = 0.3MA @ VOL = 0.2V
