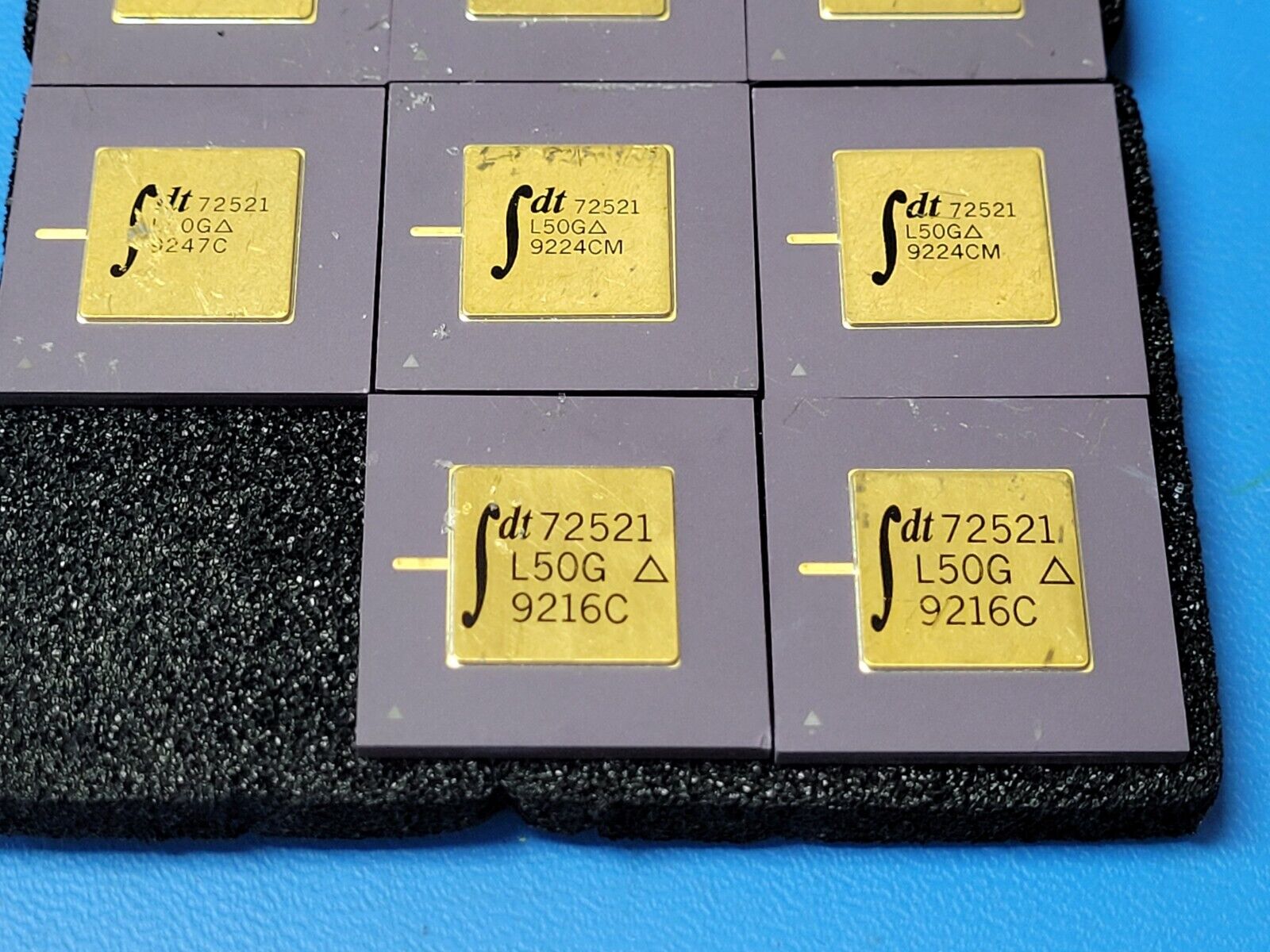

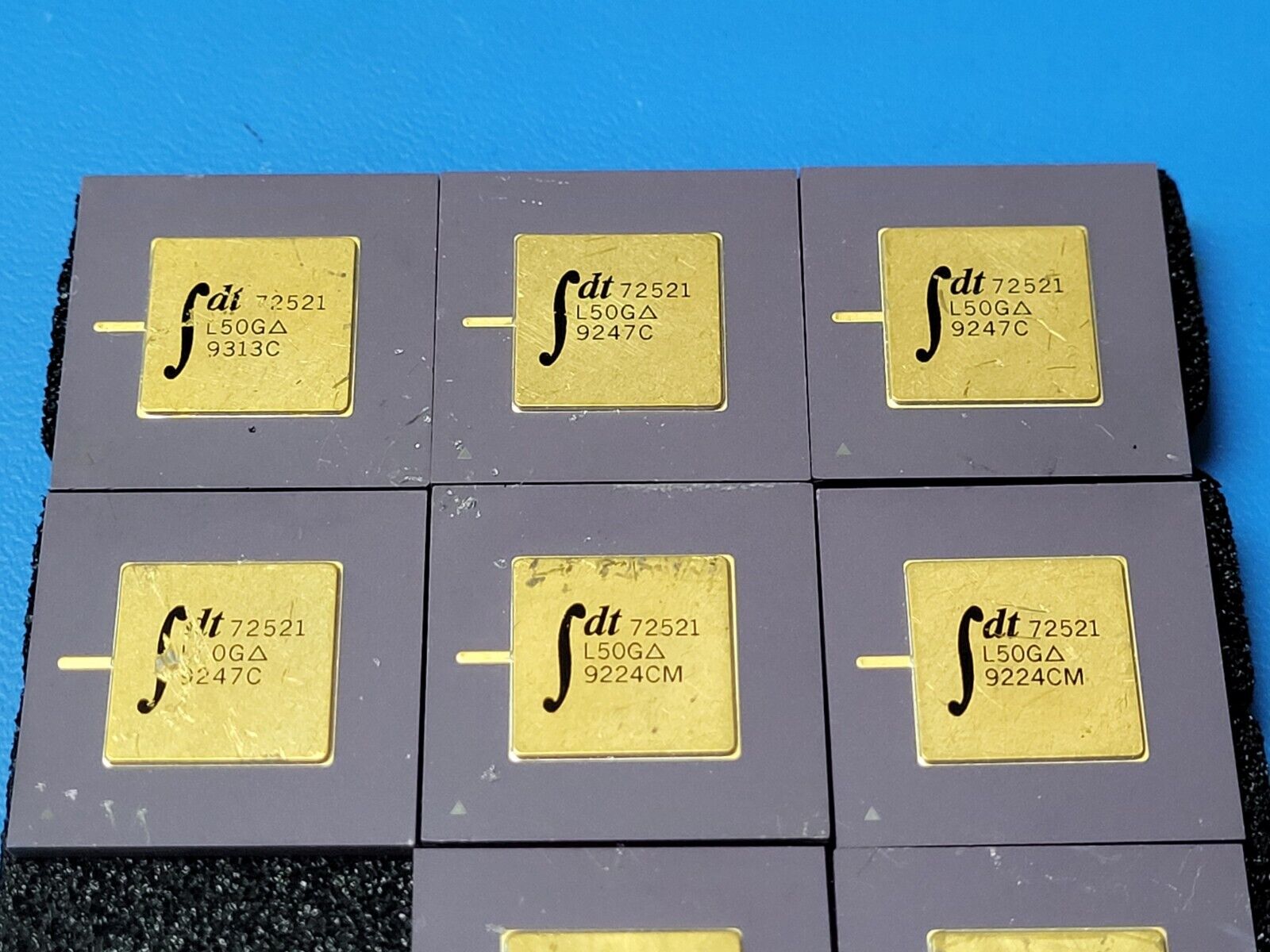

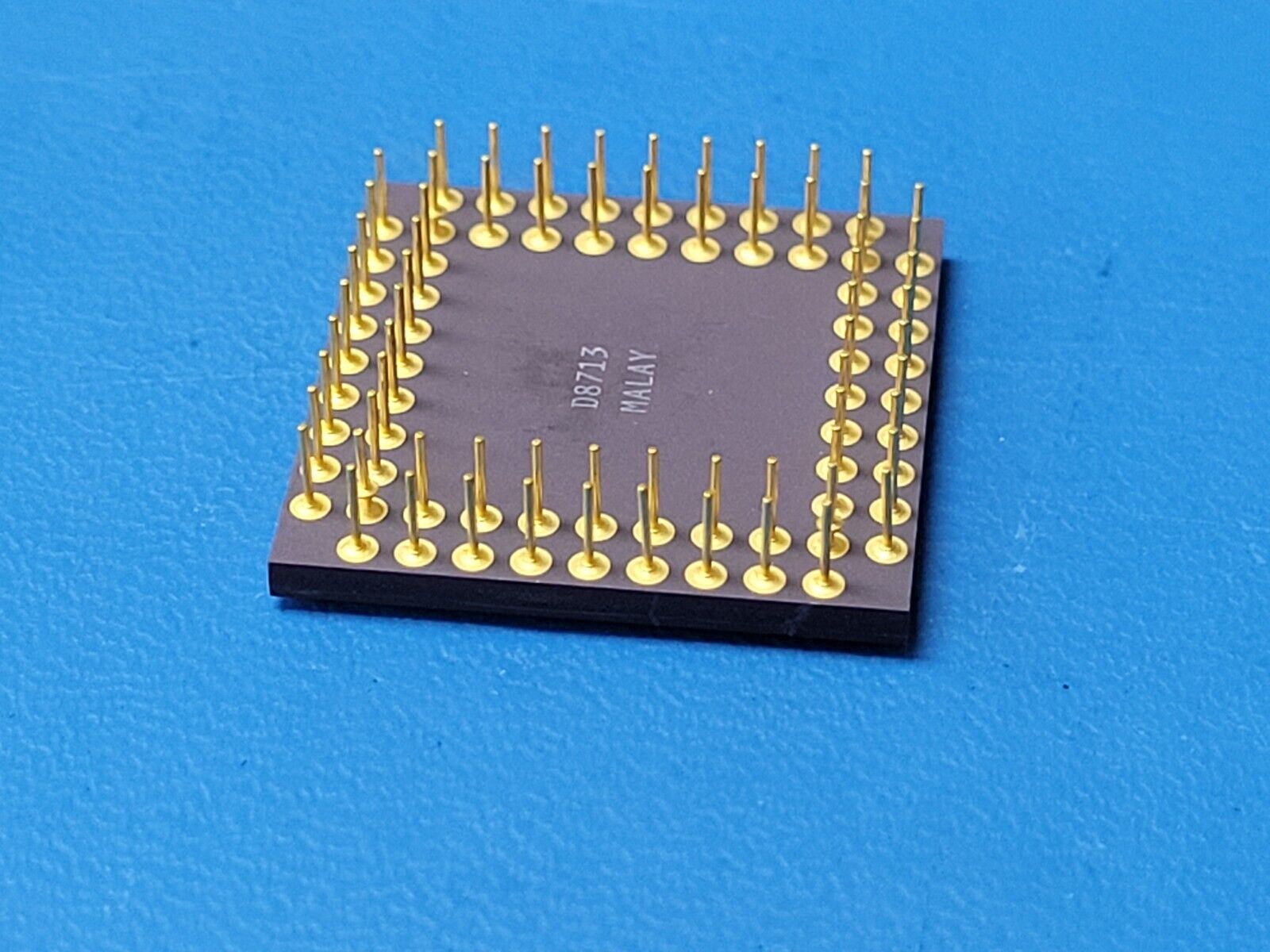

THIS IS FOR (1 PC) OF IDT72521L50G BY IDT
Bi-Directional FIFO, 2KX18, 50ns, Asynchronous, MOS, CPGA68

Part #: IDT72521L50G
Part Category: Memory ICs
Manufacturer: Integrated Device Technology
Description: Bi-Directional FIFO, 2KX18, 50ns, Asynchronous, MOS, CPGA68

Mfr Package Description CAVITY-UP, PGA-68
Status Discontinued
Sub Category FIFOs
Access Time-Max 50.0  ns
Clock Frequency-Max (fCLK) 15.0  MHz
Cycle Time 65.0  ns
JESD-30 Code S-CPGA-P68
JESD-609 Code e0
Memory Density 36864.0  bit
Memory IC Type BI-DIRECTIONAL FIFO
Memory Width 18
Number of Functions 1
Number of Terminals 68
Number of Words 2048.0  words
Number of Words Code 2K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 2KX18
Output Characteristics 3-STATE
Output Enable NO
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code PGA
Package Equivalence Code PGA68,11X11
Package Shape SQUARE
Package Style GRID ARRAY
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 5.207  mm
Supply Current-Max 0.23  Amp
Supply Voltage-Nom (Vsup) 5.0  V
Supply Voltage-Min (Vsup) 4.5  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount NO
Technology MOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form PIN/PEG
Terminal Pitch 2.54  mm
Terminal Position PERPENDICULAR
Length 29.464  mm
Width 29.464  mm
Additional Feature BYPASS XCVR
