(1 PC) IDT7205L-15J FIFO, 8KX9, 15ns, Asynchronous, CMOS, PLCC32
(1 PC) IDT7205L-15J FIFO, 8KX9, 15ns, Asynchronous, CMOS, PLCC32

(1 PC) IDT7205L-15J FIFO, 8KX9, 15ns, Asynchronous, CMOS, PLCC32

Tax included.
Only 42 left!

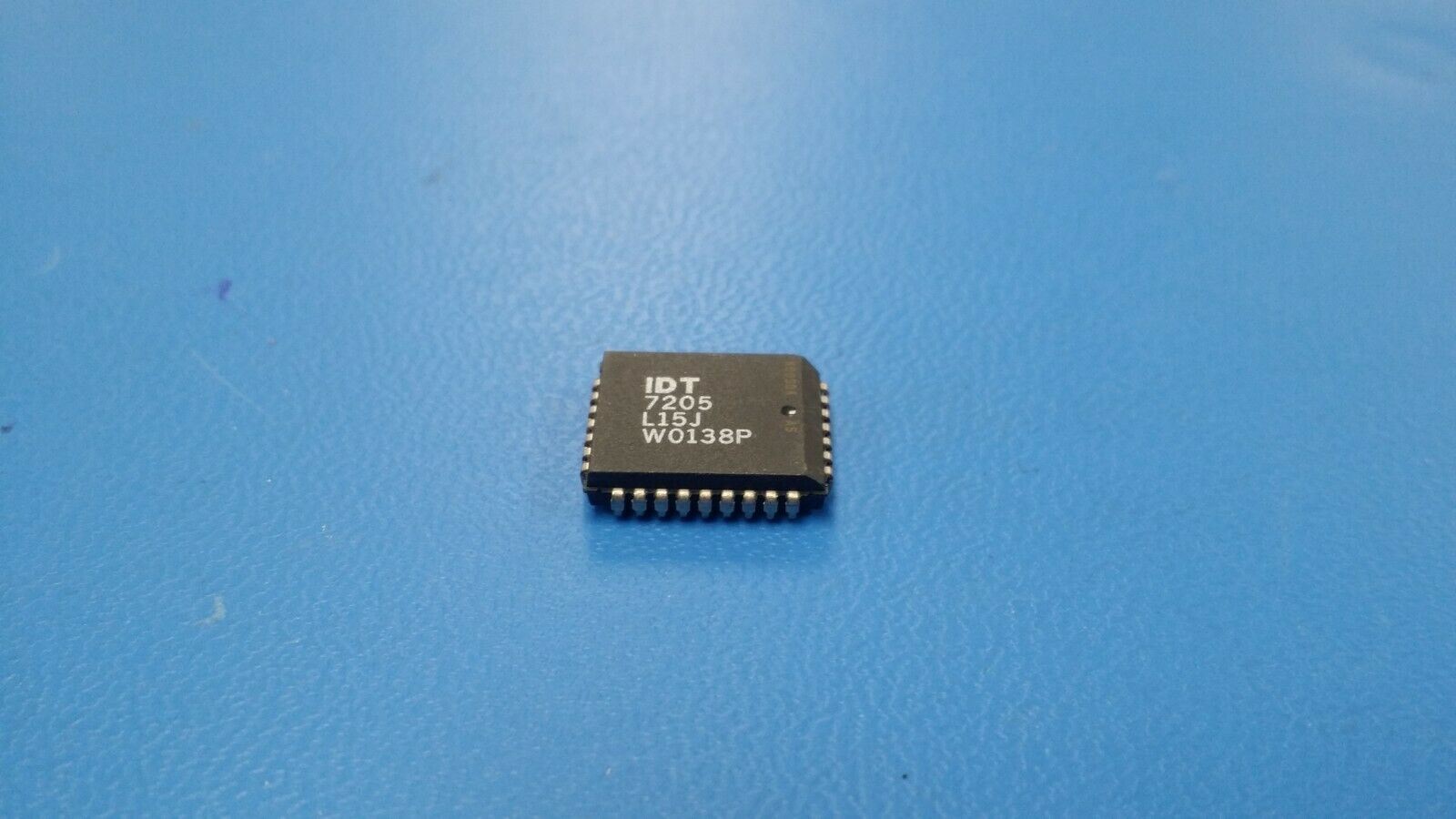

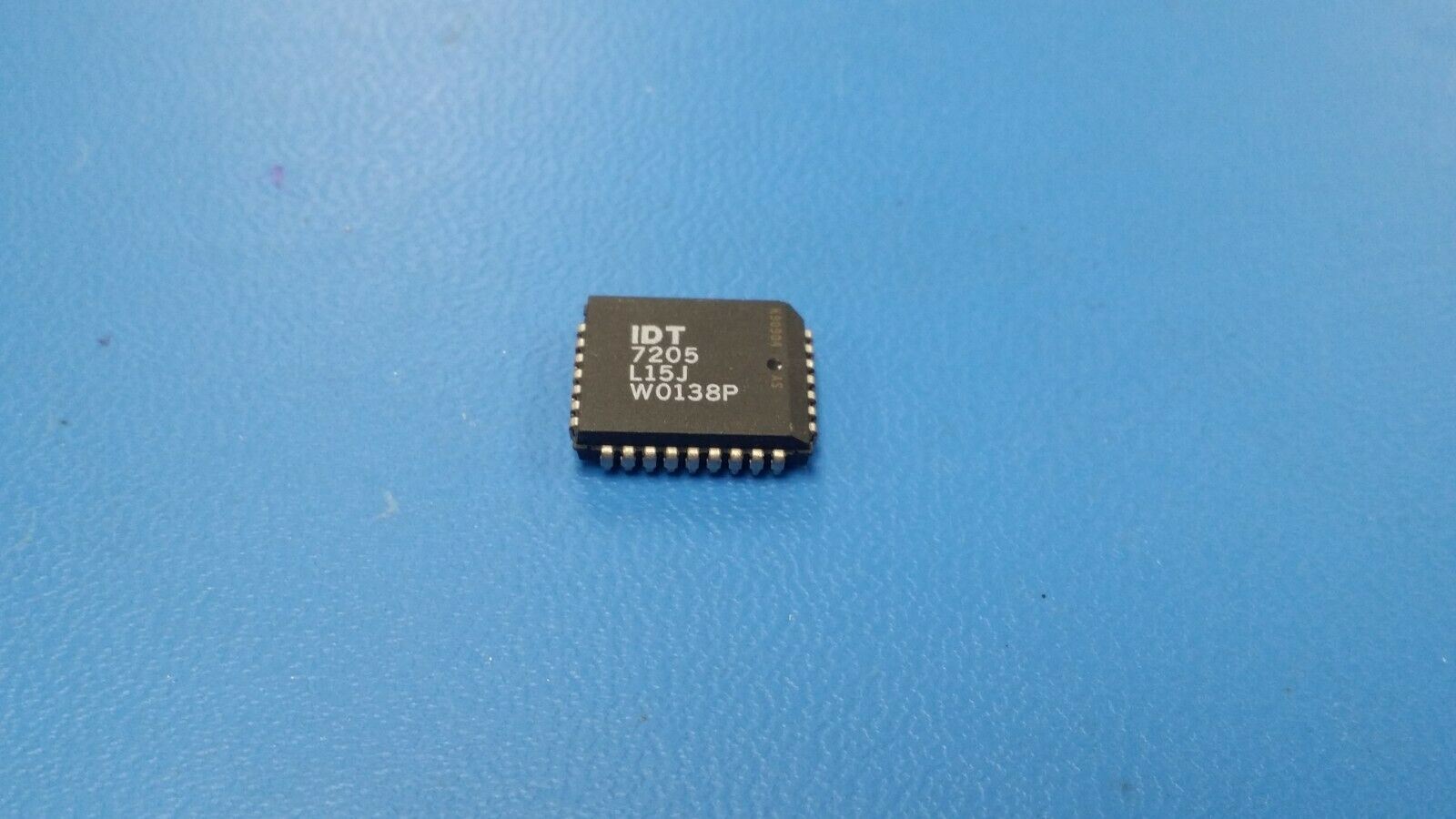

THIS IS FOR 1 PIECE OF IDT7205L-15J BY IDT
FIFO, 8KX9, 15ns, Asynchronous, CMOS, PLCC32

Part #: IDT7205L15J

Part Category: Memory ICs

Manufacturer: Integrated Device Technology

Description: FIFO, 8KX9, 15ns, Asynchronous, CMOS, PQCC32


Access Time-Max 15.0  ns
Clock Frequency-Max (fCLK) 40.0  MHz
Cycle Time 25.0  ns
JESD-30 Code R-PQCC-J32
JESD-609 Code e0
Memory Density 73728.0  bit
Memory IC Type OTHER FIFO
Memory Width 9
Moisture Sensitivity Level 1
Number of Functions 1
Number of Terminals 32
Number of Words 8192.0  words
Number of Words Code 8K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 8KX9
Output Characteristics 3-STATE
Output Enable NO
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC32,.5X.6
Package Shape RECTANGULAR
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 225
Qualification Status Not Qualified
Seated Height-Max 3.556  mm
Standby Current-Max 0.008  Amp
Supply Current-Max 0.12  Amp
Supply Voltage-Nom (Vsup) 5.0  V
Supply Voltage-Min (Vsup) 4.5  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form J BEND
Terminal Pitch 1.27  mm
Terminal Position QUAD
