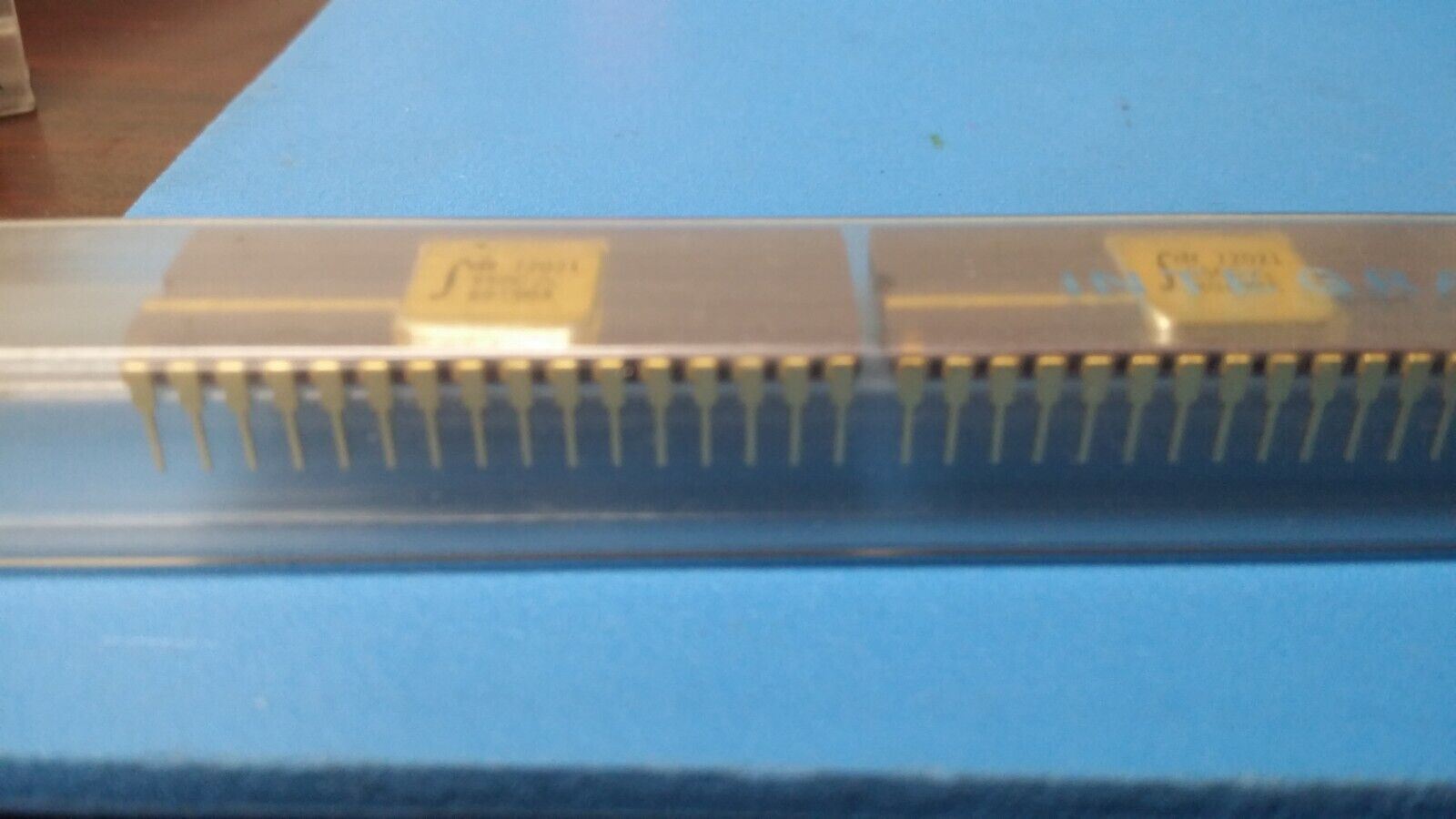

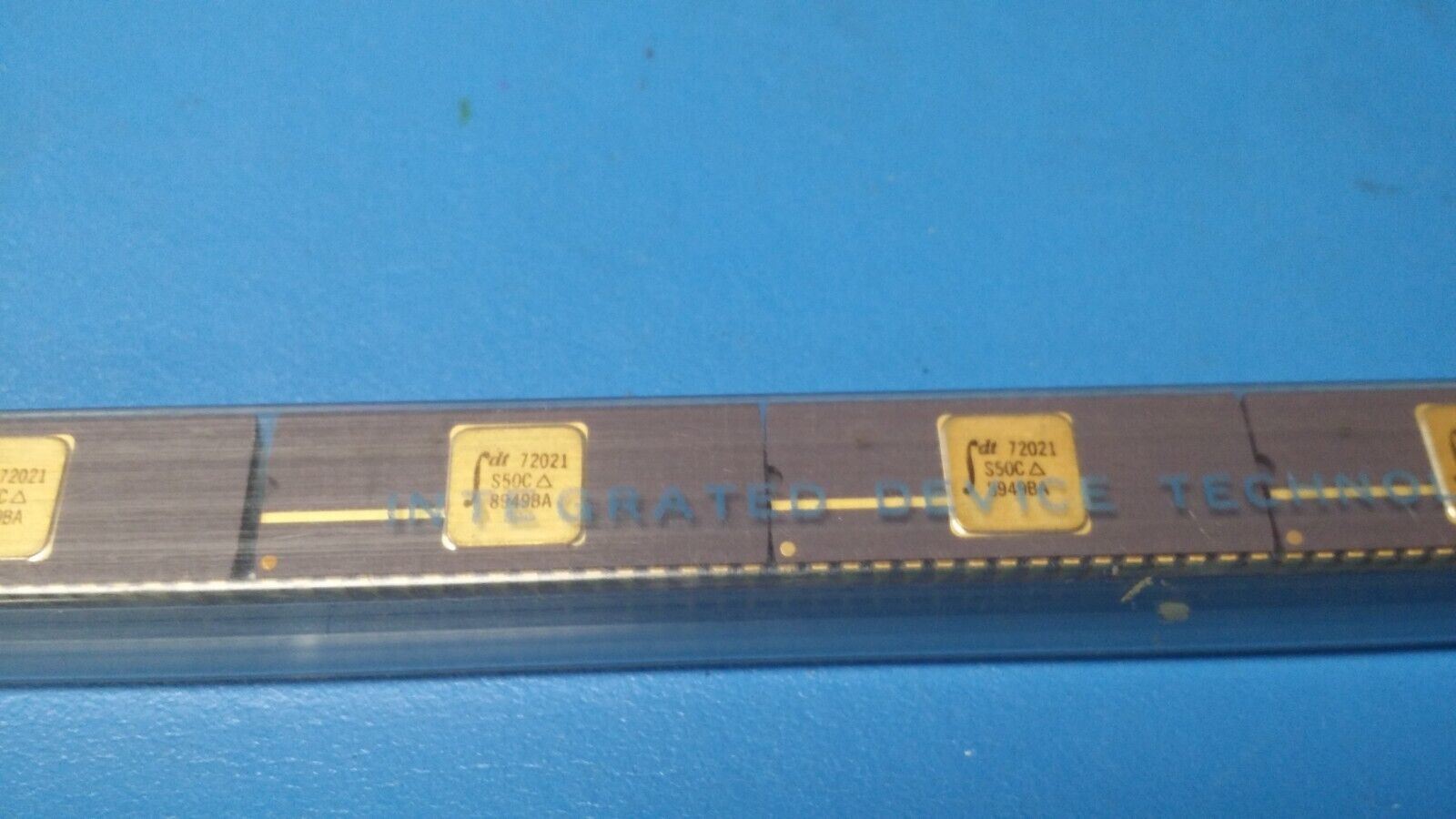

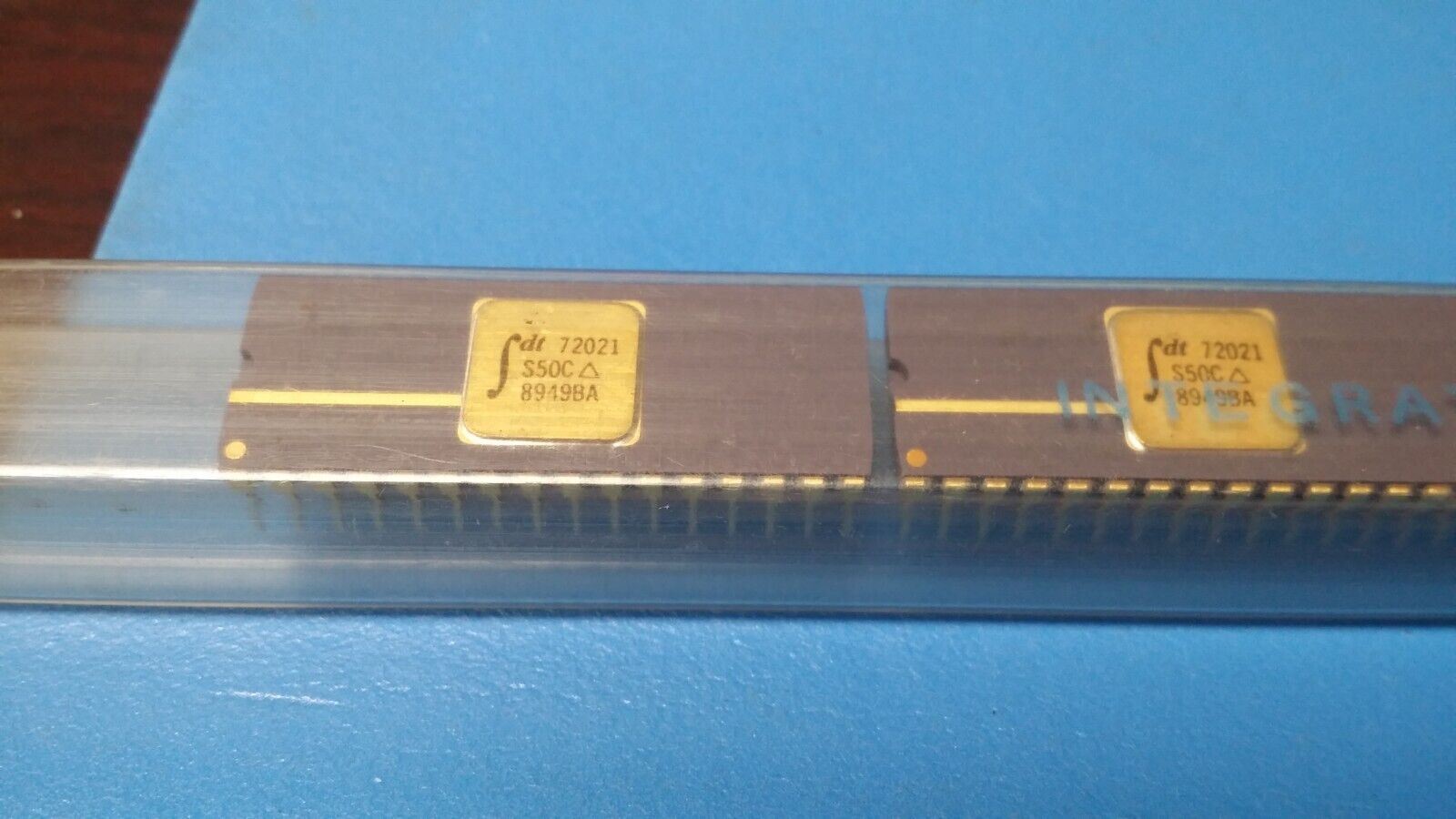

(1 PC) IDT72021S50C FIFO, 1KX9, 50ns, Asynchronous, CMOS, CDIP32
(1 PC) IDT72021S50C FIFO, 1KX9, 50ns, Asynchronous, CMOS, CDIP32
(1 PC) IDT72021S50C FIFO, 1KX9, 50ns, Asynchronous, CMOS, CDIP32

(1 PC) IDT72021S50C FIFO, 1KX9, 50ns, Asynchronous, CMOS, CDIP32

Tax included.
Only 6 left!
THIS IS FOR (1 PC) OF IDT72021S50C BY IDT
FIFO, 1KX9, 50ns, Asynchronous, CMOS, CDIP32

Part #: 72021S50C
Part Category: Memory ICs
Manufacturer: Integrated Device Technology
Description: FIFO, 1KX9, 50ns, Asynchronous, CMOS, CDIP32

Status Discontinued
Sub Category FIFOs
Access Time-Max 50.0  ns
Clock Frequency-Max (fCLK) 15.0  MHz
JESD-30 Code R-XDIP-T32
JESD-609 Code e0
Memory Density 9216.0  bit
Memory IC Type OTHER FIFO
Memory Width 9
Number of Terminals 32
Number of Words 1024.0  words
Number of Words Code 1K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 1KX9
Package Body Material CERAMIC
Package Code DIP
Package Equivalence Code DIP32,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) 225
Qualification Status Not Qualified
Standby Current-Max 0.005  Amp
Supply Current-Max 0.08  Amp
Supply Voltage-Nom (Vsup) 5.0  V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54  mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
