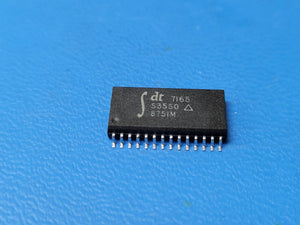

(1 PC) IDT7165S35SO Standard SRAM, 8KX8, 35ns, CMOS, SOIC28
Tax included.
THIS IS FOR (1 PC) OF IDT7165S35SO BY IDT
Standard SRAM, 8KX8, 35ns, CMOS, SOIC28
Part #: IDT7165S35SO
Part Category: Memory ICs
Manufacturer: Integrated Device Technology
Description: Standard SRAM, 8KX8, 35ns, CMOS, PDSO28
Mfr Package Description 0.330 INCH, SOIC-28
Status Discontinued
Sub Category SRAMs
Access Time-Max 35.0 ns
I/O Type COMMON
JESD-30 Code R-PDSO-G28
JESD-609 Code e0
Memory Density 65536.0 bit
Memory IC Type STANDARD SRAM
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Ports 1
Number of Terminals 28
Number of Words 8192.0 words
Number of Words Code 8K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 8KX8
Output Characteristics 3-STATE
Output Enable YES
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Equivalence Code SOP28,.5
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 225
Qualification Status Not Qualified
Seated Height-Max 3.048 mm
Standby Current-Max 0.015 Amp
Standby Voltage-Min 4.5 V
Supply Current-Max 0.15 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) 30
Length 18.3642 mm
Width 8.763 mm
