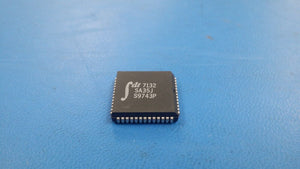

(1 PC) IDT7132SA35J Multi-Port SRAM, 2KX8, 35ns, CMOS, PLCC52
Tax included.
THIS IS FOR (1 PC) OF IDT7132SA35J BY IDT
Multi-Port SRAM, 2KX8, 35ns, CMOS, PLCC52
Part #: IDT7132SA35J
Part Category: Memory ICs
Manufacturer: Integrated Device Technology
Description: Multi-Port SRAM, 2KX8, 35ns, CMOS, PQCC52
Mfr Package Description 0.750 X 0.750 INCH, 0.170 INCH HEIGHT, PLASTIC, LCC-52
Status Discontinued
Sub Category SRAMs
Access Time-Max 35.0 ns
I/O Type COMMON
JESD-30 Code S-PQCC-J52
JESD-609 Code e0
Memory Density 16384.0 bit
Memory IC Type MULTI-PORT SRAM
Memory Width 8
Moisture Sensitivity Level 3
Number of Functions 1
Number of Ports 2
Number of Terminals 52
Number of Words 2048.0 words
Number of Words Code 2K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 2KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC52,.8SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) 225
Qualification Status Not Qualified
Seated Height-Max 4.57 mm
Standby Current-Max 0.015 Amp
Standby Voltage-Min 4.5 V
Supply Current-Max 0.165 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn85Pb15)
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Time@Peak Reflow Temperature-Max (s) 30
Length 19.1262 mm
Width 19.1262 mm
Additional Feature AUTOMATIC POWER-DOWN
