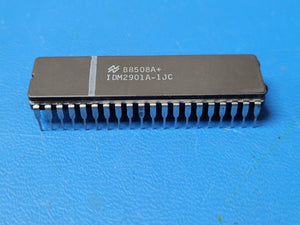

(1 PC) IDM2901A-1JC NSC Bit-Slice Processor, 4-Bit, Bipolar, CDIP40
Tax included.
THIS IS FOR (1 PC) OF IDM2901A-1JC BY NSC
Bit-Slice Processor, 4-Bit, Bipolar, CDIP40
Mfr Package Description HERMETIC SEALED, DIP-40
Status Discontinued
Clock Frequency-Max 16.0 MHz
External Data Bus Width 4.0
JESD-30 Code R-CDIP-T40
JESD-609 Code e0
Number of Terminals 40
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code DIP
Package Equivalence Code DIP40,.6
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supplies 5
Qualification Status Not Qualified
Sub Category Bit-Slice Processors
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology BIPOLAR
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
