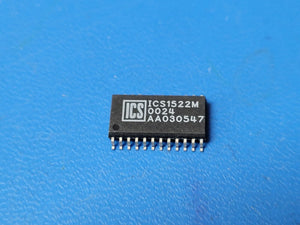

(1 PC) ICS1522M ICS Video Clock Generator, 230MHz, CMOS, SOIC-24
Tax included.
THIS IS FOR (1 PC) OF ICS1522M BY ICS
Video Clock Generator, 230MHz, CMOS, SOIC-24
Mfr Package Description SOIC-24
Status Transferred
JESD-30 Code R-PDSO-G24
JESD-609 Code e0
Moisture Sensitivity Level 1
Number of Terminals 24
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Clock Frequency-Max 230.0 MHz
Package Body Material PLASTIC/EPOXY
Package Code SOP
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Primary Clock/Crystal Frequency-Nom 20.0 MHz
Qualification Status Not Qualified
Seated Height-Max 2.6924 mm
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form GULL WING
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 15.24 mm
Width 7.493 mm
Additional Feature DIFFERENTIAL O/P'S; PHASE COMPARATOR GAIN O/P'S
