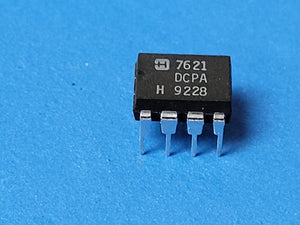

(1 PC) ICL7621DCPA HARRIS Op Amp 2 Func 20000uV Offset-Max CMOS PDIP8
Tax included.
THIS IS FOR (1 PC) OF ICL7621DCPA BY HARRIS
Op Amp 2 Func 20000uV Offset-Max CMOS PDIP8
Part #: ICL7621DCPA
Part Category: Amplifiers
Manufacturer: Harris Corporation
Description: Operational Amplifier, 2 Func, 20000uV Offset-Max, CMOS, PDIP8
Status Transferred
Amplifier Type OPERATIONAL AMPLIFIER
Architecture VOLTAGE-FEEDBACK
Average Bias Current-Max (IIB) 4.0E-4 µA
Bias Current-Max (IIB) @25C 5.0E-5 µA
Common-mode Reject Ratio-Nom 91.0 dB
Common-mode Reject Ratio-Min 70.0 dB
Frequency Compensation YES
Input Offset Voltage-Max 20000.0 µV
JESD-30 Code R-PDIP-T8
JESD-609 Code e0
Low-Bias YES
Low-Offset NO
Micropower YES
Neg Supply Voltage Limit-Max -9.0 V
Neg Supply Voltage-Nom (Vsup) -5.0 V
Number of Functions 2
Number of Terminals 8
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP8,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Slew Rate-Nom 0.16 V/us
Sub Category Operational Amplifiers
Supply Current-Max 0.25 mA
Supply Voltage Limit-Max 9.0 V
Supply Voltage-Nom (Vsup) 5.0 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Unity Gain BW-Nom 480.0 kHz
Voltage Gain-Min 10000.0
