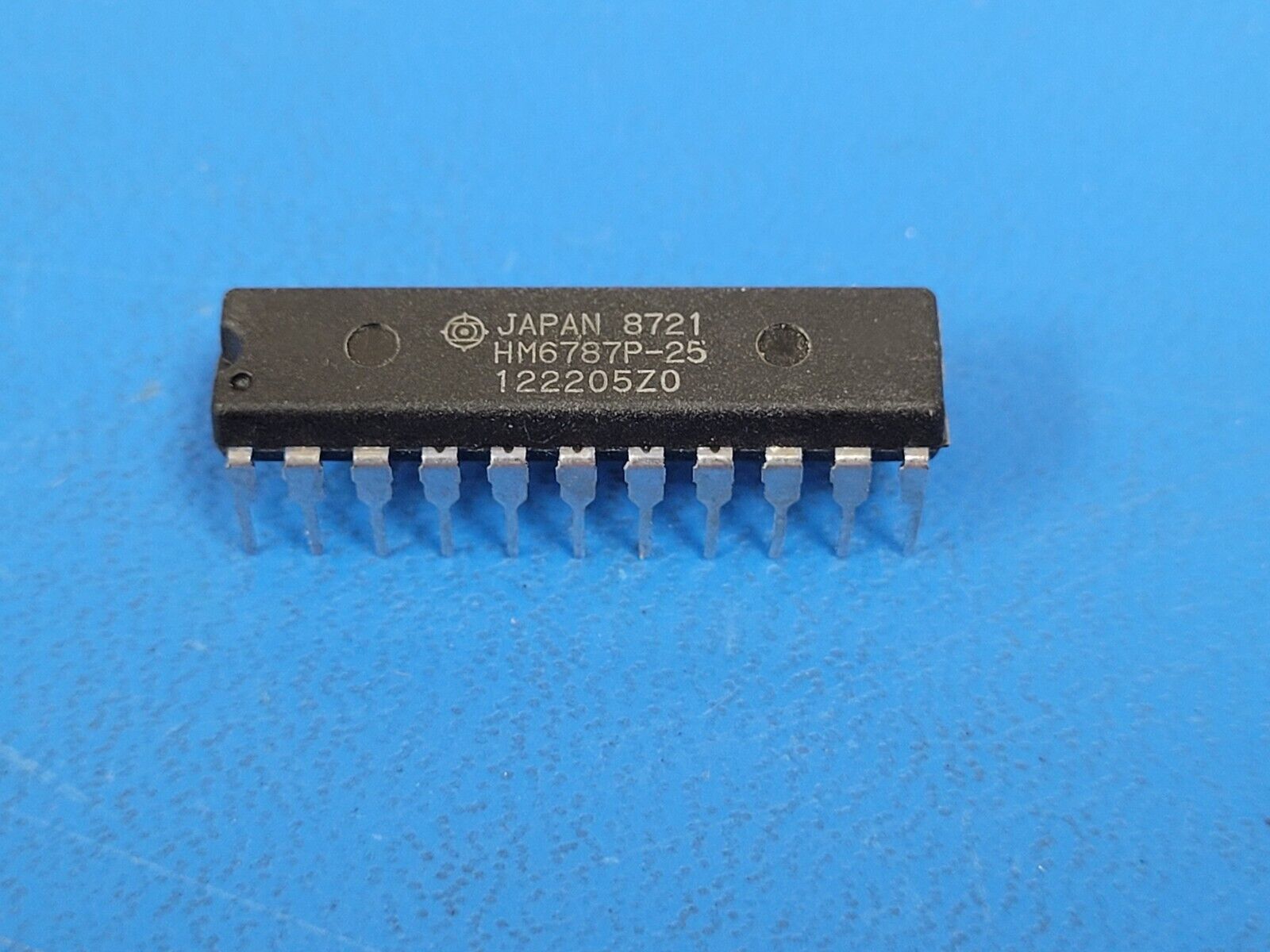

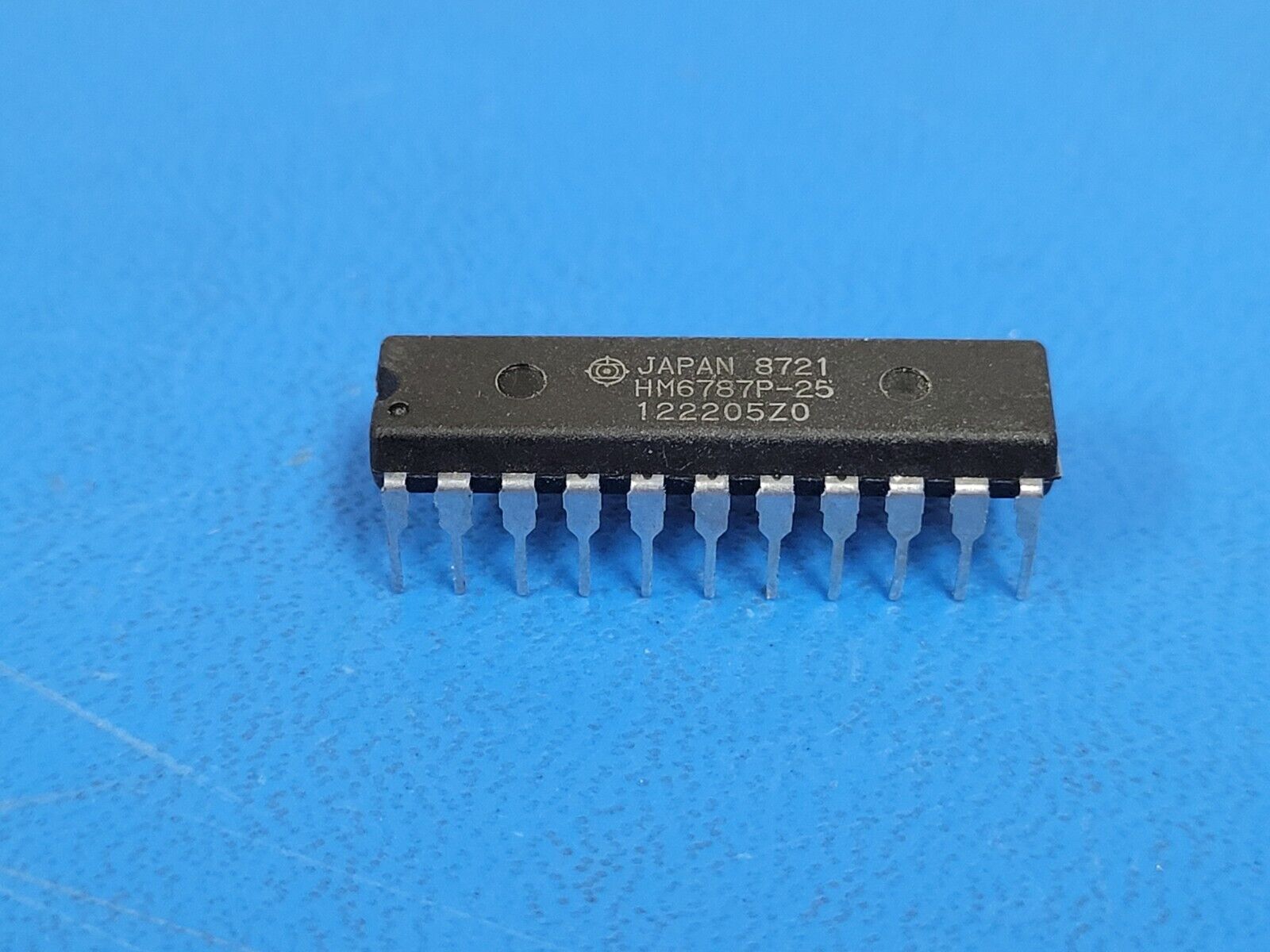

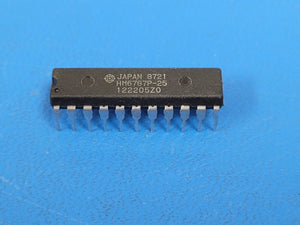

(1 PC) HM6787P-25 HITACHI Standard SRAM 64KX1 25ns BICMOS PDIP22
Tax included.
THIS IS FOR (1 PC) OF HM6787P-25 BY HITACHI
Standard SRAM 64KX1 25ns BICMOS PDIP22
Part #: HM6787P-25
Part Category: Memory ICs
Manufacturer: Hitachi, Ltd.
Description: Standard SRAM, 64KX1, 25ns, BICMOS, PDIP22
Mfr Package Description 0.300 INCH, PLASTIC, DIP-22
Status Transferred
Sub Category SRAMs
Access Time-Max 25.0 ns
I/O Type SEPARATE
JESD-30 Code R-PDIP-T22
JESD-609 Code e0
Memory Density 65536.0 bit
Memory IC Type STANDARD SRAM
Memory Width 1
Number of Functions 1
Number of Ports 1
Number of Terminals 22
Number of Words 65536.0 words
Number of Words Code 64K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 64KX1
Output Characteristics 3-STATE
Output Enable NO
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP22,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Standby Current-Max 0.02 Amp
Standby Voltage-Min 4.5 V
Supply Current-Max 0.1 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology BICMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 27.08 mm
Width 7.62 mm
