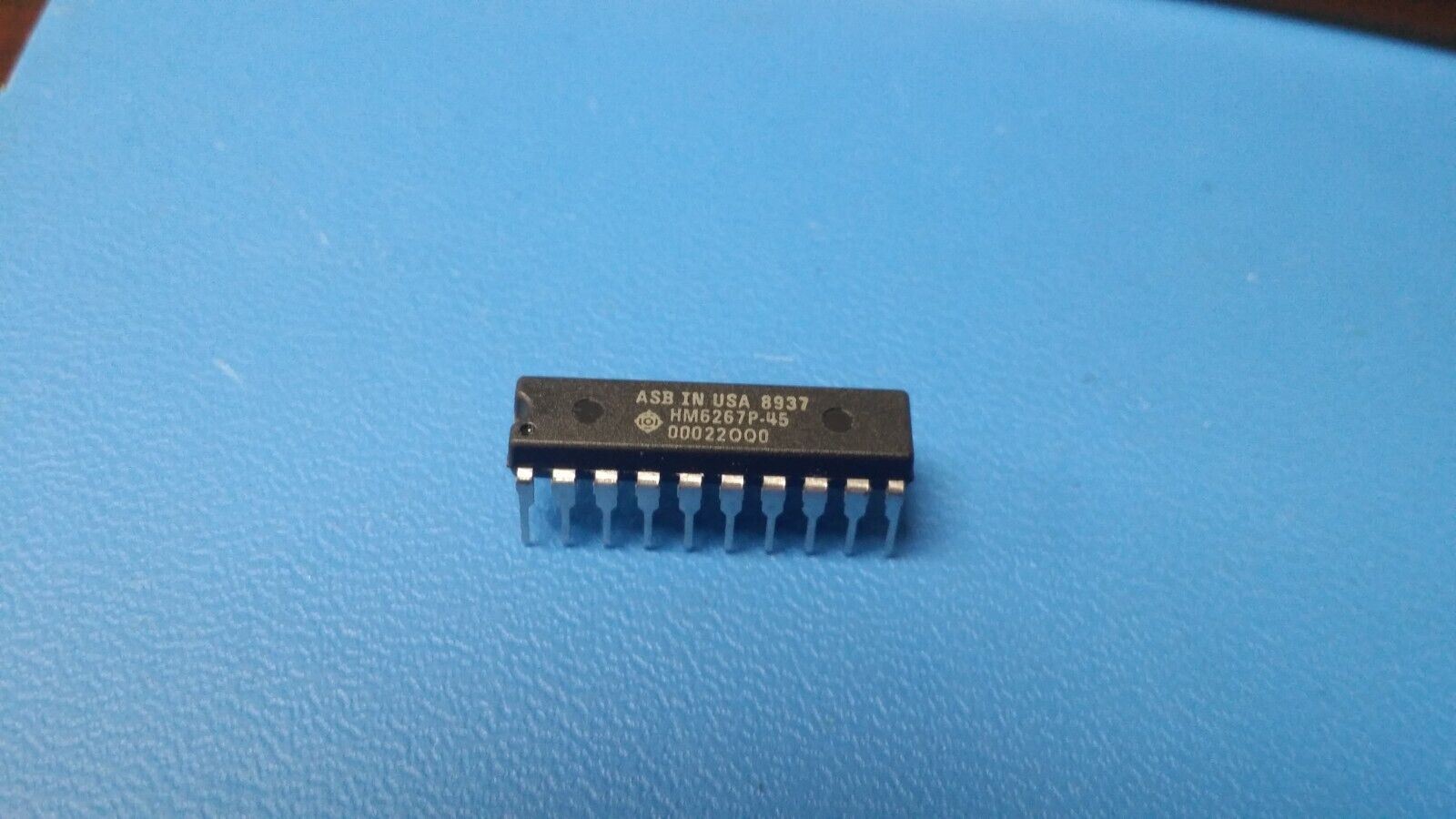

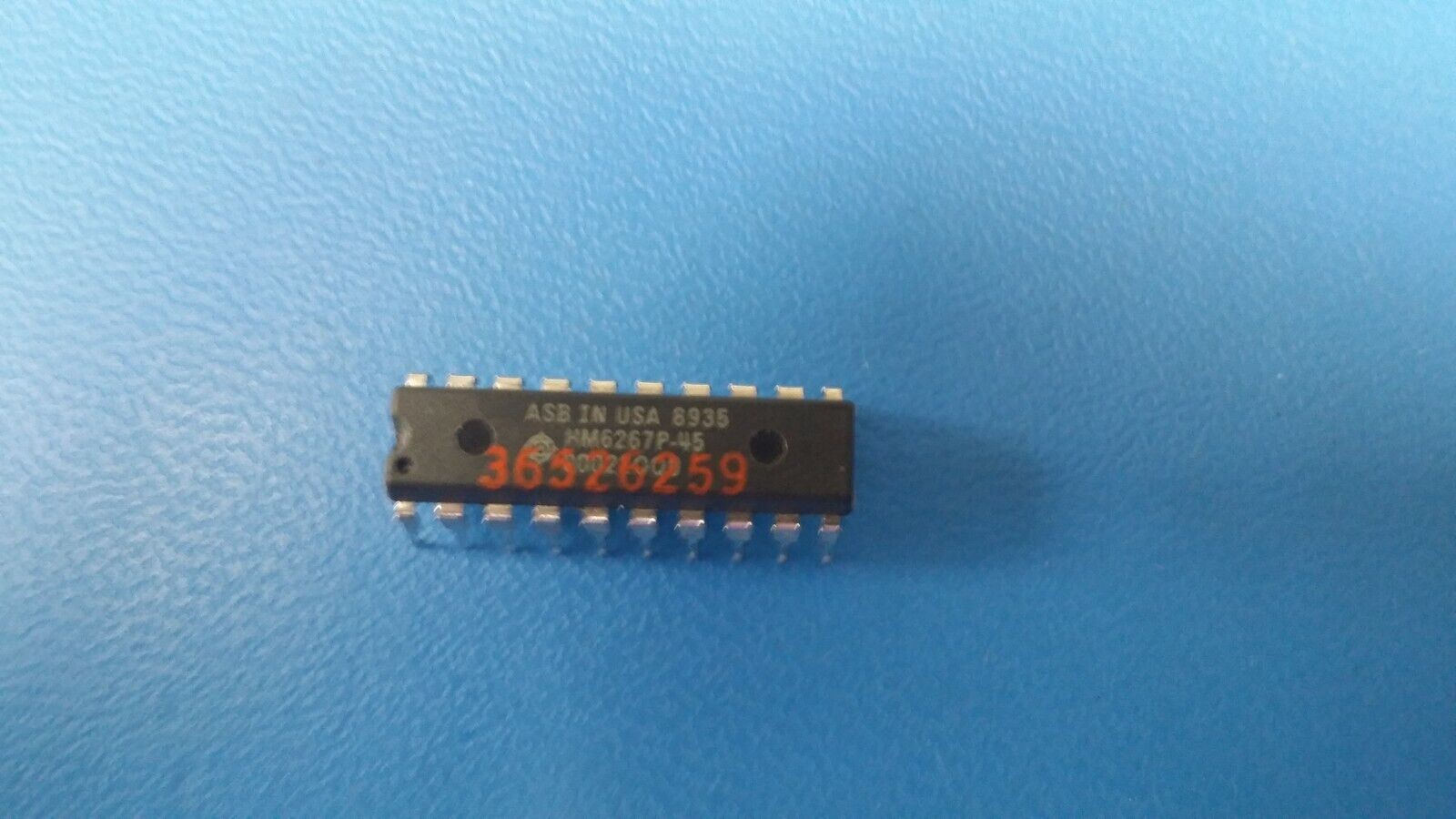

(1 PC) HM6267P-45 HIT Standard SRAM, 16KX1, 45ns, CMOS, PDIP20
(1 PC) HM6267P-45 HIT Standard SRAM, 16KX1, 45ns, CMOS, PDIP20

(1 PC) HM6267P-45 HIT Standard SRAM, 16KX1, 45ns, CMOS, PDIP20

Tax included.
Only 20 left!
THIS IS FOR  (1 PC) OF HM6267P-45 BY HIT
Standard SRAM, 16KX1, 45ns, CMOS, PDIP20

Part #: HM6267P-45
Part Category: Memory ICs
Manufacturer: Hitachi, Ltd.
Description: Standard SRAM, 16KX1, 45ns, CMOS, PDIP20

Mfr Package Description 0.300 INCH, PLASTIC, DIP-20
Status Discontinued
Sub Category SRAMs
Access Time-Max 45.0  ns
I/O Type SEPARATE
JESD-30 Code R-PDIP-T20
JESD-609 Code e0
Memory Density 16384.0  bit
Memory IC Type STANDARD SRAM
Memory Width 1
Number of Functions 1
Number of Ports 1
Number of Terminals 20
Number of Words 16384.0  words
Number of Words Code 16K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0  Cel
Operating Temperature-Max 70.0  Cel
Organization 16KX1
Output Characteristics 3-STATE
Output Enable NO
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 5.08  mm
Standby Voltage-Min 4.5  V
Supply Current-Max 0.08  Amp
Supply Voltage-Nom (Vsup) 5.0  V
Supply Voltage-Min (Vsup) 4.5  V
Supply Voltage-Max (Vsup) 5.5  V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54  mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 25.4  mm
Width 7.62  mm
