(1 PC) HM6167P-8 HIT Standard SRAM, 16KX1, 100ns, CMOS, PDIP20

$5.95
Unit price per

Tax included.

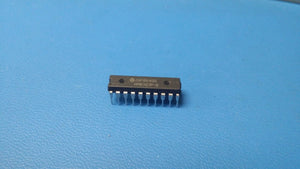

THIS IS FOR (1 PC) OF HM6167P-8 BY HITACHI

Standard SRAM, 16KX1, 100ns, CMOS, PDIP20

Part #: HM6167P-8

Part Category: Memory ICs

Manufacturer: Hitachi, Ltd.

Description: Standard SRAM, 16KX1, 100ns, CMOS, PDIP20

Status Discontinued

Sub Category SRAMs

Access Time-Max 100.0 ns

I/O Type SEPARATE

JESD-30 Code R-PDIP-T20

JESD-609 Code e0

Memory Density 16384.0 bit

Memory IC Type STANDARD SRAM

Memory Width 1

Number of Terminals 20

Number of Words 16384.0 words

Number of Words Code 16K

Operating Mode ASYNCHRONOUS

Operating Temperature-Min 0.0 Cel

Operating Temperature-Max 70.0 Cel

Organization 16KX1

Output Characteristics 3-STATE

Package Body Material PLASTIC/EPOXY

Package Code DIP

Package Equivalence Code DIP20,.3

Package Shape RECTANGULAR

Package Style IN-LINE

Parallel/Serial PARALLEL

Qualification Status Not Qualified

Supply Current-Max 0.06 Amp

Supply Voltage-Nom (Vsup) 5.0 V

Surface Mount NO

Technology CMOS

Temperature Grade COMMERCIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL
