(1 PC) HM6148P HITACHI Standard SRAM, 1KX4, 70ns, CMOS, PDIP18
Tax included.

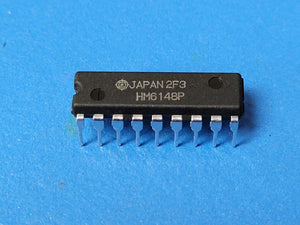

THIS IS FOR (1 PC) OF HM6148P BY HITACHI
Standard SRAM, 1KX4, 70ns, CMOS, PDIP18
Part #: HM6148P
Part Category: Memory ICs
Manufacturer: Hitachi, Ltd.
Description: Standard SRAM, 1KX4, 70ns, CMOS, PDIP18
Status Discontinued
Sub Category SRAMs
Access Time-Max 70.0 ns
I/O Type COMMON
JESD-30 Code R-PDIP-T18
JESD-609 Code e0
Memory Density 4096.0 bit
Memory IC Type STANDARD SRAM
Memory Width 4
Number of Terminals 18
Number of Words 1024.0 words
Number of Words Code 1K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 1KX4
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP18,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Supply Current-Max 0.08 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
