(1 PC) HM514260AZ-7 HIT Fast Page DRAM, 256KX16, 70ns, CMOS, PZIP40
Tax included.

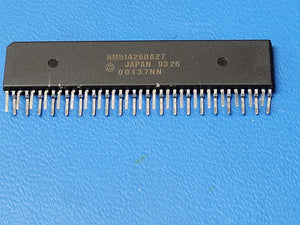

THIS IS FOR (1 PC) OF HM514260AZ-7 BY HIT
Fast Page DRAM, 256KX16, 70ns, CMOS, PZIP40
Part #: HM514260AZ-7
Part Category: Memory ICs
Manufacturer: Hitachi, Ltd.
Description: Fast Page DRAM, 256KX16, 70ns, CMOS, PZIP40
Mfr Package Description 0.475 INCH, PLASTIC, ZIP-40
Status Discontinued
Sub Category DRAMs
Access Mode FAST PAGE
Access Time-Max 70.0 ns
I/O Type COMMON
JESD-30 Code R-PZIP-T40
JESD-609 Code e0
Memory Density 4194304.0 bit
Memory IC Type FAST PAGE DRAM
Memory Width 16
Number of Functions 1
Number of Ports 1
Number of Terminals 40
Number of Words 262144.0 words
Number of Words Code 256K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 256KX16
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code ZIP
Package Equivalence Code ZIP40,.1
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Refresh Cycles 512.0
Seated Height-Max 12.07 mm
Self Refresh NO
Standby Current-Max 0.001 Amp
Supply Current-Max 0.15 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 1.27 mm
Terminal Position ZIG-ZAG
Length 50.82 mm
Width 2.85 mm
Additional Feature RAS ONLY; CAS BEFORE RAS REFRESH
