(1 PC) HM5116100BS-6 HITACHI Fast Page DRAM, 16MX1, 60ns, CMOS, SOJ-24
Tax included.

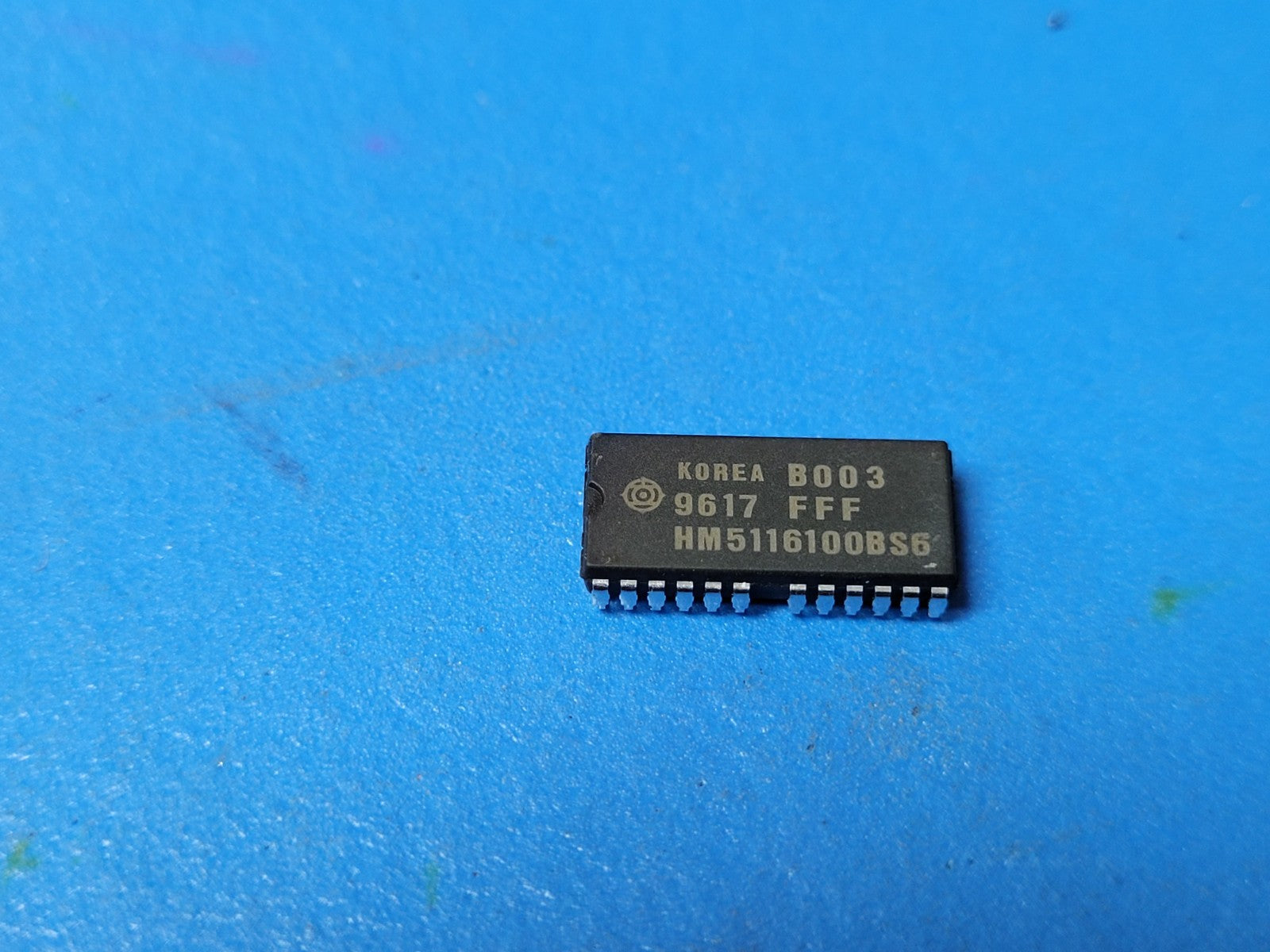

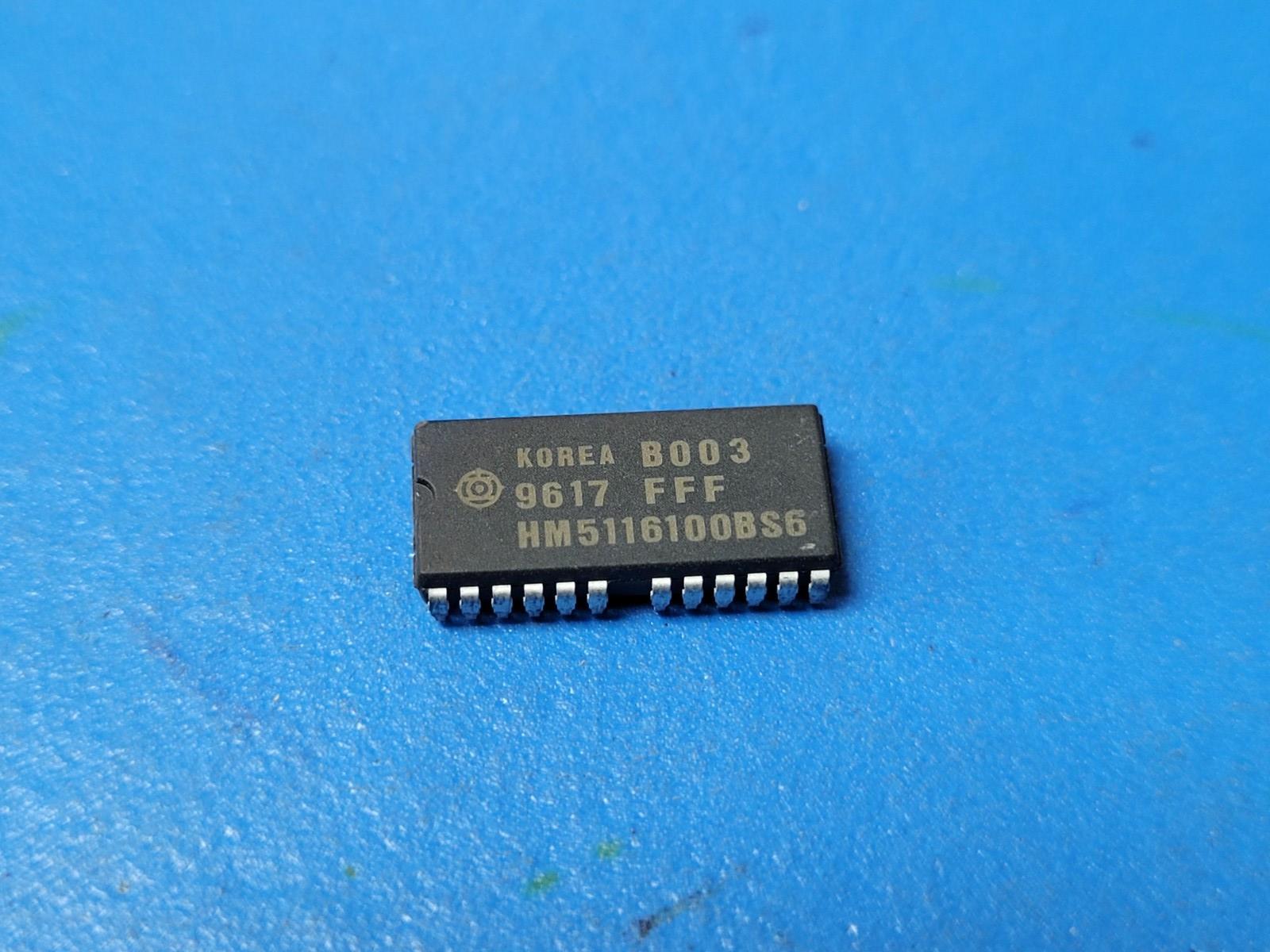

THIS IS FOR (1 PC) OF HM5116100BS-6 BY HITACHI
Fast Page DRAM, 16MX1, 60ns, CMOS, SOJ-24
Part #: HM5116100BS-6
Part Category: Memory ICs
Manufacturer: Hitachi, Ltd.
Description: Fast Page DRAM, 16MX1, 60ns, CMOS, PDSO24
Mfr Package Description 0.300 INCH, PLASTIC, SOJ-26/24
Status Discontinued
Sub Category DRAMs
Access Mode FAST PAGE
Access Time-Max 60.0 ns
I/O Type SEPARATE
JESD-30 Code R-PDSO-J24
JESD-609 Code e0
Memory Density 1.6777216E7 bit
Memory IC Type FAST PAGE DRAM
Memory Width 1
Number of Functions 1
Number of Ports 1
Number of Terminals 24
Number of Words 1.6777216E7 words
Number of Words Code 16M
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 16MX1
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Equivalence Code SOJ24/26,.34
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Qualification Status Not Qualified
Refresh Cycles 4096.0
Seated Height-Max 3.76 mm
Self Refresh NO
Standby Current-Max 0.001 Amp
Supply Current-Max 0.08 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position DUAL
Length 16.9 mm
Width 7.62 mm
Additional Feature RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
