(1 PC) HM100504F-14 Standard SRAM, 64KX4, 14ns, ECL, CDFP28
Tax included.

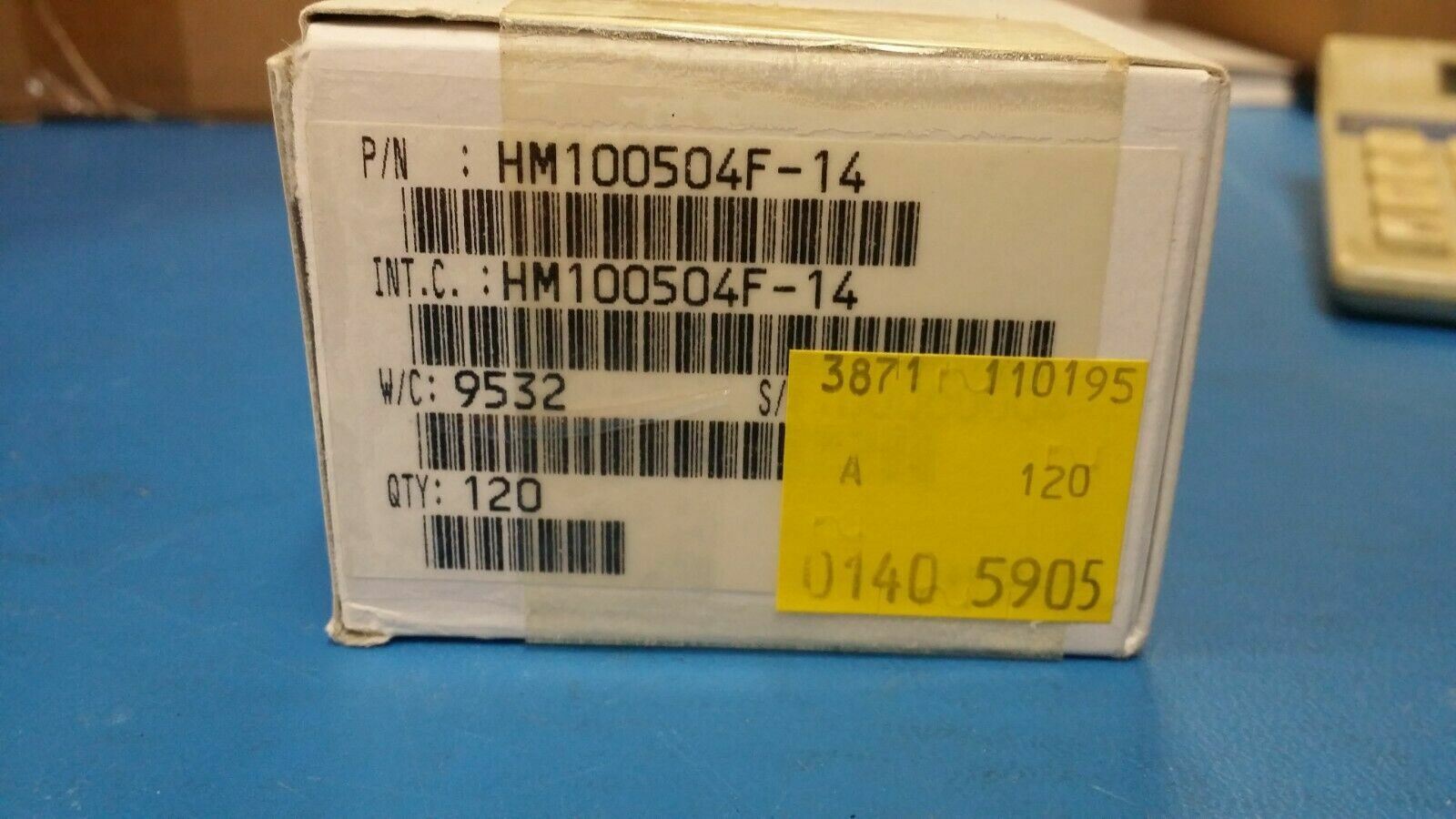

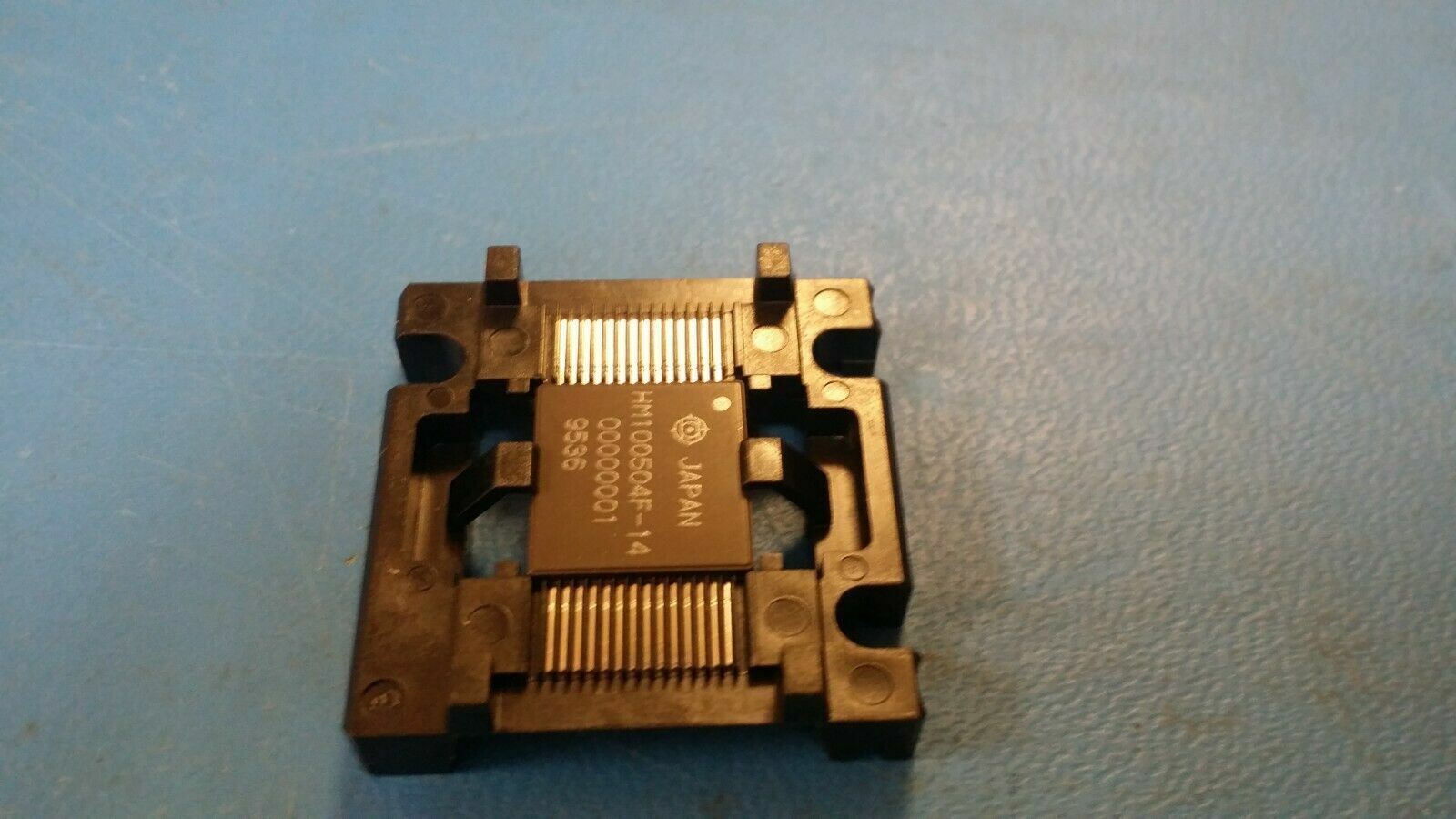

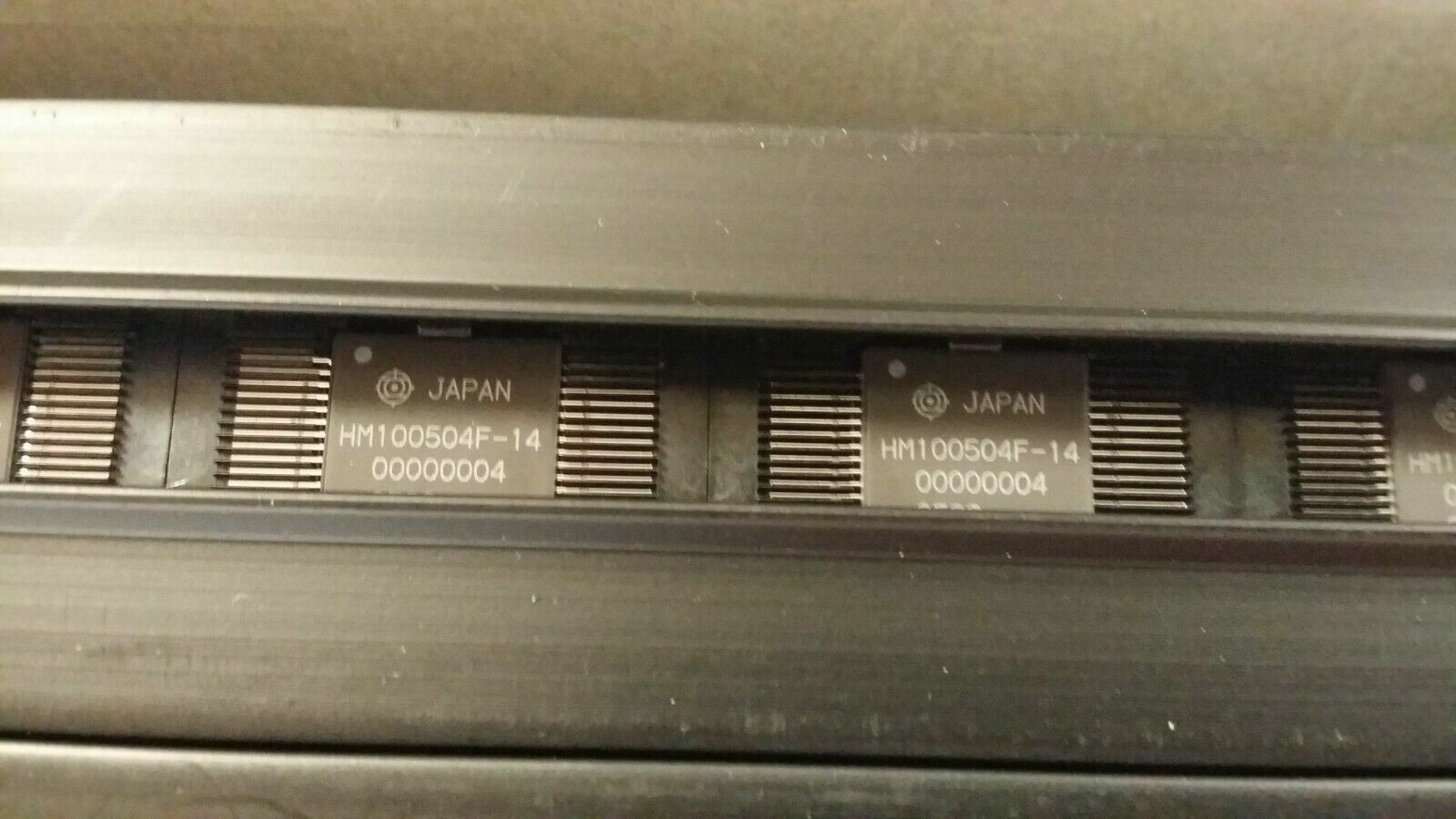

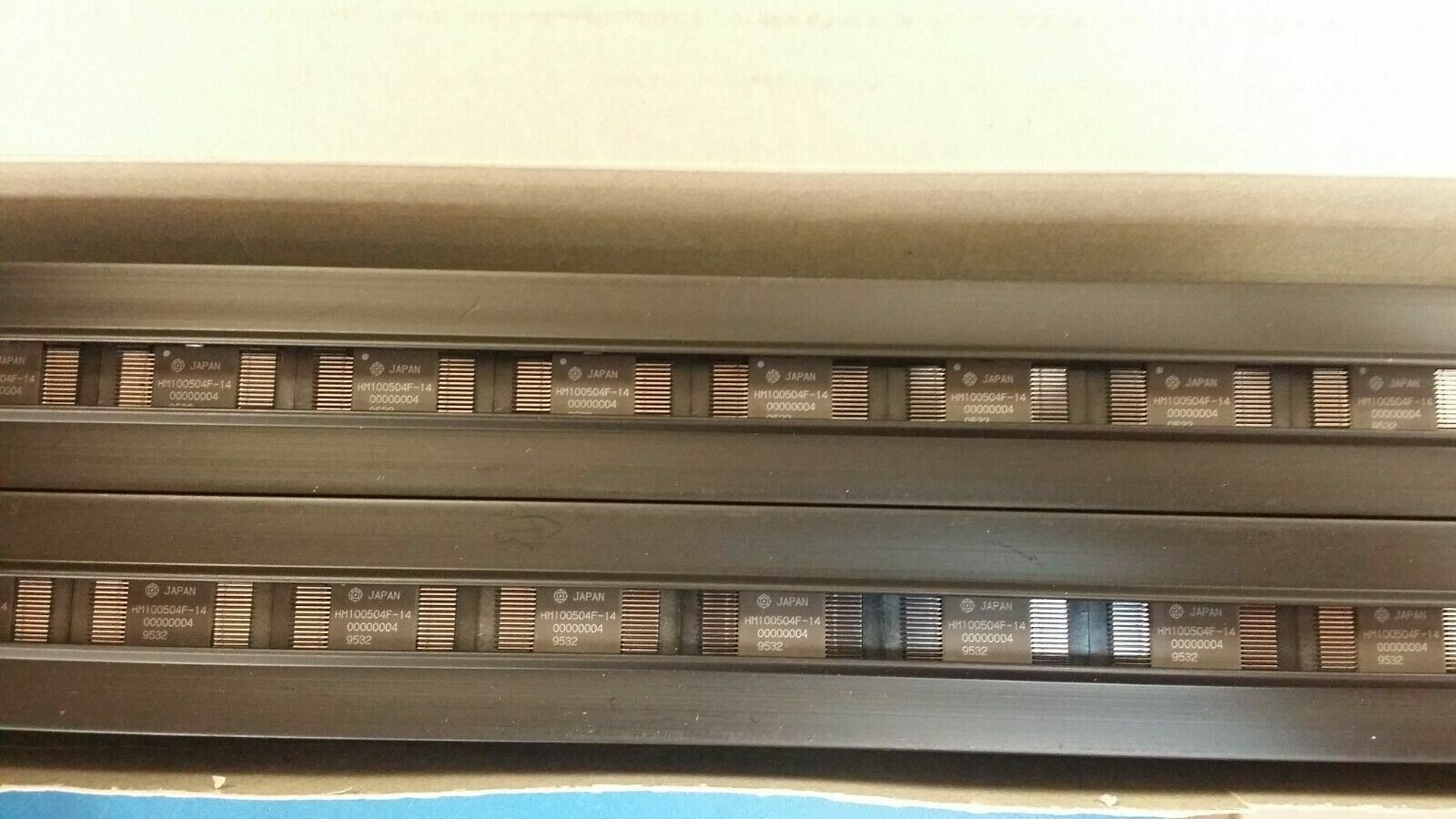

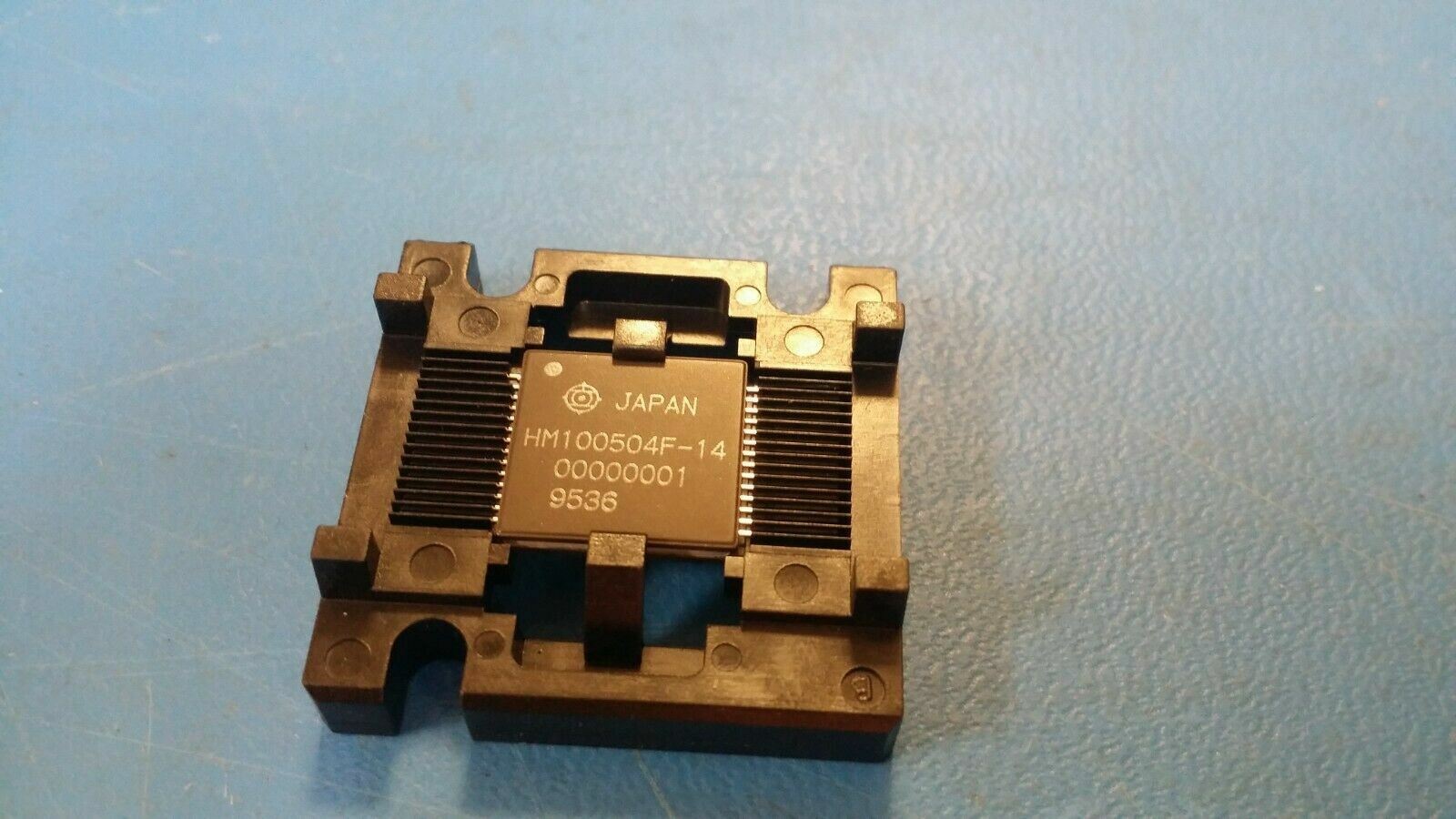

THIS IS FOR (1 PC) OF HM100504F-14 BY HITACHI
Standard SRAM, 64KX4, 14ns, ECL, CDFP28
Part #: HM100504F-14
Part Category: Memory ICs
Manufacturer: Hitachi, Ltd.
Description: Standard SRAM, 64KX4, 14ns, ECL, CDFP28
Mfr Package Description 0.030 INCH PITCH, CERAMIC, FP-28
Status Transferred
Sub Category SRAMs
Access Time-Max 14.0 ns
I/O Type SEPARATE
JESD-30 Code R-GDFP-F28
JESD-609 Code e0
Memory Density 262144.0 bit
Memory IC Type STANDARD SRAM
Memory Width 4
Neg Supply Voltage-Nom -4.5 V
Number of Functions 1
Number of Ports 1
Number of Terminals 28
Number of Words 65536.0 words
Number of Words Code 64K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 85.0 Cel
Organization 64KX4
Output Characteristics OPEN-EMITTER
Output Enable NO
Package Body Material CERAMIC, GLASS-SEALED
Package Code DFP
Package Equivalence Code FL28,.5,30
Package Shape RECTANGULAR
Package Style FLATPACK
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Seated Height-Max 2.29 mm
Supply Current-Max 0.18 Amp
Surface Mount YES
Technology ECL
Temperature Grade OTHER
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form FLAT
Terminal Pitch 0.762 mm
Terminal Position DUAL
Length 13.6 mm
Width 12.92 mm
