(1 PC) HM1-6504-8 HARRIS 4K X 1 STANDARD SRAM, 320ns, CDIP18 VINTAGE 1981 D/C
Tax included.

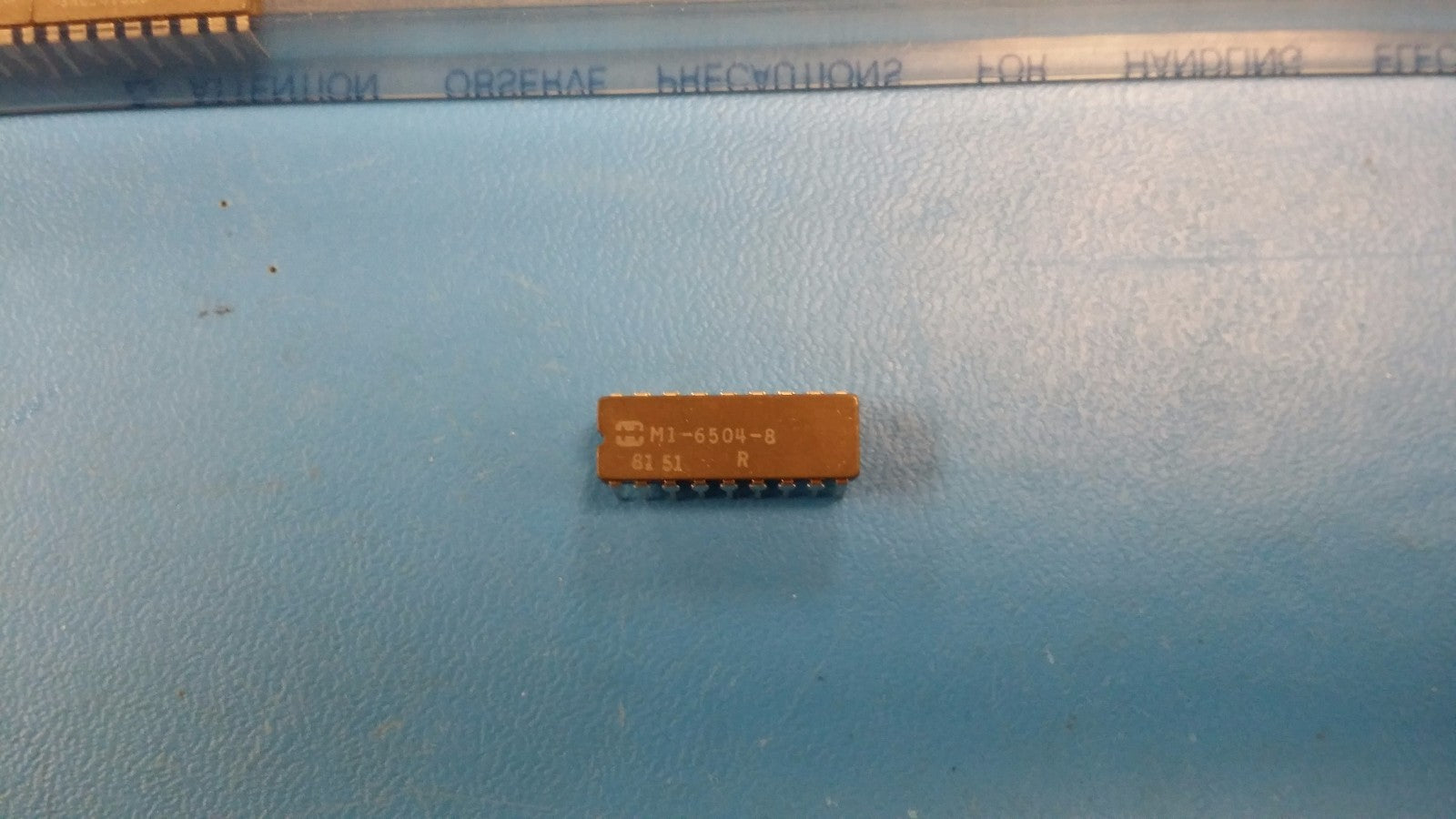

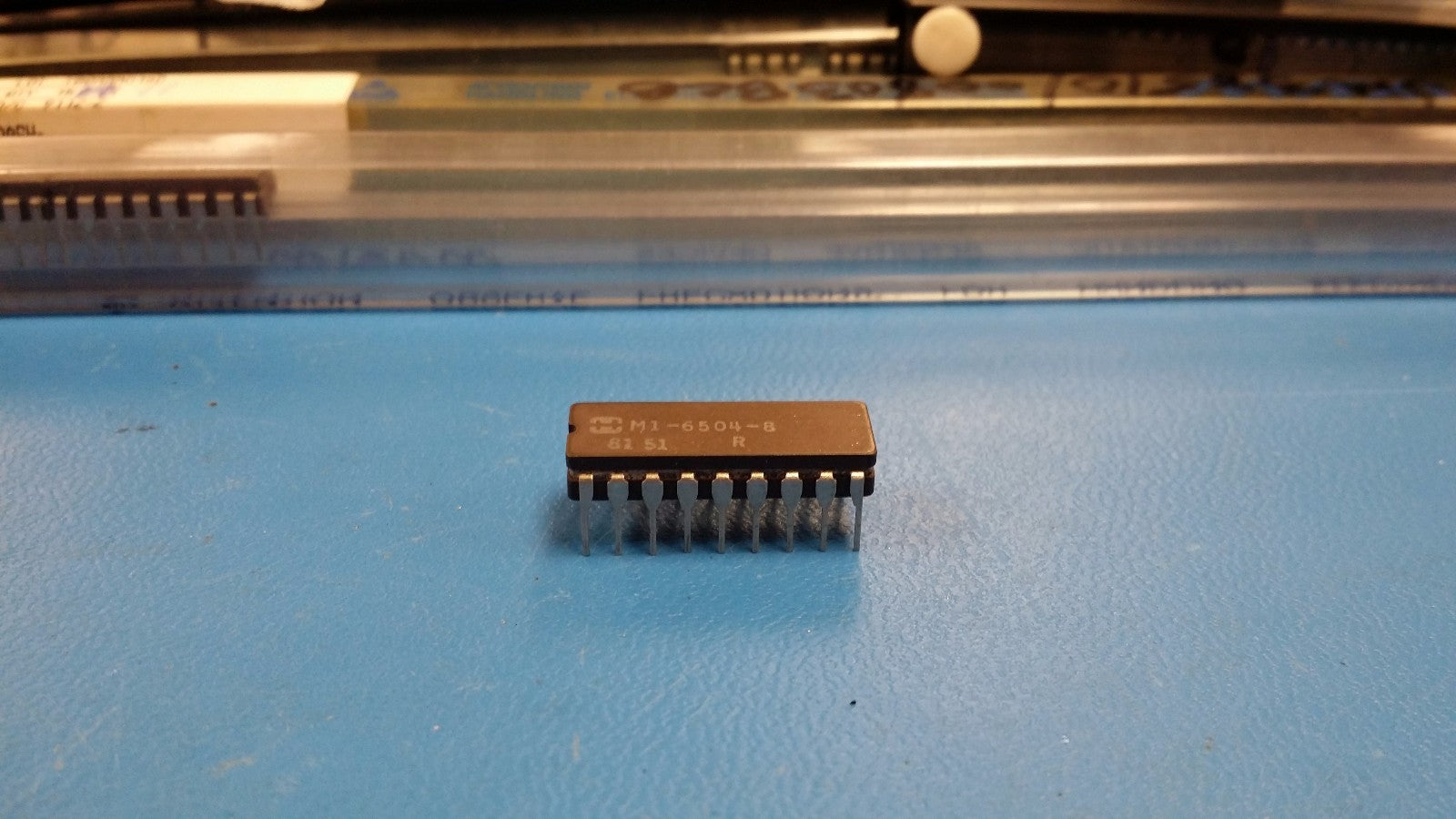

THIS LISTING IS FOR (1 PC) OF HM1-6504-8 BY HARRIS
4K X 1 STANDARD SRAM, 320ns, CDIP18 VINTAGE 1981 DATE CODE
Part #: HM1-6504-8
Part Category: Memory ICs
Manufacturer: Harris Corporation
Description: Standard SRAM, 4KX1, 320ns, CMOS, CDIP18
Status Discontinued
Sub Category SRAMs
Access Time-Max 320.0 ns
I/O Type SEPARATE
JESD-30 Code R-GDIP-T18
JESD-609 Code e0
Memory Density 4096.0 bit
Memory IC Type STANDARD SRAM
Memory Width 1
Number of Functions 1
Number of Ports 1
Number of Terminals 18
Number of Words 4096.0 words
Number of Words Code 4K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Organization 4KX1
Output Characteristics 3-STATE
Output Enable NO
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP18,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Screening Level 38535Q/M;38534H;883B
Standby Current-Max 2.5E-5 Amp
Standby Voltage-Min 2.0 V
Supply Current-Max 0.014 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology CMOS
Temperature Grade MILITARY
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Additional Feature ADDRESS LATCH
