(1 PC) HIP5011IS HARRIS HB Based Peripheral Driver With Pwm, PSSO7 (TO-263)

$7.95
Unit price per

Tax included.

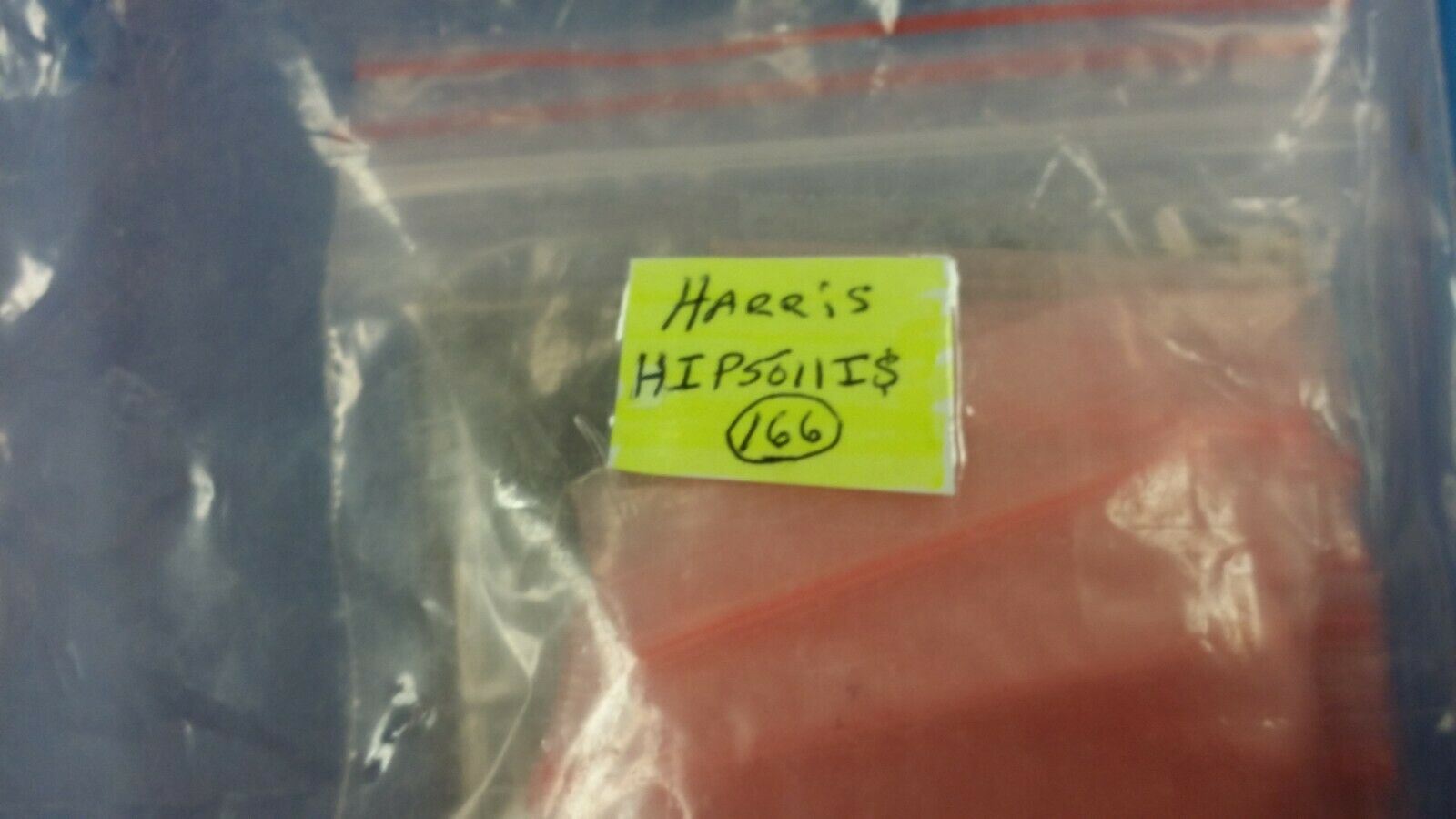

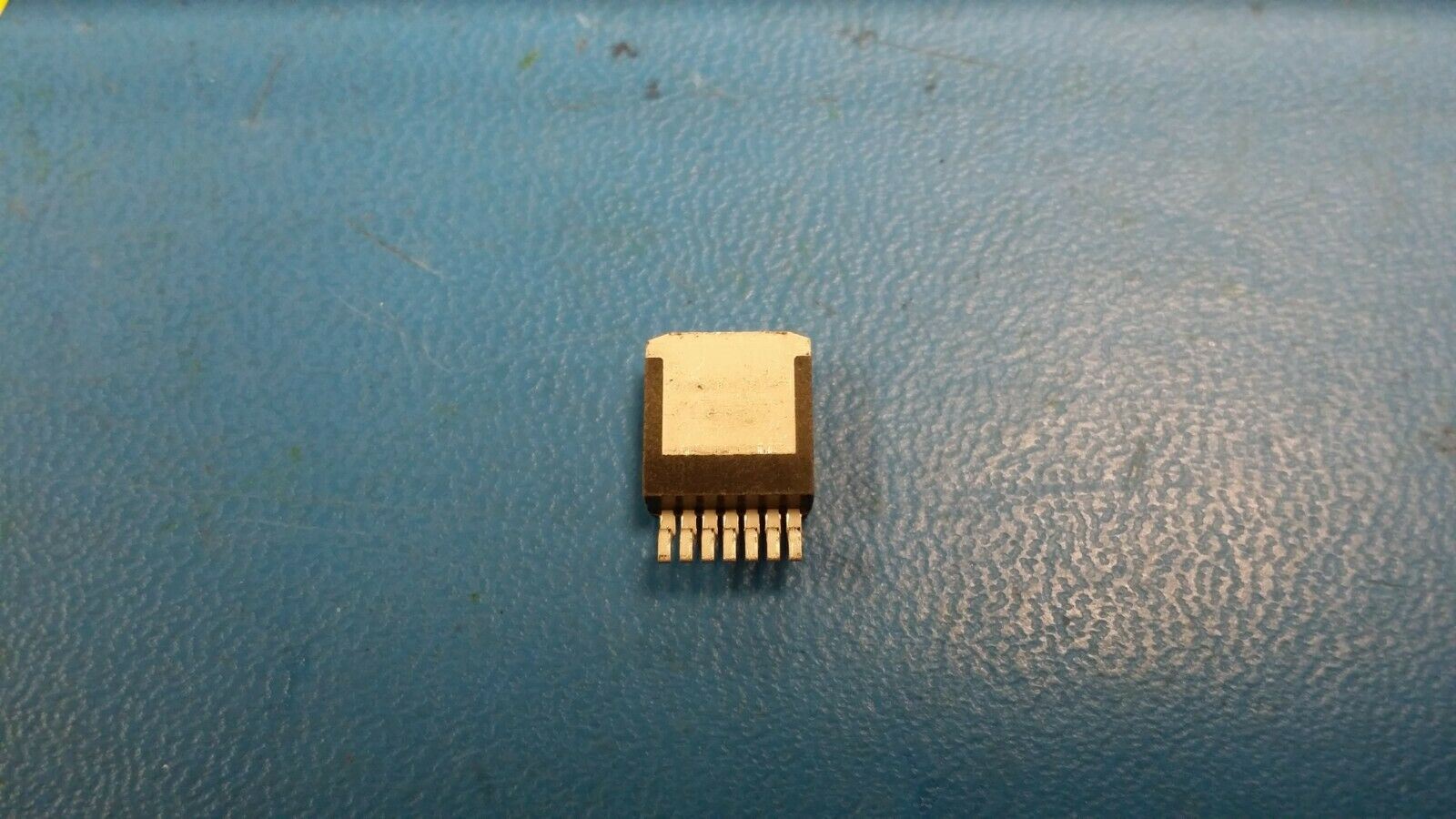

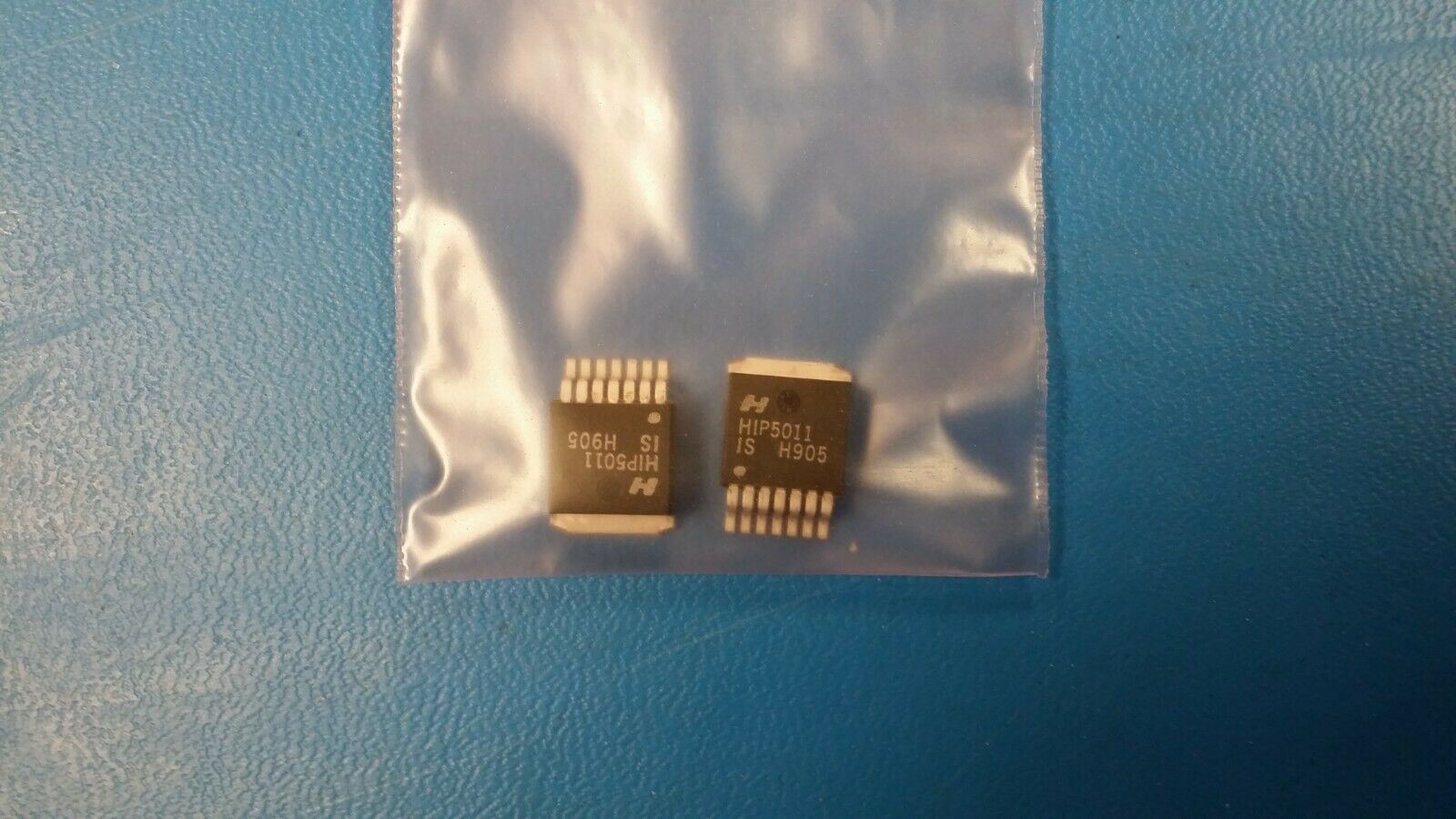

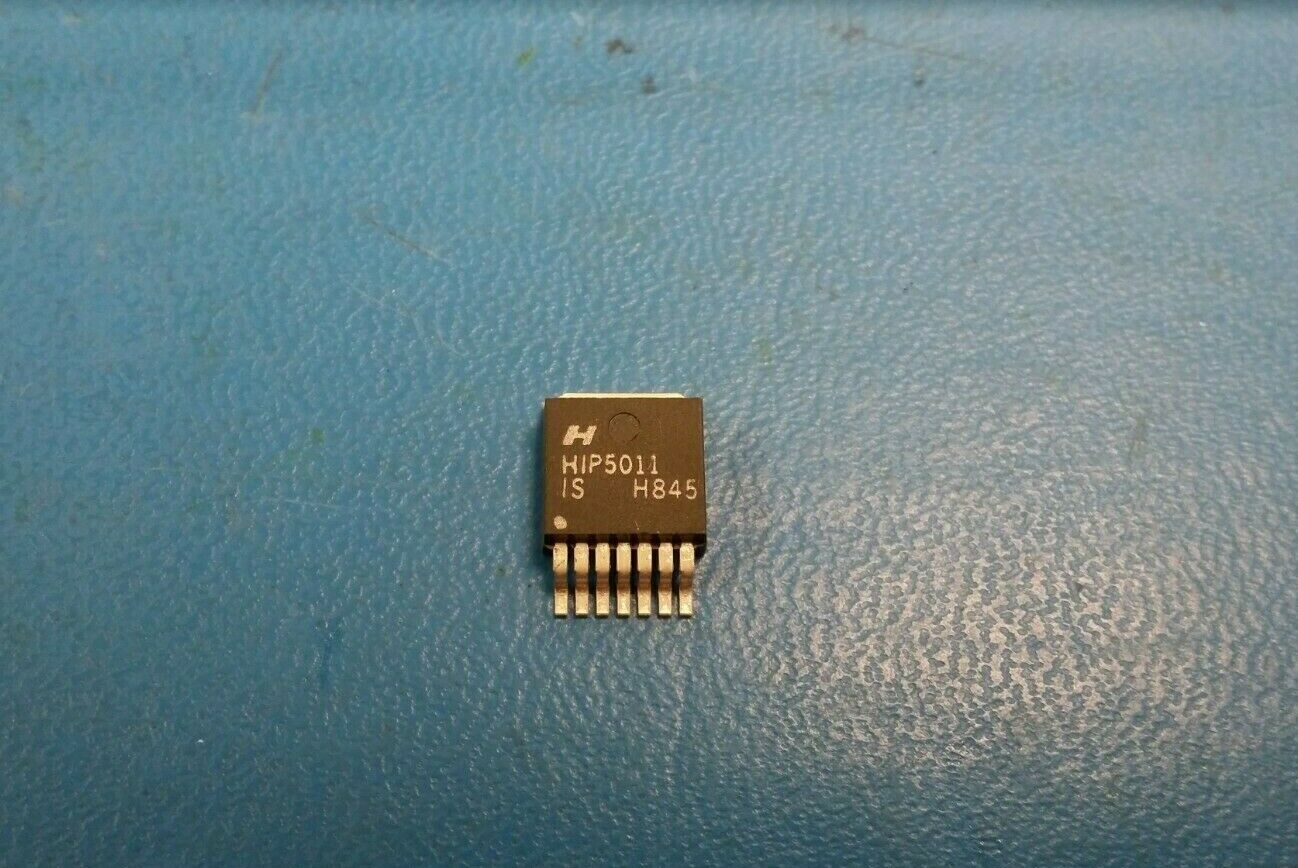

THIS LISTING IS FOR (1 PC) OF HIP5011IS BY HARRIS

HB Based Peripheral Driver With Pwm, PSSO7 (TO-263)

Part #: HIP5011IS

Part Category: Interface ICs

Manufacturer: Harris Corporation

Description: HB Based Peripheral Driver With Pwm, 17A, NMOS, PSSO7

Mfr Package Description PLASTIC, MO-169AC, SIP-7

Status Discontinued

Interface IC Type HB BASED PERIPHERAL DRIVER WITH PWM

Built-in Protections TRANSIENT

JESD-30 Code R-PSSO-G7

JESD-609 Code e0

Number of Functions 1

Number of Terminals 7

Operating Temperature-Min -40.0 Cel

Operating Temperature-Max 85.0 Cel

Output Current Flow Direction SOURCE AND SINK

Output Peak Current Limit-Nom 17.0 A

Package Body Material PLASTIC/EPOXY

Package Code TO-263

Package Shape RECTANGULAR

Package Style SMALL OUTLINE

Peak Reflow Temperature (Cel) 225

Qualification Status Not Qualified

Seated Height-Max 4.57 mm

Supply Voltage-Nom 12.0 V

Supply Voltage-Min 9.6 V

Supply Voltage-Max 14.4 V

Surface Mount YES

Technology NMOS

Temperature Grade INDUSTRIAL

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form GULL WING

Terminal Pitch 1.27 mm

Terminal Position SINGLE

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED

Turn-off Time 0.08 µs

Length 10.16 mm

Width 9.14 mm
