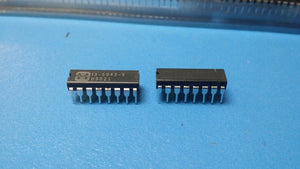

(1 PC) HI3-5043-5 HARRIS SEMICONDUCTOR SPDT, 2 Func, 1 Channel, CMOS, PDIP16
Tax included.
THIS LISTING IS FOR (1 PC) OF HI3-5043-5 BY HARRIS
SPDT, 2 Func, 1 Channel, CMOS, PDIP16
Part #: HI3-5043-5
Part Category: Other Semiconductors
Manufacturer: Harris Corporation
Description: SPDT, 2 Func, 1 Channel, CMOS, PDIP16
Analog IC - Other Type SPDT
JESD-30 Code R-PDIP-T16
JESD-609 Code e0
Neg Supply Voltage-Nom (Vsup) -15.0 V
Number of Channels 1
Number of Functions 2
Number of Terminals 16
Off-state Isolation-Nom 80.0 dB
On-state Resistance Match-Nom 2.0 ohm
On-state Resistance-Max (Ron) 75.0 ohm
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 75.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Sub Category Multiplexer or Switches
Supply Voltage-Nom (Vsup) 15.0 V
Surface Mount NO
Switch-off Time-Max 500.0 ns
Switch-on Time-Max 500.0 ns
Technology CMOS
Temperature Grade COMMERCIAL EXTENDED
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
