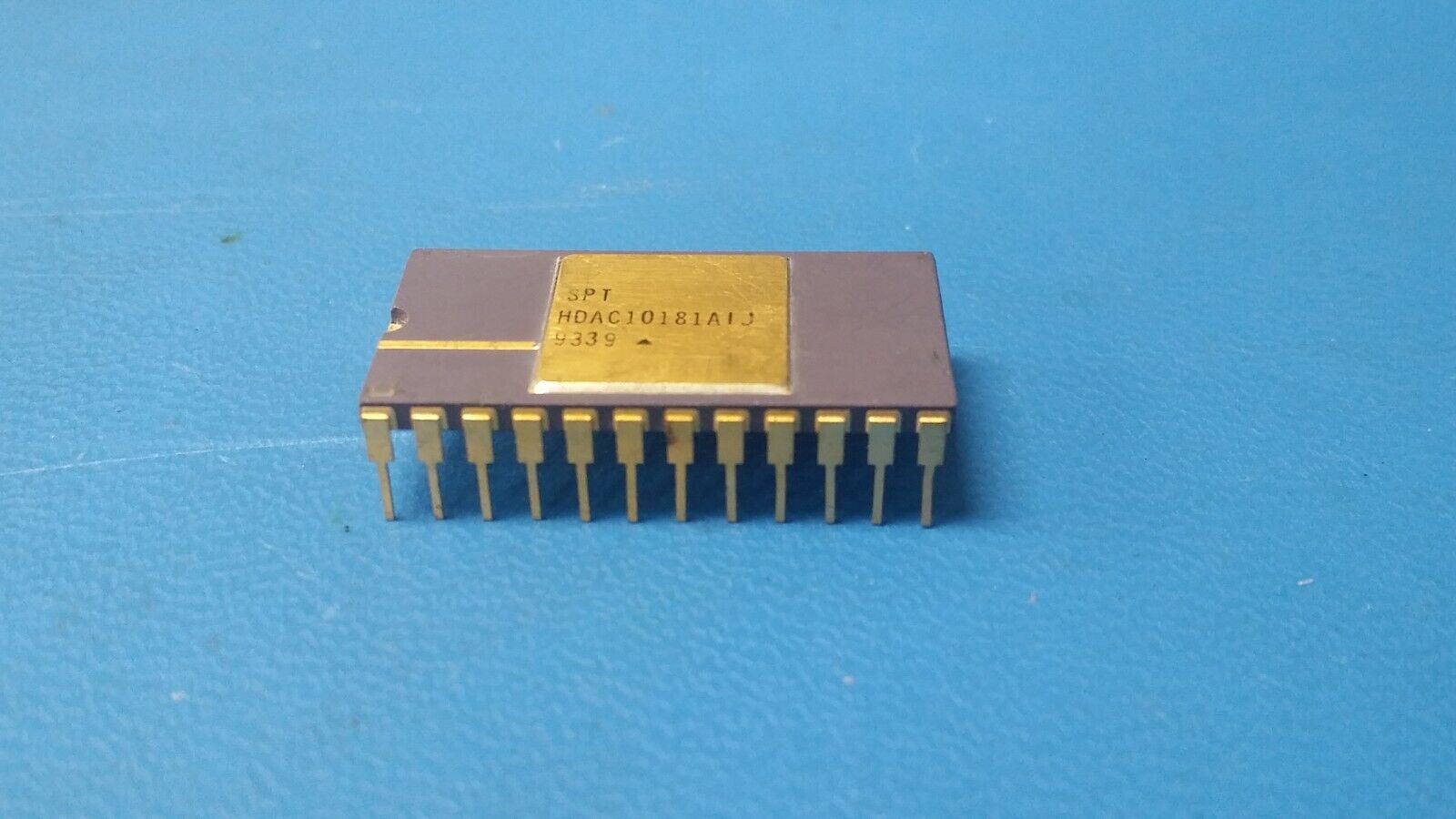

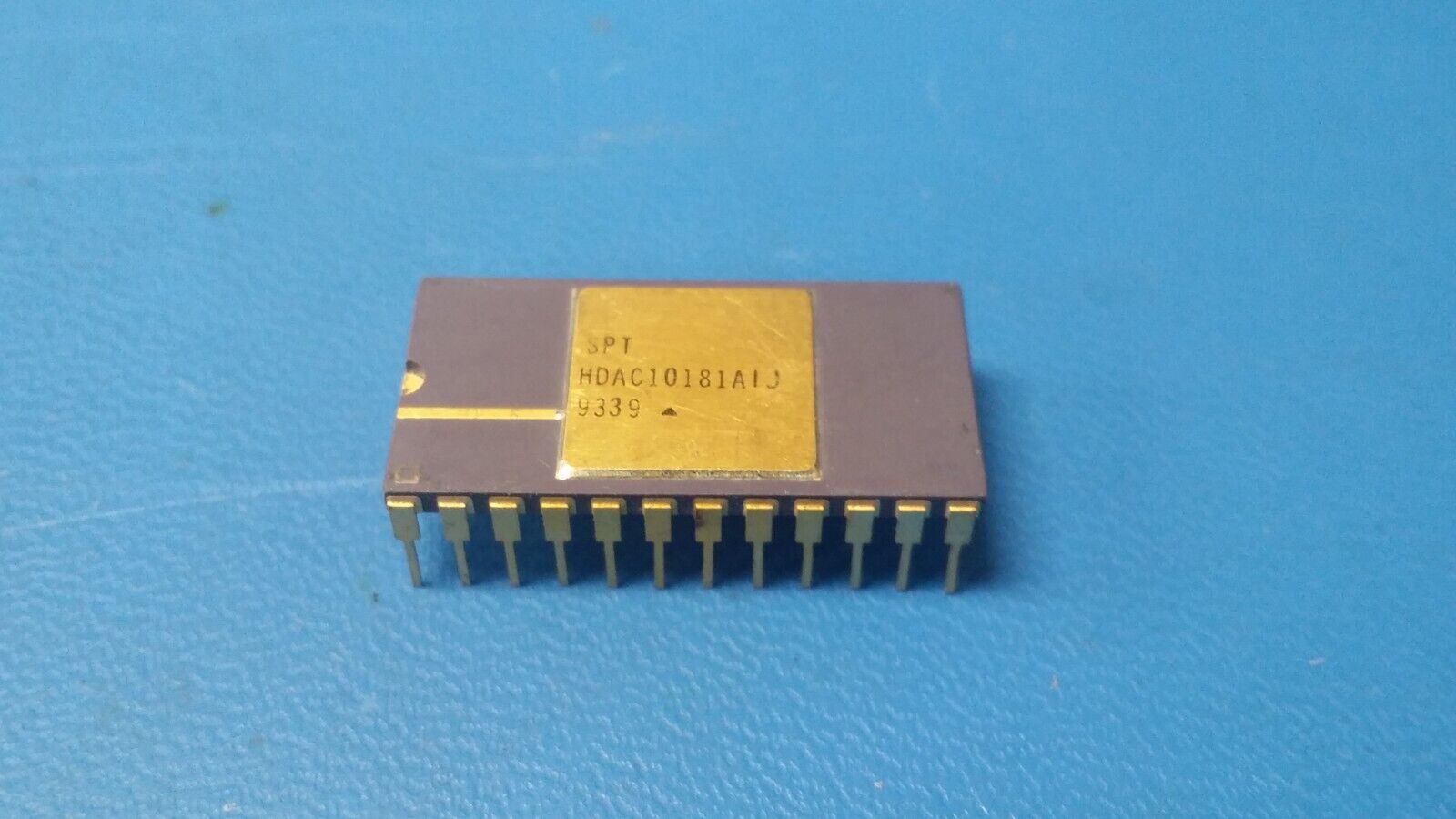

(1 PC) HDAC10181AIJ SPT, D/A Converter, 8-Bit, 1 Func, Bipolar, GOLD-CDIP24

$19.95
Unit price per

Tax included.

THIS IS FOR (1 PC) OF HDAC10181AIJ BY SPT

D/A Converter, 8-Bit, 1 Func, Bipolar, GOLD-CDIP24

Part #: HDAC10181AID

Part Category: Converters

Manufacturer: Signal Processing Technologies, Inc.

Description: D/A Converter, 1 Func, Parallel, 8 Bits Input Loading, 0.007us Settling Time, CDIP24

Input Bit Code OFFSET BINARY

Input Format PARALLEL, 8 BITS

JESD-30 Code R-GDIP-T24

JESD-609 Code e0

Linearity Error-Max (EL) 0.37 %

Negative Supply Voltage-Nom -5.2 V

Number of Bits 8

Number of Functions 1

Number of Terminals 24

Operating Temperature-Min -25.0 Cel

Operating Temperature-Max 85.0 Cel

Package Body Material CERAMIC,GOLD TOP AND LEADS

Package Code DIP

Package Equivalence Code DIP24,.6

Package Shape RECTANGULAR

Package Style IN-LINE

Peak Reflow Temperature (Cel) NOT SPECIFIED

Qualification Status Not Qualified

Settling Time-Nom (tstl) 0.007 µs

Sub Category Other Converters

Supply Current-Max 220.0 mA

Surface Mount NO

Technology BIPOLAR

Temperature Grade OTHER

Terminal Finish Tin/Lead (Sn/Pb)

Terminal Form THROUGH-HOLE

Terminal Pitch 2.54 mm

Terminal Position DUAL

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
