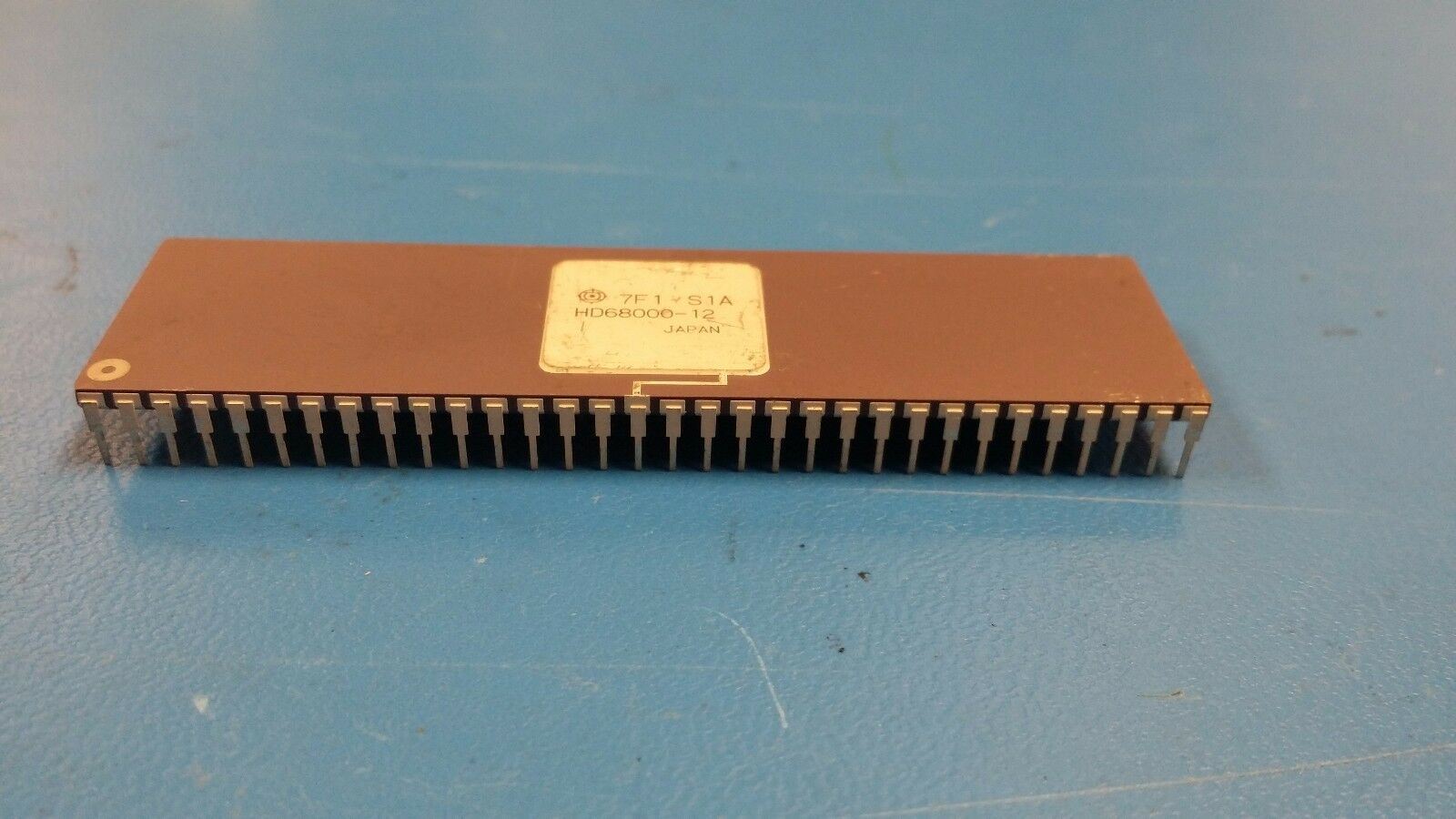

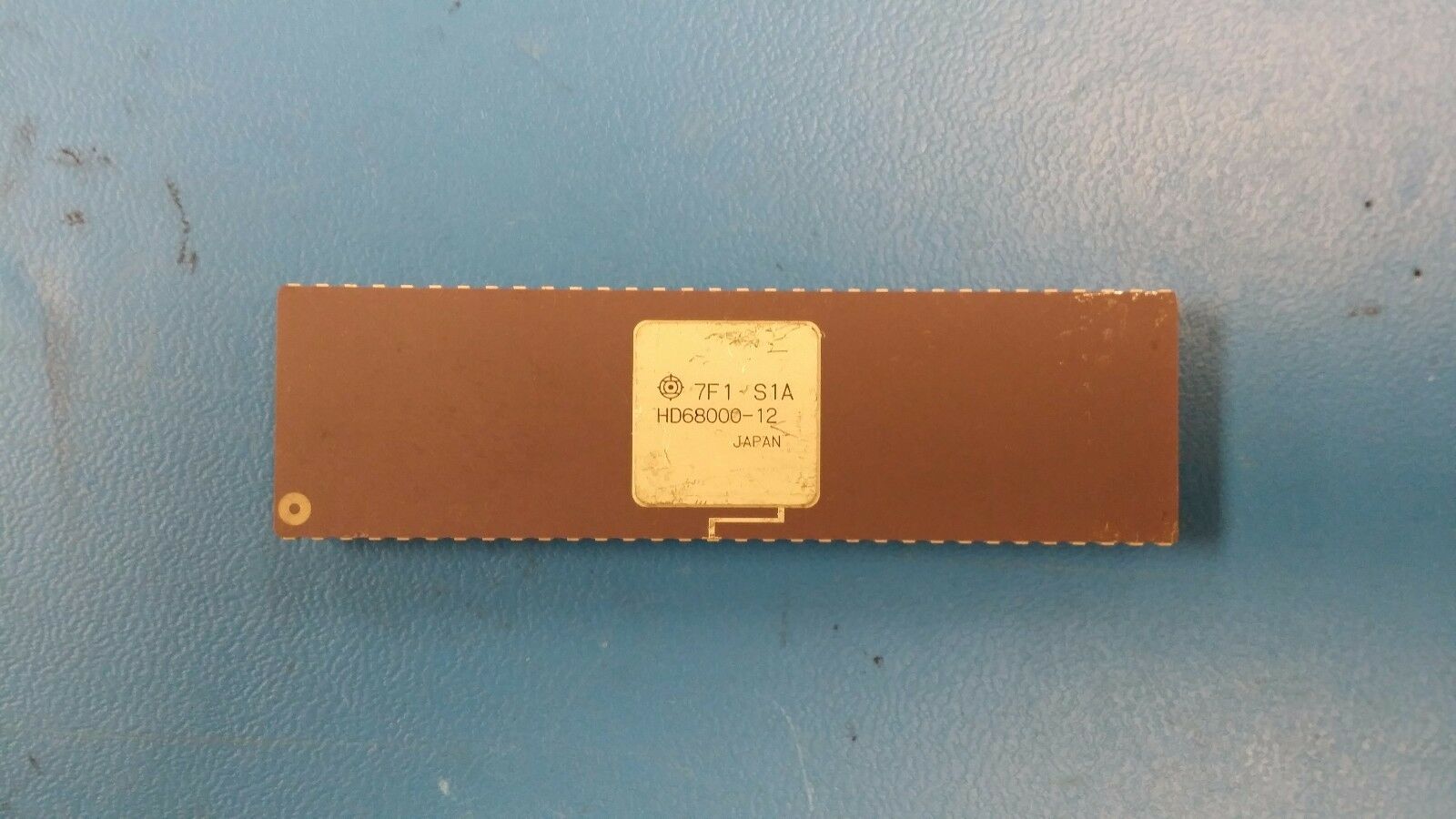

(1 PC) HD68000-12 HITACHI 16-BIT, 12.5MHz, MICROPROCESSOR, CDIP64

  • $39.95
    Unit price per
Tax included.

Only 65 left!

THIS LISTING IS FOR (1 PC) OF HD68000-12 BY HITACHI
16-BIT, 12.5MHz, MICROPROCESSOR, CDIP64

Part #: HD68000-12

Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Hitachi, Ltd.
Description: 16-BIT, 12.5MHz, MICROPROCESSOR, CDIP64


Mfr Package Description CERAMIC, DIP-64
Status Discontinued
Microprocessor/Microcontroller/Peripheral IC Type MICROPROCESSOR
Address Bus Width 24.0
Bit Size 16
Boundary Scan NO
Clock Frequency-Max 12.5 MHz
External Data Bus Width 16.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-CDIP-T64
JESD-609 Code e0
Low Power Mode YES
Number of DMA Channels 0.0
Number of External Interrupts 7.0
Number of Serial I/Os 0.0
Number of Terminals 64
On Chip Data RAM Width 0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code DIP
Package Equivalence Code DIP64,.9
Package Shape RECTANGULAR
Package Style IN-LINE
Power Supplies 5
Qualification Status Not Qualified
RAM (words) 0
Seated Height-Max 5.08 mm
Speed 12.5 MHz
Sub Category Microprocessors
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology NMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 81.28 mm
Width 22.86 mm
