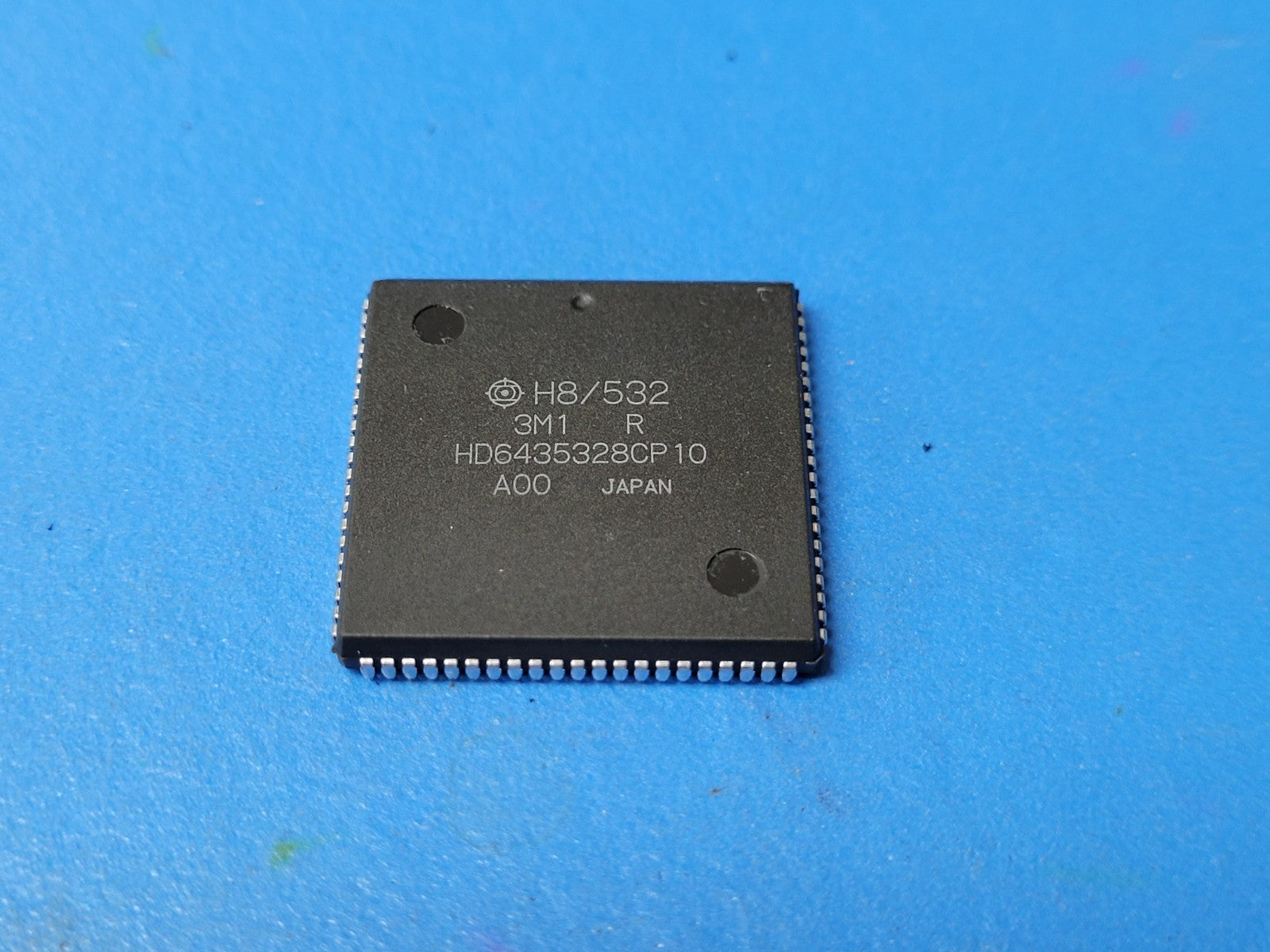

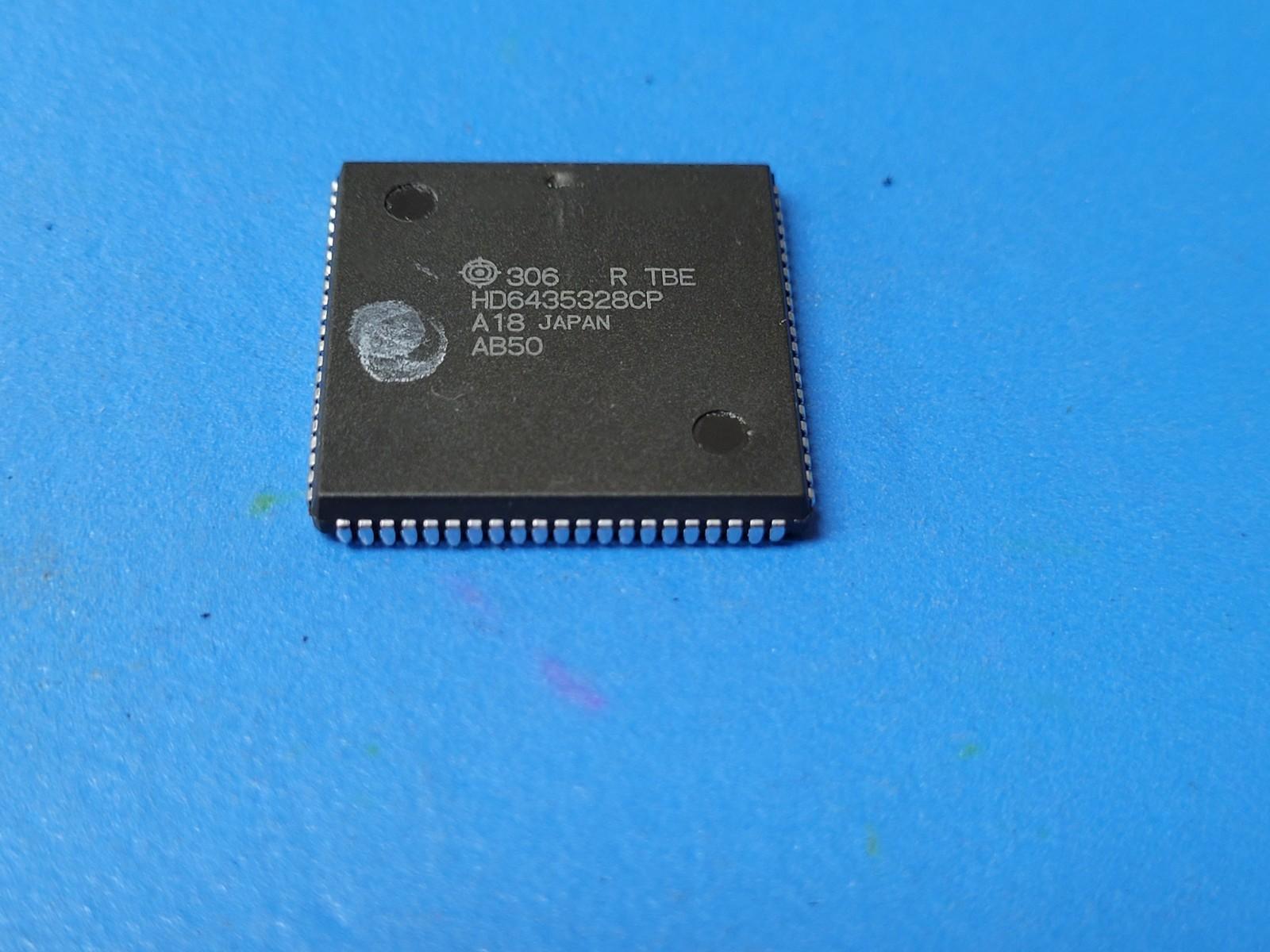

(1 PC) HD6435328CP HITACHI Microcontroller, 8-Bit, MROM, 10MHz, CMOS, PLCC84

$24.95
Unit price per

Tax included.

THIS IS FOR (1 PC) OF HD6435328CP BY HITACHI

Microcontroller, 8-Bit, MROM, 10MHz, CMOS, PLCC84

Part #: HD6435328CP

Part Category:Microcontrollers

Manufacturer:HITACHI LTD

Description: Microcontroller, 8-Bit, MROM, 10MHz, CMOS, PQCC84

Status Transferred

ADC Channels YES

Additional Feature CAPTURE/COMPARE UNIT; 2V DATA RETENTION

Address Bus Width 20

Bit Size 8

Boundary Scan NO

Clock Frequency-Max (MHz) 10.0000000000000000

DAC Channels NO

DMA Channels NO

External Data Bus Width 8

Format FIXED POINT

Integrated Cache NO

JESD-30 Code S-PQCC-J84

Length (mm) 29.2800

Low Power Mode YES

Number of DMA Channels 0

Number of External Interrupts 3

Number of I/O Lines 65

Number of Serial I/Os 1

Number of Terminals 84

Number of Timers 2

On Chip Data RAM Width 8

Program Memory Width (bits) 8

Operating Temperature-Max (Cel) 85.0000

Operating Temperature-Min (Cel) -40.0000

PWM Channels YES

Package Body Material PLASTIC/EPOXY

Package Code QCCJ

Package Shape SQUARE

Package Style CHIP CARRIER

DLA Qualification Not Qualified

RAM (words) 512

Program Memory Size (words) 32768

Program Memory Type MROM

Seated Height-Max (mm) 4.6000

Speed (MHz) 10.00000000

Supply Current-Max (mA) 50.00000000

Supply Voltage-Max (V) 5.5000

Supply Voltage-Min (V) 4.5000

Supply Voltage-Nom (V) 5.0000

Surface Mount YES

Technology CMOS

Temperature Grade INDUSTRIAL

Terminal Form J BEND

Terminal Pitch (mm) 1.270

Terminal Position QUAD

Width (mm) 29.2800

uPs/uCs/Peripheral ICs Type MICROCONTROLLER
