(1 PC) GS9028-CKA Gennum Line Driver, 1 Func, 1 Driver, BIPolar, SOIC-8
Tax included.

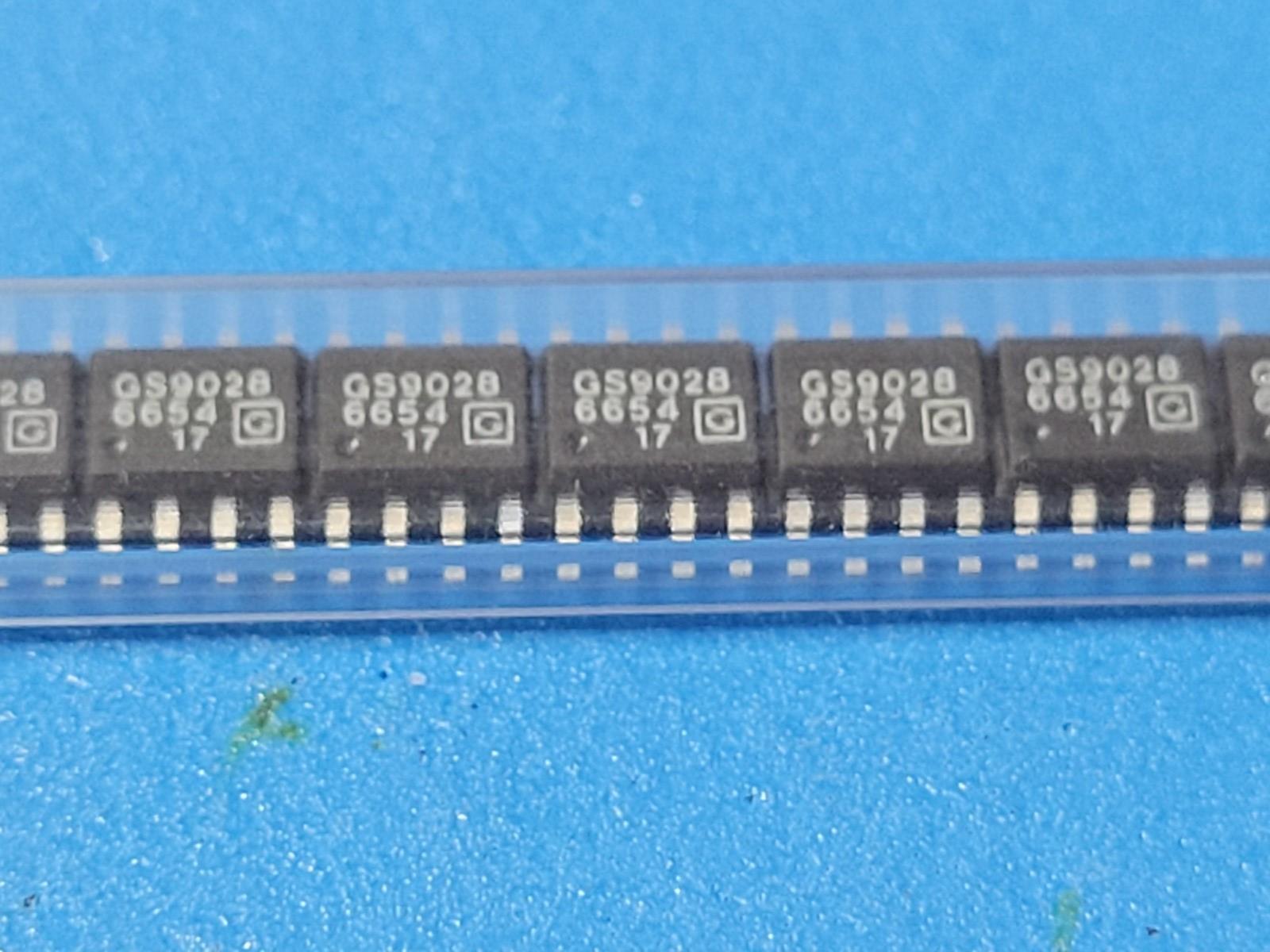

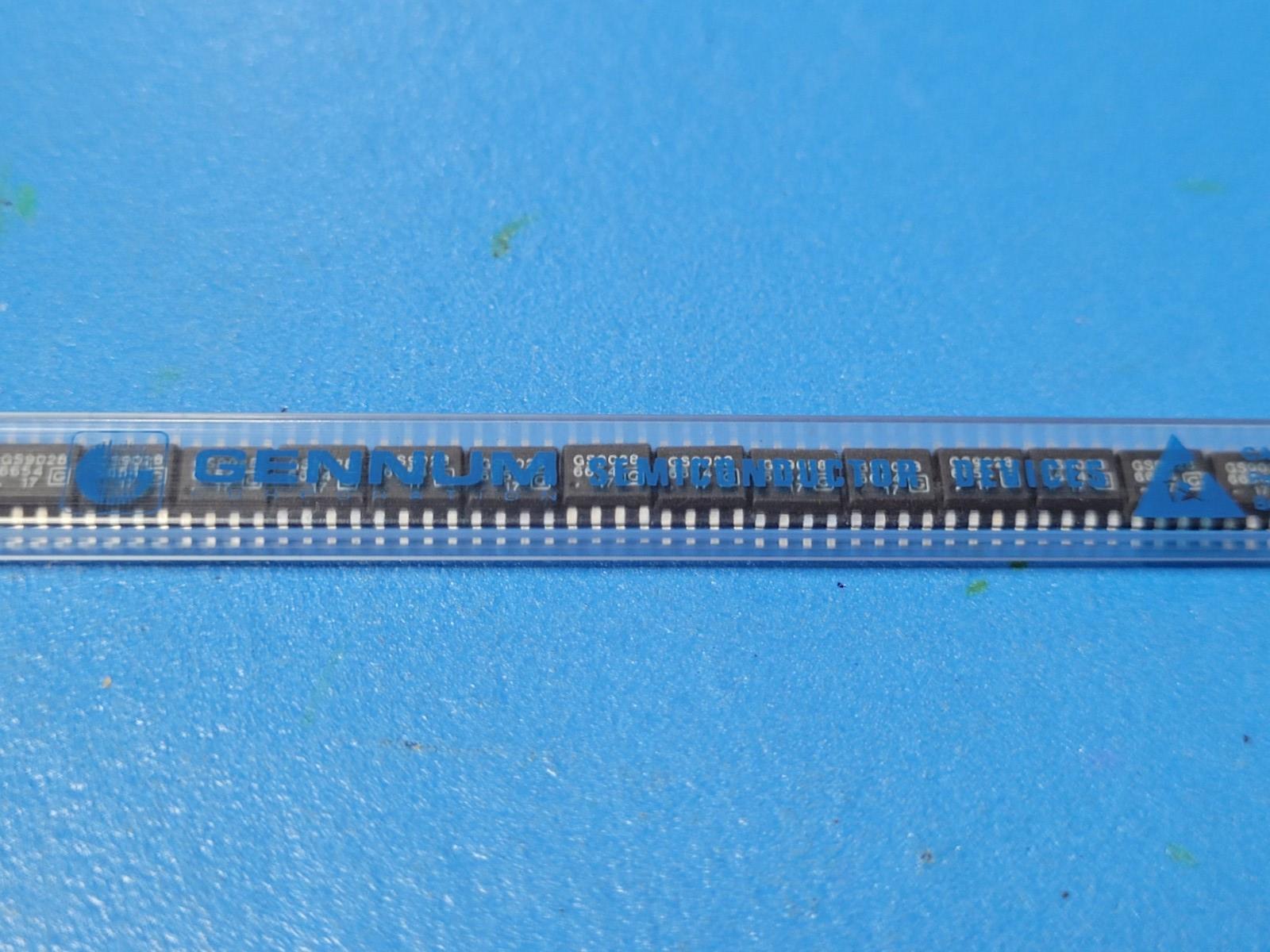

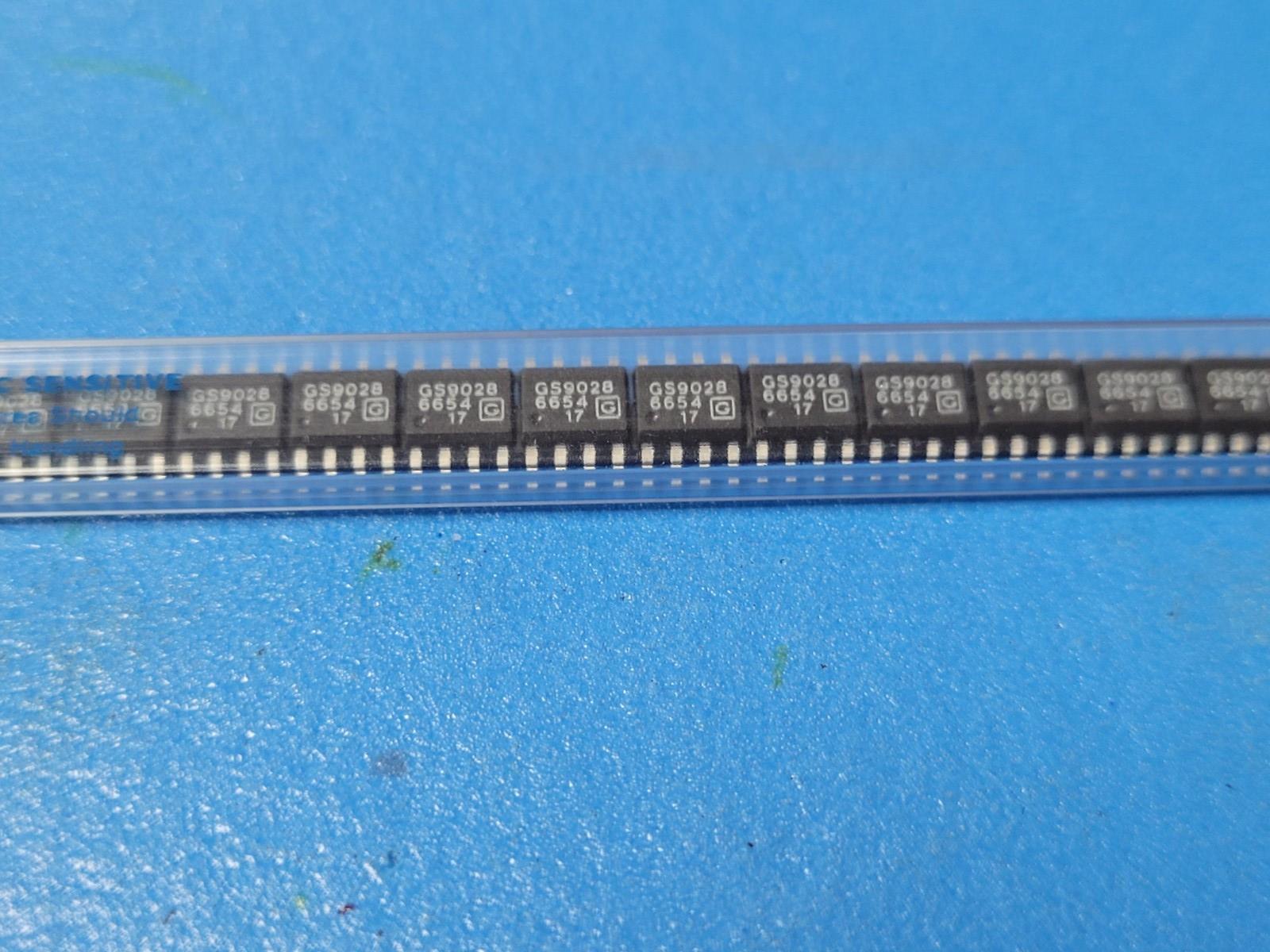

THIS IS FOR (1 PC) OF GS9028-CKA BY Gennum
Line Driver, 1 Func, 1 Driver, BIPolar, SOIC-8
DESCRIPTION
The GS9028 is a second generation bipolar integrated
circuit designed to drive two 75Ω co-axial cables.
The GS9028 features two complementary outputs whose
amplitude is controlled within ± 7%. The output signal levels
are also adjustable from as low as 50mV to as high as
1000mV with little change in other performance parameters.
The output amplitude of the output stage is varied by
adjusting the RSET resistor value.
The GS9028 consumes 45% less system power than the
GS9008 and does not require external pulldown resistors
resulting in a smaller PCB footprint. Operational with input
amplitudes as low as 80mV, the GS9028 is a robust serial
interface device.
The GS9028 is packaged in an 8 pin SOIC and operates
from a single +5 or -5 volt supply
