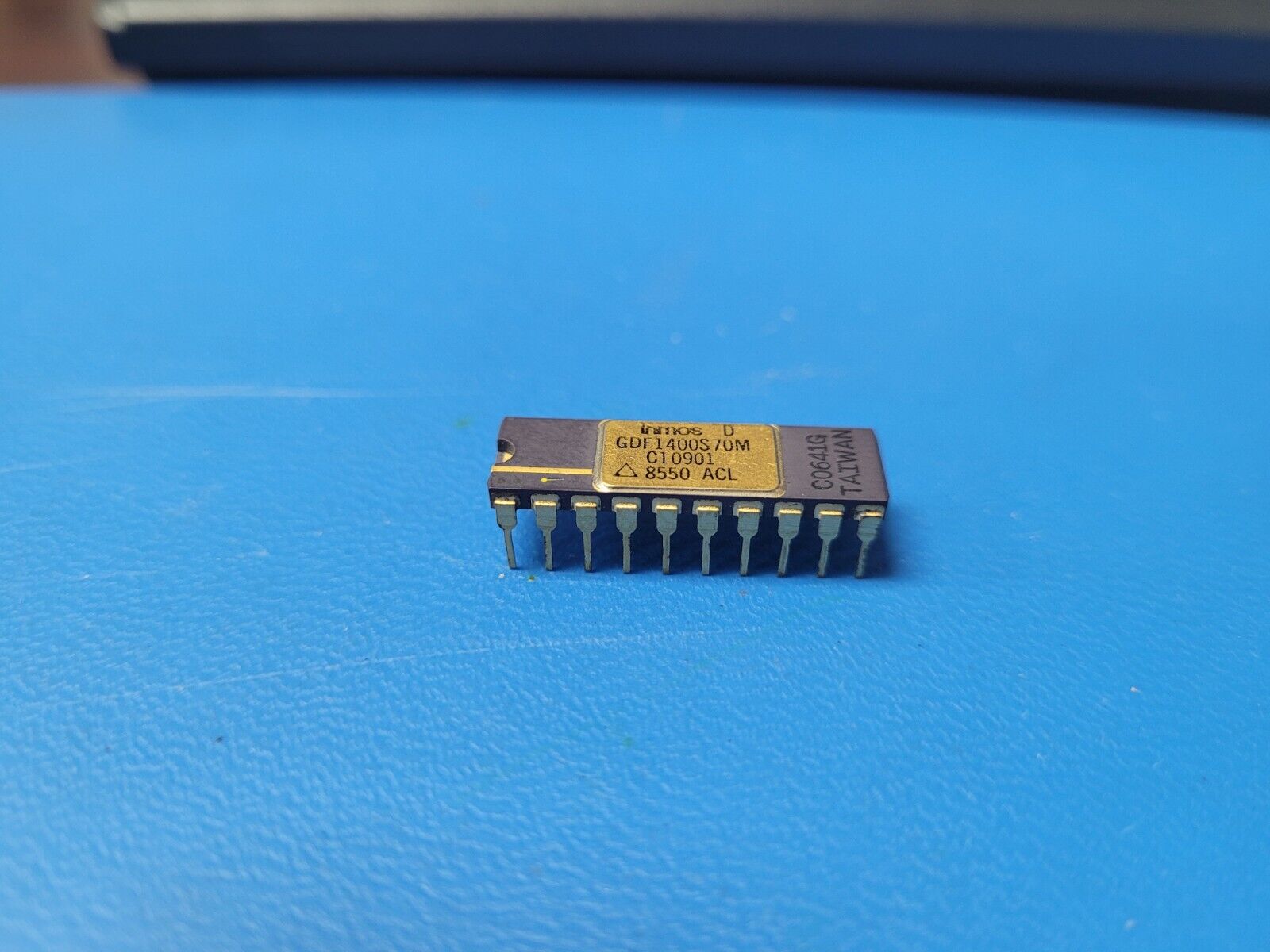

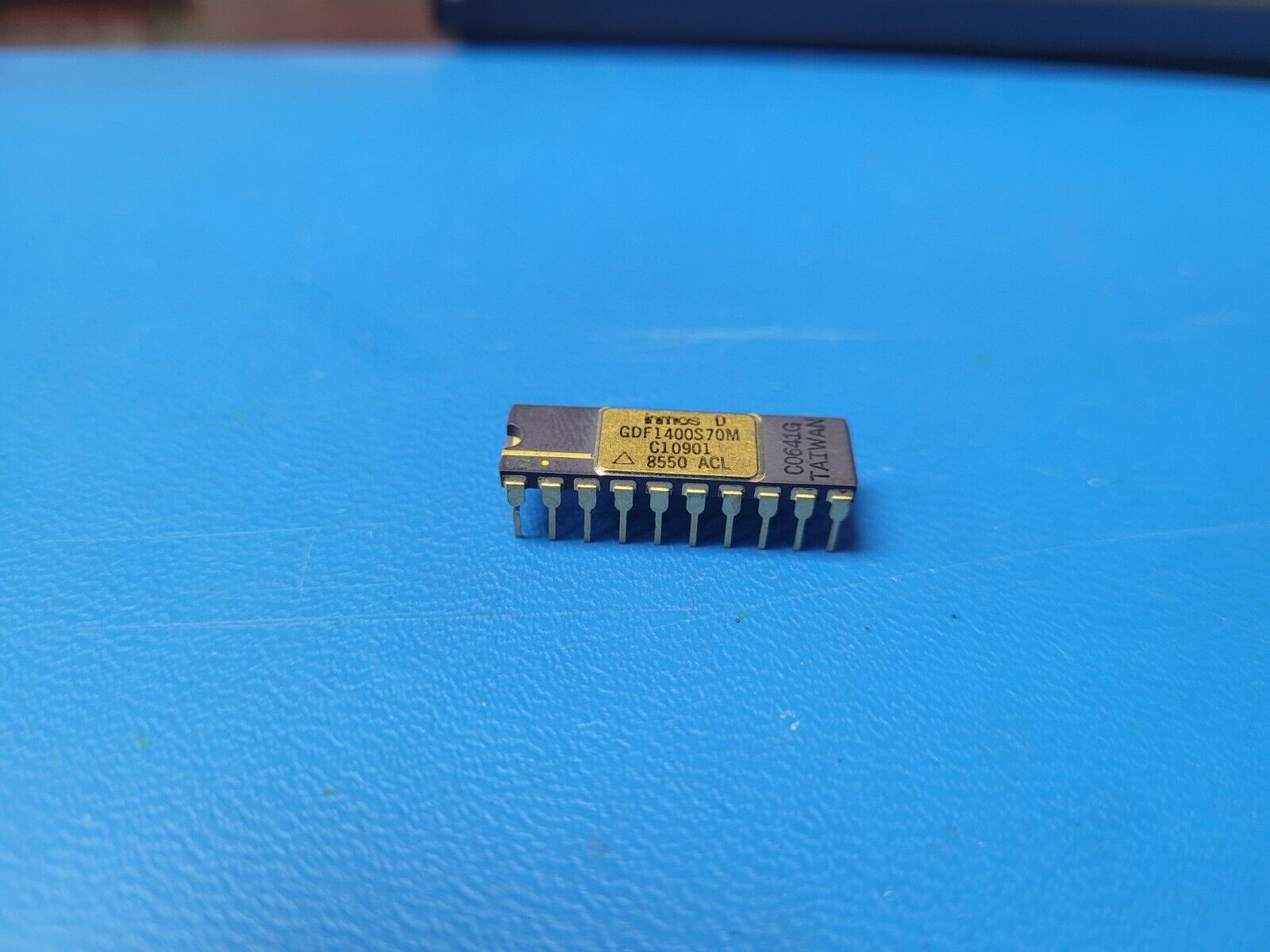

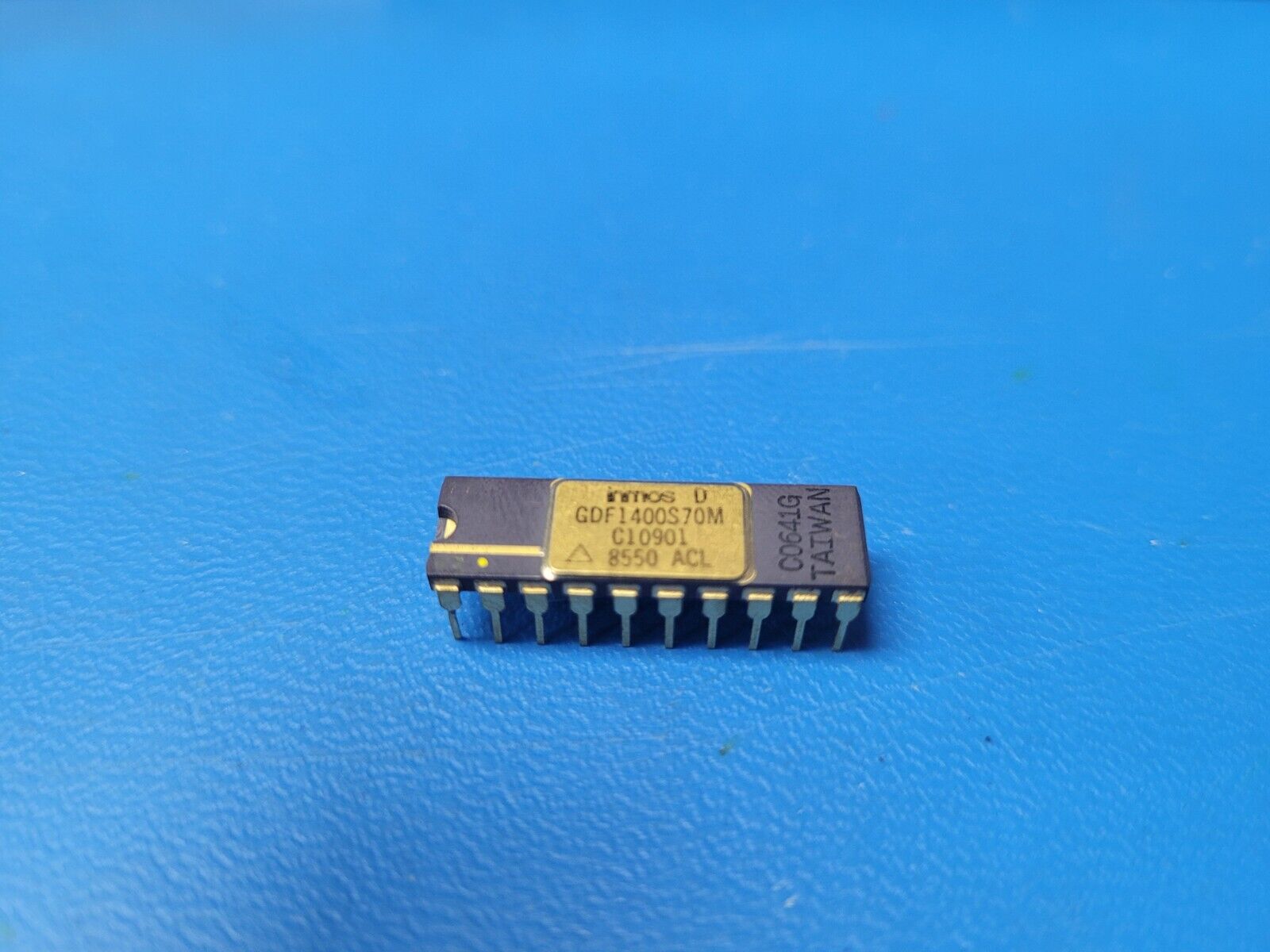

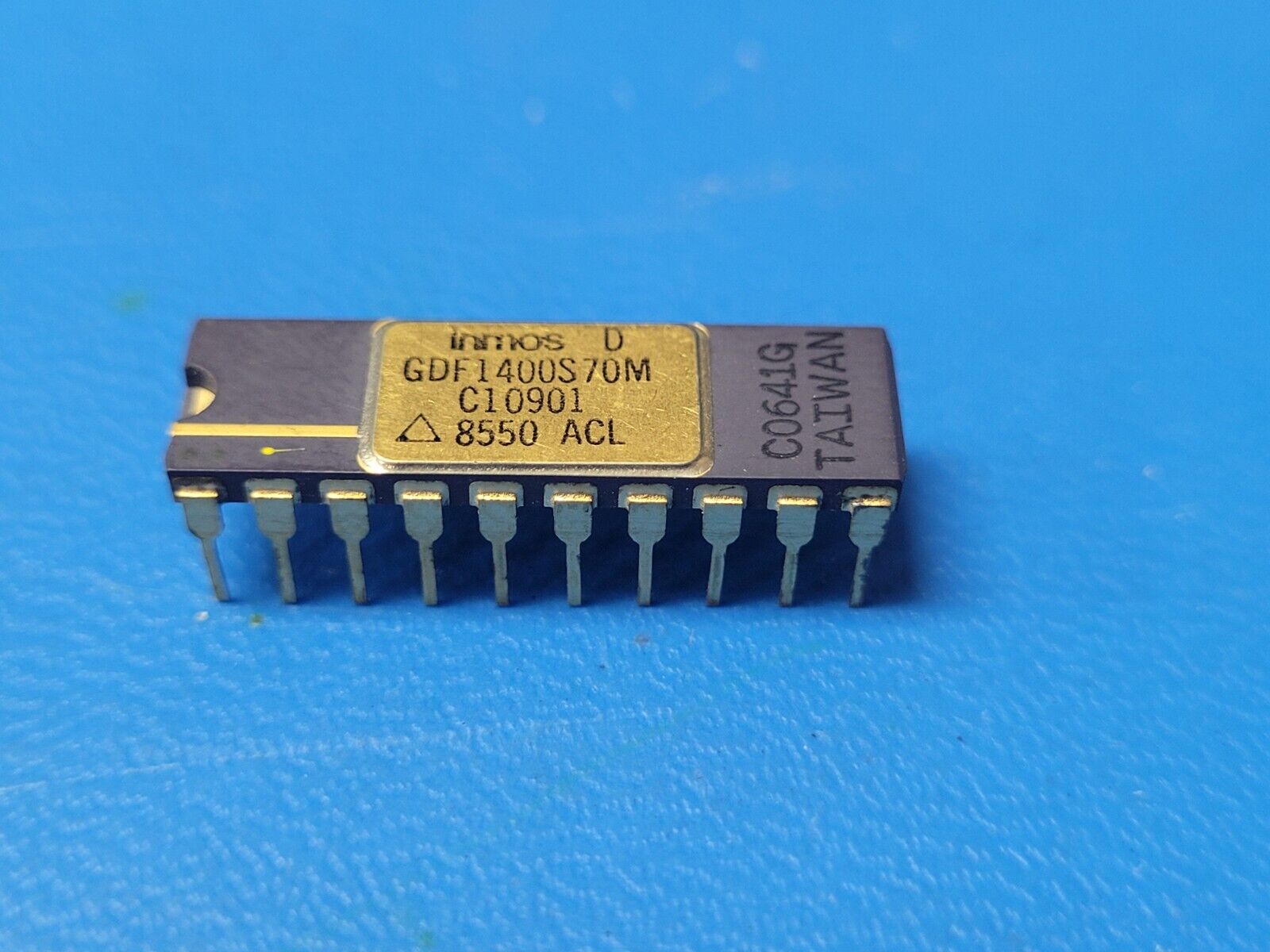

(1 PC) GDF1400S70M INMOS Standard SRAM, 16KX1, 65ns, NMOS, CDIP20 GOLD LEADS
Tax included.
THIS IS FOR (1 PC) OF GDF1400S70M BY INMOS
Standard SRAM, 16KX1, 65ns, NMOS, CDIP20 GOLD LEADS
Mfr Package Description 0.300 INCH, SIDE BRAZED, CERAMIC, DIP-20
Status Discontinued
Sub Category SRAMs
Access Time-Max 65.0 ns
I/O Type SEPARATE
JESD-30 Code R-CDIP-T20
JESD-609 Code e0
Memory Density 16384.0 bit
Memory IC Type STANDARD SRAM
Memory Width 1
Number of Functions 1
Number of Ports 1
Number of Terminals 20
Number of Words 16384.0 words
Number of Words Code 16K
Operating Mode ASYNCHRONOUS
Operating Temperature-Min -55.0 Cel
Operating Temperature-Max 125.0 Cel
Organization 16KX1
Output Characteristics 3-STATE
Output Enable NO
Package Body Material CERAMIC, METAL-SEALED COFIRED
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Qualification Status Not Qualified
Screening Level 38535Q/M;38534H;883B
Seated Height-Max 3.124 mm
Supply Current-Max 0.12 Amp
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology NMOS
Temperature Grade MILITARY
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Length 25.4 mm
Width 7.62 mm
