(1 PC) G65SC22PE-4 CMD Parallel I/O Port, 16 I/O, CMOS, PLCC44
Tax included.

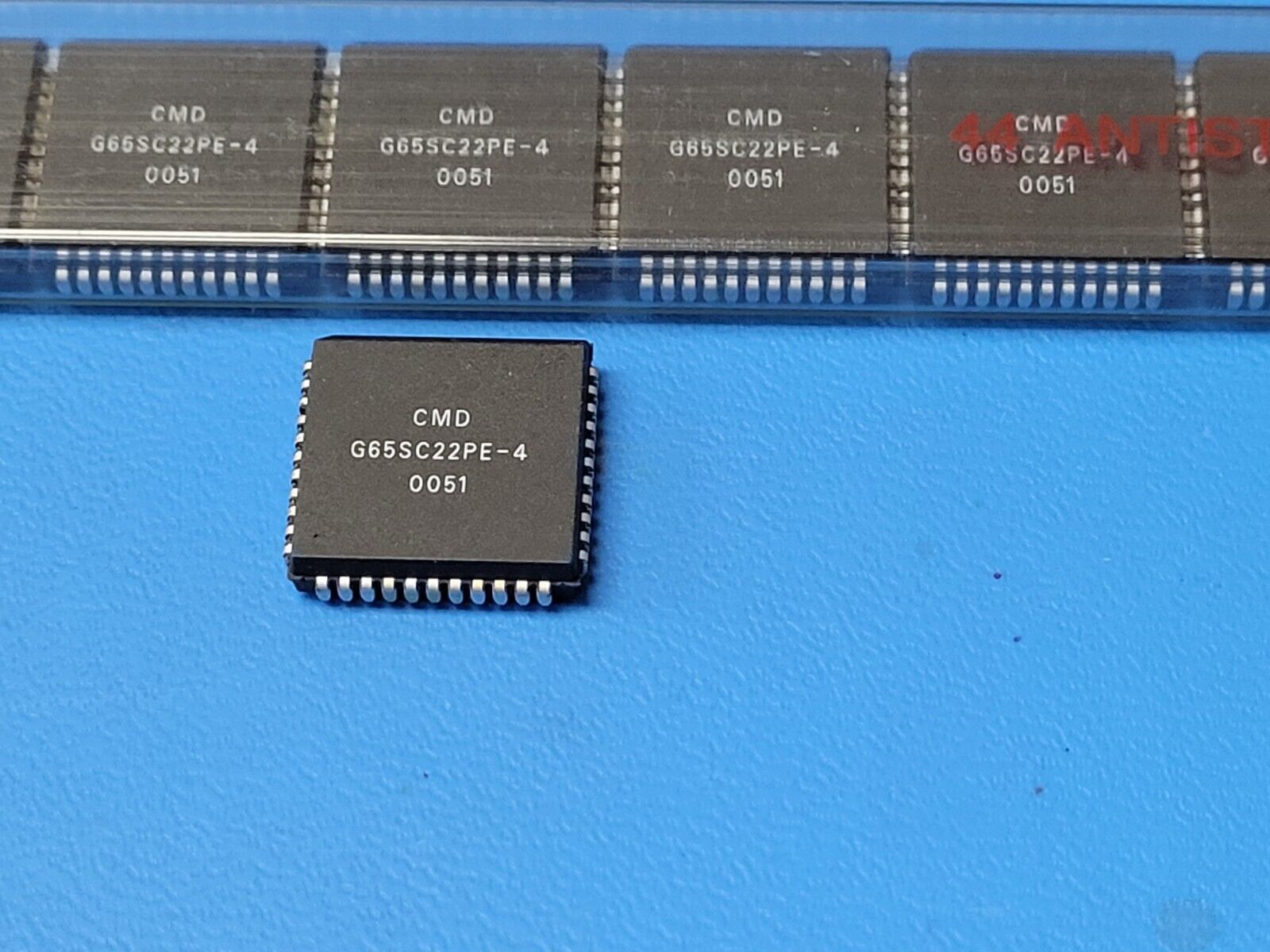

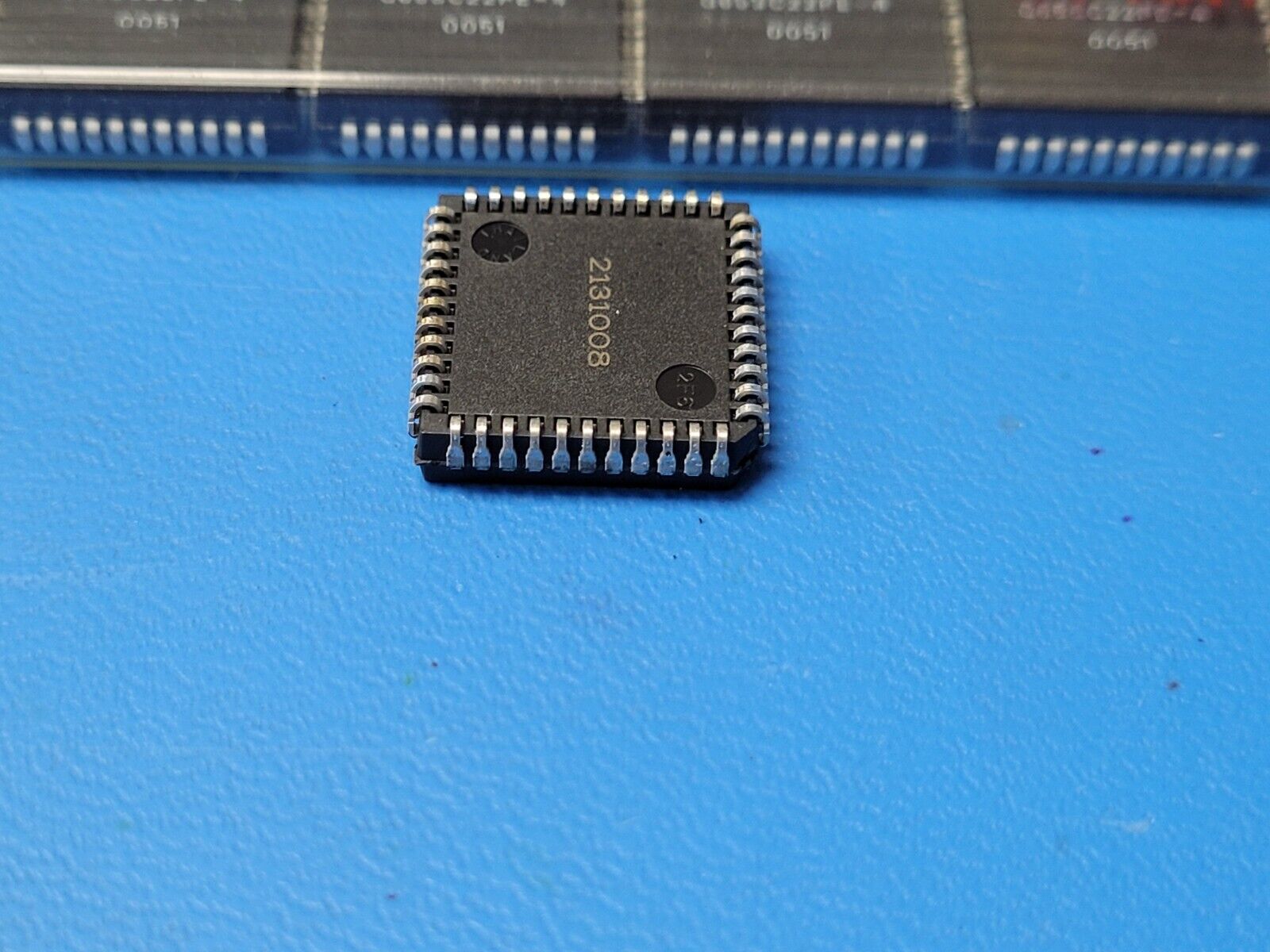

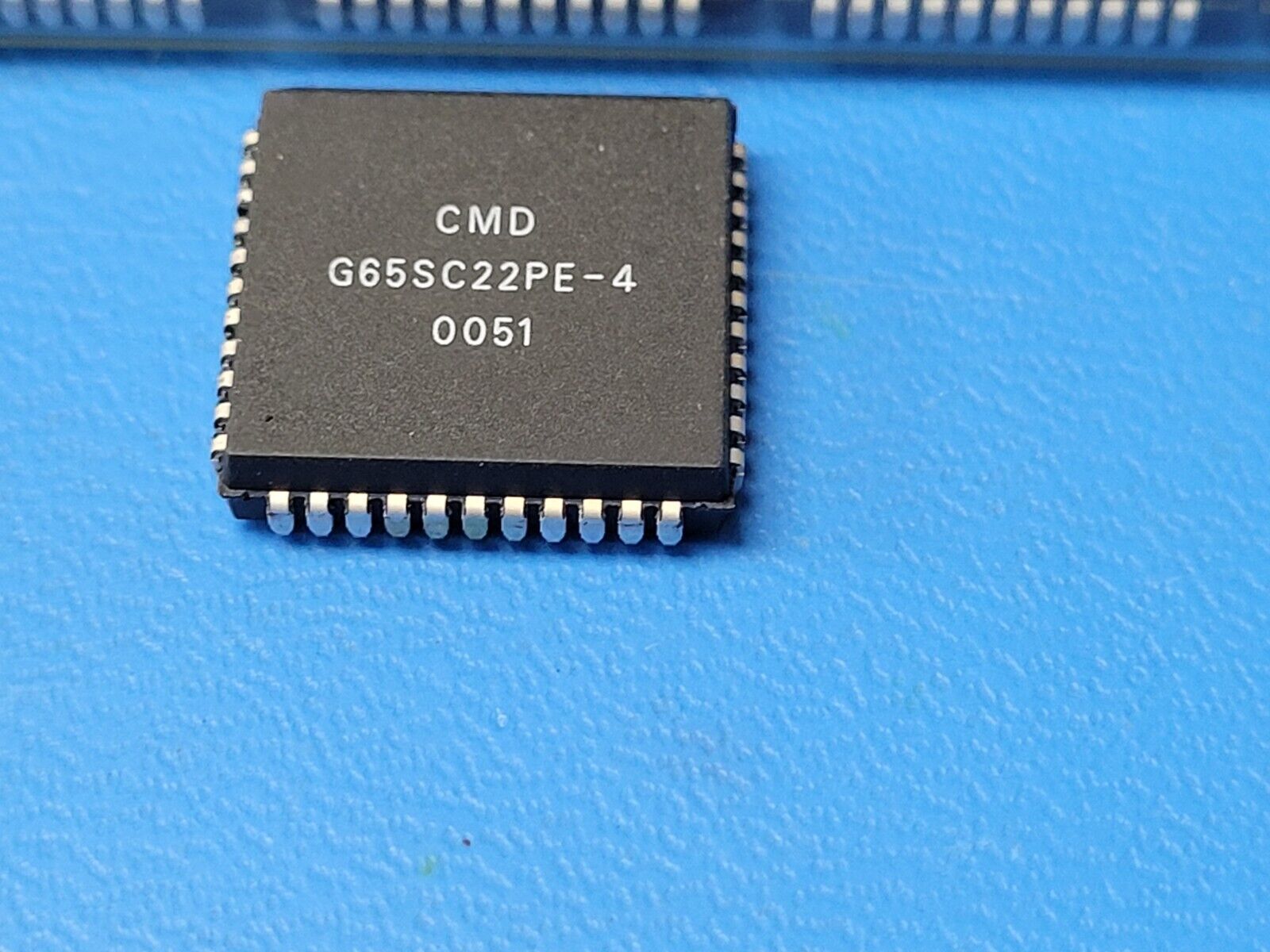

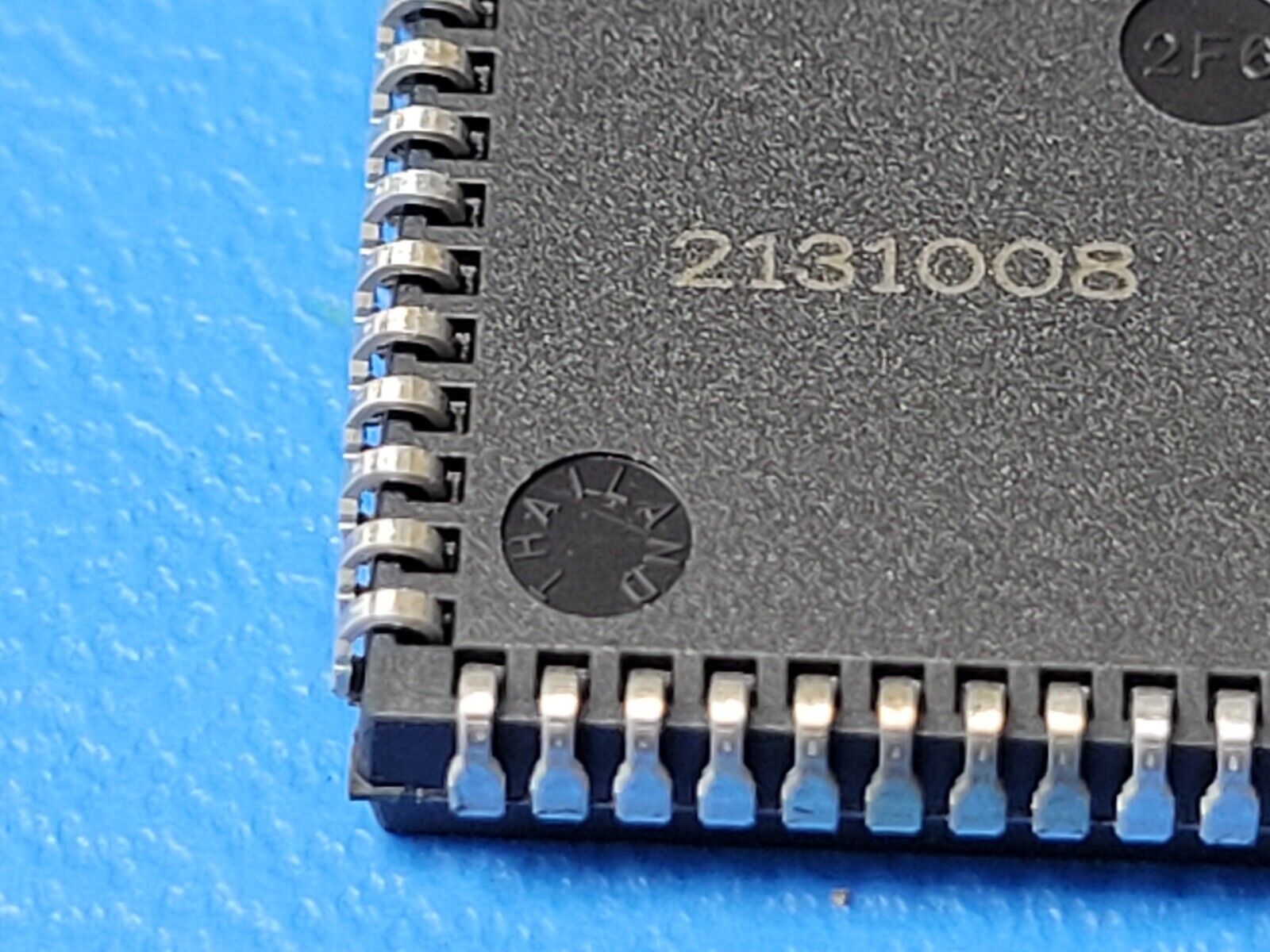

THIS IS FOR (1 PC) OF G65SC22PE-4 BY CMD
Parallel I/O Port, 16 I/O, CMOS, PLCC44
Mfr Package Description PLASTIC, LCC-44
Status Discontinued
Clock Frequency-Max 4.0 MHz
External Data Bus Width 8.0
JESD-30 Code S-PQCC-J44
JESD-609 Code e0
Number of I/O Lines 16.0
Number of Ports 2
Number of Terminals 44
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material PLASTIC/EPOXY
Package Code QCCJ
Package Equivalence Code LDCC44,.7SQ
Package Shape SQUARE
Package Style CHIP CARRIER
Power Supplies 5
Qualification Status Not Qualified
Seated Height-Max 4.57 mm
Sub Category Parallel IO Port
Supply Current-Max 8.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount YES
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch 1.27 mm
Terminal Position QUAD
Length 16.5862 mm
Width 16.5862 mm
