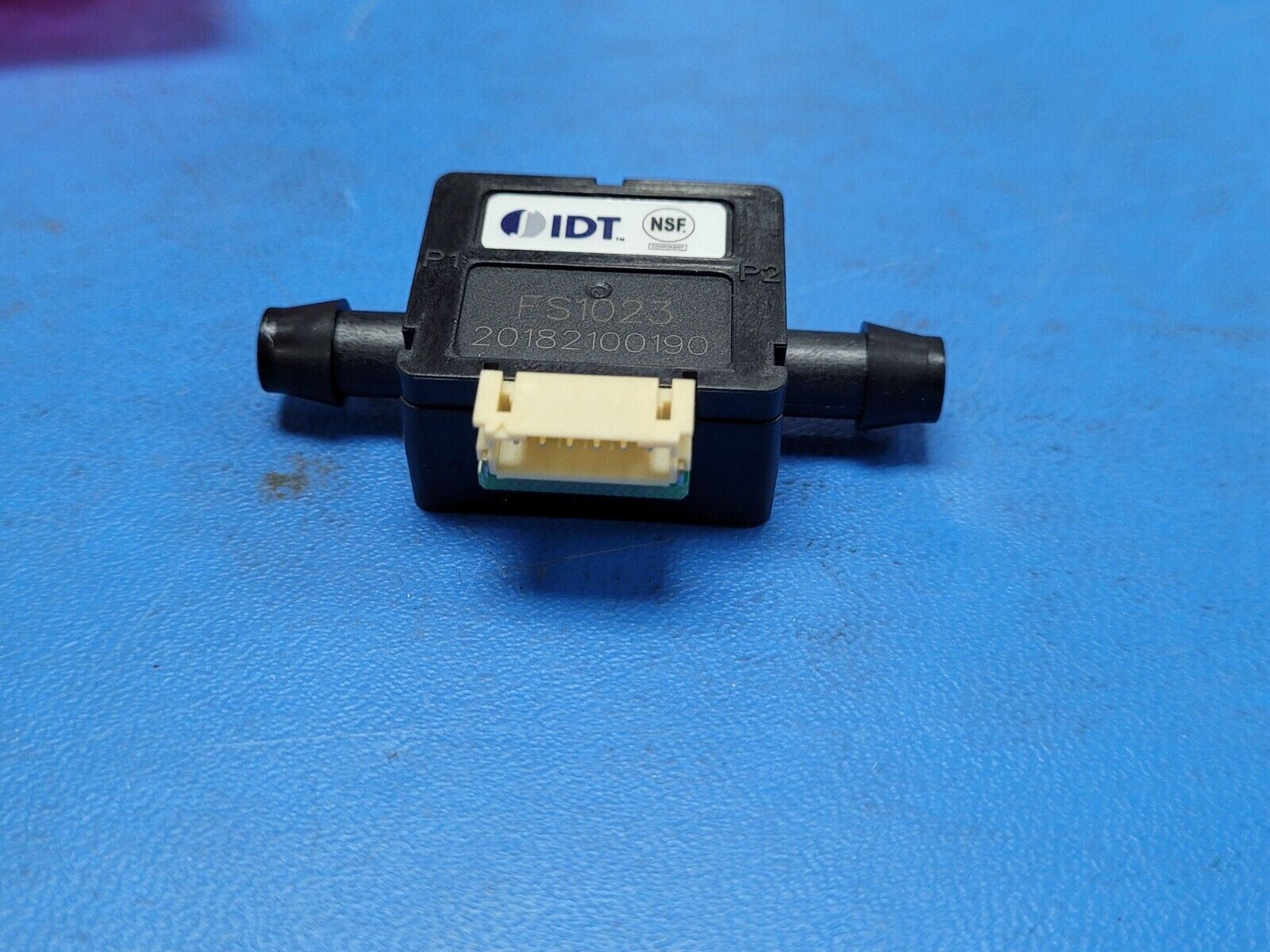

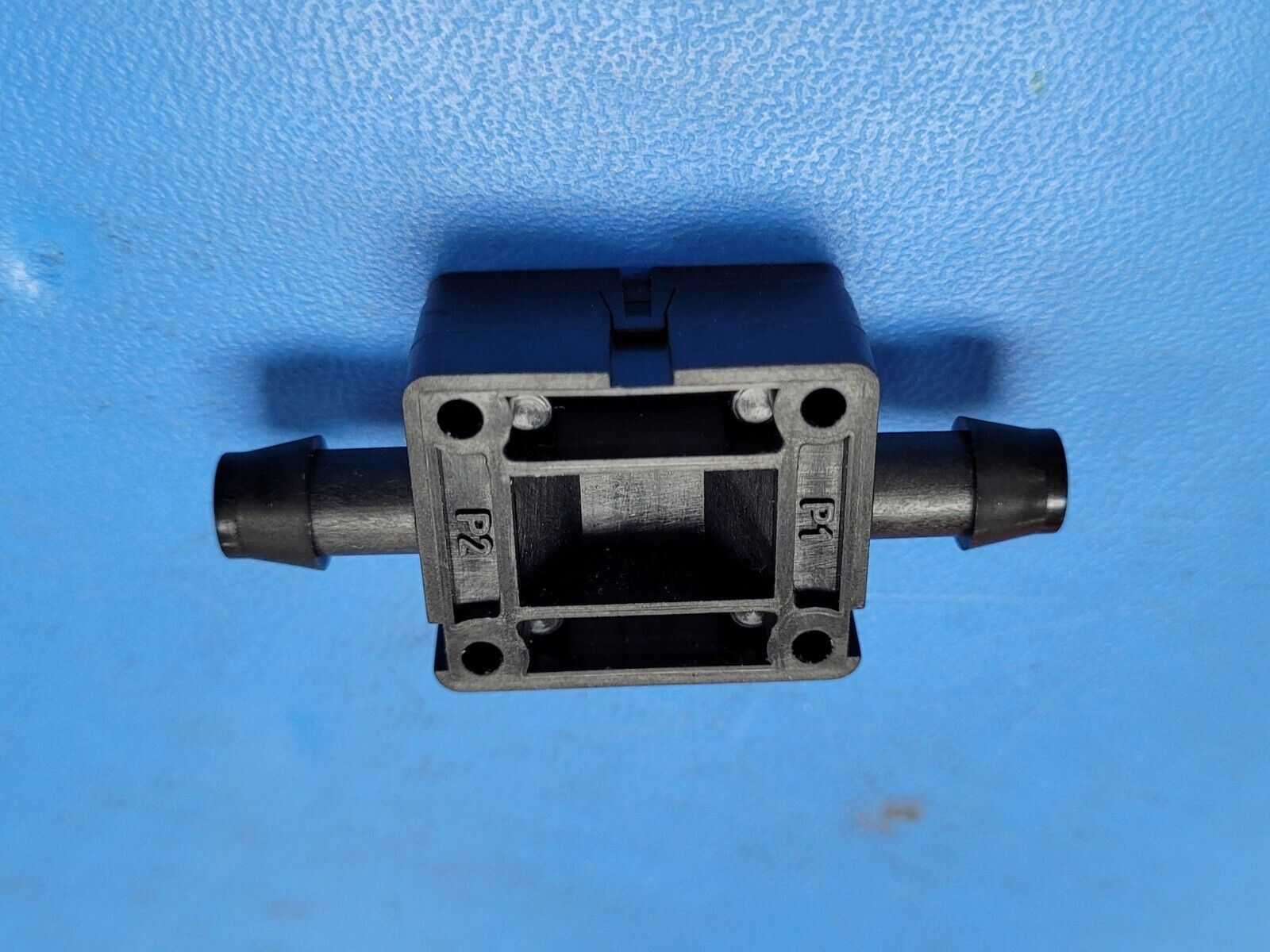

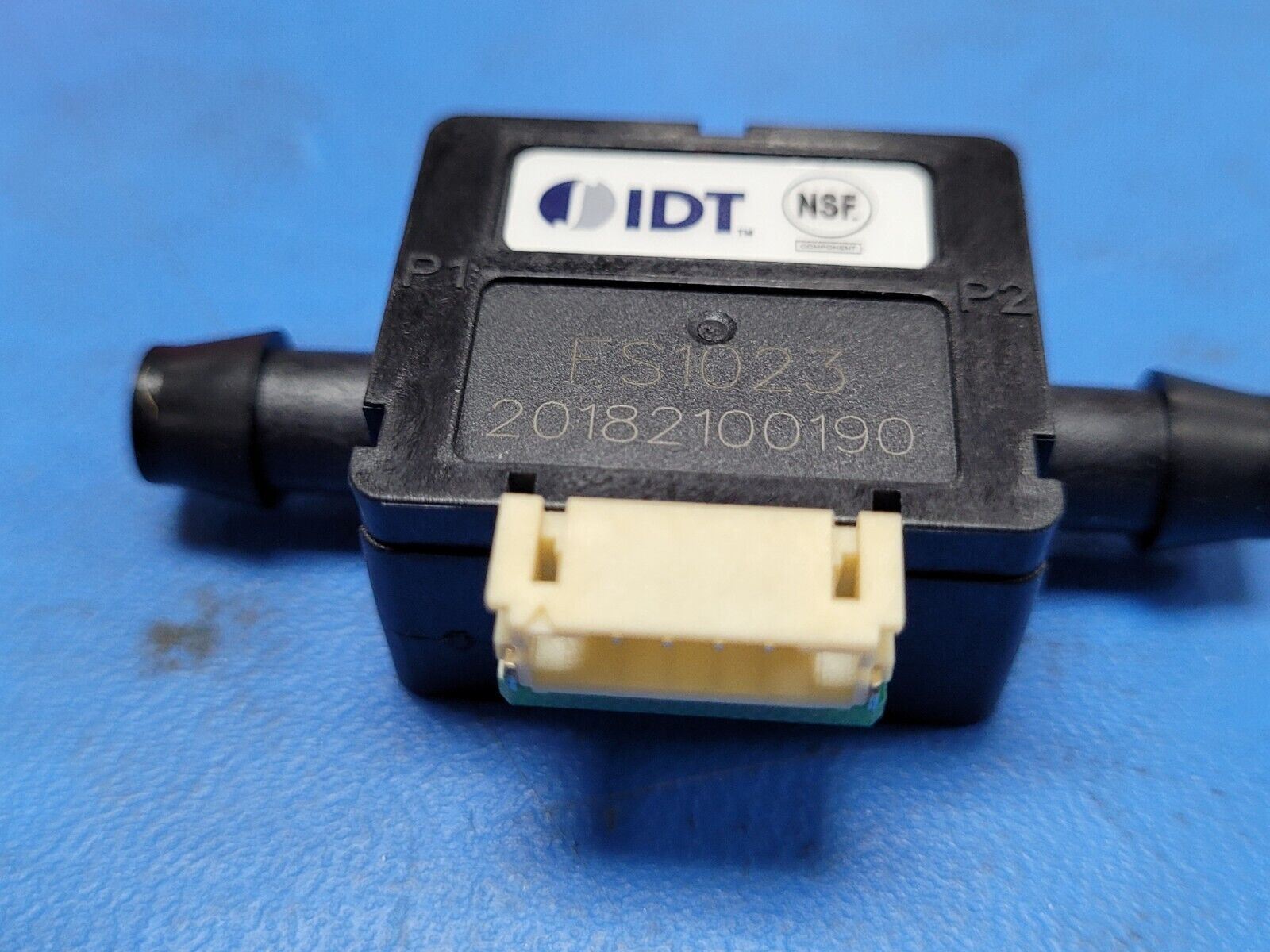

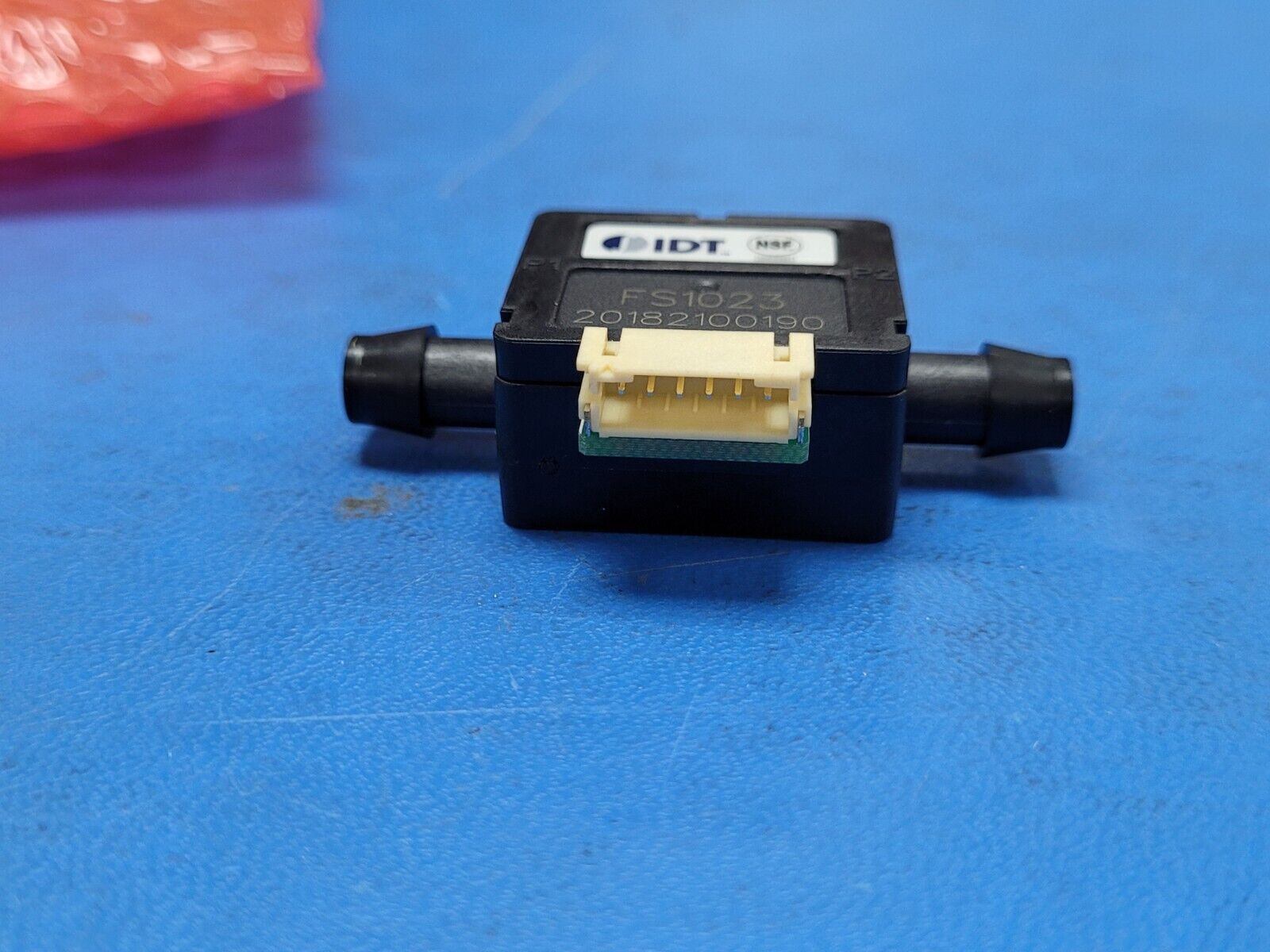

(1 PC) FS1023 IDT Liquid Flow Sensor Module, 0 to 3 LPM ROHS
Tax included.
THIS IS FOR (1 PC) OF FS1023 BY IDT
Liquid Flow Sensor Module, 0 to 3 LPM ROHS
Description
The FS1023 MEMS Liquid Flow Sensor Module measures the flow
rate using the thermo-transfer (calorimetric) principle. The FS1023
is designed to measure liquids. The sensor output is amplified and
trimmed at zero flow for module to module consistency.
The FS1023 offers key advantages over resistor-based flow
solutions. The sensor utilizes thermopile sensing, which provides
an excellent signal-to-noise ratio. The sensor comprises a “solid”
thermal isolation technology and silicon-carbide coating, which
protects it from abrasive wear and provides robustness and longterm reliability. In comparison, other sensors typically contain a
fragile membrane above an etched cavity for the thermal isolation
base.
There are no moving mechanical parts that can break in contrast
to other flow meter types, such as a turbine-type meter. The
FS1023 has minimal flow resistance, making it highly suitable for
gravity-feed applications or for replacing a high-power pump with a
lower power device.
The FS1023 is a NSF-certified component.
Typical Applications
Beverage equipment
Liquid-dispensing system
Process controls and monitoring
Fluid leak detection
Features
Liquid flow: 0 to 3 liters/min
Robust “solid” isolation technology
Resistant to surface contamination
No cavity to cause clogging
Resistant to vibration and pressure shock
Low-power application
Minimal flow resistance
Fast response: < 5ms
Analog voltage output
Thermistor voltage output: 1V to 4.5V
Supply voltage: 5V
Module operating temperature range: 0°C to +85°C
