(1 PC) EZ1087CT-ADJ SEMTECH LDO Adj. Voltage Regulator IC 1 Output 5A TO-220-5

$5.95
Unit price per

Tax included.

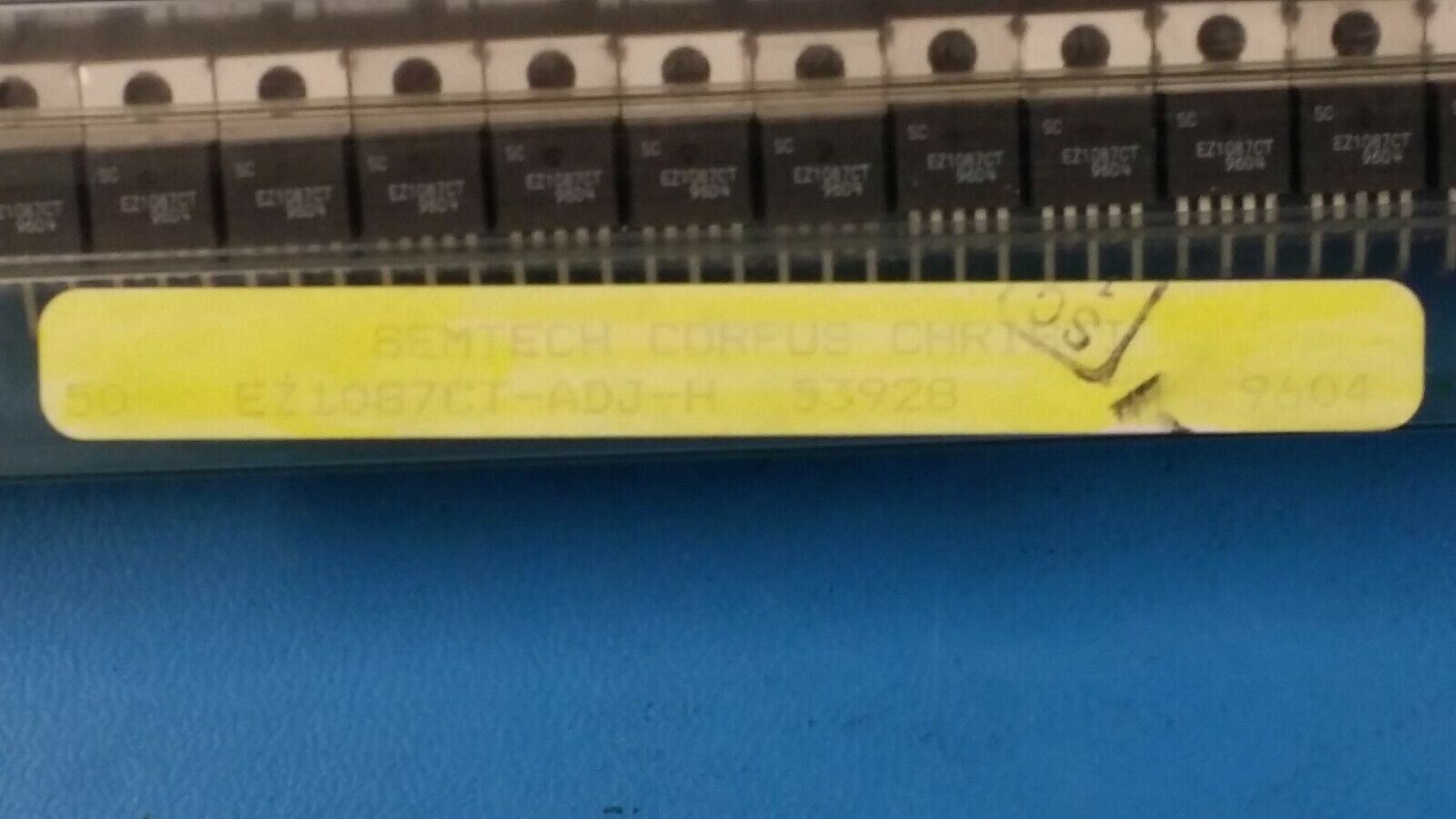

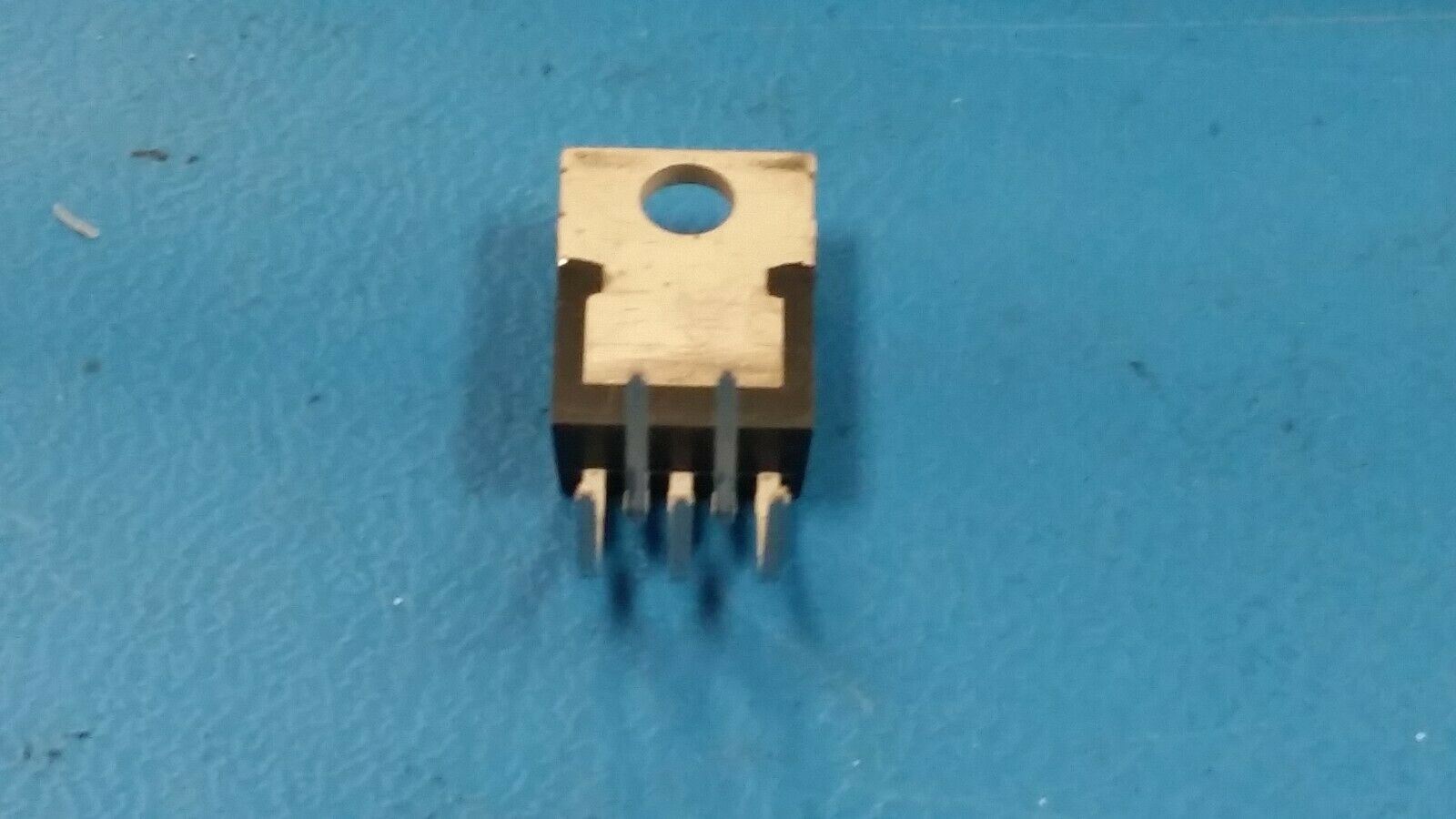

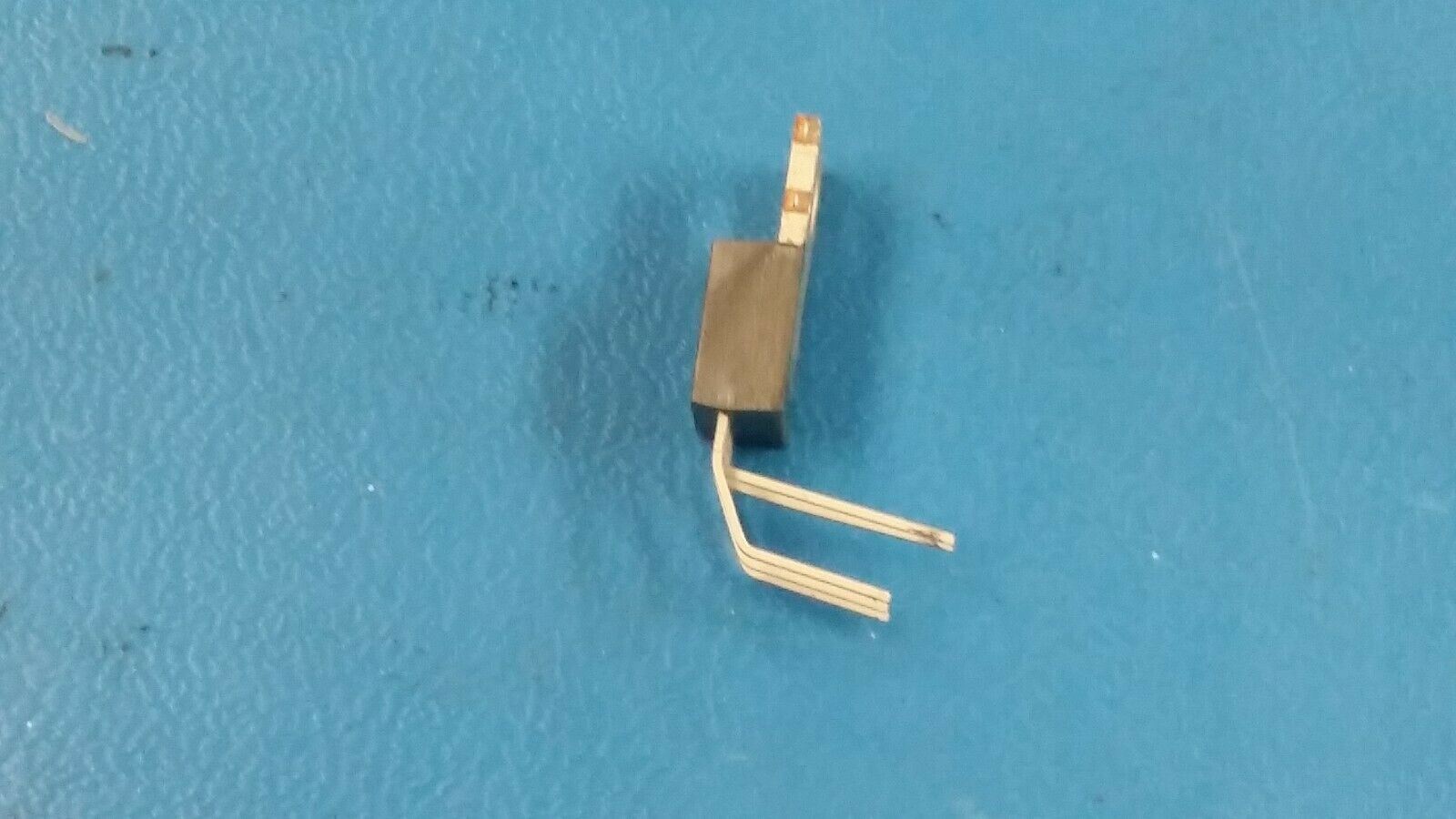

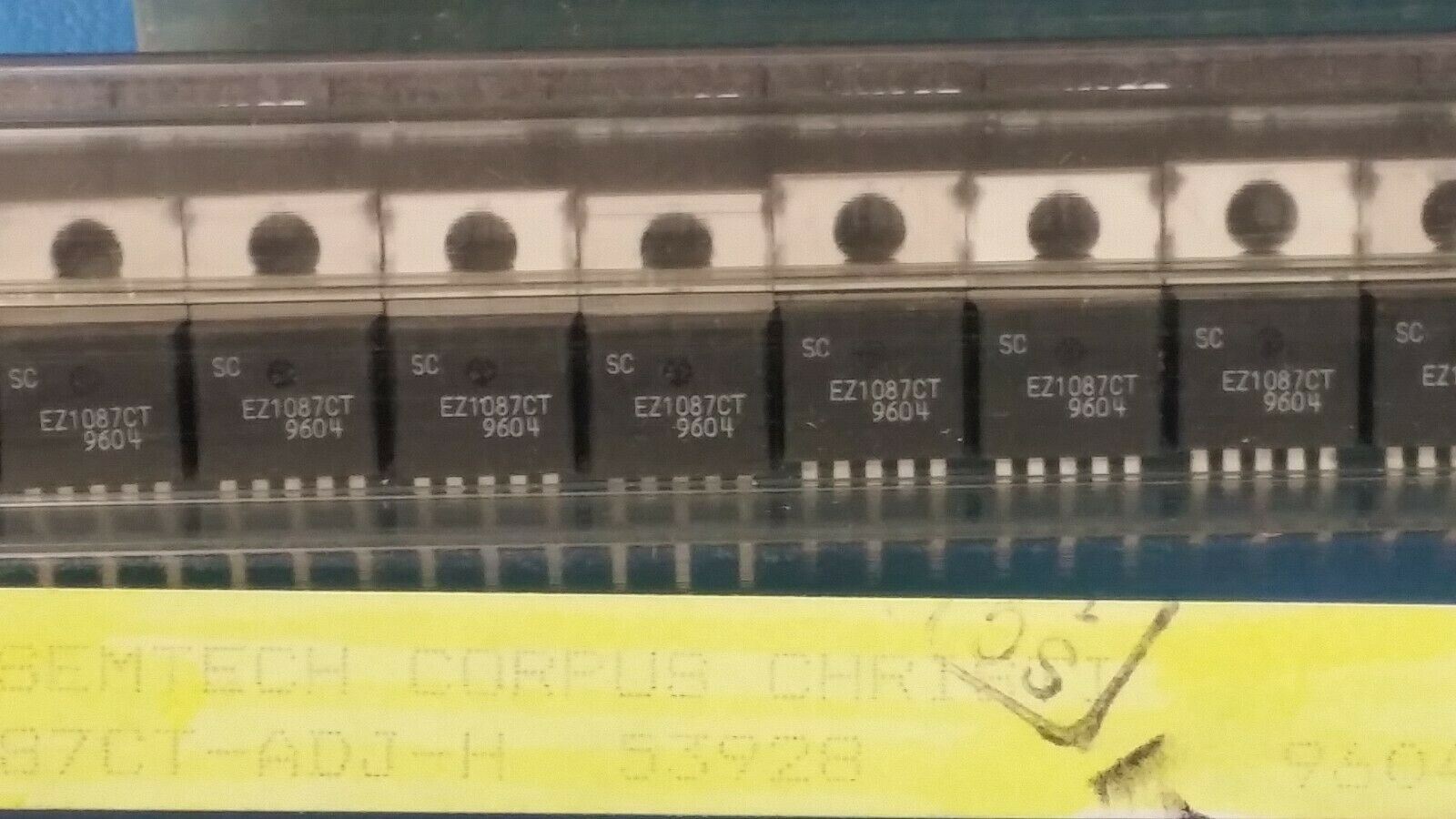

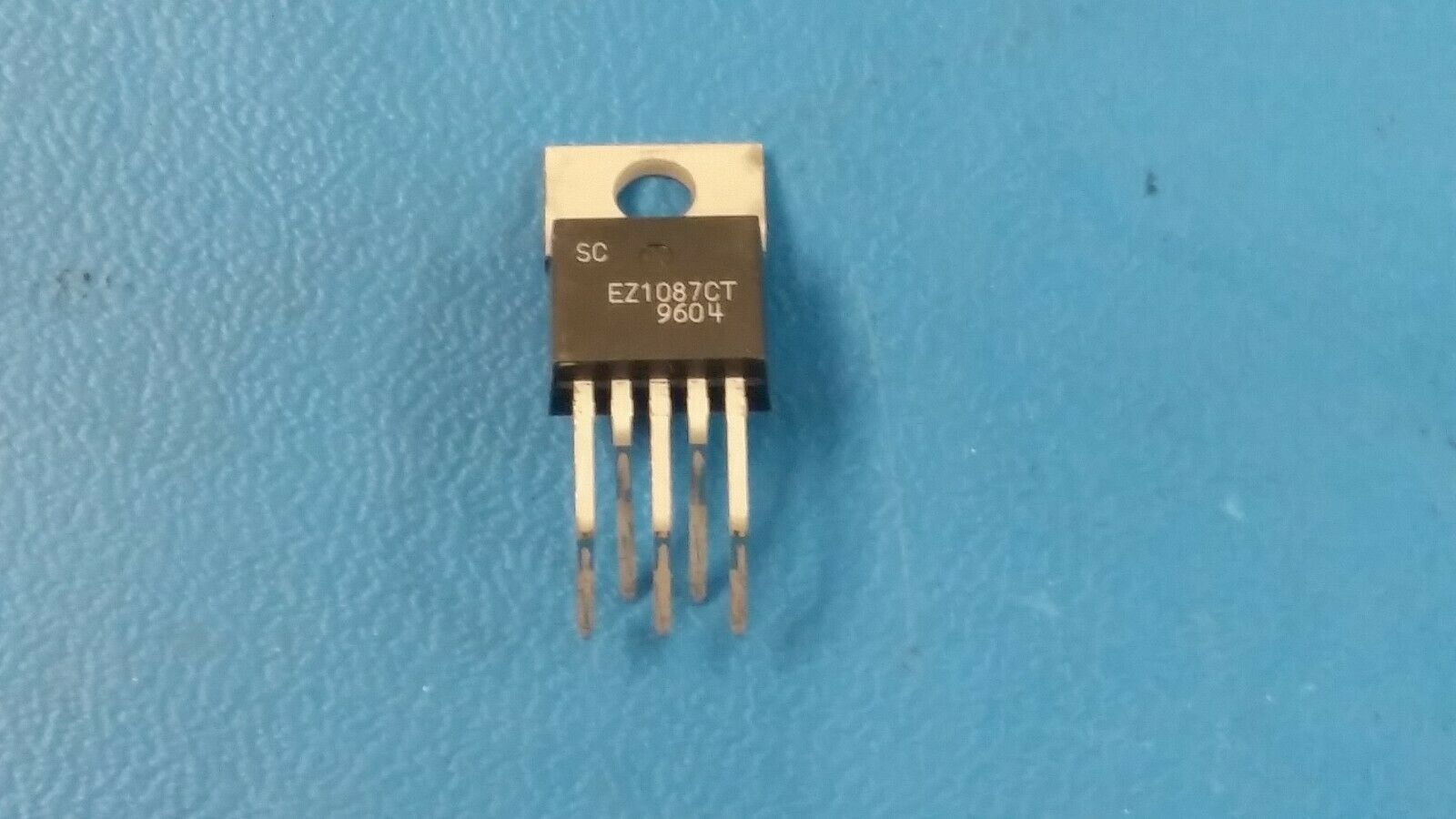

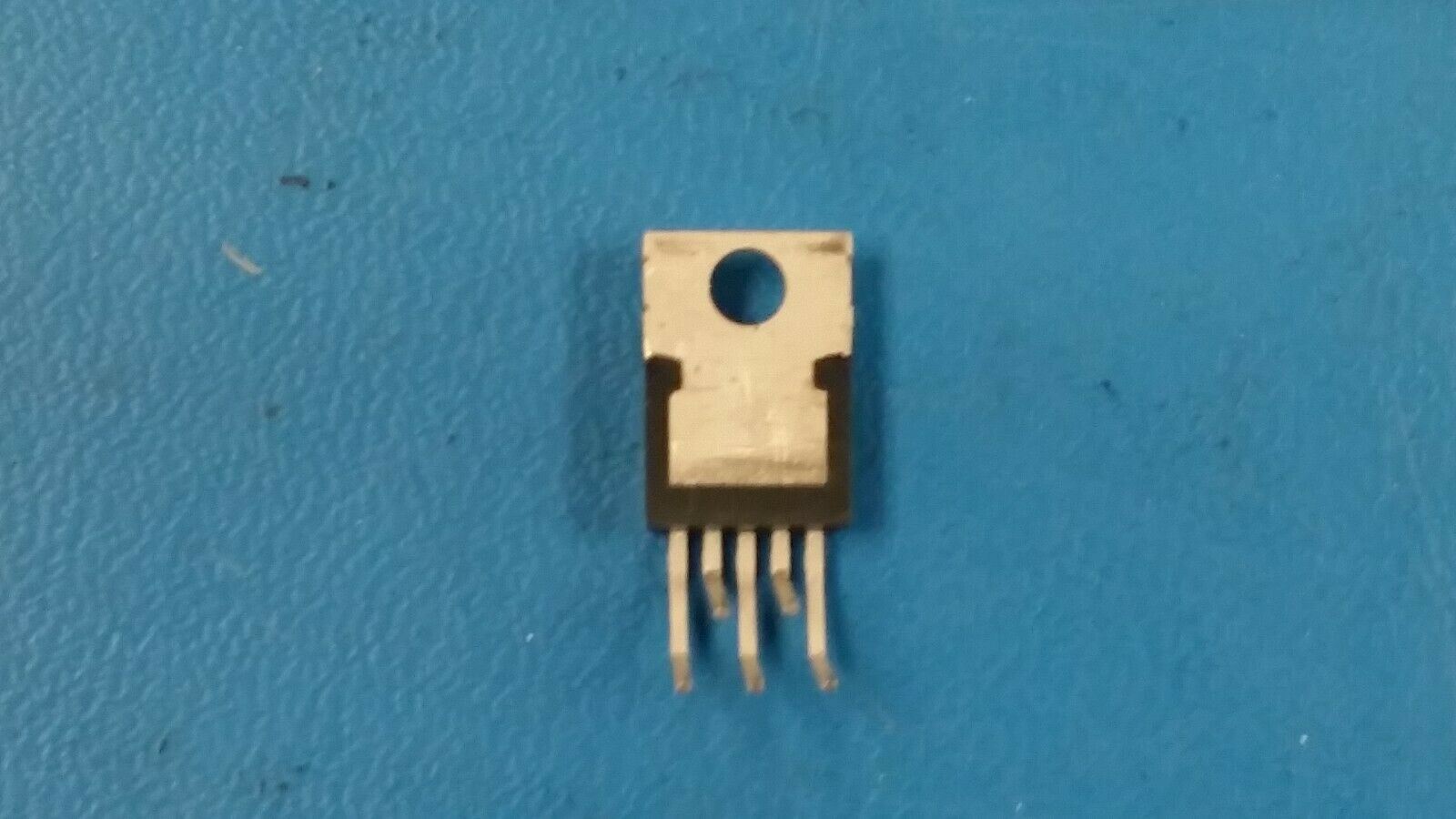

THIS LISTING IS FOR (1 PC) OF EZ1087CT-ADJ BY SEMTECH

LDO Adjustable Voltage Regulator IC 1 Output 5A TO-220-5

Part #: EZ1087CT

Part Category: Regulators

Manufacturer: Semtech Corp.

Description: Adjustable Positive LDO Regulator, 1.3V Min, 4V Max, 1.3V Dropout, BIPolar, PSFM5

Mfr Package Description TO-220, 5 PIN

Status Discontinued

Regulator Type ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

Adjustability ADJUSTABLE

Dropout Voltage1-Nom 1.3 V

Dropout Voltage1-Max 1.3 V

JESD-30 Code R-PSFM-T5

JESD-609 Code e0

Line Regulation-Max (%/V) 0.088

Load Regulation-Max(%) 0.4 %

Number of Functions 1

Number of Outputs 1.0

Number of Terminals 5

Operating Temperature, TJ-Min 0.0 Cel

Operating Temperature, TJ-Max 125.0 Cel

Output Current1-Max 5.0 A

Output Voltage1-Min 1.3 V

Output Voltage1-Max 4.0 V

Package Body Material PLASTIC/EPOXY

Package Equivalence Code SIP5,.1,67TB

Package Shape RECTANGULAR

Package Style FLANGE MOUNT

Peak Reflow Temperature (Cel) NOT SPECIFIED

Qualification Status Not Qualified

Sub Category Other Regulators

Surface Mount NO

Technology BIPOLAR

Terminal Finish TIN LEAD

Terminal Form THROUGH-HOLE

Terminal Pitch 1.7 mm

Terminal Position SINGLE

Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
