(1 PC) EPM2210F324I5N ALTERA IC CPLD 1700MC 7NS 324FBGA ROHS

$99.95
Unit price per

Tax included.

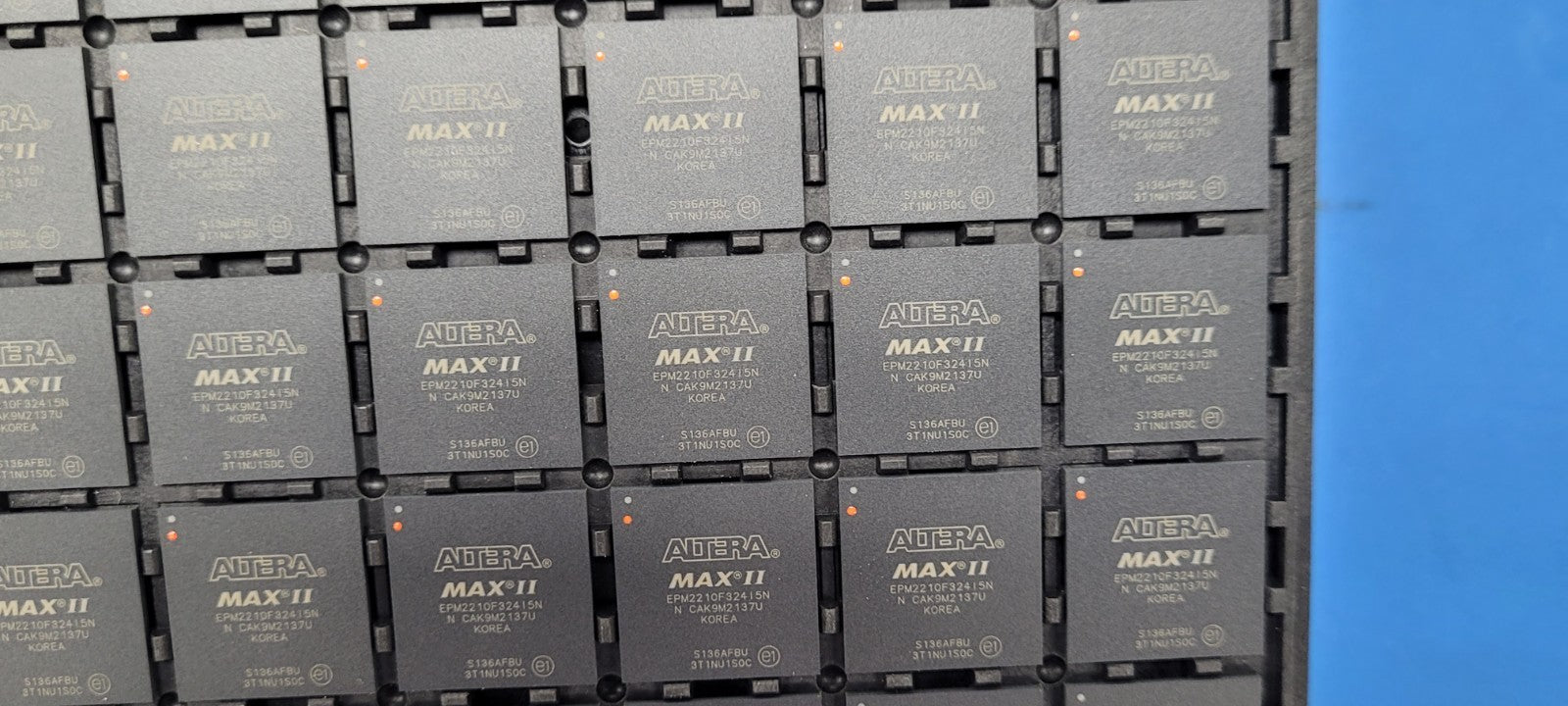

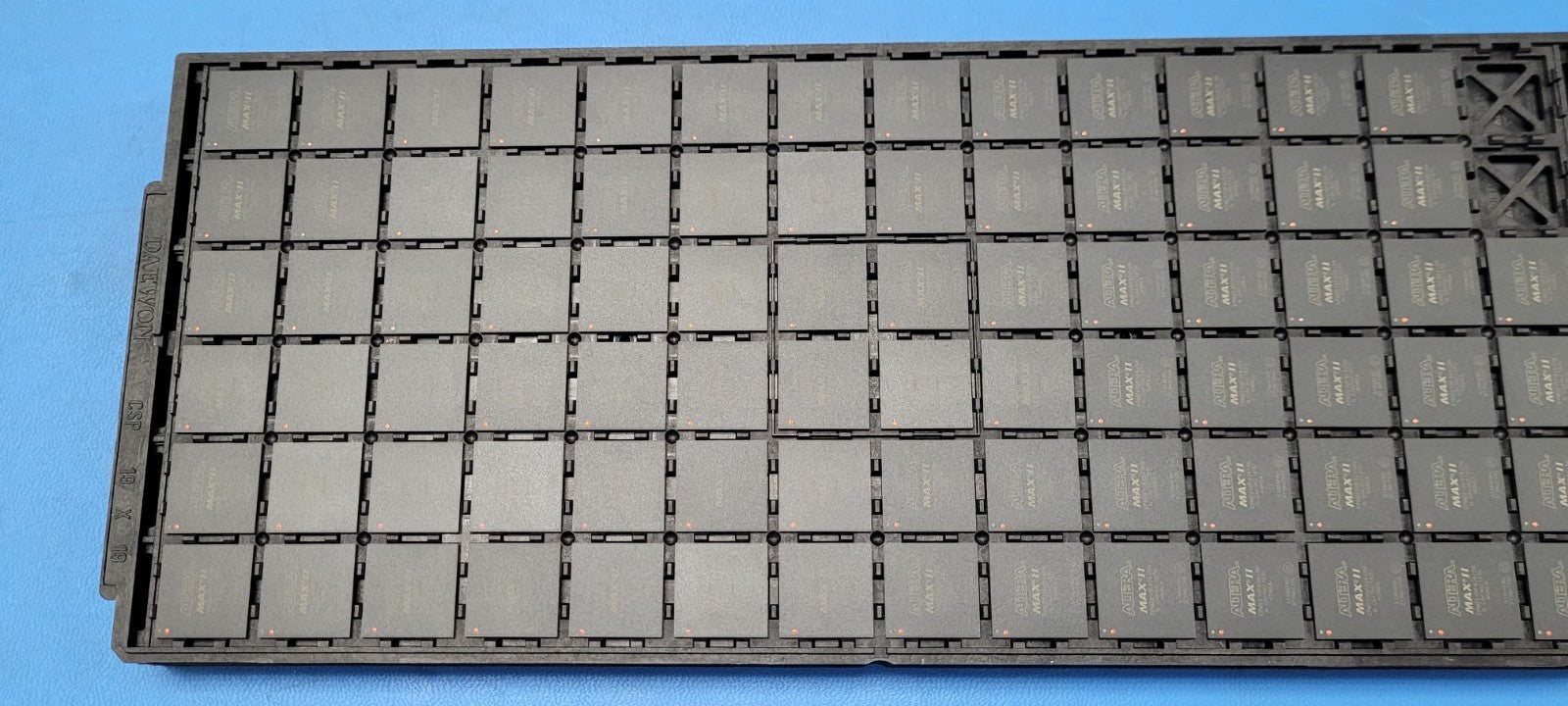

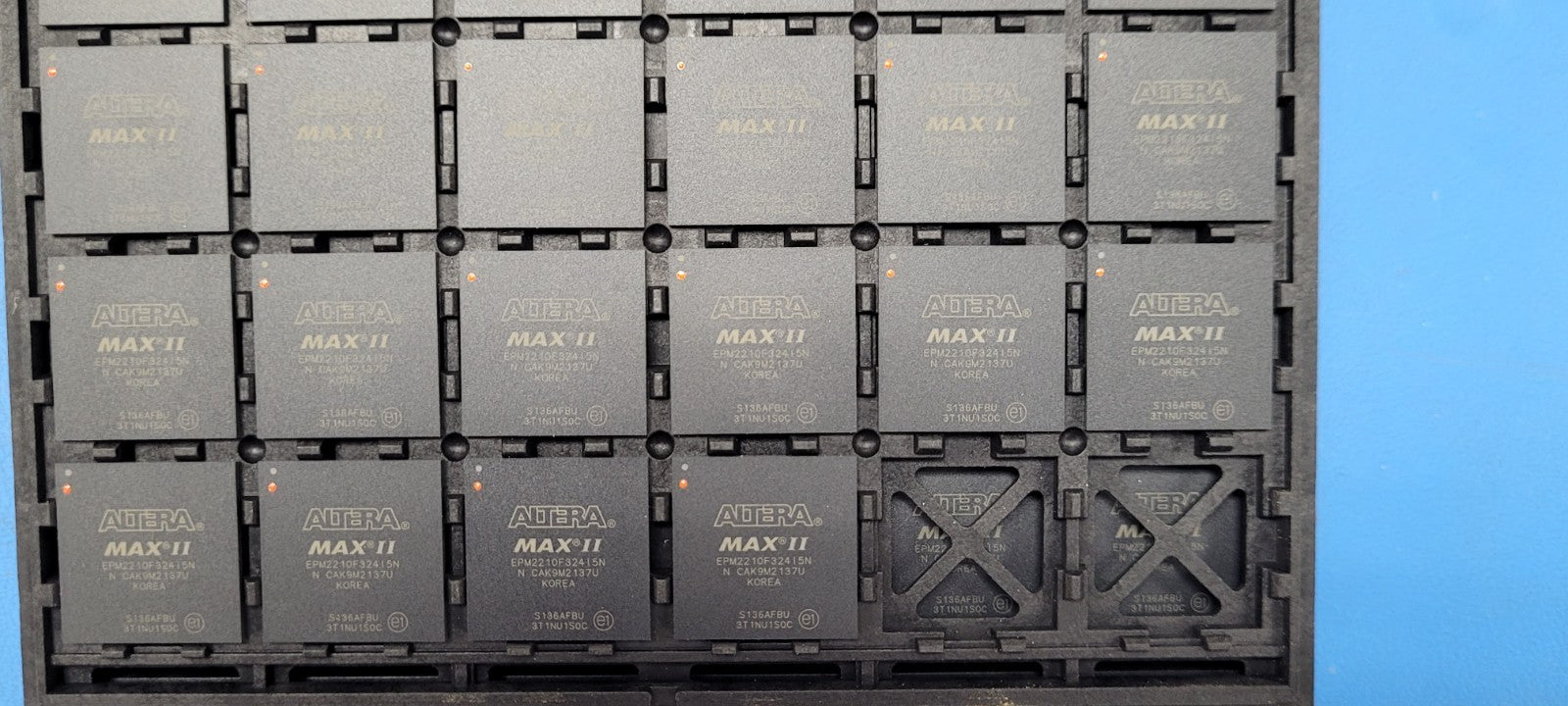

THIS IS FOR (1 PC) OF EPM2210F324I5N BY ALTERA

IC CPLD 1700MC 7NS 324FBGA ROHS

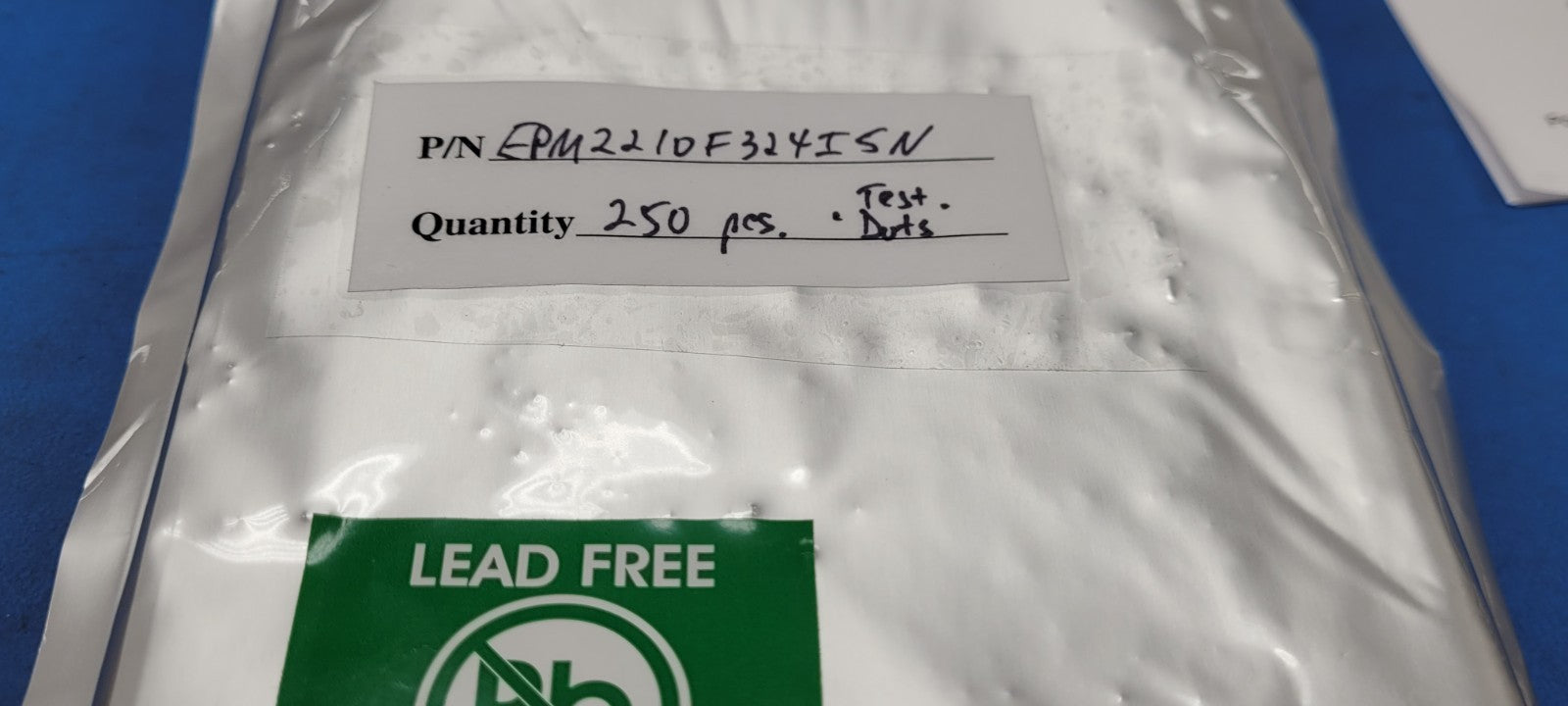

Part #: EPM2210F324I5N

Active

Part Category: Programmable Logic Devices

Manufacturer: ALTERA CORP

Description: Flash PLD, 11.2ns, 1700-Cell, CMOS, PBGA324

Status Active

Additional Feature IT CAN ALSO OPERATE AT 3.3V

In-System Programmable YES

JESD-30 Code S-PBGA-B324

J-STD-609 Code e1

JTAG BST YES

Length (mm) 19.0000

Moisture Sensitivity Level 3

Number of Dedicated Inputs 0

Number of I/O Lines 272

Number of Macro Cells 1700

Number of Terminals 324

Organization 0 DEDICATED INPUTS, 272 I/O

Output Function MACROCELL

Package Body Material PLASTIC/EPOXY

Package Code BGA

Package Equivalence Code BGA324,18X18,40

Package Shape SQUARE

Package Style GRID ARRAY

Peak Reflow Temperature (Cel) 260

Programmable Logic Type FLASH PLD

Propagation Delay (ns) 11.200

DLA Qualification Not Qualified

Seated Height-Max (mm) 2.2000

Supply Voltage-Max (V) 2.62500

Supply Voltage-Min (V) 2.37500

Supply Voltage-Nom (V) 2.5

Surface Mount YES

Technology CMOS

Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)

Terminal Form BALL

Terminal Pitch (mm) 1.000

Terminal Position BOTTOM

Time@Peak Reflow Temperature-Max (s) 30

Width (mm) 19.0000
