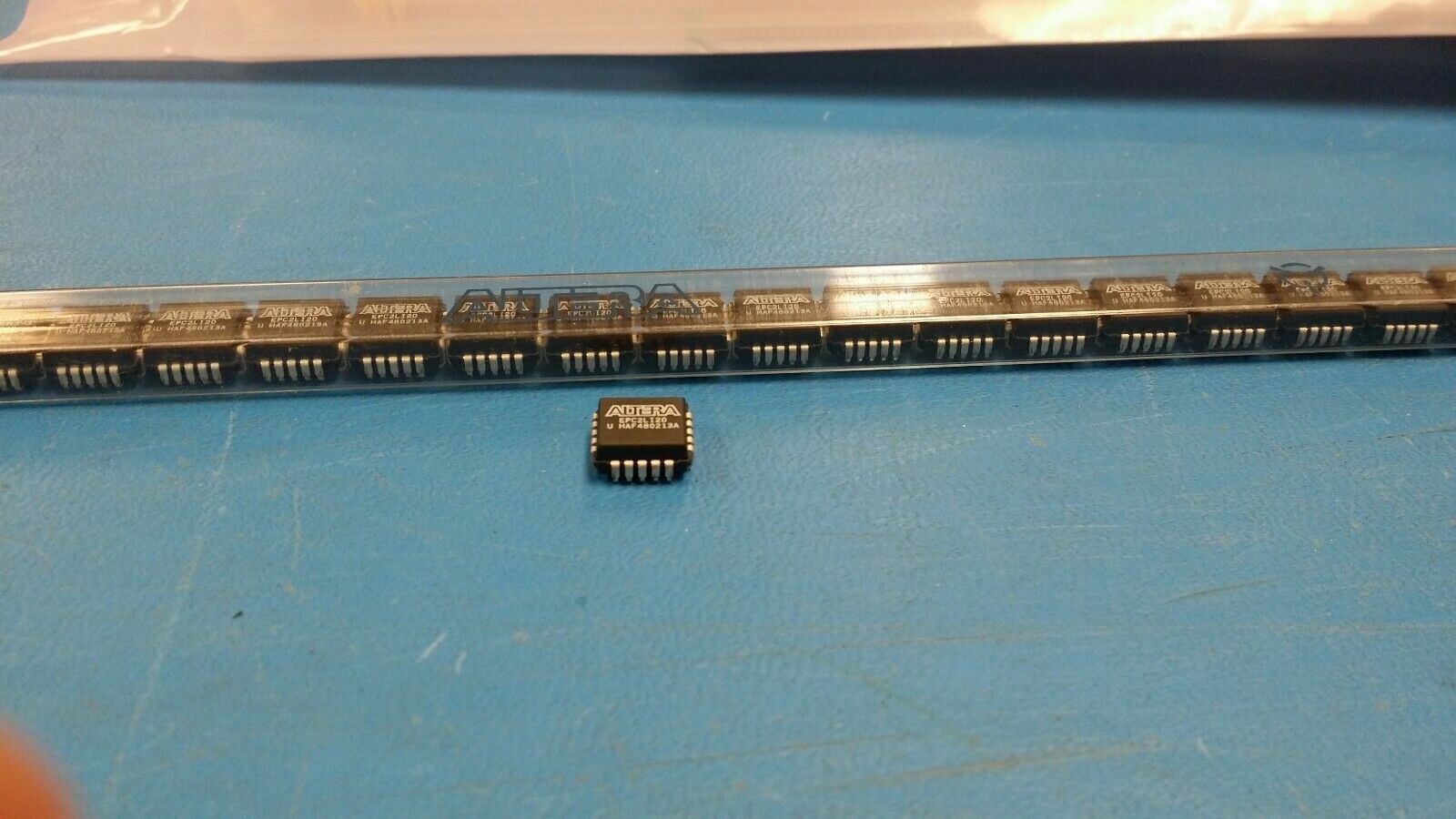

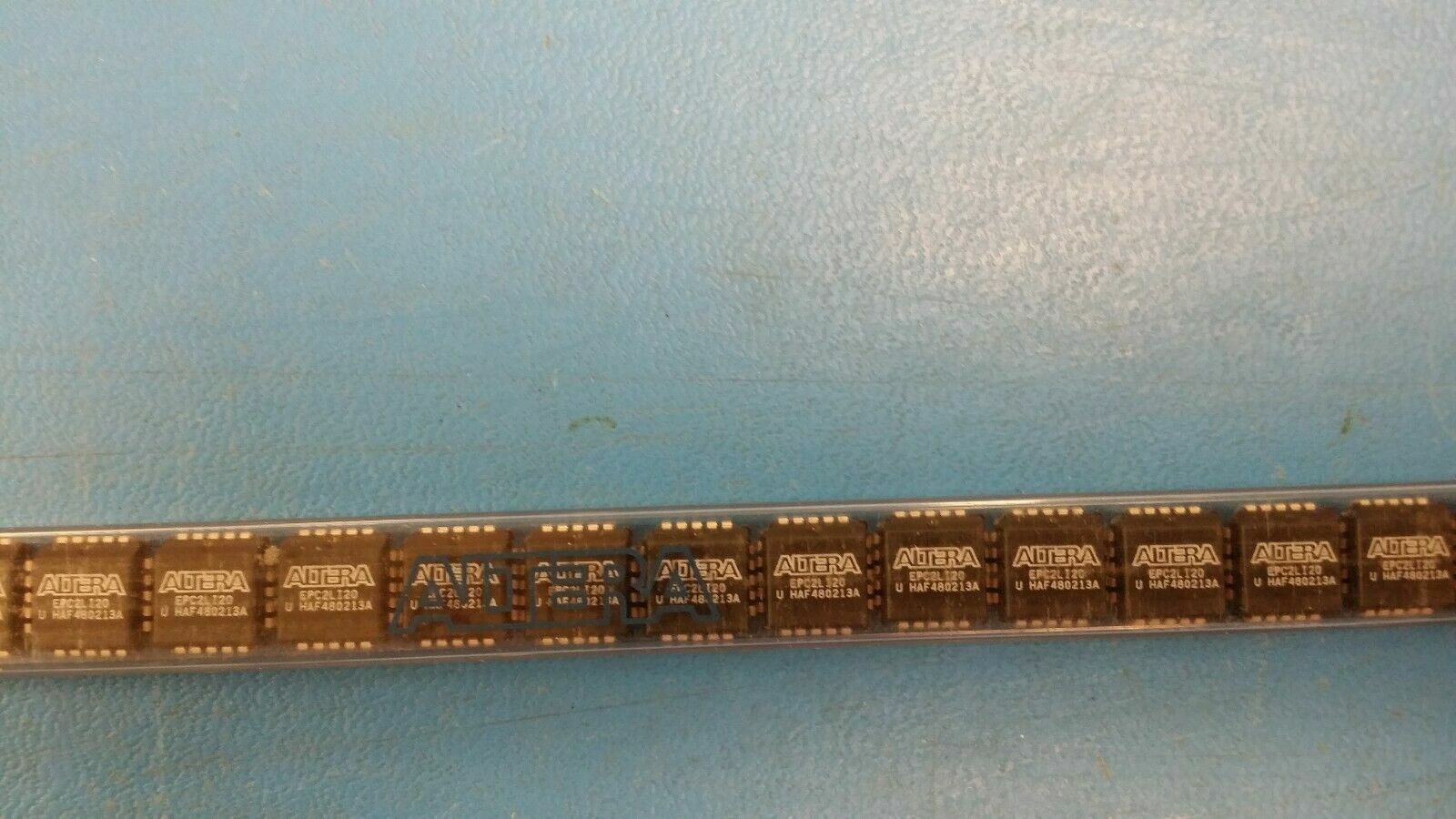

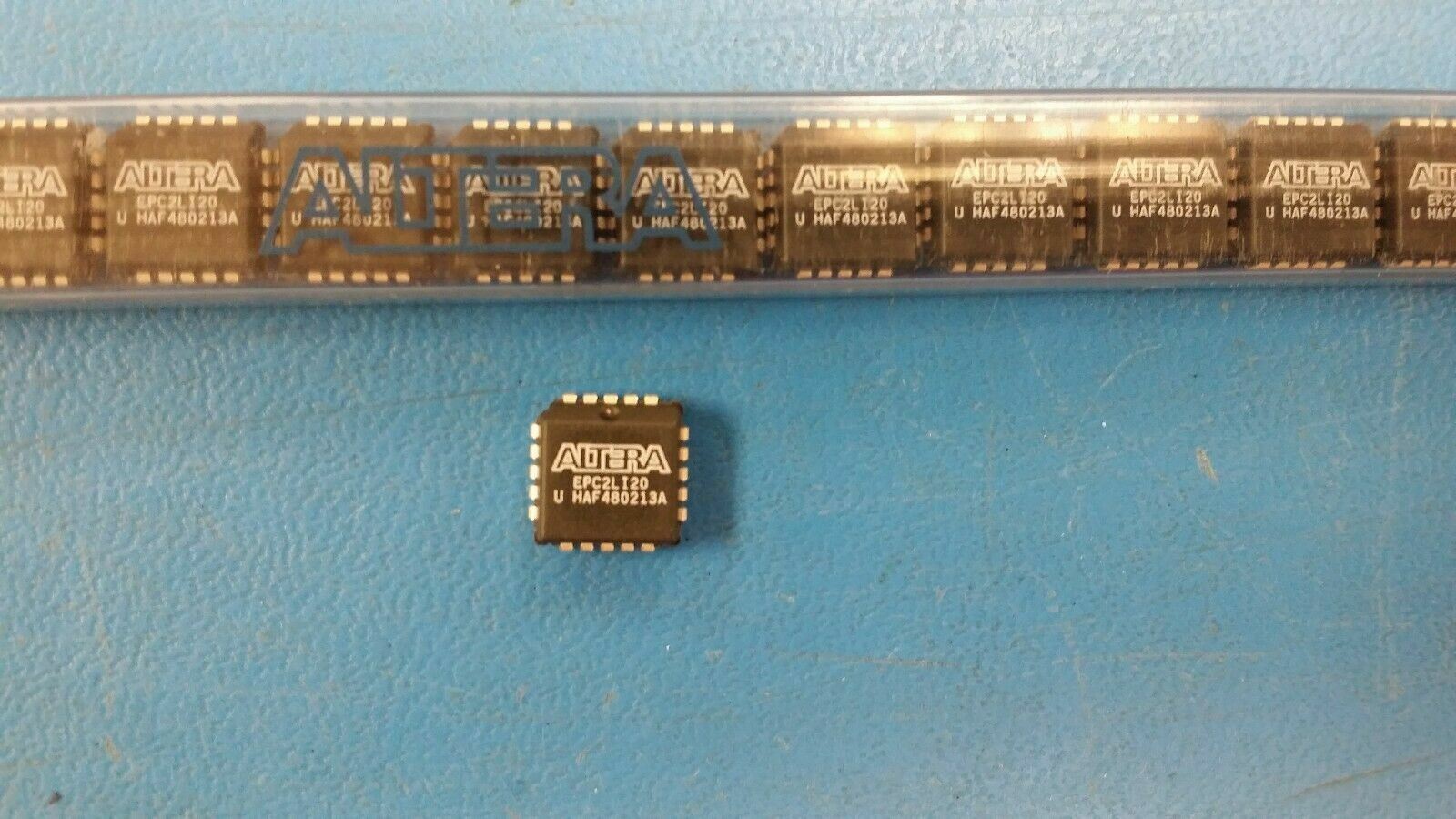

(1 PC) EPC2LI20 Altera Configuration Mem Flash 1.6Mb 10 MHz PLCC-20
Tax included.
THIS LISTING IS FOR (1 PC) OF EPC2LI20 BY Altera
Configuration Mem Flash 1.6Mb 10 MHZ PLCC-20
| Mfr Package Description | PLASTIC, LCC-20 |
| REACH Compliant | Yes |
| Status | Transferred |
| Type | NOR TYPE |
| Sub Category | Flash Memories |
| Clock Frequency-Max (fCLK) | 12.5 MHz |
| JESD-30 Code | S-PQCC-J20 |
| JESD-609 Code | e0 |
| Memory Density | 1695680.0 bit |
| Memory IC Type | CONFIGURATION MEMORY |
| Memory Width | 1 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 20 |
| Number of Words | 1695680.0 words |
| Number of Words Code | 1695680 |
| Operating Mode | SYNCHRONOUS |
| Operating Temperature-Min | -40.0 Cel |
| Operating Temperature-Max | 85.0 Cel |
| Organization | 1695680X1 |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | QCCJ |
| Package Equivalence Code | LDCC20,.4SQ |
| Package Shape | SQUARE |
| Package Style | CHIP CARRIER |
| Parallel/Serial | SERIAL |
| Peak Reflow Temperature (Cel) | 220 |
| Power Supplies (V) | 3.3/5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.572 mm |
| Standby Current-Max | 1.0E-4 Amp |
| Supply Current-Max | 0.05 Amp |
| Supply Voltage-Nom (Vsup) | 3.3 V |
| Supply Voltage-Min (Vsup) | 3.0 V |
| Supply Voltage-Max (Vsup) | 3.6 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | J BEND |
| Terminal Pitch | 1.27 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Length | 8.9662 mm |
| Width | 8.9662 mm |
| Additional Feature | IT CAN ALSO OPERATE AT 5V SUPPLY |
