(1 PC) EP310DC-2 ALTERA UV PLD, 35ns, CDIP20
Tax included.

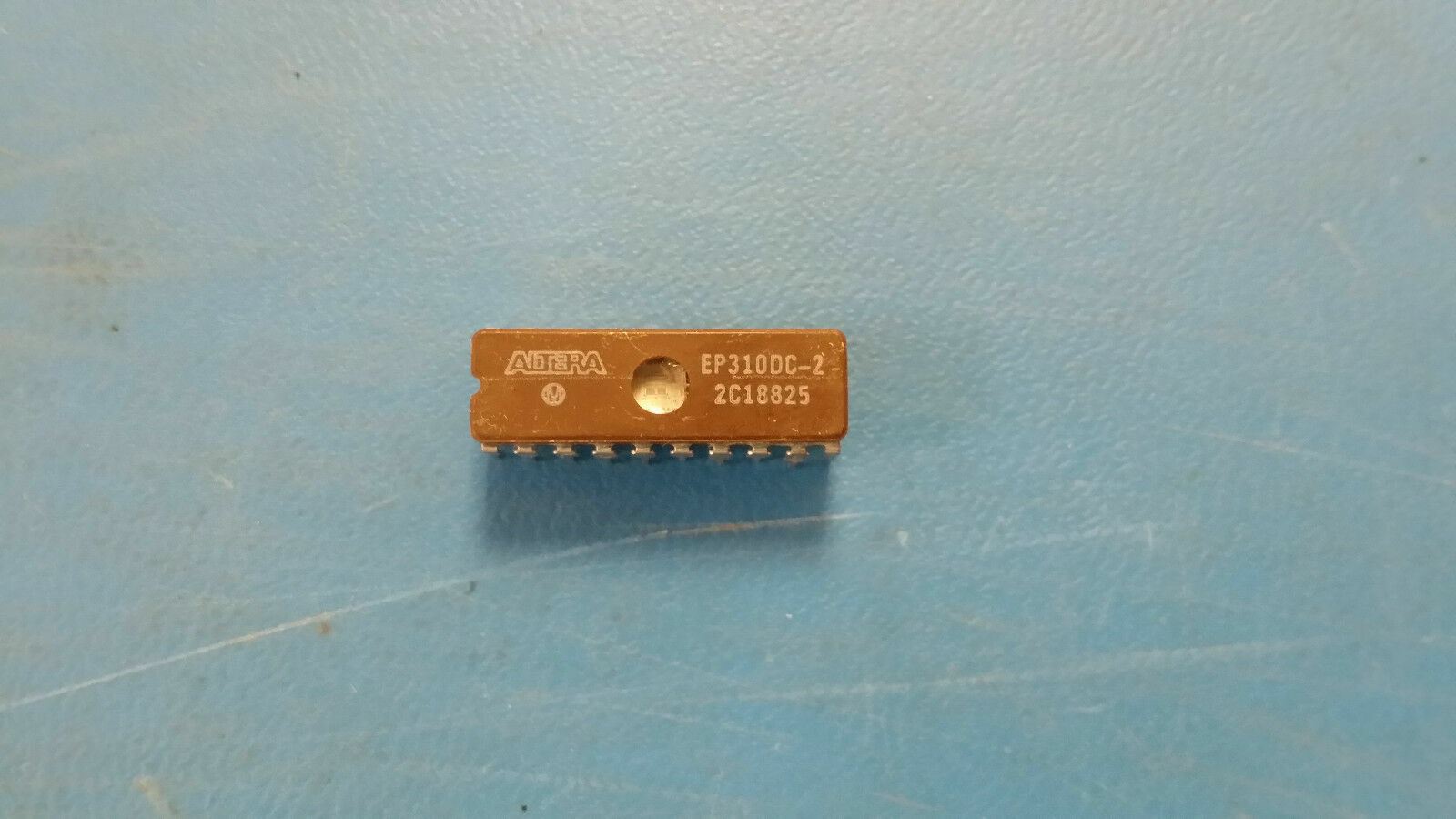

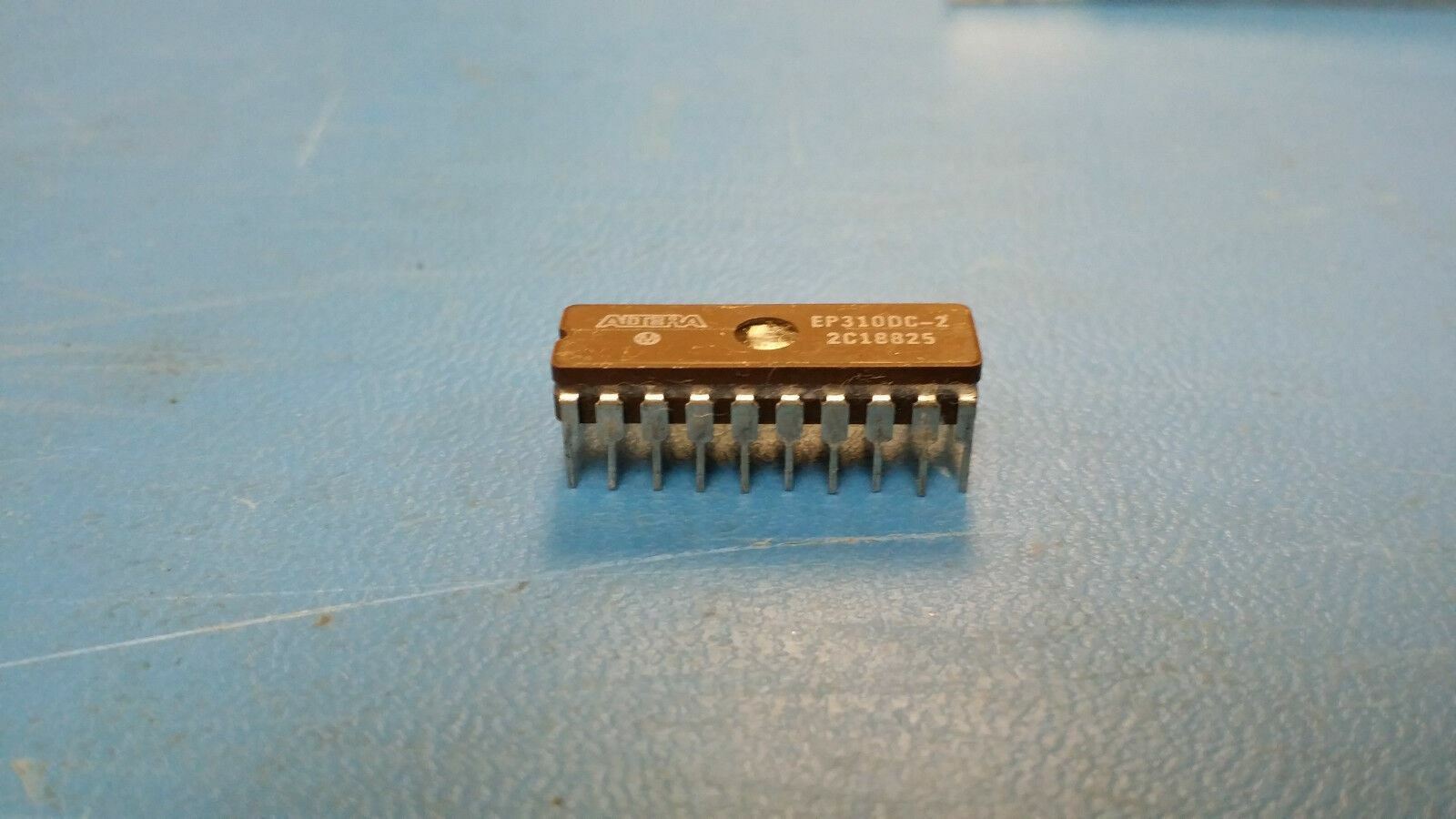

THIS LISTING IS FOR (1 PC) EP310DC-2 BY ALTERA
UV PLD, 35ns, CDIP20
Manufacturer: Altera Corporation
Description: UV PLD, 35ns, CDIP20
Mfr Package Description
UV PLD, 35ns, CDIP20
Part #: EP310DC-2
Part Category: Programmable Logic ICsManufacturer: Altera Corporation
Description: UV PLD, 35ns, CDIP20
Mfr Package Description
| WINDOWED, CERAMIC, DIP-20 | |
| Status | Discontinued |
| Programmable Logic Type | UV PLD |
| Architecture | PAL-TYPE |
| Clock Frequency-Max | 35.7 MHz |
| JESD-30 Code | R-GDIP-T20 |
| JESD-609 Code | e0 |
| Number of Dedicated Inputs | 9.0 |
| Number of I/O Lines | 8.0 |
| Number of Inputs | 18.0 |
| Number of Outputs | 8.0 |
| Number of Product Terms | 74.0 |
| Number of Terminals | 20 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Organization | 9 DEDICATED INPUTS, 8 I/O |
| Output Function | MACROCELL |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | WDIP |
| Package Equivalence Code | DIP20,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE, WINDOW |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies | 5 |
| Propagation Delay | 35.0 ns |
| Qualification Status | Not Qualified |
| Seated Height-Max | 4.826 mm |
| Sub Category | Programmable Logic Devices |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Max | 5.25 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 24.003 mm |
| Width | 7.62 mm |
| Additional Feature | SHARED INPUT/CLOCK |
