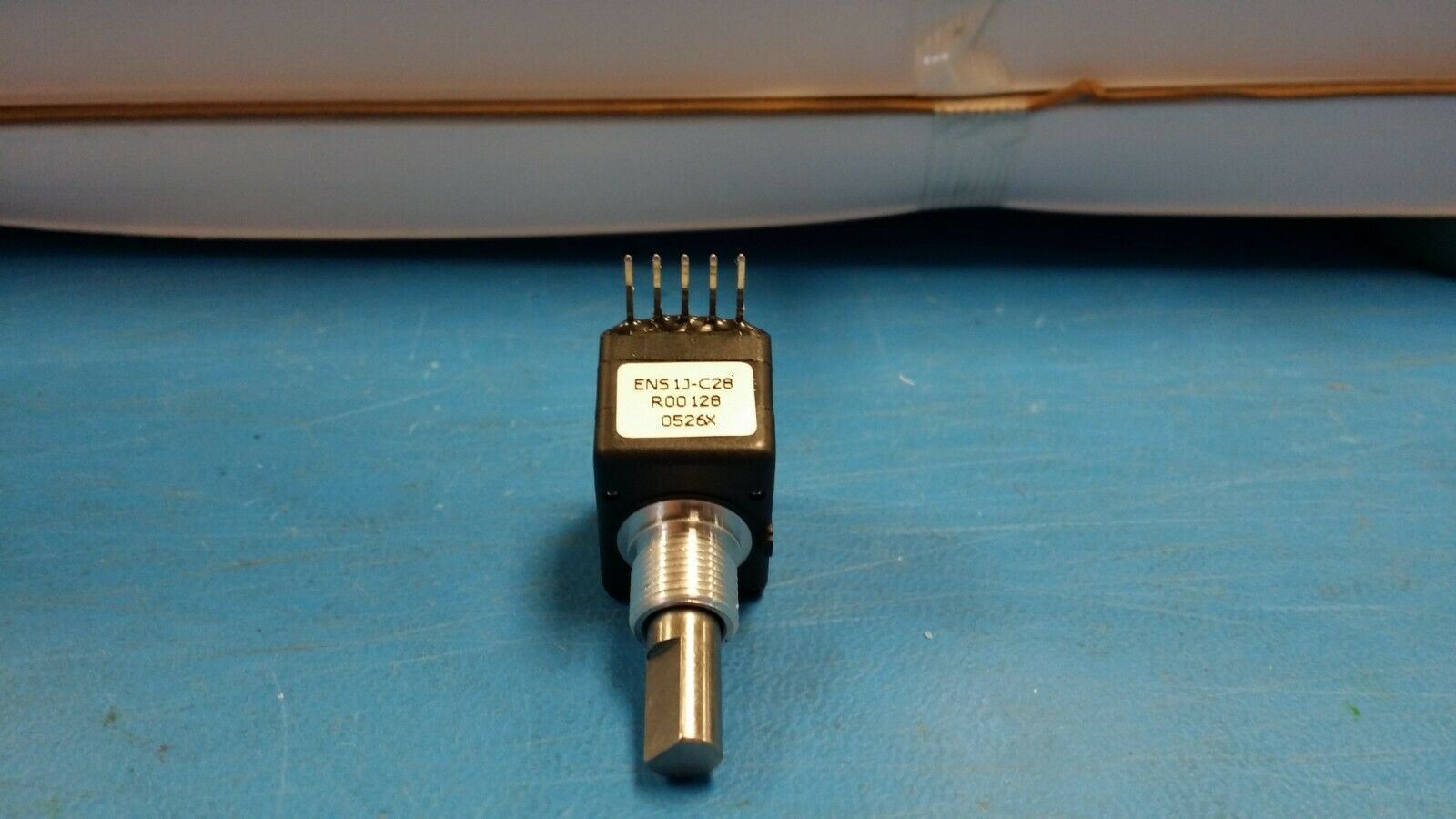

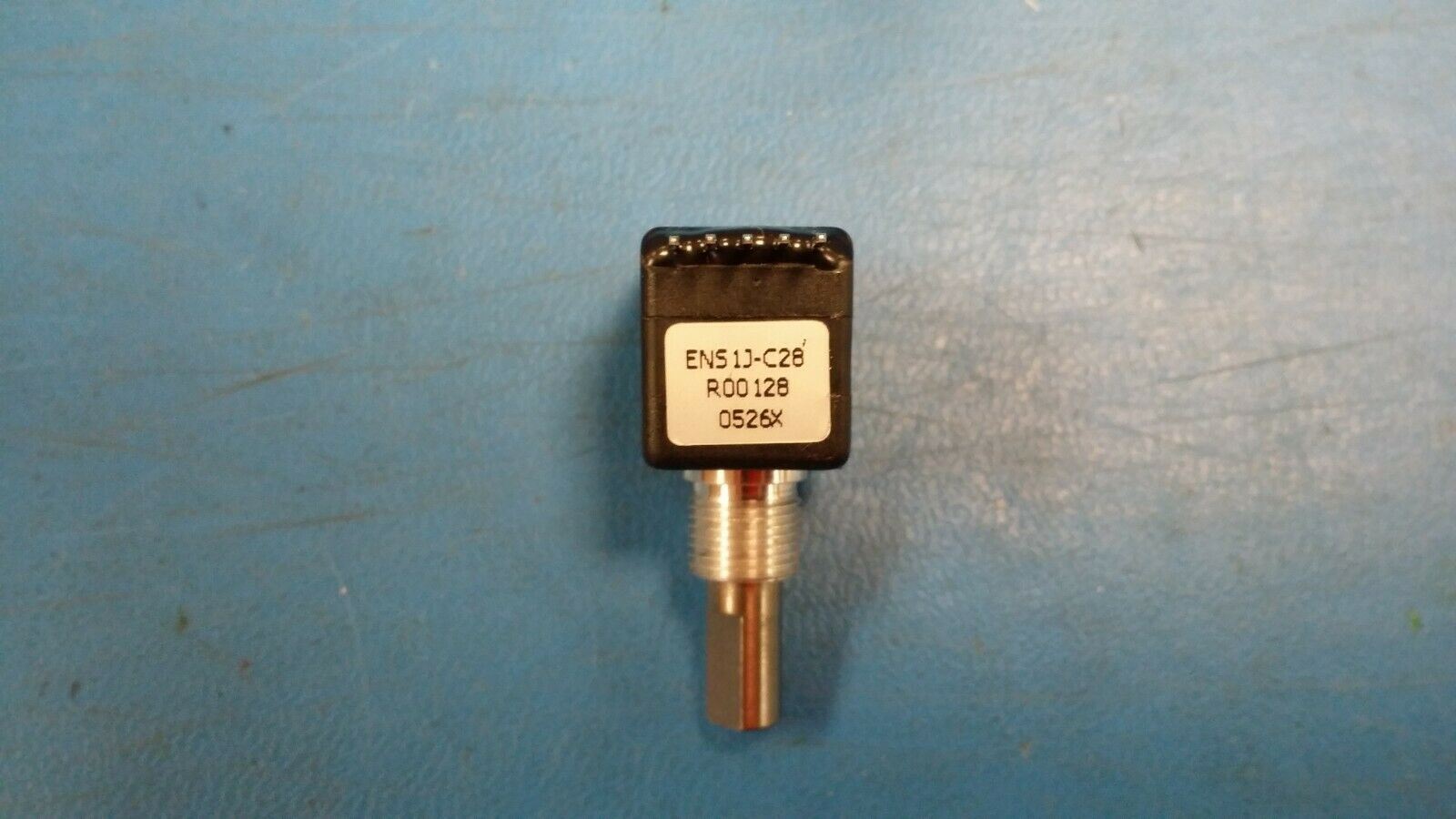

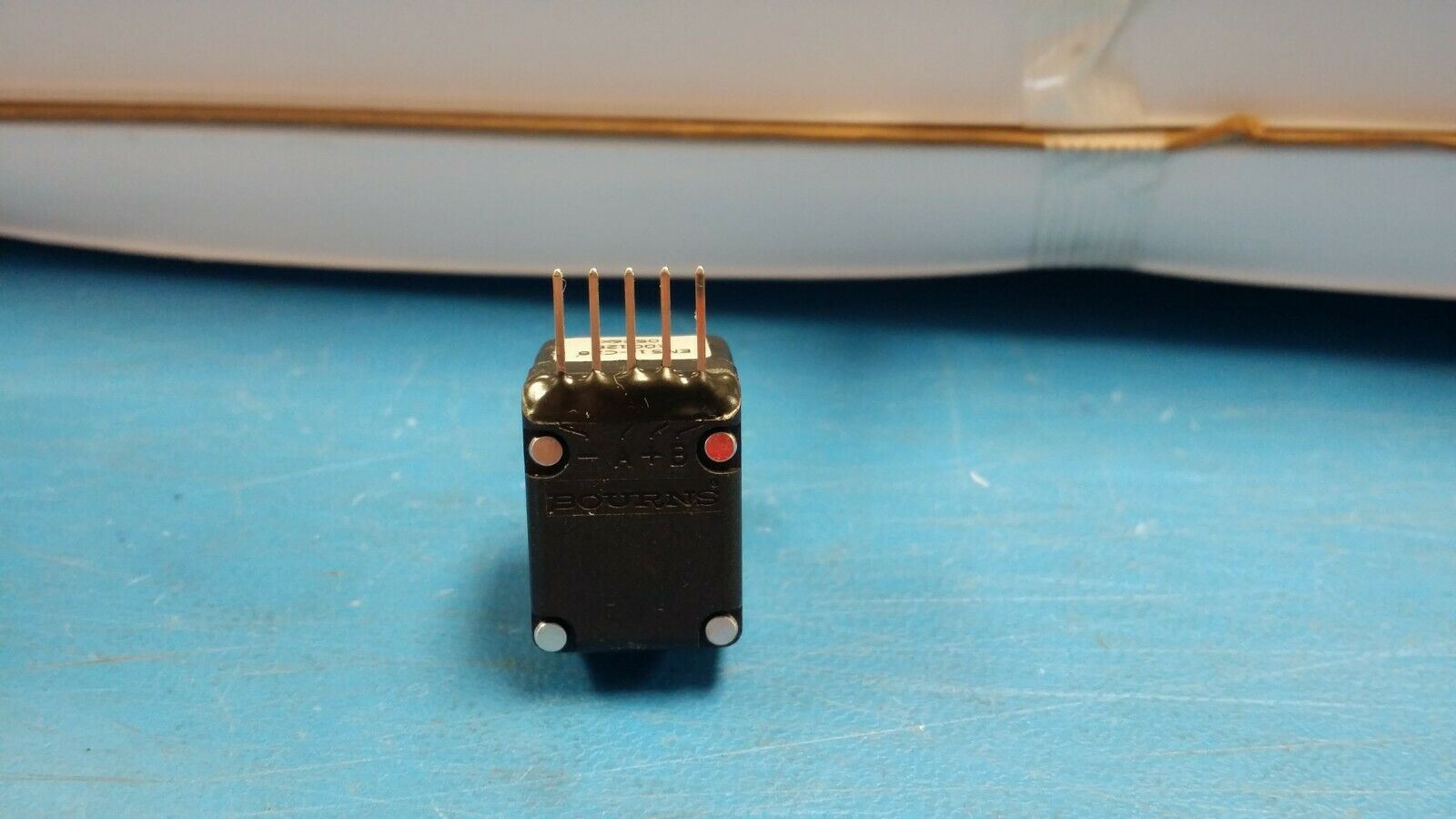

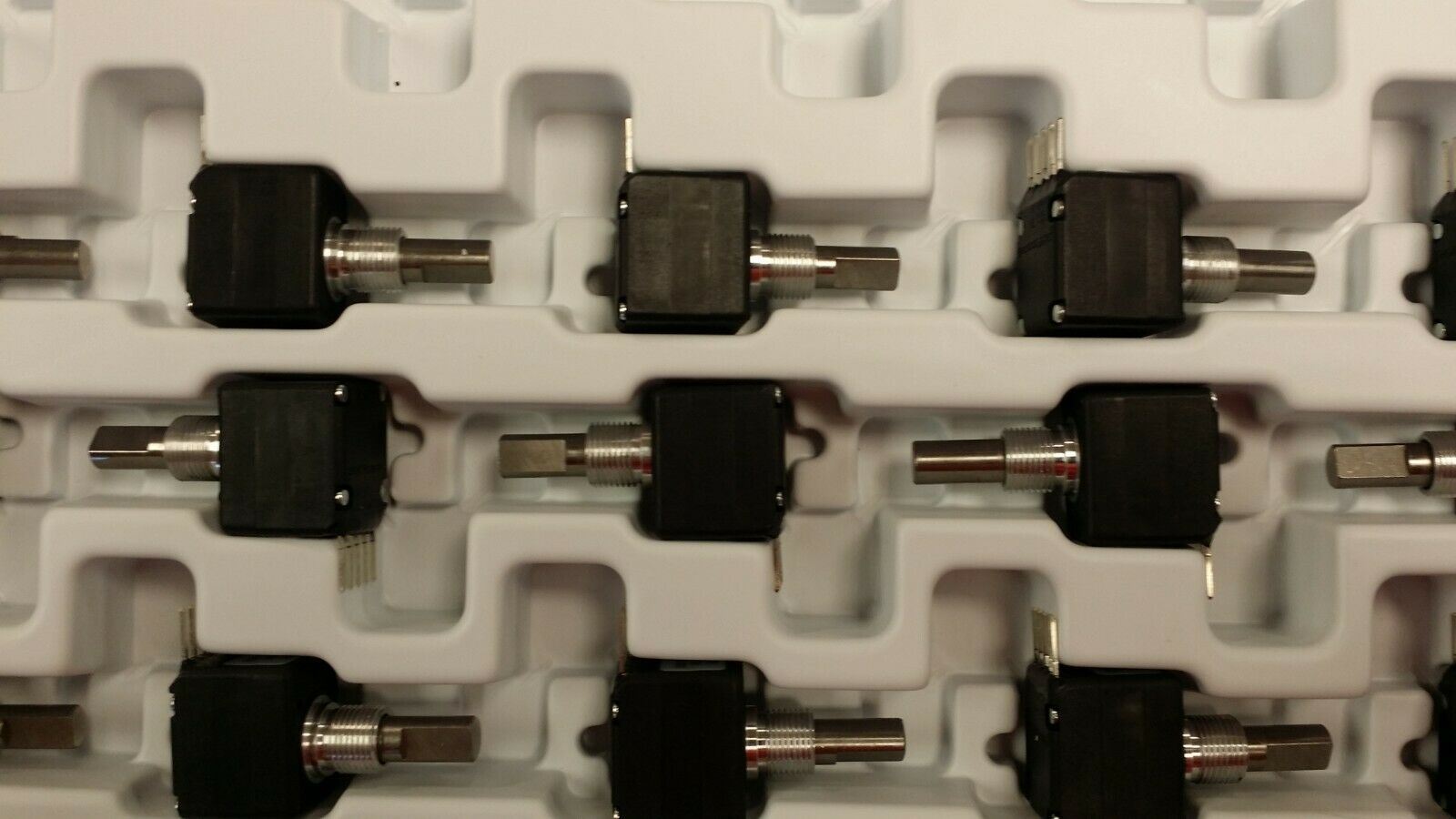

(1 PC) ENS1J-C28-R00128 BOURNS Encoders 128Cycle Radial SHAFT L=7/8 D=1/4 IN

The EN model is a self-contained rotary optical encoder. It produces a 2-bit quadrature signal which is suitable for digital systems where both magnitude and direction of adjustment must be provided. The EN encoder is ideal for use as a digital panel control or as a position sensing device in applications where long life, reliability, high resolution and precise linearity are critical.The EN series encoder converts rotary input into electrical signals which can be used by microprocessors without A/D conversion.EN optical encoders offer a useful rotational life of from 10 million to 200 million shaft revolutions, making them ideal for extended service applications. The encoder is also compact and well suited for situations where the available space is limited.

Key Features

Two channel quadrature output

Bushing or servo mount

Square wave signal

Small size

Resolution to 256 PPR

CMOS and TTL compatible

Long life

Ball bearing option for high operating speed up to 3000 rpm
