(1 PC) EF6802CMB/C 5962-01-155-8846 ST Microelectronics MICROPROCESSOR
Tax included.

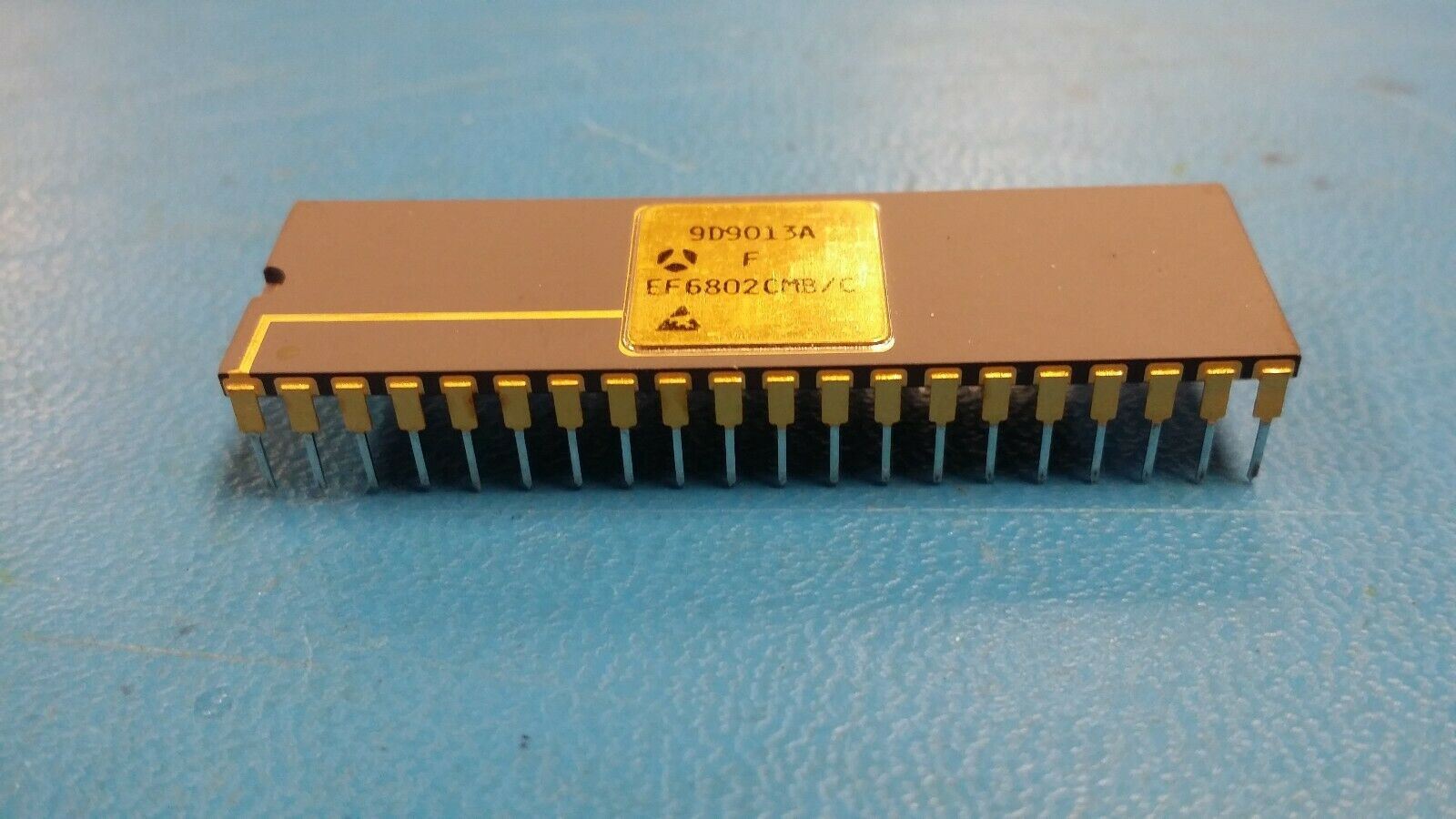

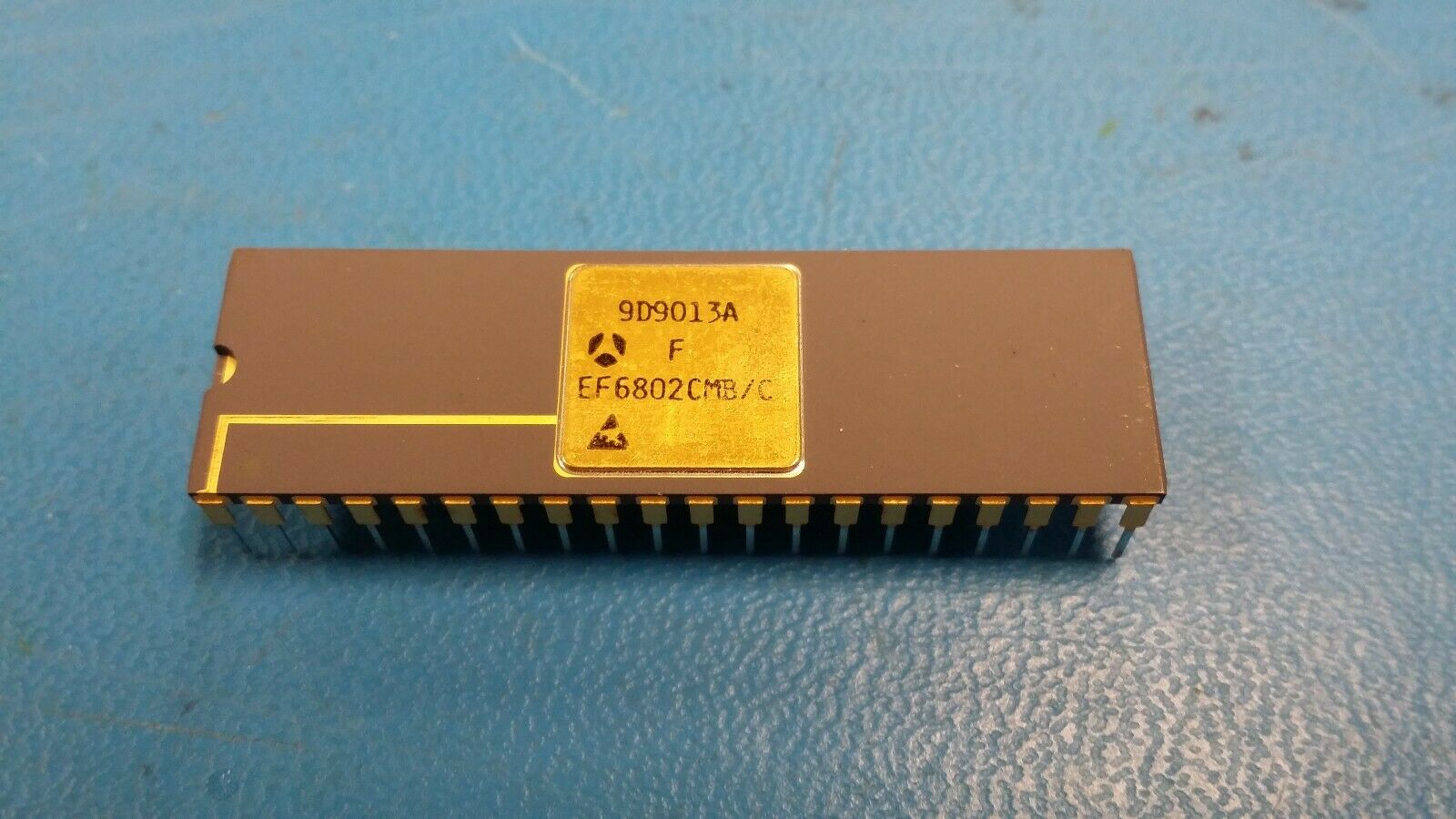

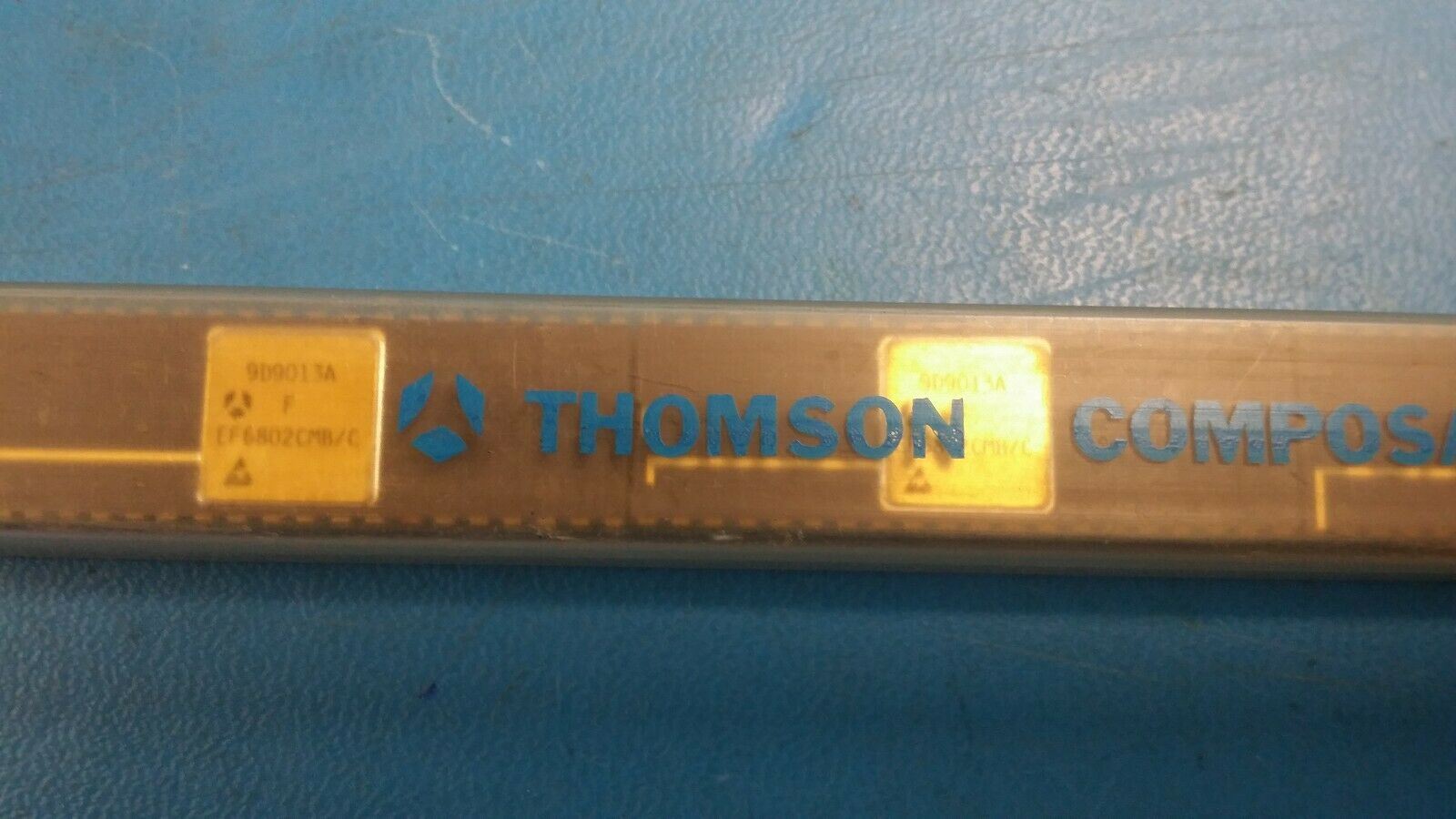

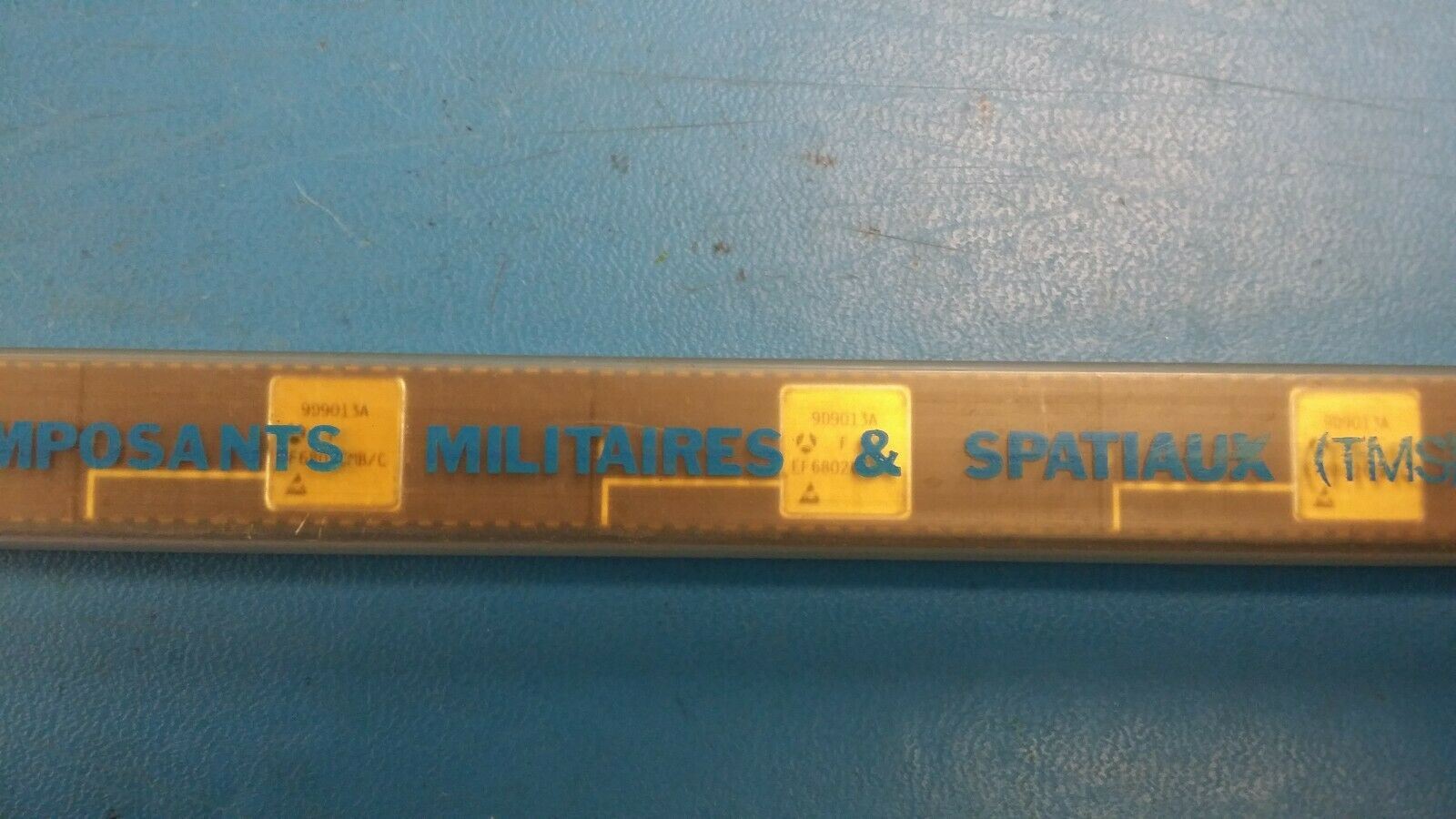

THIS LISTING IS FOR (1 PC) OF EF6802CMB/C 5962-01-155-8846 BY THOMPSON/ST Microelectronics MICROPROCESSOR
Characteristic Specifications
OUTPUT LOGIC FORM TRANSISTOR-TRANSISTOR LOGIC
DESIGN FUNCTION AND QUANTITY 1 MICROPROCESSOR
INPUT CIRCUIT PATTERN 16 INPUT
VOLTAGE RATING AND TYPE PER CHARACTERISTIC 7.0 VOLTS MAXIMUM POWER SOURCE
OPERATING TEMP RANGE 0.0 TO 70.0 DEG CELSIUS
TERMINAL TYPE AND QUANTITY 40 PRINTED CIRCUIT
TERMINAL SURFACE TREATMENT SOLDER
INCLOSURE CONFIGURATION DUAL-IN-LINE
INCLOSURE MATERIAL CERAMIC
BODY LENGTH 1.980 INCHES MINIMUM AND 2.020 INCHES MAXIMUM
BODY HEIGHT 0.040 INCHES MINIMUM AND 0.145 INCHES MAXIMUM
BODY WIDTH 0.585 INCHES MINIMUM AND 0.615 INCHES MAXIMUM
STORAGE TEMP RANGE -55.0 TO 150.0 DEG CELSIUS
FEATURES PROVIDED HERMETICALLY SEALED AND ELECTROSTATIC SENSITIVE AND BURN IN AND W/ENABLE AND W/BUFFERED OUTPUT AND W/RESET AND W/CLOCK
TEST DATA DOCUMENT 82577-3461286 DRAWING
III UNPACKAGED UNIT WEIGHT 10.0 GRAMS
III END ITEM IDENTIFICATION 4920-01-126-6887 TEST SET,POD,RE; LOS ANGELES CLASS SSN (688); TICONDEROGA CLASS CG (47); OLIVER PERRY CLASS FFG; TARAWA CLASS LHA; WASP CLASS LHD; NIMITZ CLASS CVN; ARLEIGH BURKE CLASS DDG; SPRUANCE CLASS DD (963); FORRESTAL CLASS CV
