(1 PC) DS5000T-8-16 DALLAS Microcontroller, 8-Bit, 16MHz, CMOS, PDIP40
Tax included.

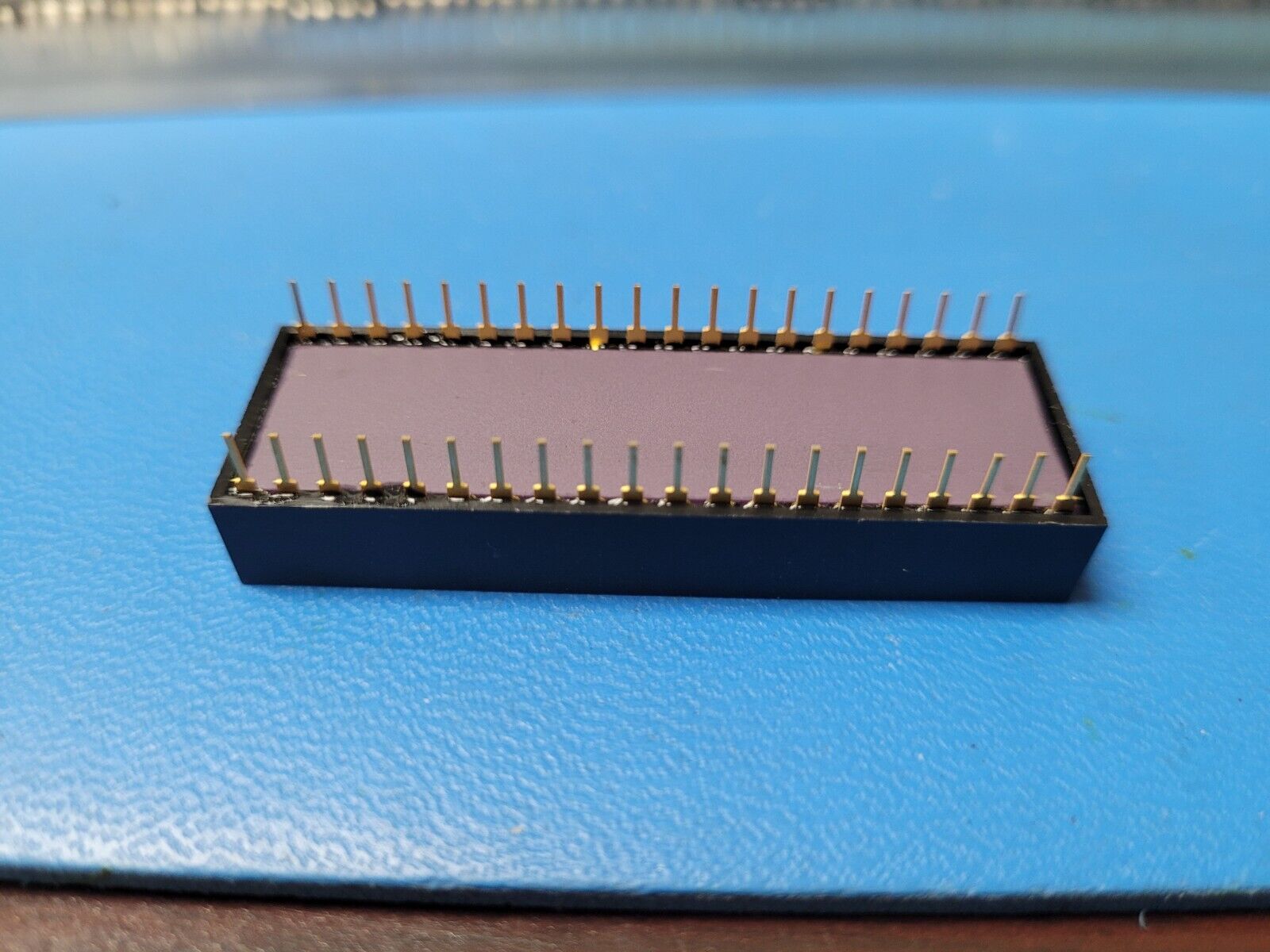

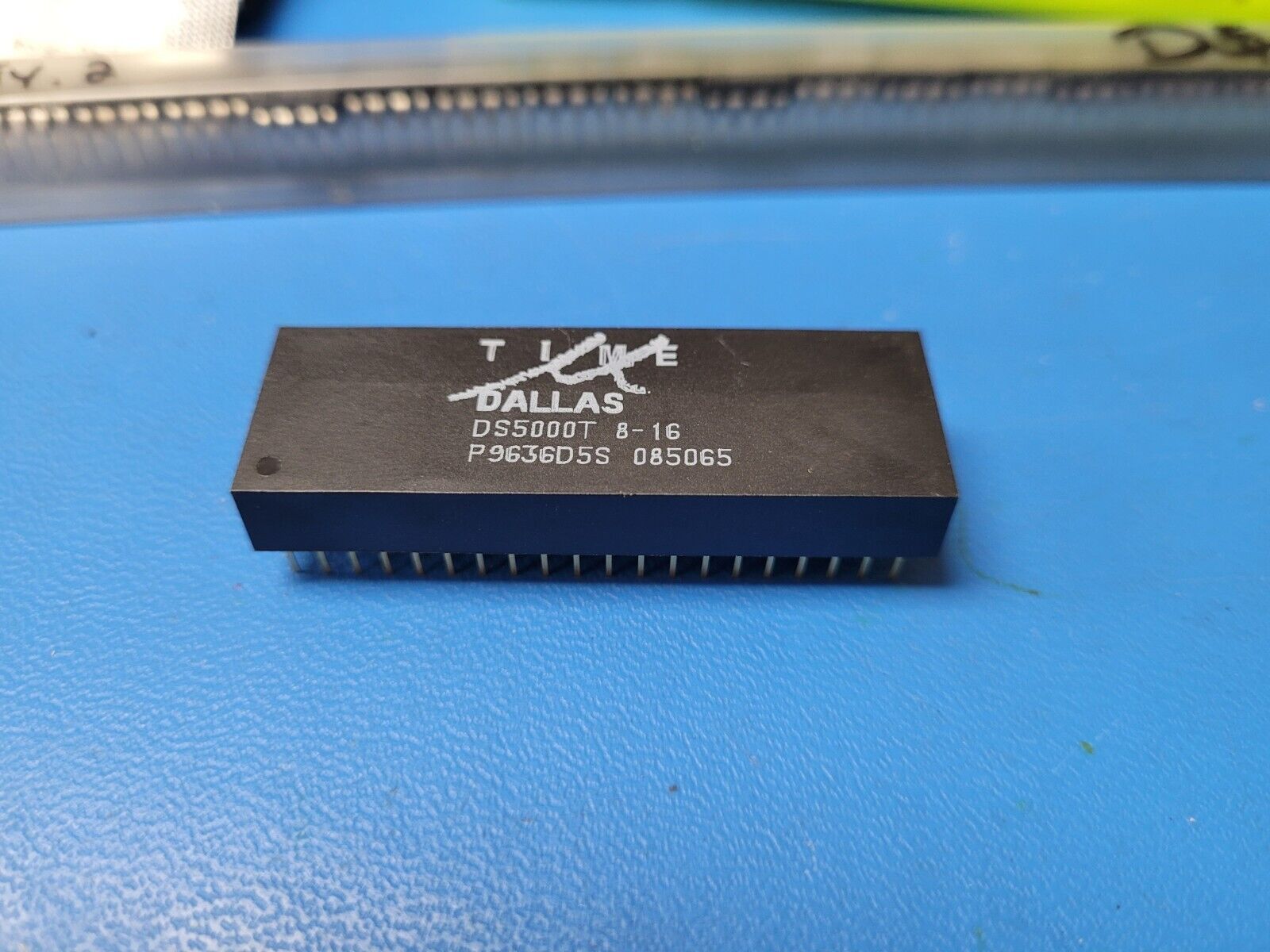

THIS IS FOR (1 PC) OF DS5000T-8-16 BY DALLAS
Microcontroller, 8-Bit, 16MHz, CMOS, PDIP40
Status Transferred
ADC Channels NO
Address Bus Width 16.0
Bit Size 8
Boundary Scan NO
Clock Frequency-Max 16.0 MHz
DAC Channels NO
DMA Channels NO
External Data Bus Width 8.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-XDMA-T40
Low Power Mode YES
Number of DMA Channels 0.0
Number of External Interrupts 2.0
Number of I/O Lines 32.0
Number of Serial I/Os 1.0
Number of Terminals 40
Number of Timers 2.0
On Chip Data RAM Width 0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material UNSPECIFIED
Package Shape RECTANGULAR
Package Style MICROELECTRONIC ASSEMBLY
PWM Channels NO
Qualification Status Not Qualified
RAM (words) 0
Speed 16.0 MHz
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.75 V
Supply Voltage-Max 5.25 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Additional Feature OPTIONAL PERMANENTLY POWERED REAL-TIME CLOCK; 10 YEAR DATA RETENTION
