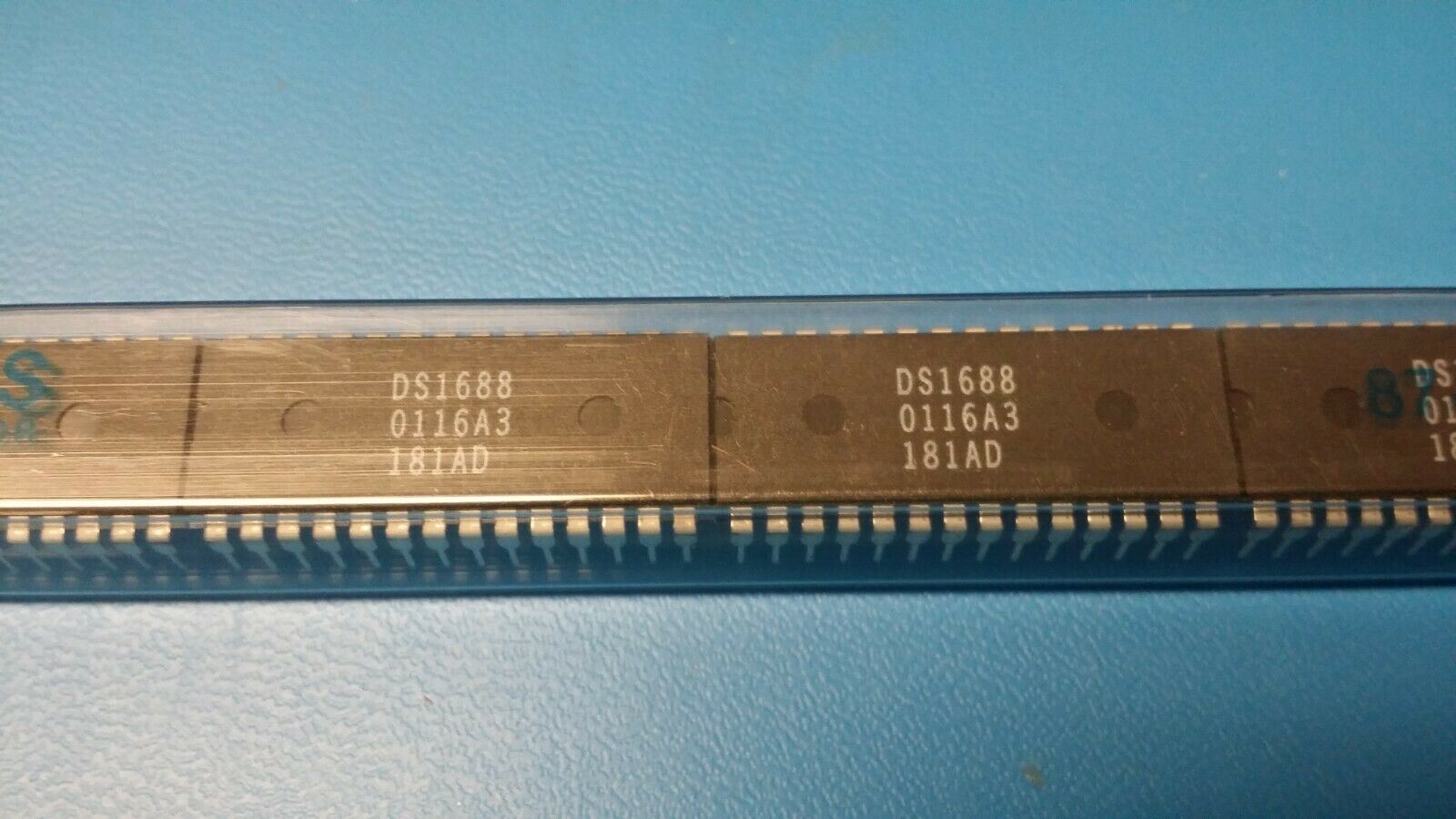

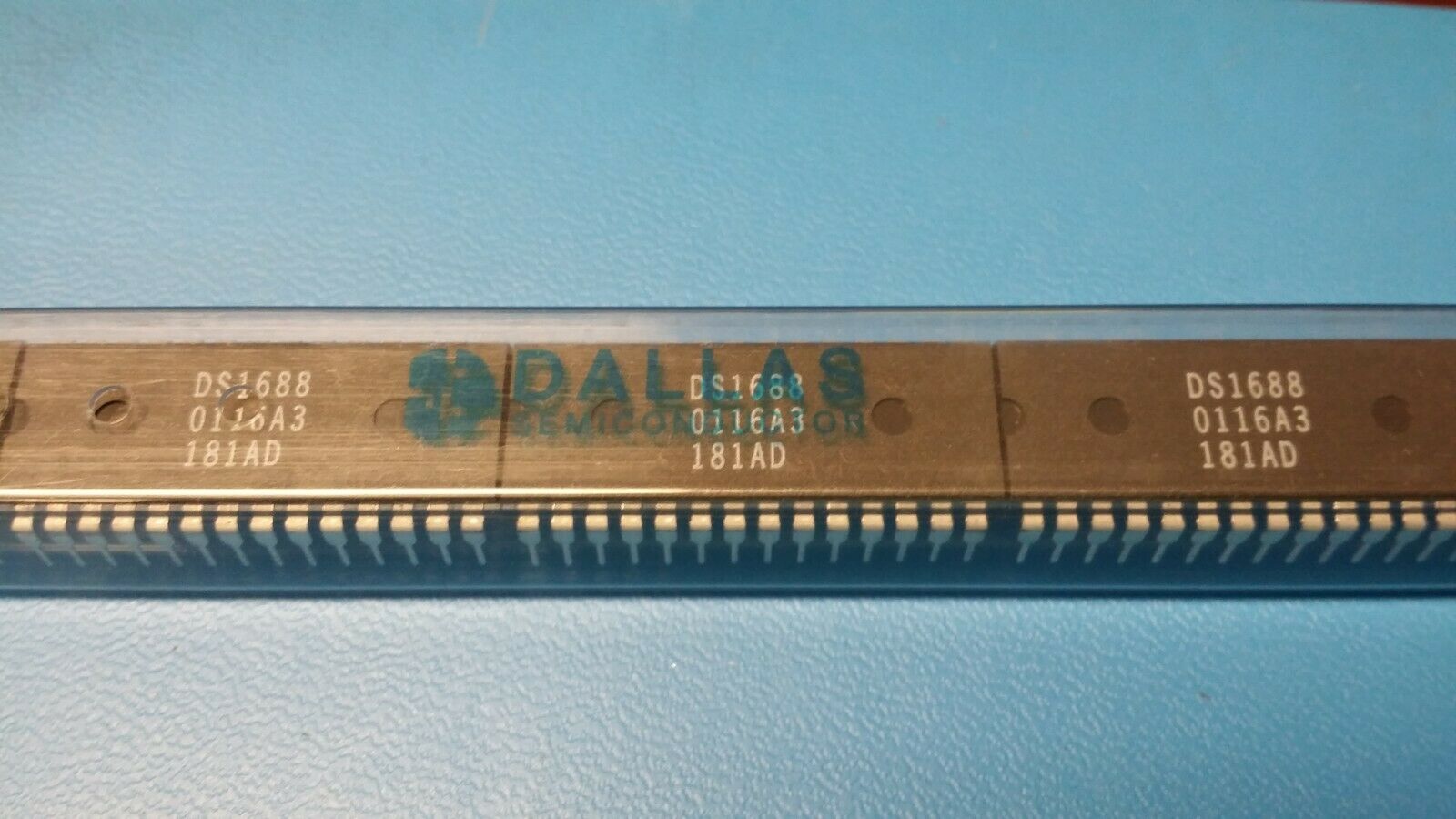

(1 PC) DS1688 DALLAS Real Time Clock (RTC) IC Clock/Calendar 114B Parallel DIP28
Tax included.
THIS LISTING IS FOR (1 PC)OF DS1688 BY DALLAS SEMICONDUCTOR
Real Time Clock (RTC) IC Clock/Calendar 114B Parallel DIP28
Manufacturer Maxim Integrated (DALLAS SEMICONDUCTOR)
Series -
Packaging Tube
Part Status Obsolete
Type Clock/Calendar
Features Alarm, Leap Year, Square Wave Output, Unique ID
Memory Size 114B
Time Format HH:MM:SS (12/24 hr)
Date Format YY-MM-DD
Interface Parallel
Voltage - Supply 2.7V ~ 3.3V, 4.5V ~ 5.5V
Voltage - Supply, Battery -
Current - Timekeeping (Max) -
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole
Package / Case 28-DIP (0.600", 15.24mm)
Supplier Device Package 28-PDIP
Base Part Number DS1688
