(1 PC) DS1501Y Real Time Clock (RTC) IC Clock/Calendar 256B Parallel 28-DIP
Tax included.

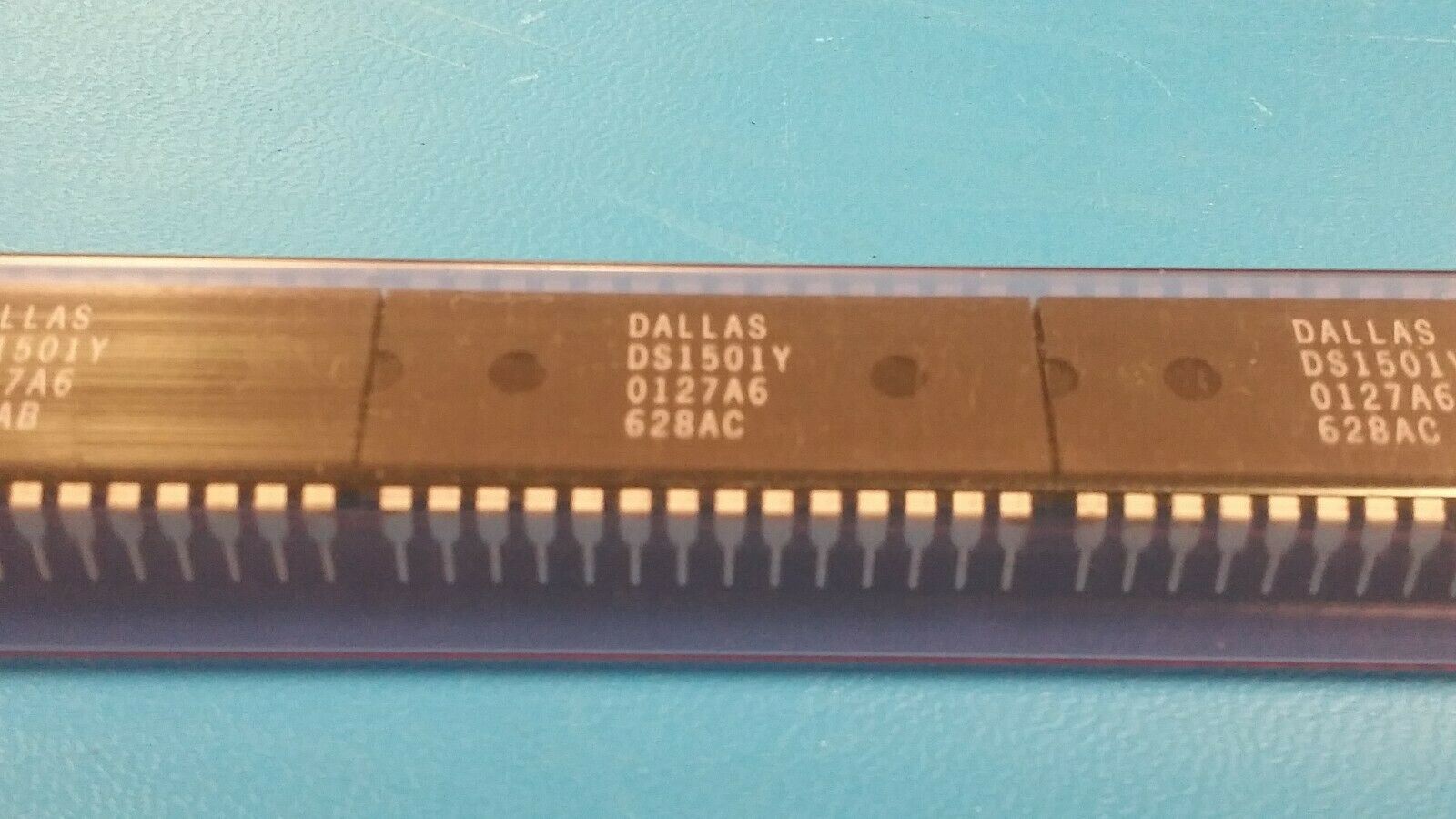

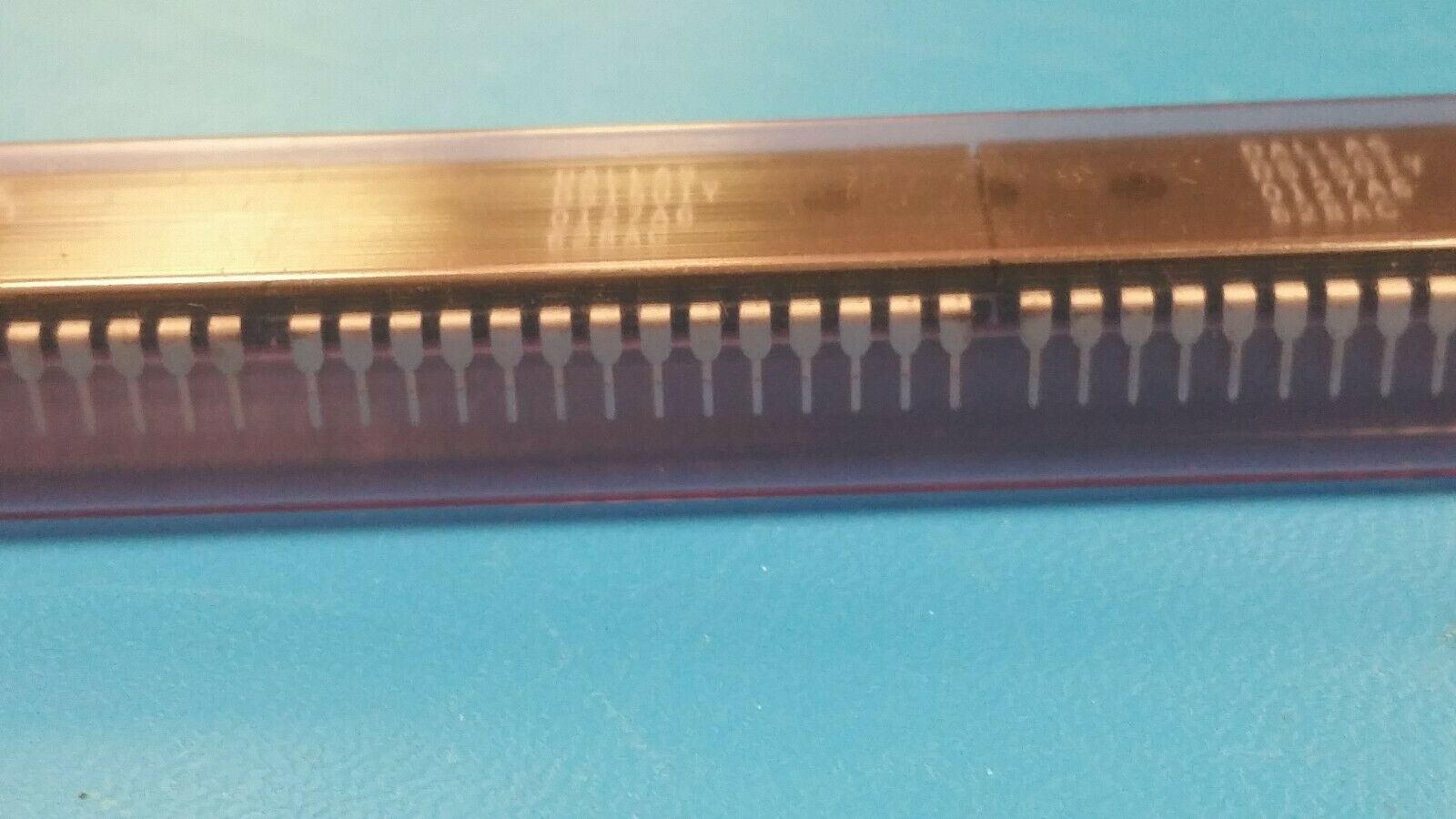

THIS LISTING IS FOR (1 PC) OF DS1501Y BY DALLAS SEMICONDUCTOR
Real Time Clock (RTC) IC Clock/Calendar 256B Parallel 28-DIP
Mfr Maxim Integrated
Series -
Package Tube
Part Status Obsolete
Type Clock/Calendar
Features Alarm, Leap Year, NVSRAM, Square Wave Output, Watchdog Timer, Y2K
Memory Size 256B
Time Format HH:MM:SS (24 hr)
Date Format YY-MM-DD-dd
Interface Parallel
Voltage - Supply 4.5V ~ 5.5V
Voltage - Supply, Battery 2.5V ~ 3.7V
Current - Timekeeping (Max) 5mA @ 4.5V ~ 5.5V
Operating Temperature 0°C ~ 70°C
Mounting Type Through Hole
Package / Case 28-DIP (0.600", 15.24mm)
Supplier Device Package 28-PDIP
Base Product Number DS1501
