(1 PC) DM85S68J NSC Standard SRAM, 16X4, TTL, CDIP18
Tax included.

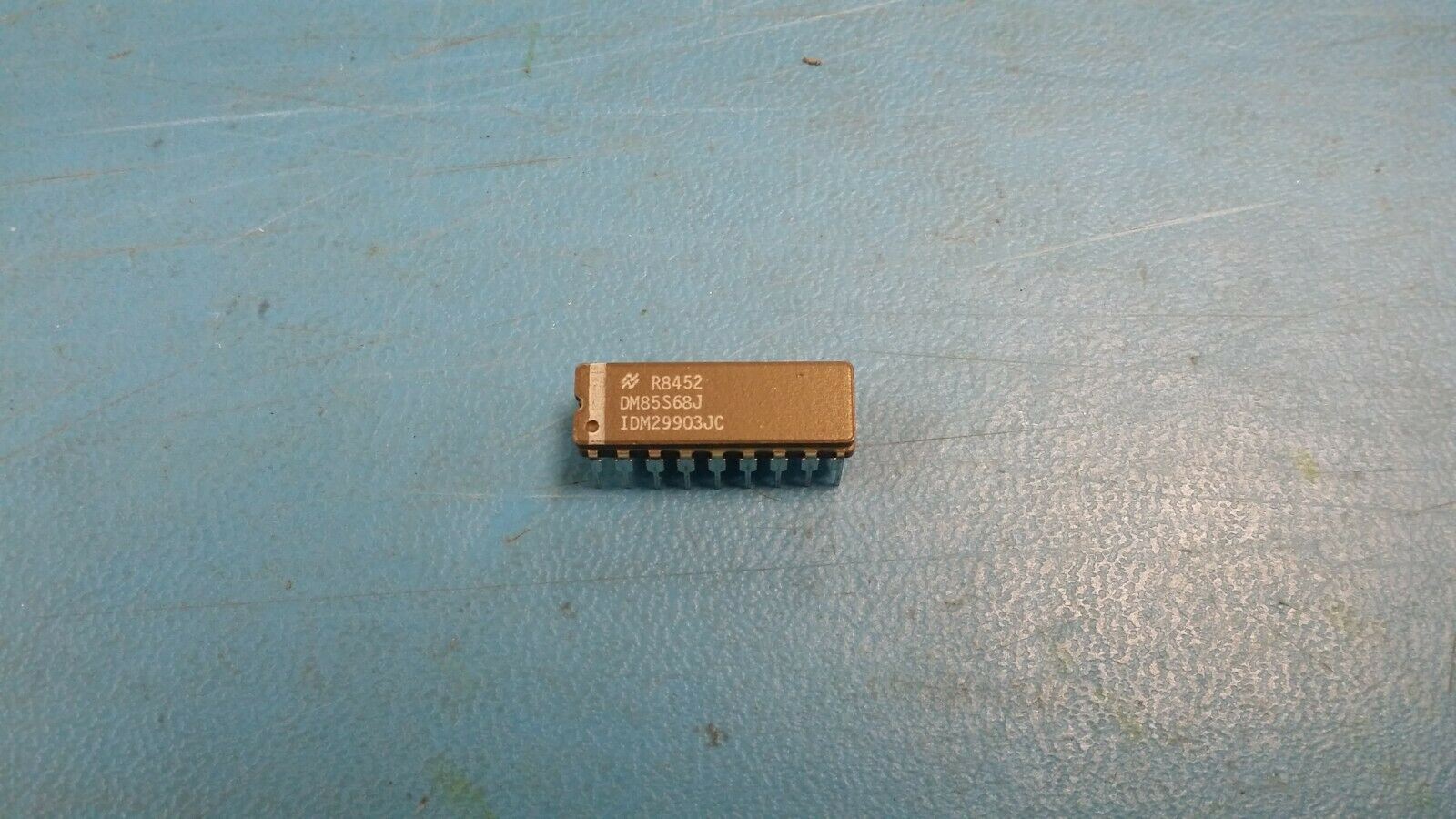

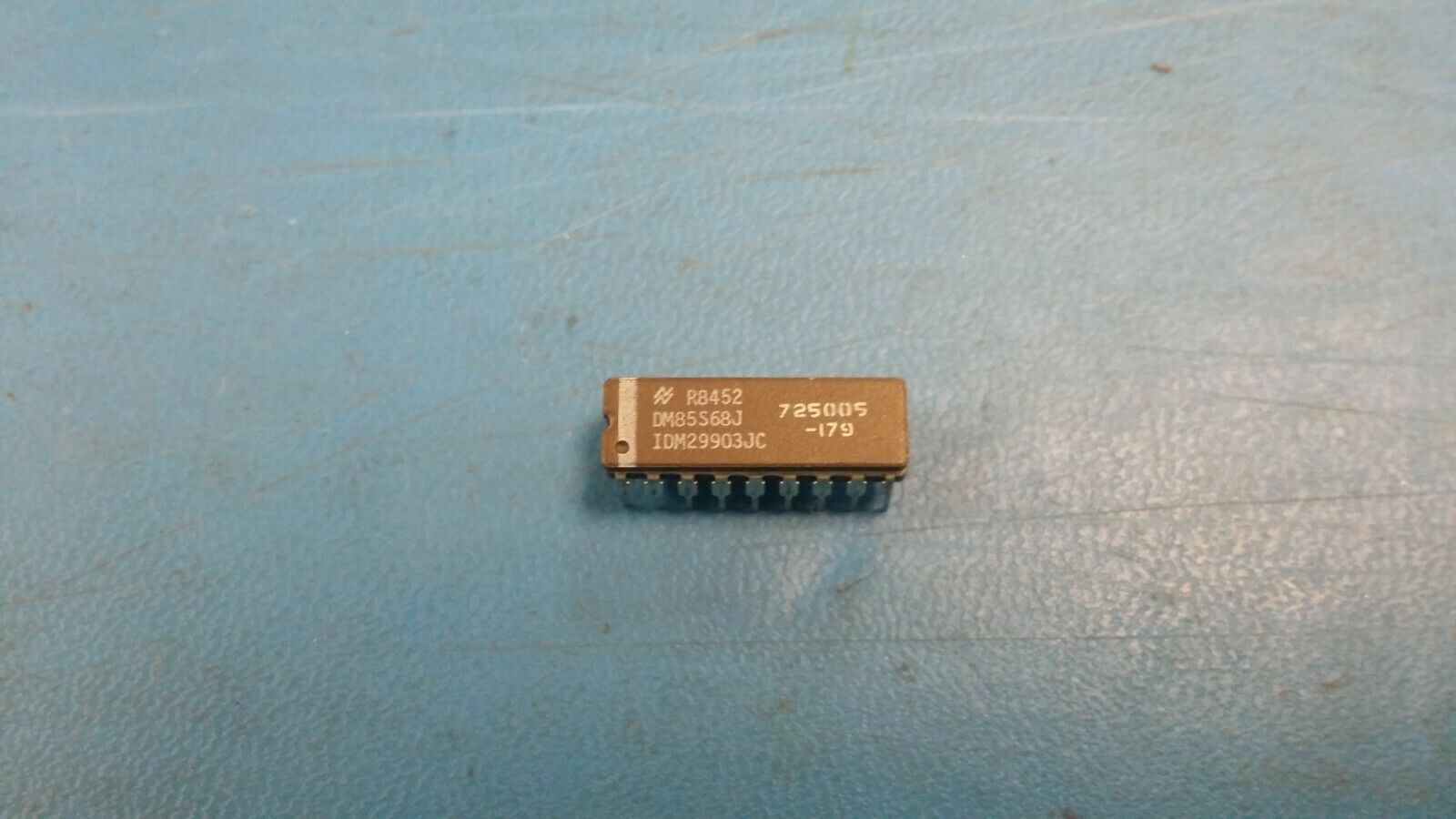

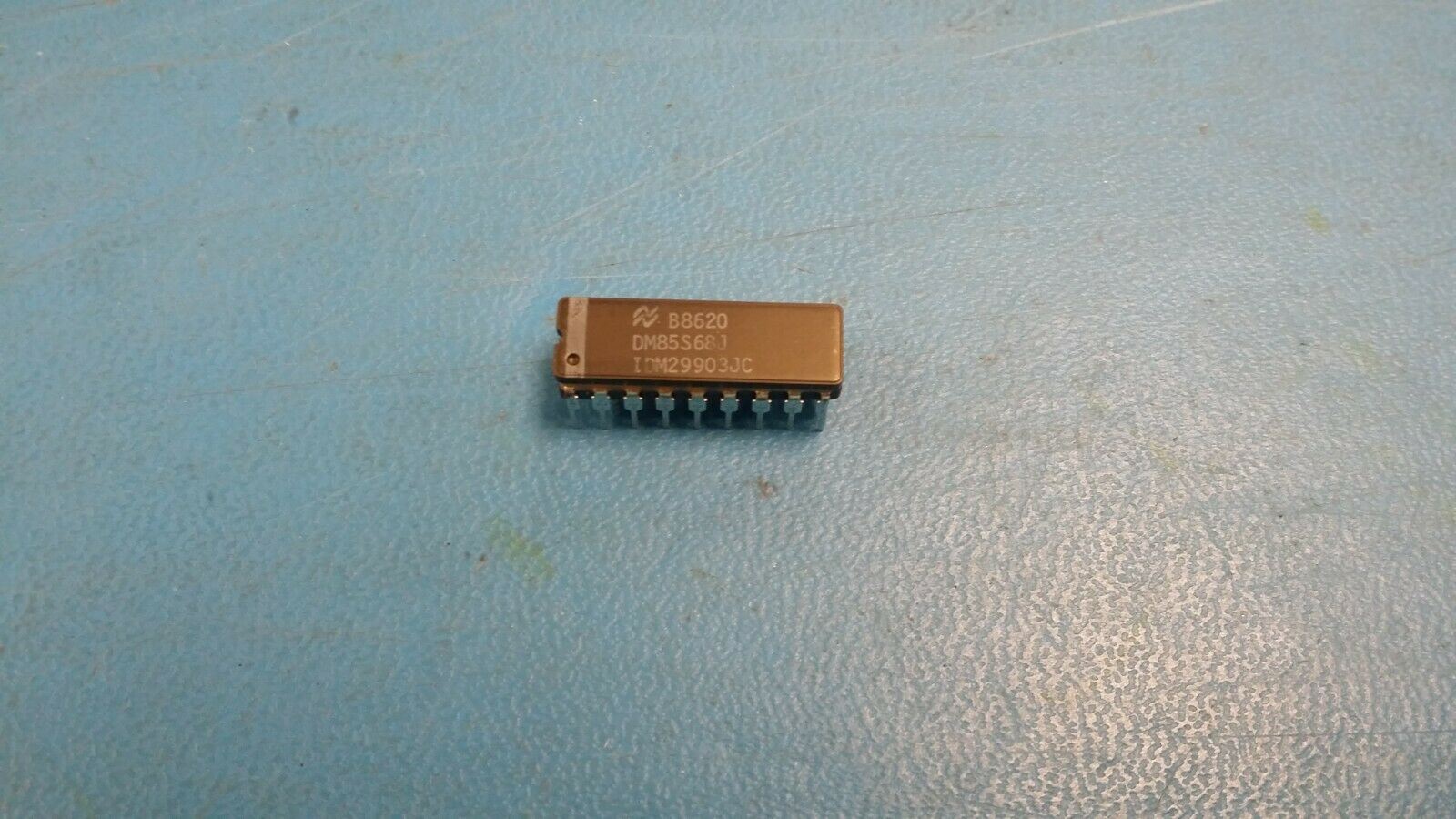

THIS LISTING IS FOR (1 PC) OF DM85S68J BY NSC
Standard SRAM, 16X4, TTL, CDIP18
Part #: DM85S68J
Part Category: Memory ICs
Manufacturer: Texas Instruments High-Performance Analog(NSC)
Description: Standard SRAM, 16X4, TTL, CDIP18
Mfr Package Description CERAMIC, DIP-18
Status Discontinued
Sub Category Other Memory ICs
JESD-30 Code R-GDIP-T18
JESD-609 Code e0
Memory Density 64.0 bit
Memory IC Type STANDARD SRAM
Memory Width 4
Number of Functions 1
Number of Ports 1
Number of Terminals 18
Number of Words 16.0 words
Number of Words Code 16
Operating Mode SYNCHRONOUS
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Organization 16X4
Output Characteristics 3-STATE
Output Enable YES
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP18,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Parallel/Serial PARALLEL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5.0 V
Supply Voltage-Min (Vsup) 4.75 V
Supply Voltage-Max (Vsup) 5.25 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Width 7.62 mm
