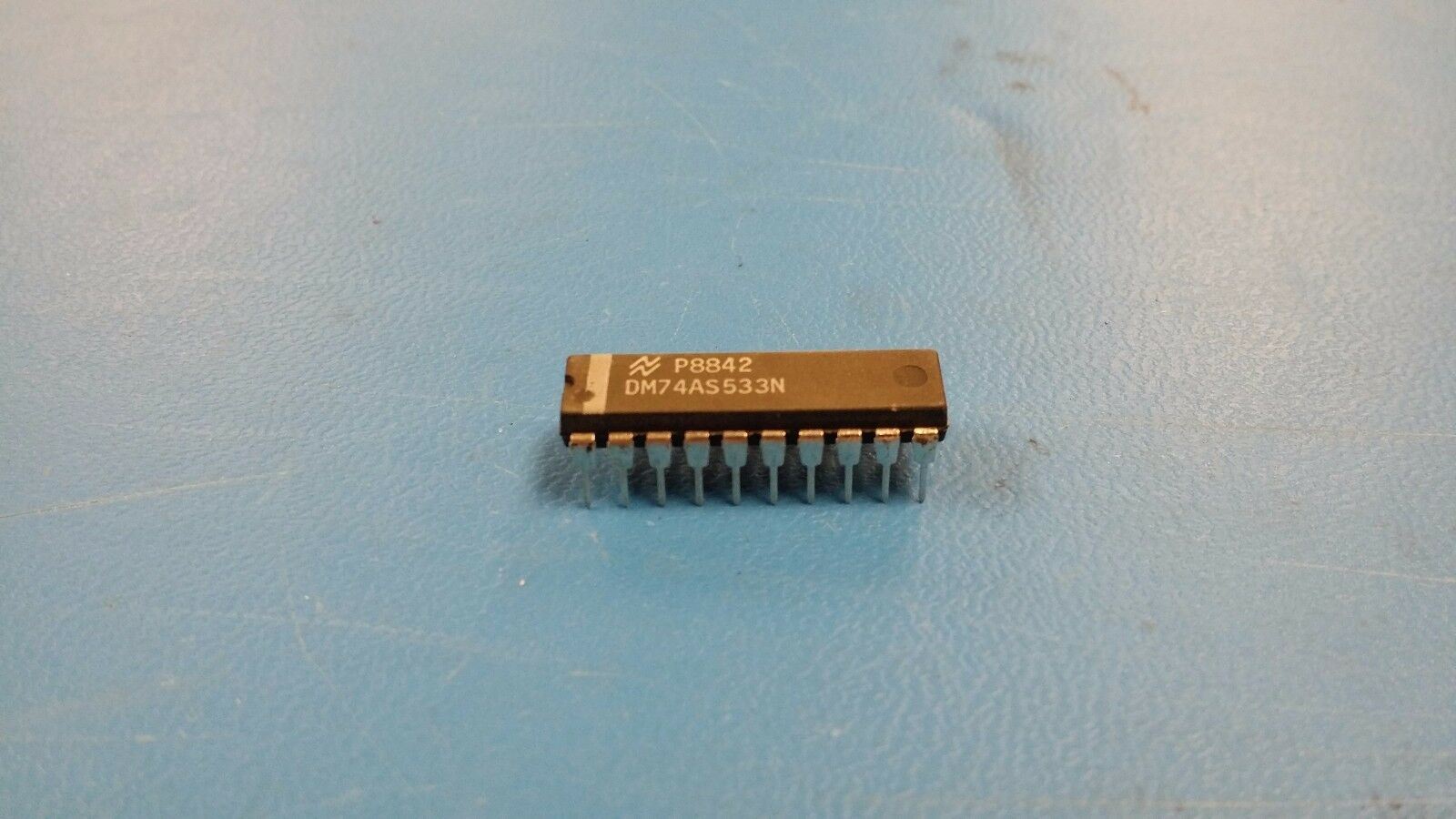

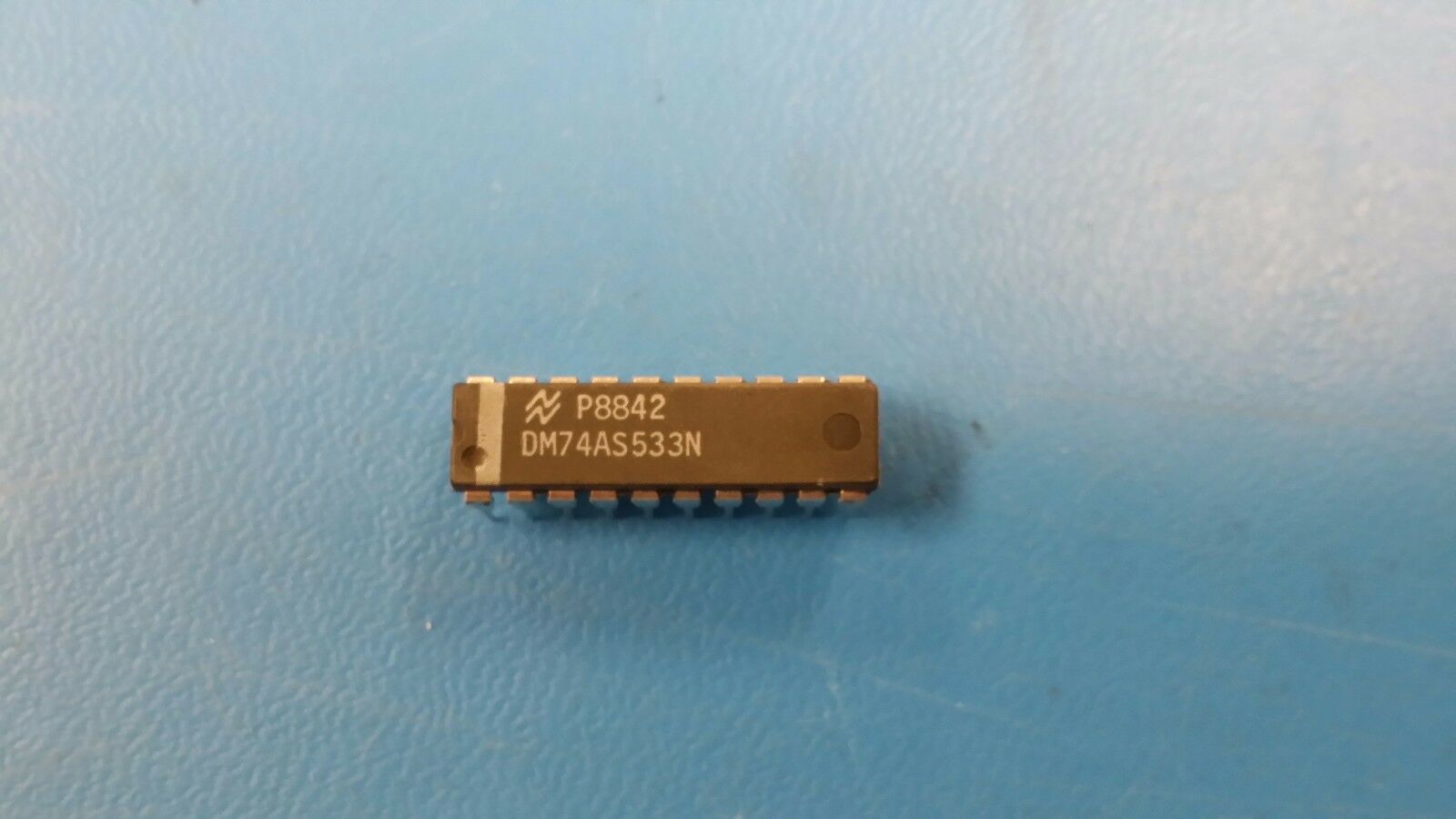

(1 PC) DM74AS533N NSC 8-BIT DRIVER, INVERTED OUTPUT, PDIP20

  • $7.95
    Unit price per
Tax included.

Only 77 left!

THIS LISTING IS FOR (1 PC) OF DM74AS533N BY NSC
8-BIT DRIVER, INVERTED OUTPUT, PDIP20

Part #: DM74AS533N


Part Category: Logic ICs
Manufacturer: National Semiconductor
Description: AS SERIES, 8-BIT DRIVER, INVERTED OUTPUT, PDIP20


Mfr Package Description PLASTIC, DIP-20
Status Discontinued
Logic IC Type BUS DRIVER
Sub Category FF/Latches
Family AS
JESD-30 Code R-PDIP-T20
JESD-609 Code e0
Load Capacitance (CL) 50.0 pF
Number of Bits 8
Number of Functions 1
Number of Ports 2
Number of Terminals 20
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Output Characteristics 3-STATE
Output Polarity INVERTED
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP20,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies (V) 5
Power Supply Current-Max (ICC) 100.0 mA
Propagation Delay (tpd) 8.0 ns
Qualification Status Not Qualified
Seated Height-Max 5.08 mm
Supply Voltage-Nom (Vsup) 5
Supply Voltage-Min (Vsup) 4.5 V
Supply Voltage-Max (Vsup) 5.5 V
Surface Mount NO
Technology TTL
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 26.075 mm
Width 7.62 mm
