(1 PC) DM54LS279J/883B NSC S-R Latch 4 Channel 1:1 IC Standard 16-CDIP
Tax included.

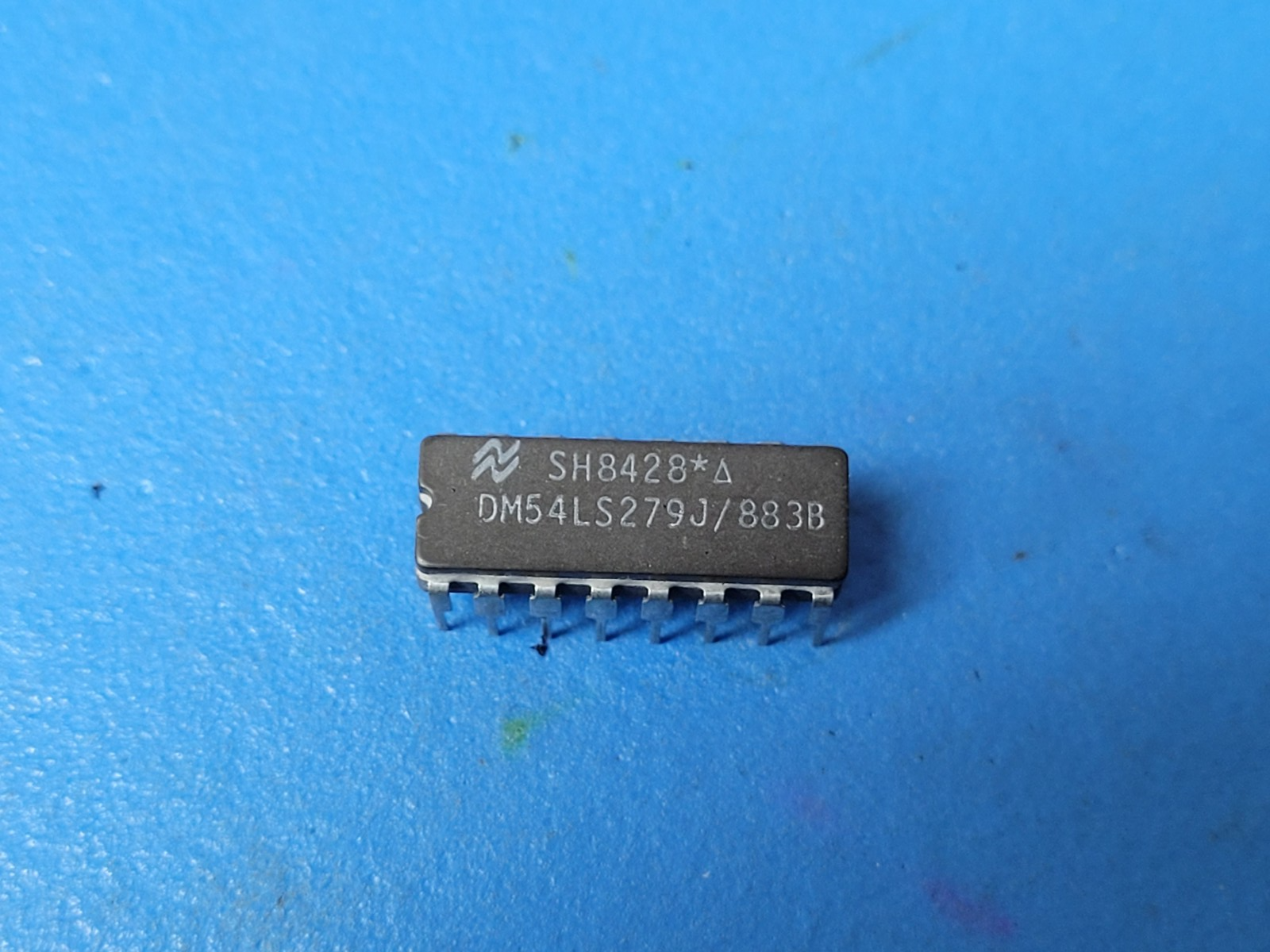

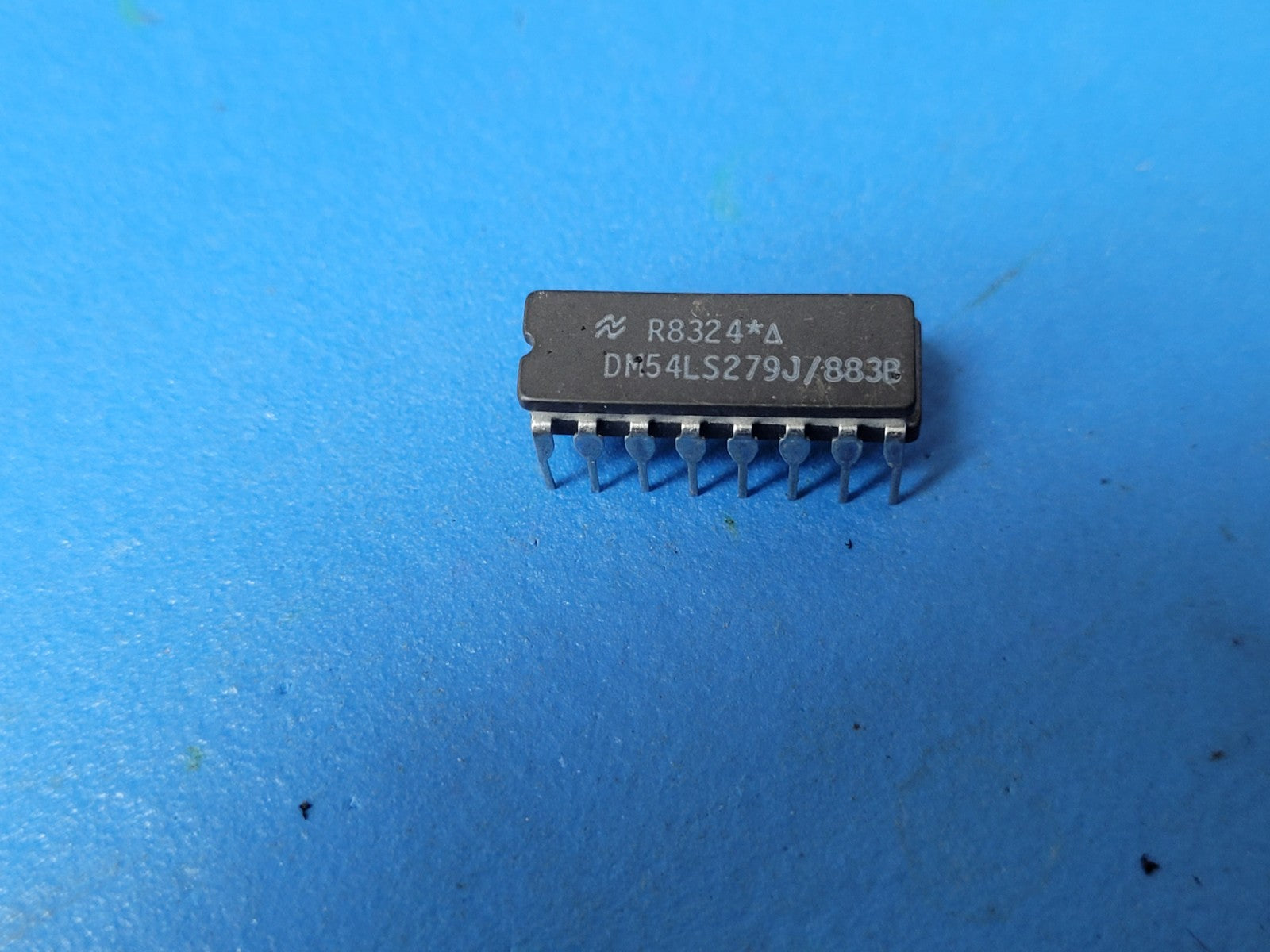

THIS IS FOR (1 PC) OF DM54LS279J/883B BY NSC
S-R Latch 4 Channel 1:1 IC Standard 16-CDIP
Part #: DM54LS279J/883
Obsolete
Part Category: FF/Latches
Manufacturer: NATIONAL SEMICONDUCTOR CORP
Description: R-S Latch, LS Series, 4-Func, Low Level Triggered, 2-Bit, True Output, TTL, CDIP16
Status Discontinued
Additional Feature WITH DUAL S INPUT FOR TWO FUNCTIONS
Family LS
JESD-30 Code R-GDIP-T16
J-STD-609 Code e0
Length (mm) 19.4300
Load Capacitance (pF) 15.0000
Logic IC Type R-S LATCH
Output Low Current-Max (mA) 4.000000000000000
Moisture Sensitivity Level 1
Number of Bits 2
Number of Functions 4
Number of Terminals 16
Operating Temperature-Max (Cel) 125
Operating Temperature-Min (Cel) -55
Output Polarity TRUE
Package Body Material CERAMIC, GLASS-SEALED
Package Code DIP
Package Equivalence Code DIP16,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Supply Current-Max (mA) 7.00000000
Propagation Delay-Max@Nom-Sup (ns) 27.000000000000000000
Propagation Delay (ns) 42.0000
DLA Qualification Not Qualified
Screening Level / Reference Standard MIL-STD-883
Seated Height-Max (mm) 5.0800
Supply Voltage-Max (V) 5.5000
Supply Voltage-Min (V) 4.5000
Supply Voltage-Nom (V) 5
Surface Mount NO
Technology TTL
Temperature Grade MILITARY
Terminal Finish TIN LEAD
Terminal Form THROUGH-HOLE
Terminal Pitch (mm) 2.540
Terminal Position DUAL
Trigger Type LOW LEVEL
Width (mm) 7.6200
