(1 PC) DCP010515P BURR-BROWN Conv DC-DC Single Step Up 7-Pin PDIP
Tax included.

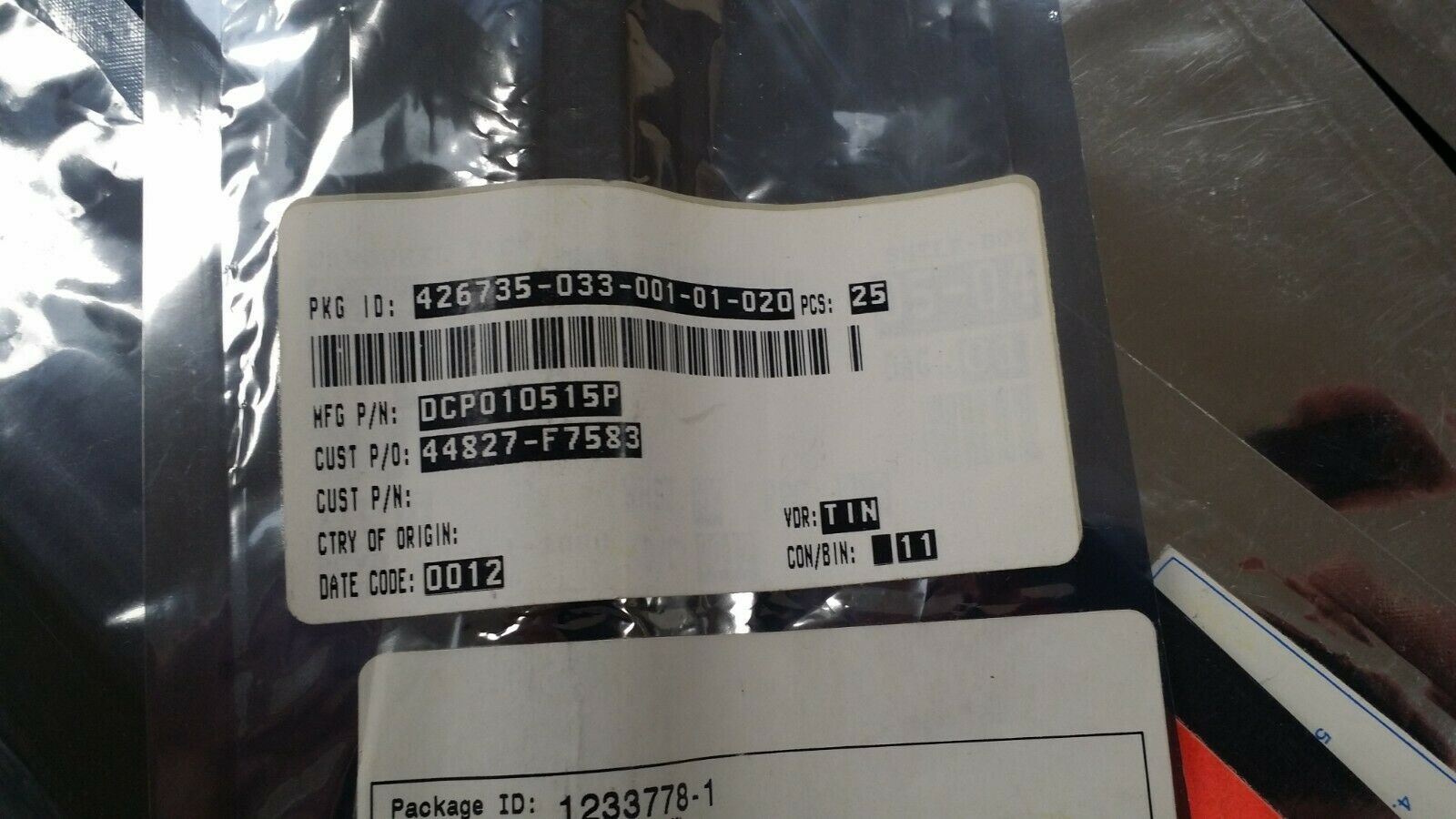

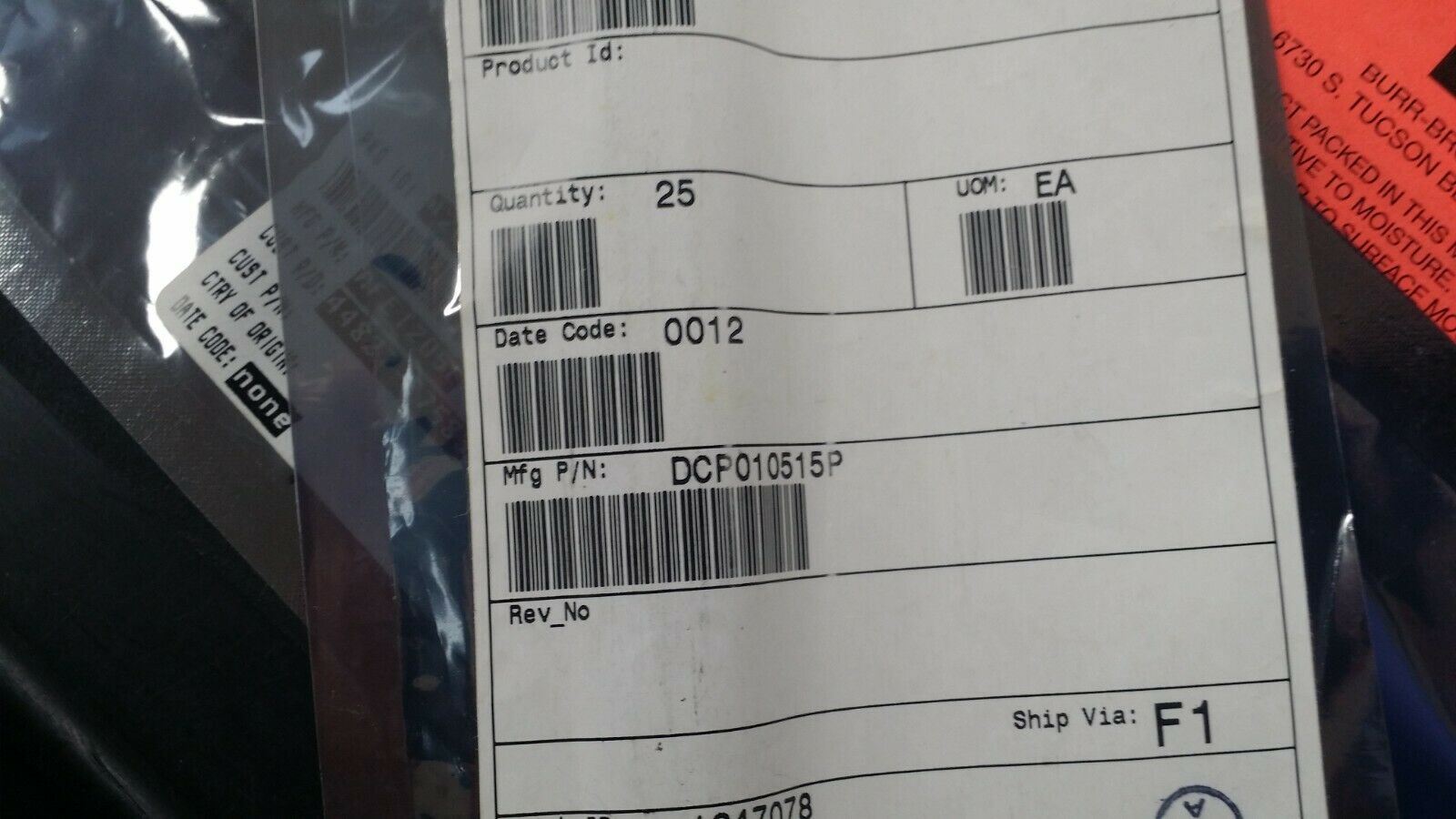

THIS IS FOR (1 PC) OF DCP010515P BY BURR-BROWN
Conv DC-DC Single Step Up 7-Pin PDIP
Part #: DCP010515P
Part Category: Other Semiconductors
Manufacturer: Texas Instruments High-Performance Analog
Description: DC-DC Unregulated Power Supply Module, 1 Output, 1W, Hybrid
Mfr Package Description MINIATURE, PLASTIC, DIP-14/7
Status Discontinued
Analog IC - Other Type DC-DC UNREGULATED POWER SUPPLY MODULE
Input Voltage-Nom 5.0 V
Input Voltage-Min 4.5 V
Input Voltage-Max 5.5 V
JESD-30 Code R-PDIP-T7
Load Regulation-Max 42.0 %
Number of Functions 1
Number of Outputs 1.0
Number of Terminals 7
Operating Temperature-Min -40.0 Cel
Operating Temperature-Max 100.0 Cel
Output Voltage-Nom 15.0 V
Output Voltage-Min 14.0 V
Output Voltage-Max 15.5 V
Package Body Material PLASTIC/EPOXY
Package Code DIP
Package Equivalence Code DIP7/14,.3
Package Shape RECTANGULAR
Package Style IN-LINE
Qualification Status Not Qualified
Seated Height-Max 5.33 mm
Sub Category Other Analog ICs
Surface Mount NO
Technology HYBRID
Temperature Grade INDUSTRIAL
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Total Power Output-Max 1.0 W
Length 19.18 mm
Width 7.62 mm
