(1 PC) D8742 INTEL Microcontroller 8-Bit UVPROM 8048 CPU 0.8MHz NMOS CDIP40
Tax included.

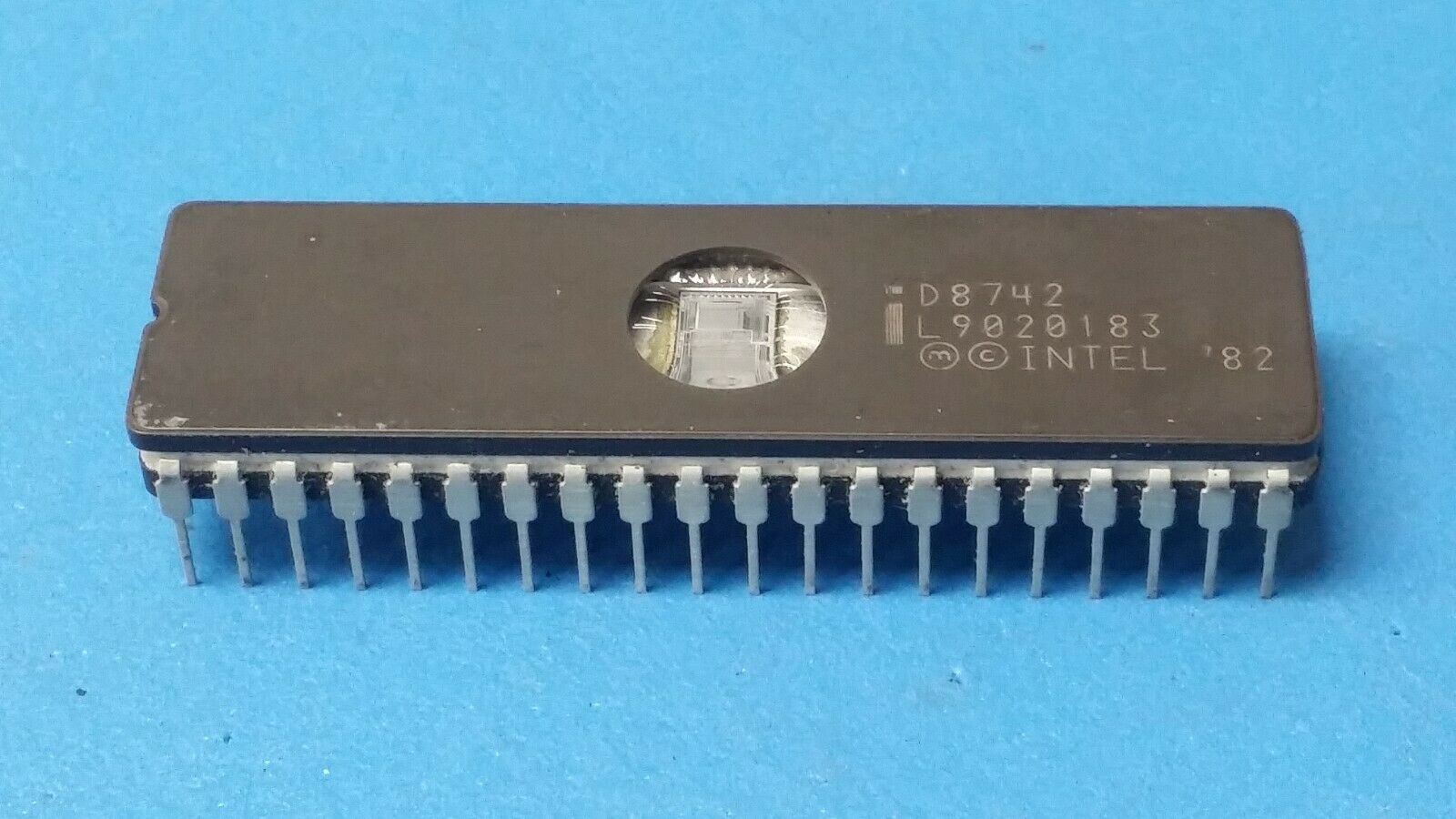

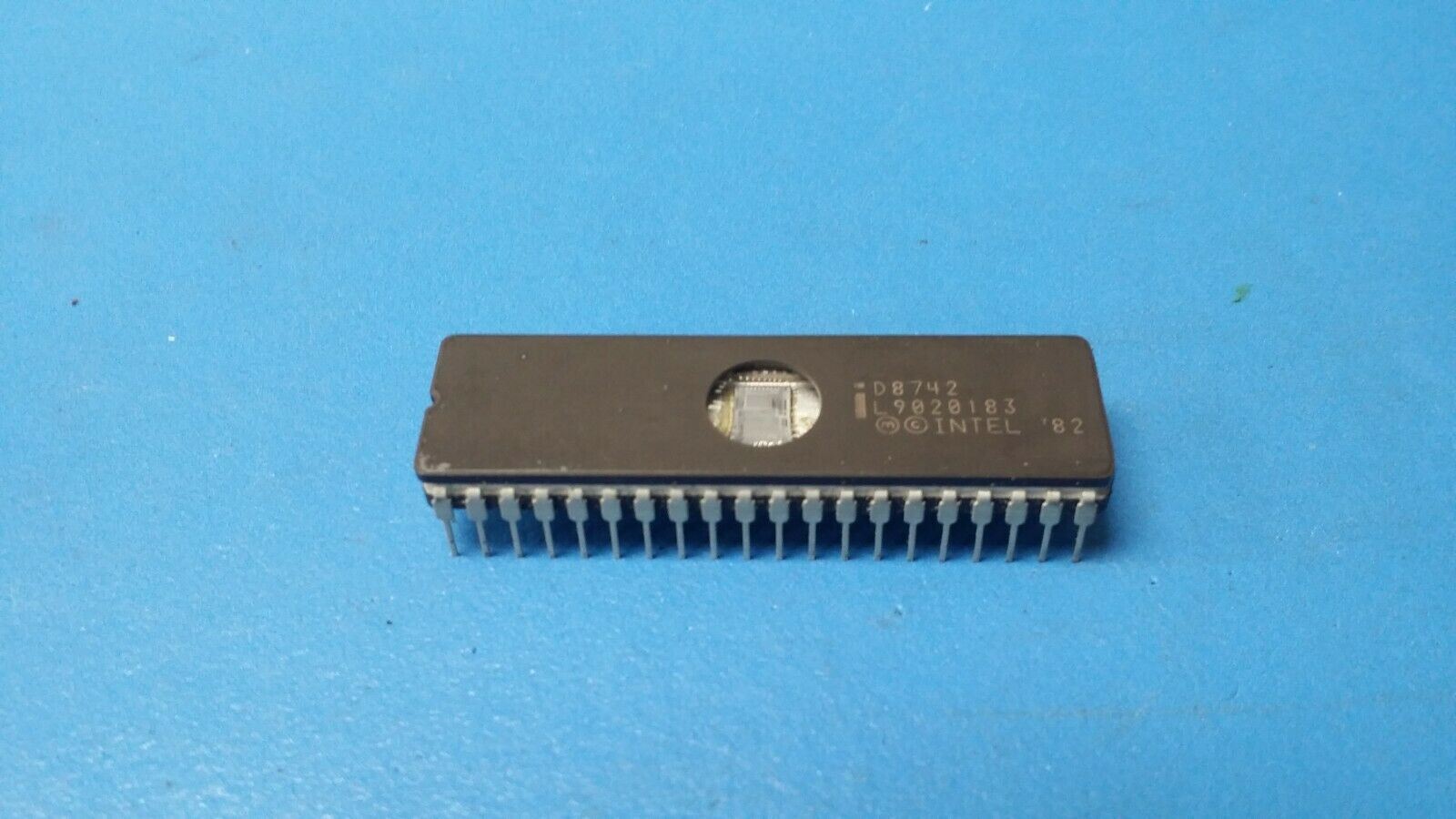

THIS IS FOR (1 PC) OF D8742 BY INTEL
Microcontroller 8-Bit UVPROM 8048 CPU 0.8MHz NMOS CDIP40
Part #: D8742
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Intel Corporation
Description: Microcontroller, 8-Bit, UVPROM, 8048 CPU, 0.8MHz, NMOS, CDIP40
REACH Compliant Yes
Status Discontinued
ADC Channels NO
Address Bus Width 0.0
Bit Size 8
Boundary Scan NO
Clock Frequency-Max 12.0 MHz
CPU Family 8048
DAC Channels NO
DMA Channels NO
External Data Bus Width 8.0
Format FIXED POINT
Integrated Cache NO
JESD-30 Code R-GDIP-T40
JESD-609 Code e0
Low Power Mode NO
Number of DMA Channels 0.0
Number of External Interrupts 0.0
Number of I/O Lines 16.0
Number of Serial I/Os 0.0
Number of Terminals 40
Number of Timers 1.0
On Chip Data RAM Width 8
On Chip Program ROM Width 8.0
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Code WDIP
Package Equivalence Code DIP40,.6
Package Shape RECTANGULAR
Package Style IN-LINE, WINDOW
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 5
PWM Channels NO
Qualification Status Not Qualified
RAM (bytes) 128.0
RAM (words) 128
ROM Programmability UVPROM
ROM (words) 2048
Seated Height-Max 5.72 mm
Speed 0.8 MHz
Sub Category Microcontrollers
Supply Current-Max 115.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount NO
Technology NMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 52.325 mm
Width 15.24 mm
Additional Feature ADDITIONAL SUPPLY VDD = 5V+/-10%
