(1 PC) D8228 INTEL Control/Command Signal Generator, CMOS, CDIP28
Tax included.

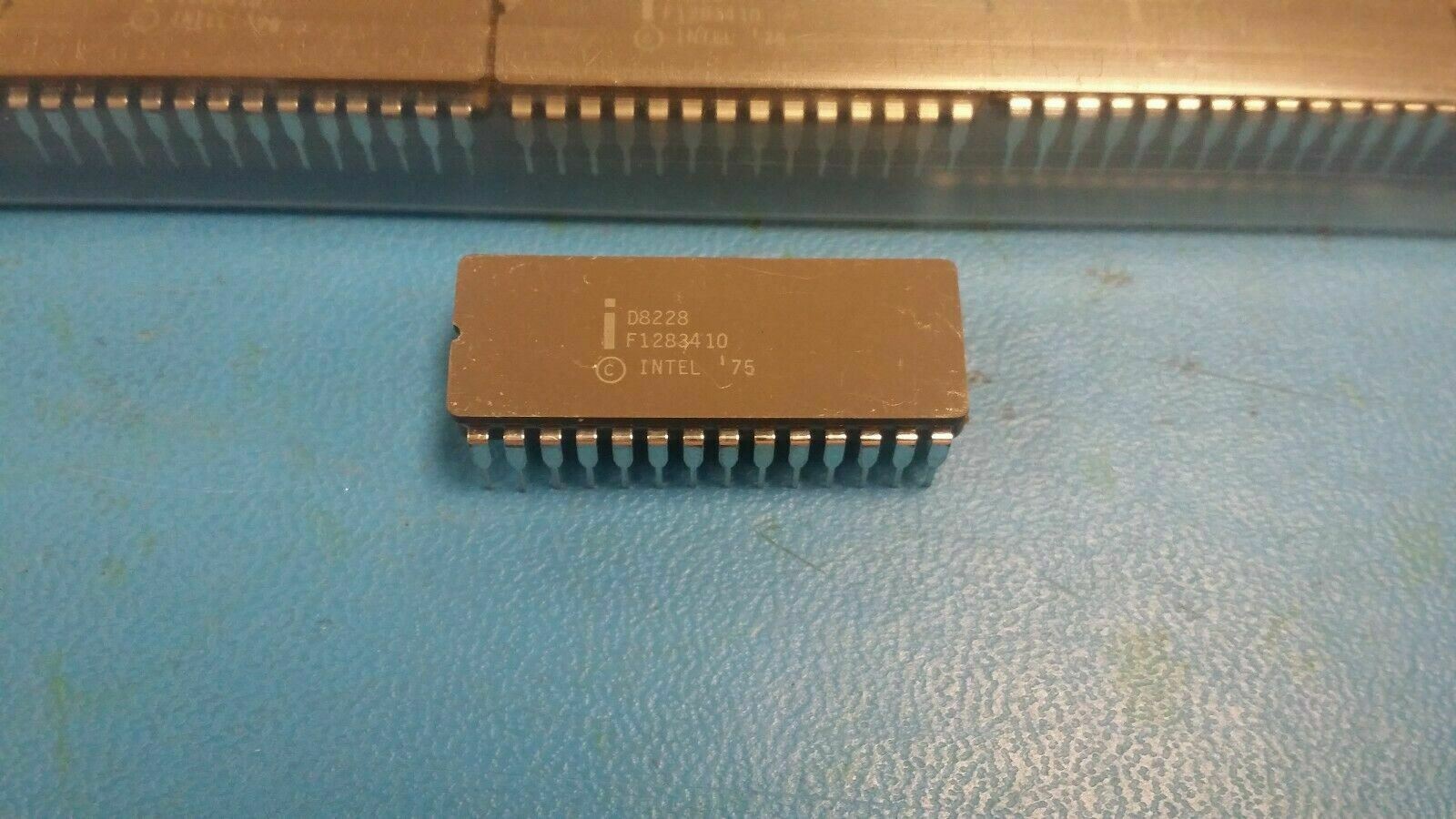

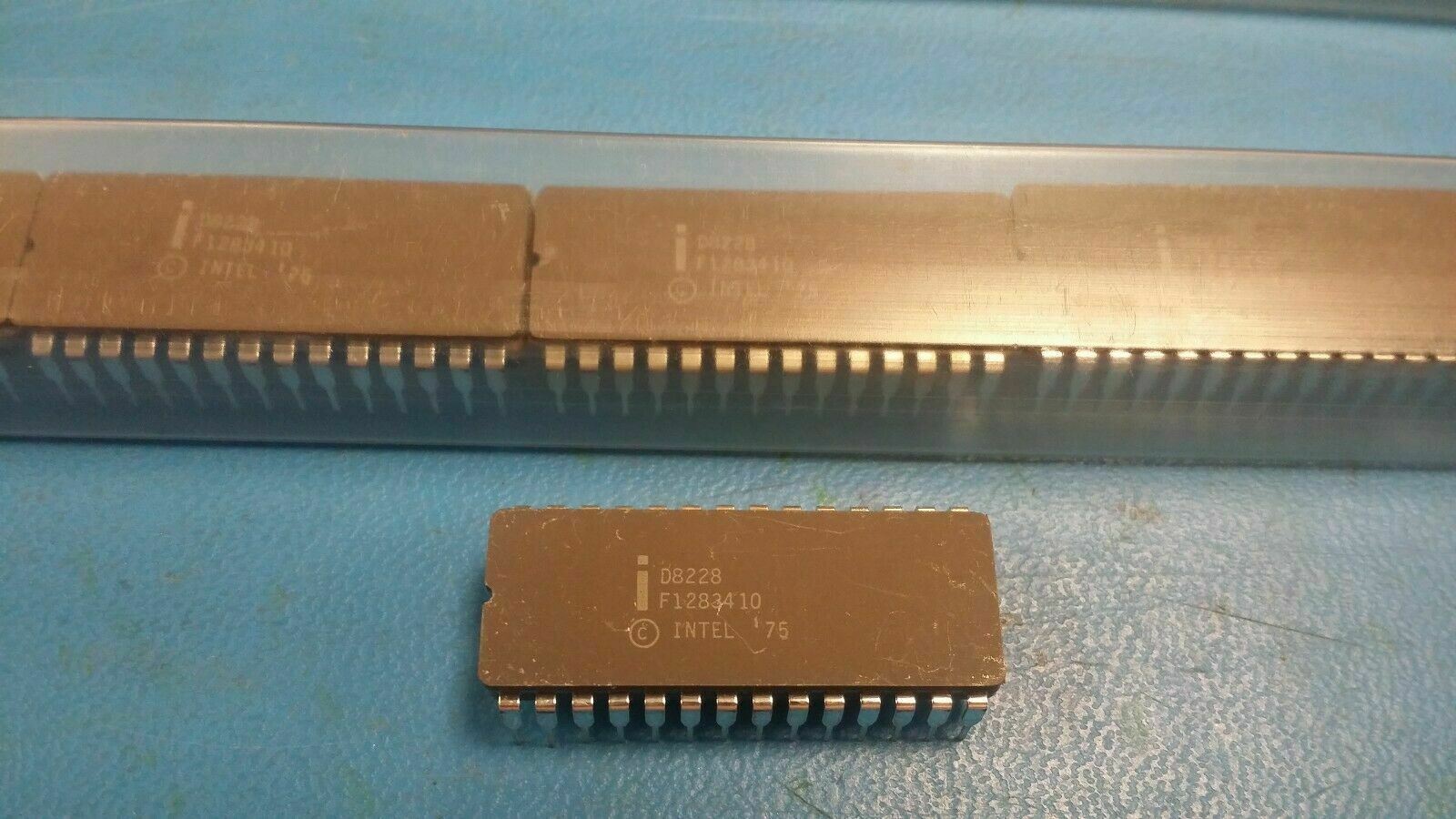

THIS LISTING IS FOR (1 PC) OF D8228 BY INTEL
Control/Command Signal Generator, CMOS, CDIP28
Part #: D8228
Part Category: Microprocessors/Microcontrollers/Peripheral ICs
Manufacturer: Intel Corporation
Description: Control/Command Signal Generator, CMOS, CDIP28
Manufacturer: Intel Corporation
Description: Control/Command Signal Generator, CMOS, CDIP28
| Mfr Package Description | DIP-28 |
| Status | Discontinued |
| Bus Compatibility | 8080A |
| JESD-30 Code | R-GDIP-T28 |
| JESD-609 Code | e0 |
| Number of Terminals | 28 |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 70.0 Cel |
| Package Body Material | CERAMIC, GLASS-SEALED |
| Package Code | DIP |
| Package Equivalence Code | DIP28,.6 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Power Supplies | 5 |
| Qualification Status | Not Qualified |
| Seated Height-Max | 5.72 mm |
| Sub Category | Other Microprocessor ICs |
| Supply Current-Max | 190.0 mA |
| Supply Voltage-Nom | 5.0 V |
| Supply Voltage-Min | 4.75 V |
| Supply Voltage-Max | 5.25 V |
| Surface Mount | NO |
| Technology | CMOS |
| Temperature Grade | COMMERCIAL |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | THROUGH-HOLE |
| Terminal Pitch | 2.54 mm |
| Terminal Position | DUAL |
