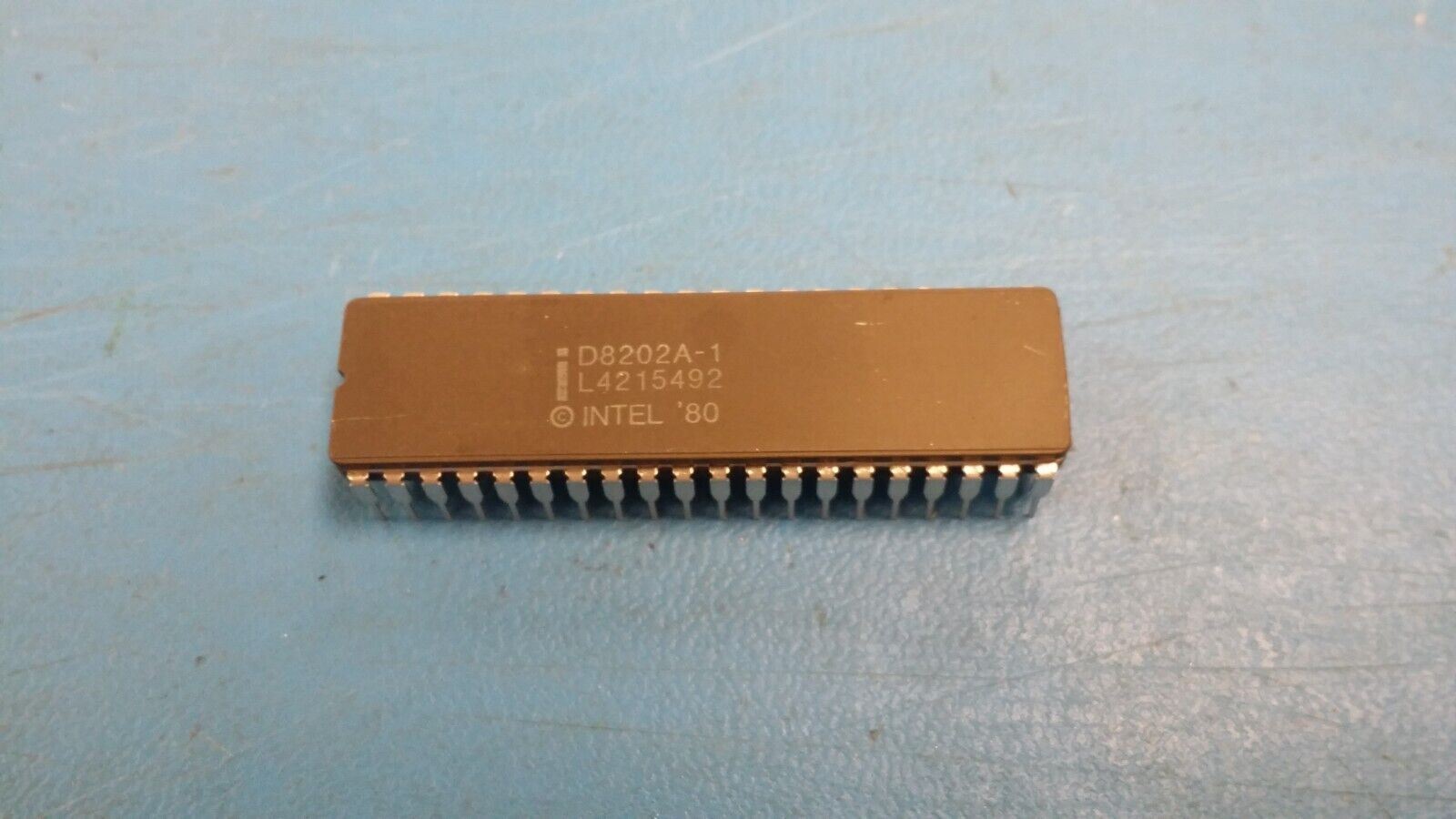

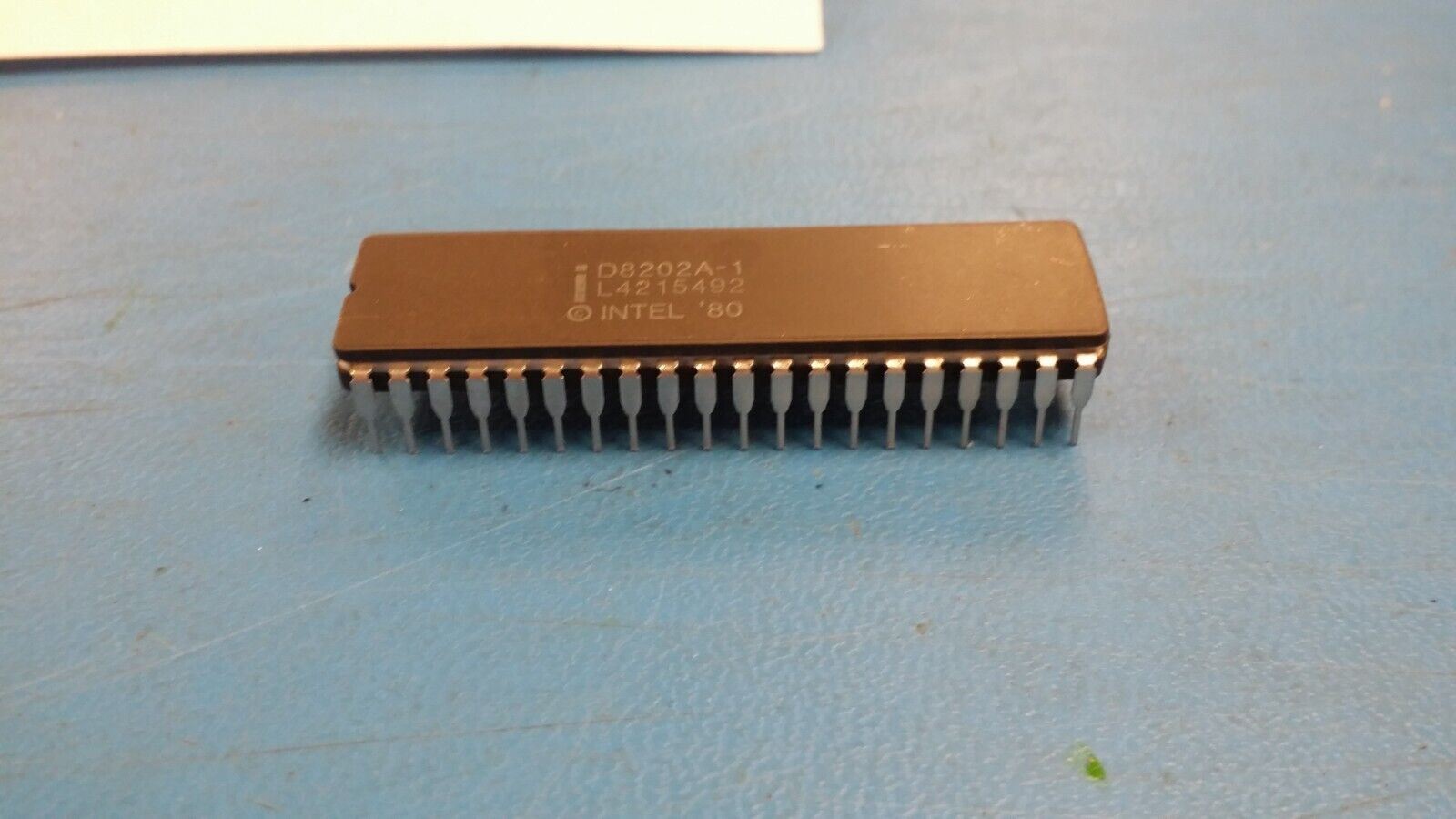

(1 PC) D8202A-1 INTEL DRAM Controller, CMOS, CDIP40 VINTAGE
Tax included.
THIS IS FOR (1 PC) OF D8202A-1 BY INTEL
DRAM Controller, CMOS, CDIP40 VINTAGE
Status Discontinued
Address Bus Width 14.0
Boundary Scan NO
Bus Compatibility 8080A; 8085A; IPAX88; IPAX86 FAMILY
External Data Bus Width 0.0
JESD-30 Code R-GDIP-T40
JESD-609 Code e0
Low Power Mode NO
Number of Banks 4.0
Number of Terminals 40
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Package Body Material CERAMIC, GLASS-SEALED
Package Code WDIP
Package Equivalence Code DIP40,.6
Package Shape RECTANGULAR
Package Style IN-LINE, WINDOW
Peak Reflow Temperature (Cel) NOT SPECIFIED
Power Supplies 5
Qualification Status Not Qualified
Seated Height-Max 5.72 mm
Sub Category Memory Controllers
Supply Current-Max 270.0 mA
Supply Voltage-Nom 5.0 V
Supply Voltage-Min 4.5 V
Supply Voltage-Max 5.5 V
Surface Mount NO
Technology CMOS
Temperature Grade COMMERCIAL
Terminal Finish Tin/Lead (Sn/Pb)
Terminal Form THROUGH-HOLE
Terminal Pitch 2.54 mm
Terminal Position DUAL
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Length 52.325 mm
Width 15.24 mm
