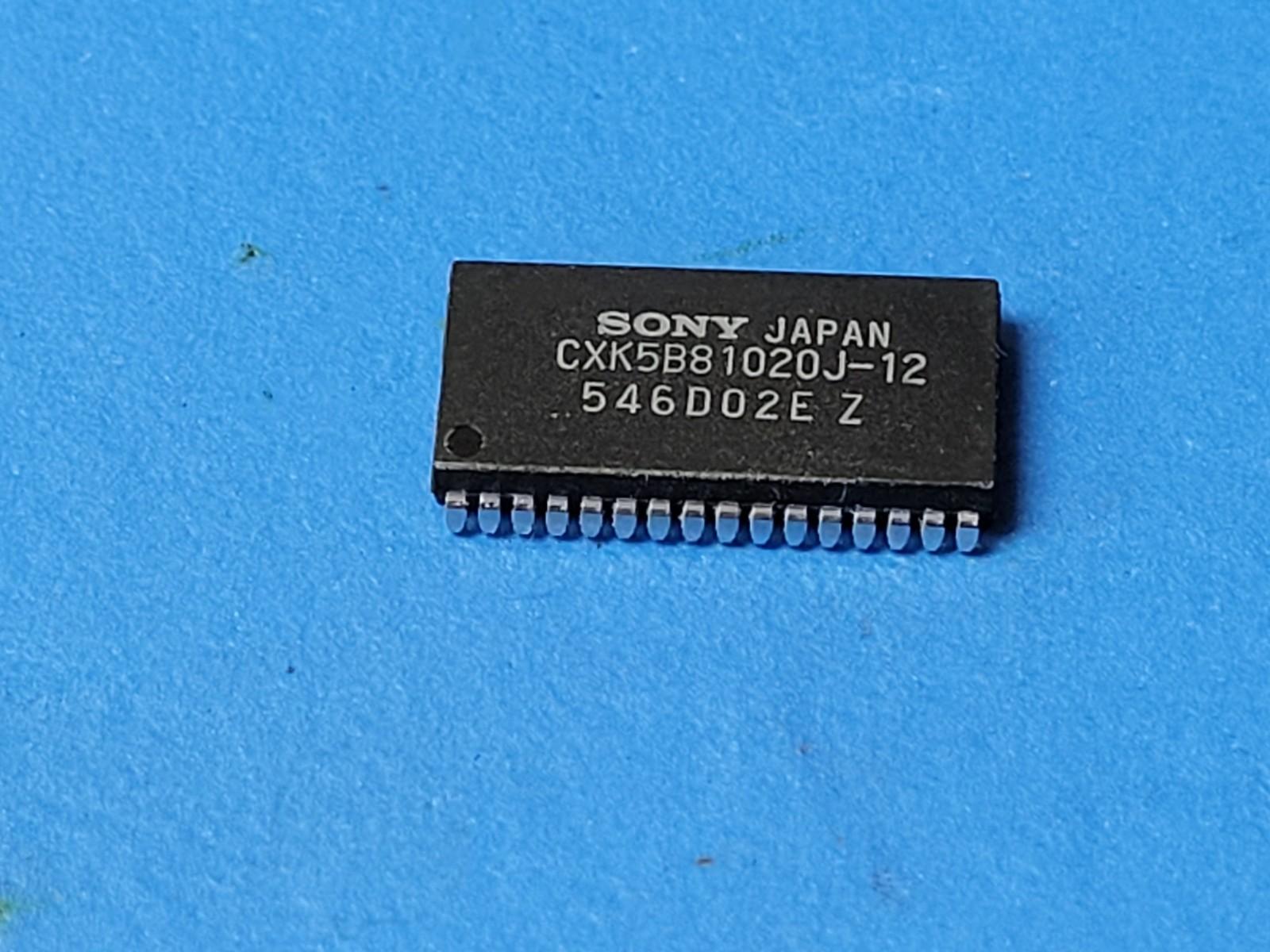

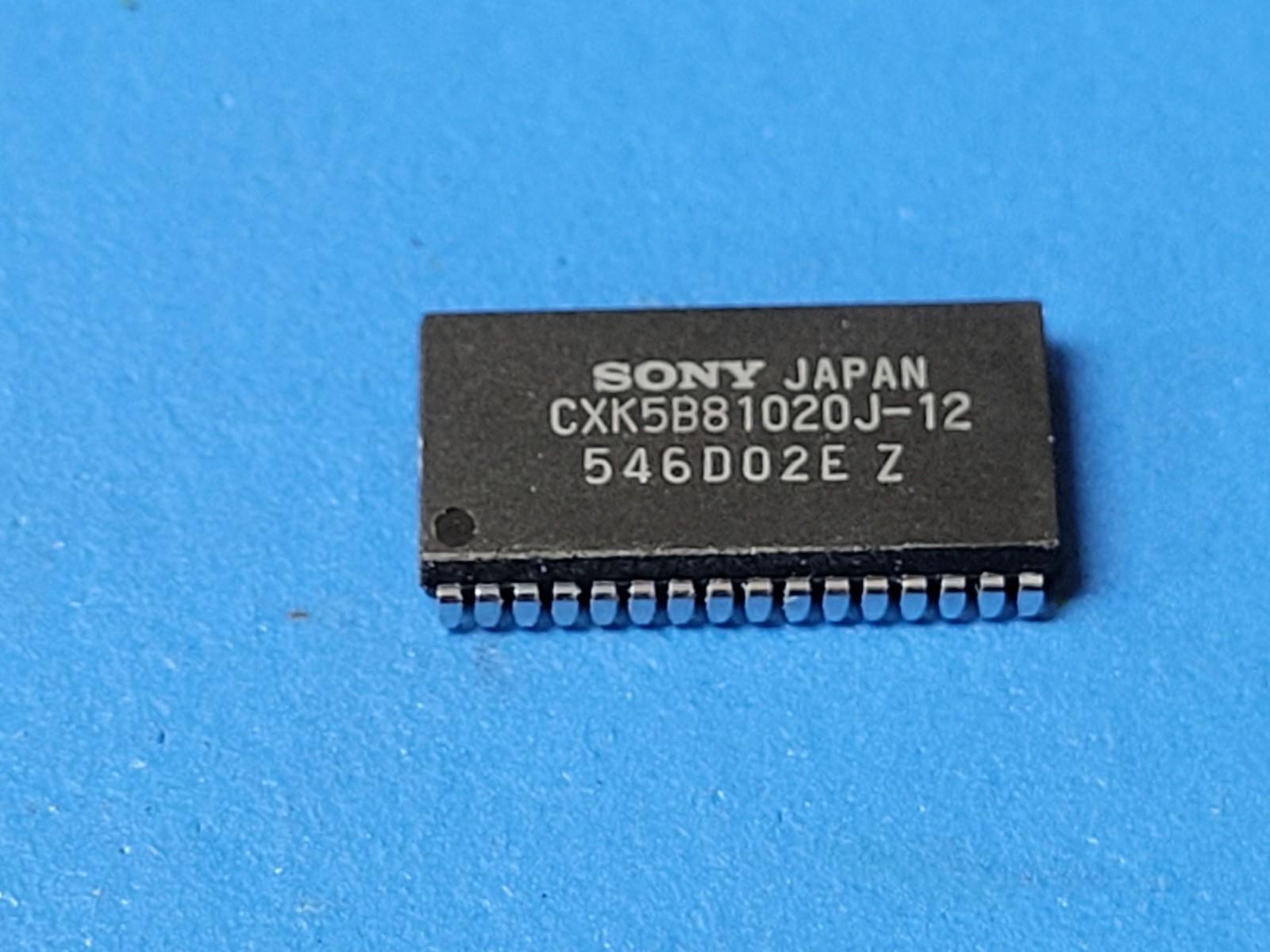

(1 PC) CXK5B81020J-12 SONY Standard SRAM, 128KX8, 12ns, BICMOS, SOJ32
Tax included.
THIS IS FOR (1 PC) OF CXK5B81020J-12 BY SONY
Standard SRAM, 128KX8, 12ns, BICMOS, SOJ32
Part #: CXK5B81020J-12
Obsolete
Part Category: SRAMs
Manufacturer: SONY CORP
Description: Standard SRAM, 128KX8, 12ns, BICMOS, PDSO32
Number of Functions 1
Number of Terminals 32
Number of Words (words) 131072.0000000000000000
Number of Words Code 128K
Operating Mode ASYNCHRONOUS
Operating Temperature-Max (Cel) 70.0
Operating Temperature-Min (Cel) 0.0
Memory Organization 128KX8
Output Characteristics 3-STATE
Package Body Material PLASTIC/EPOXY
Package Code SOJ
Package Equivalence Code SOJ32,.44
Package Shape RECTANGULAR
Package Style SMALL OUTLINE
Parallel/Serial PARALLEL
DLA Qualification Not Qualified
Seated Height-Max (mm) 3.7500
Standby Current-Max (A) 0.010000000000000
Standby Voltage-Min (V) 3.000000
Supply Current-Max (mA) 240.000000000000000
Supply Voltage-Max (V) 3.60000
Supply Voltage-Min (V) 3.00000
Supply Voltage-Nom (V) 3.3
Surface Mount YES
Technology BICMOS
Temperature Grade COMMERCIAL
Terminal Finish TIN LEAD
Terminal Form J BEND
Terminal Pitch (mm) 1.270
Terminal Position DUAL
Width (mm) 10.1600
